AMP Sound Signal Circuit (Radio Receiver Assy - AMP)

AMP SOUND SIGNAL CIRCUIT (RADIO RECEIVER ASSEMBLY - AMP)

CIRCUIT DESCRIPTION

The radio receiver assembly sends a sound signal to the stereo component amplifier assembly through this circuit. The sound signal that has been sent is amplified by the stereo component amplifier assembly, and then is sent to the speaker. If there is an open or short in the circuit, sound can not be heard from the speaker even if there is no malfunction in the stereo component amplifier assembly or speaker.

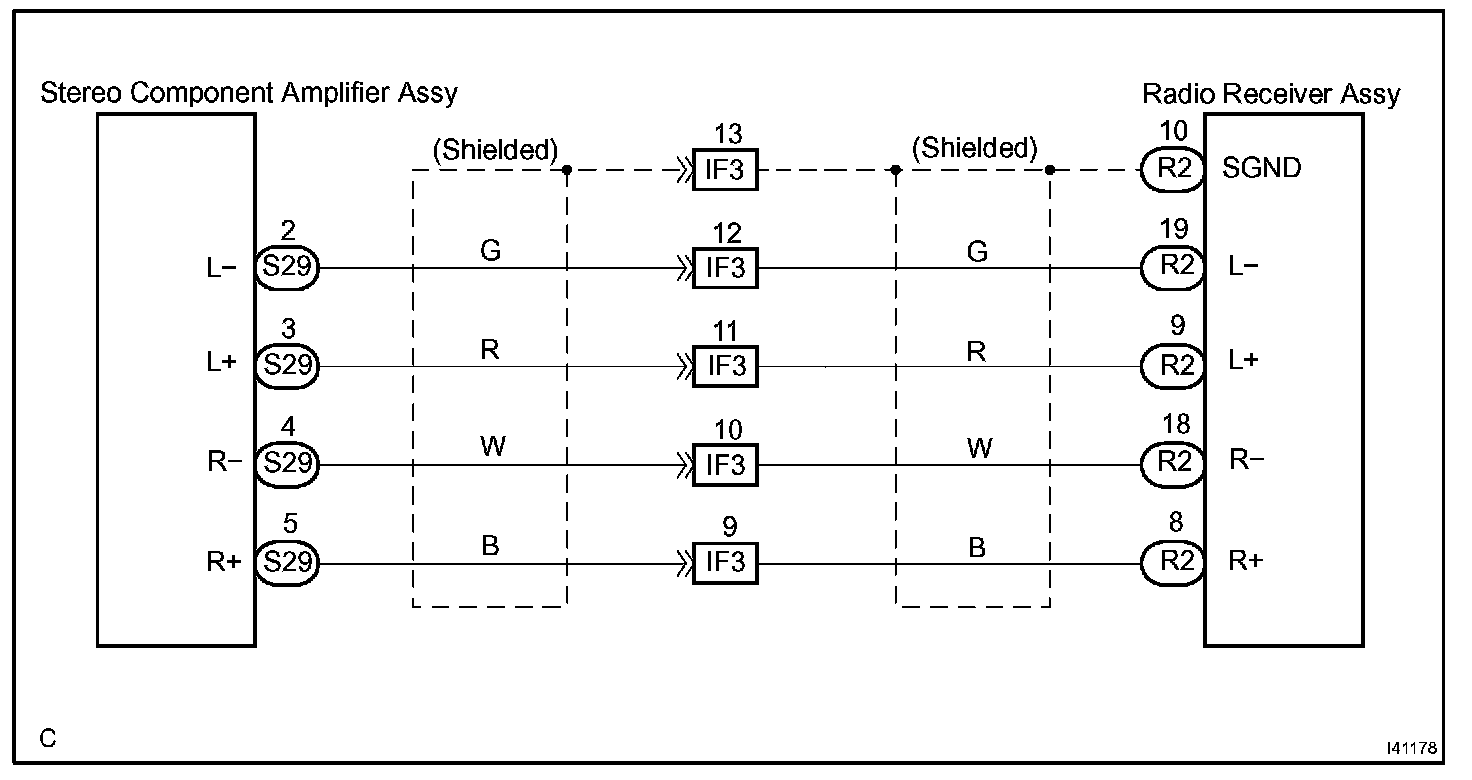

Wiring Diagram:

Step 1:

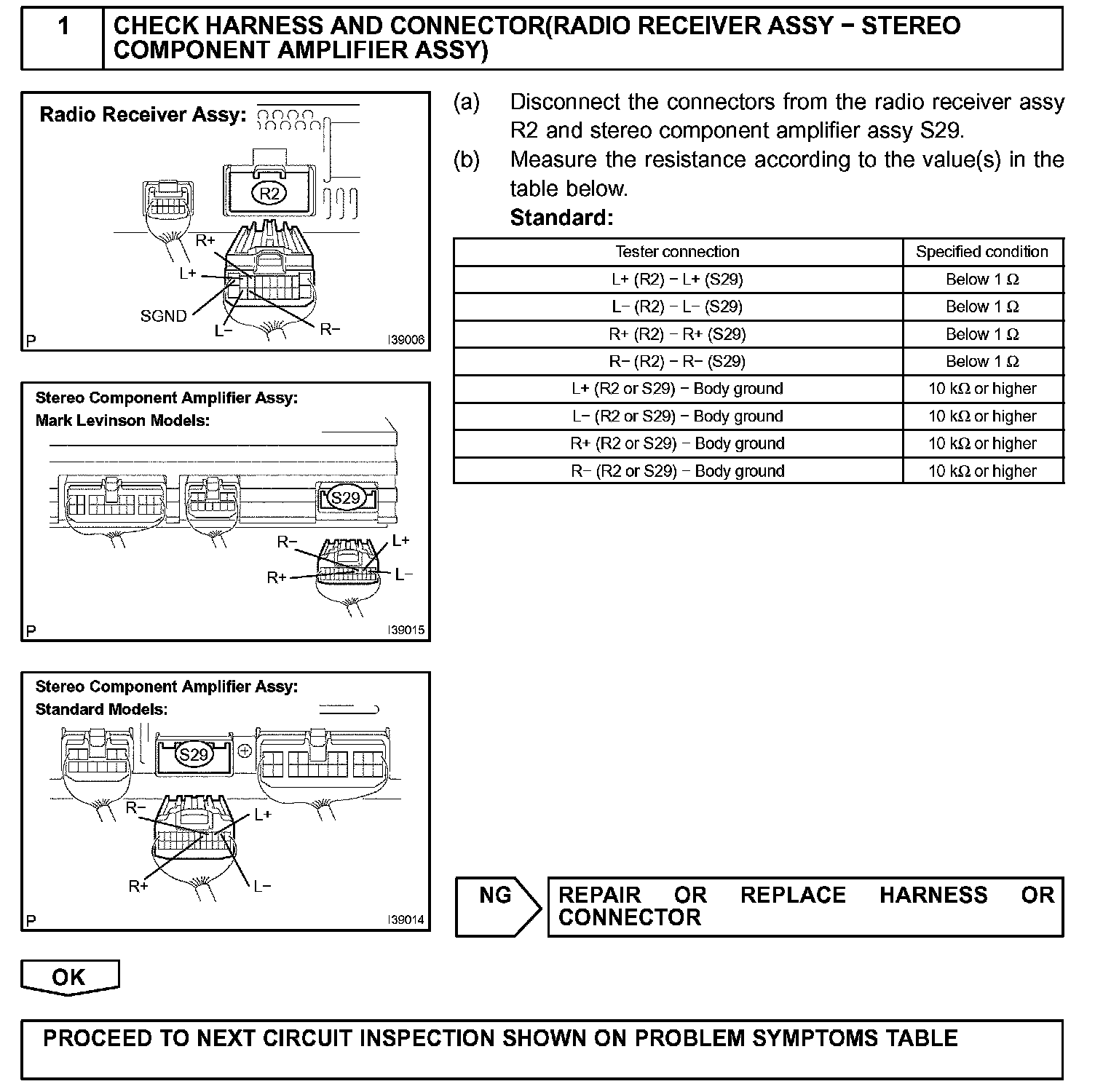

INSPECTION PROCEDURE
