Amplifier: Service and Repair

Audio Visual System Part 1:

STEREO COMPONENT AMPLIFIER ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE DECK TRIM SIDE BOARD RH
3. REMOVE REAR FLOOR FINISH PLATE
4. SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
6. REMOVE TELEVISION CAMERA ECU (W/ TELEVISION CAMERA)




7. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY W/BRACKET

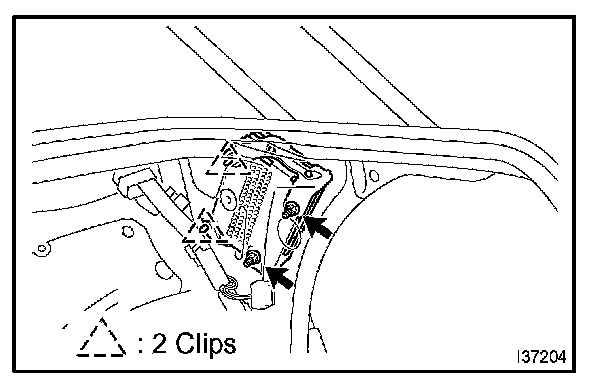

a. Disconnect the connector.
b. Remove the 2 nuts.
c. Disengage the 2 clips and remove the stereo component amplifier assembly with bracket.




8. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

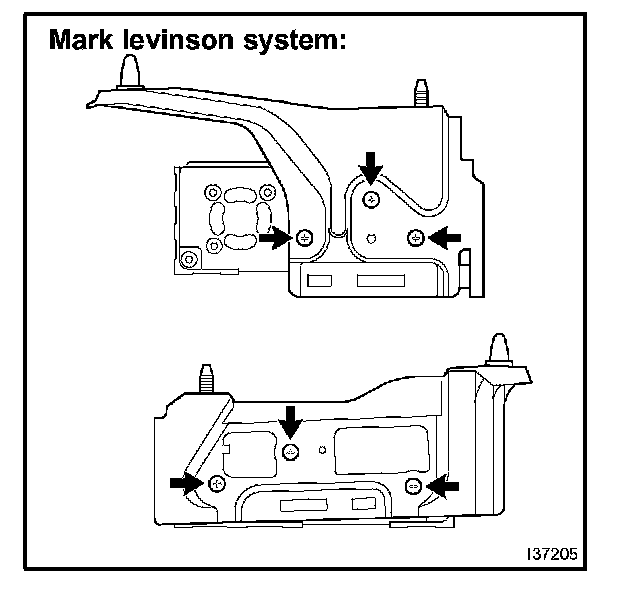

a. Mark Levinson system:
Remove the 6 screws and 2 brackets.

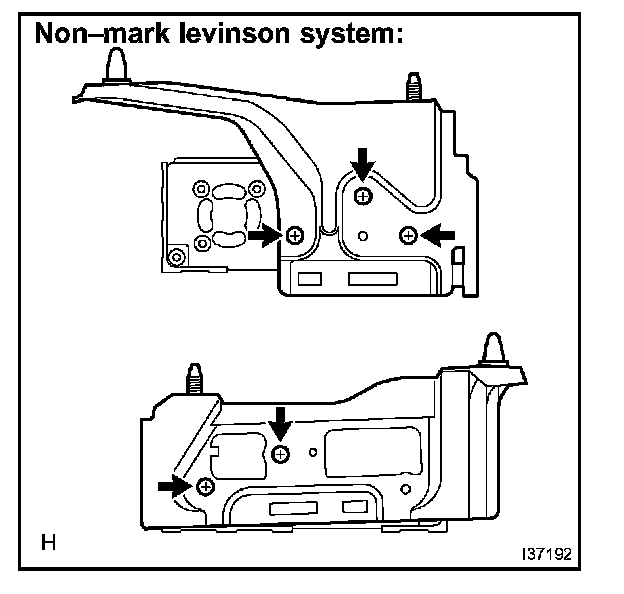

b. Non-Mark Levinson system:
Remove the 5 screws and 2 brackets.
