Display Signal Circuit (Television Camera ECU-Multi Display)

DISPLAY SIGNAL CIRCUIT (TELEVISION CAMERA ECU-MULTI DISPLAY)

CIRCUIT DESCRIPTION

This is the display signal circuit from the television camera ECU to the multi display.

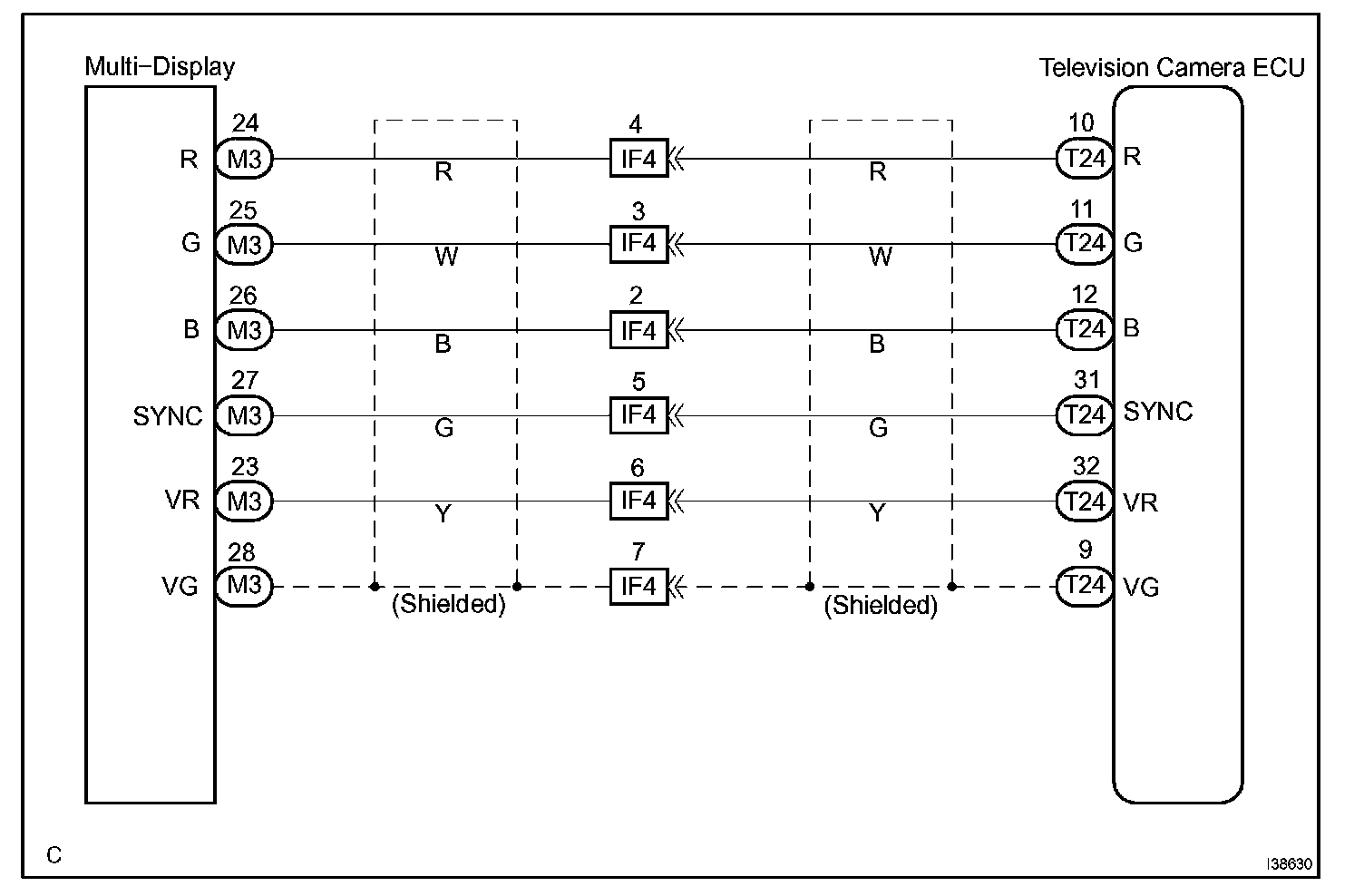

Wiring Diagram:

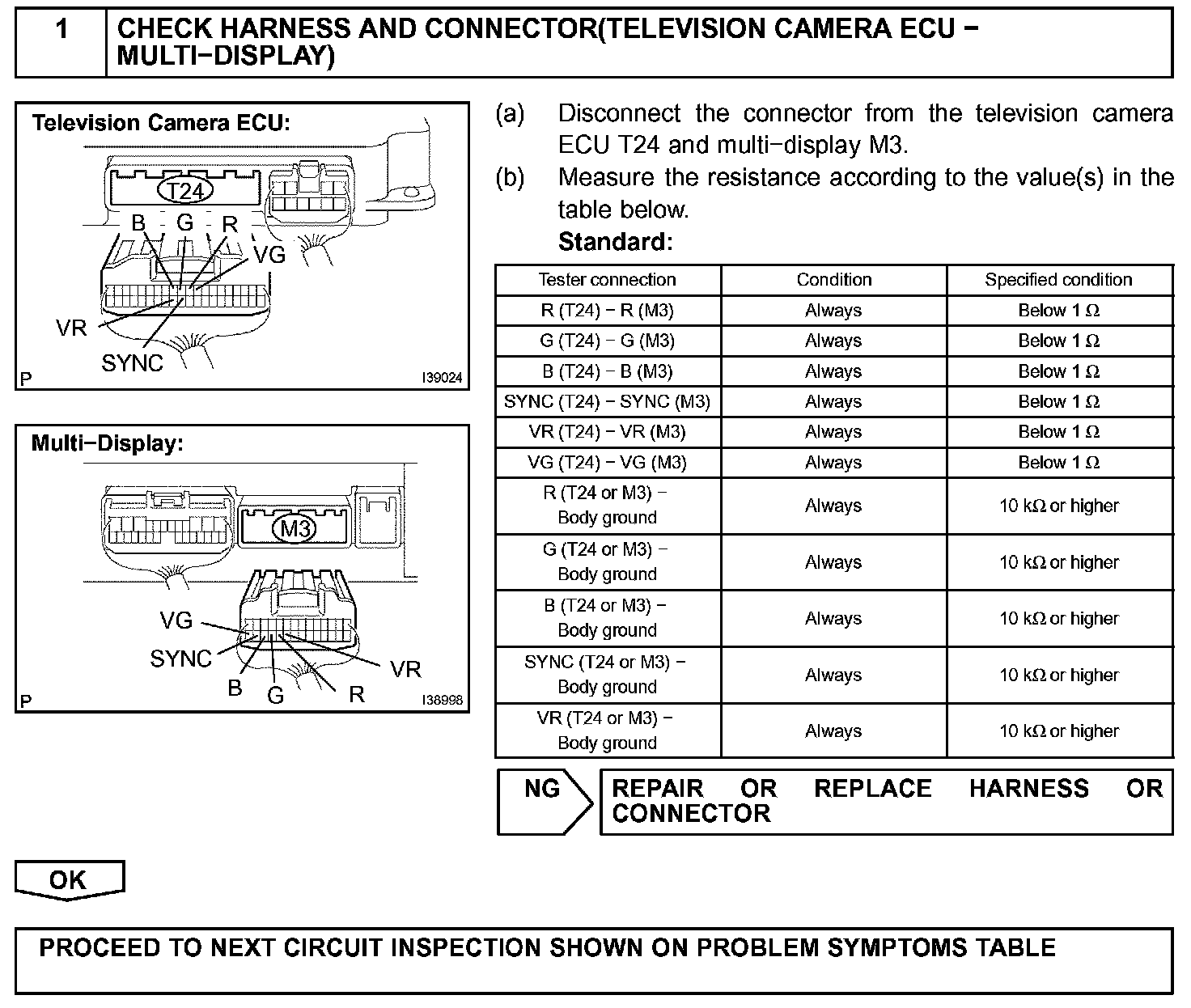

Step 1:




INSPECTION PROCEDURE
