Pinout Values and Diagnostic Parameters

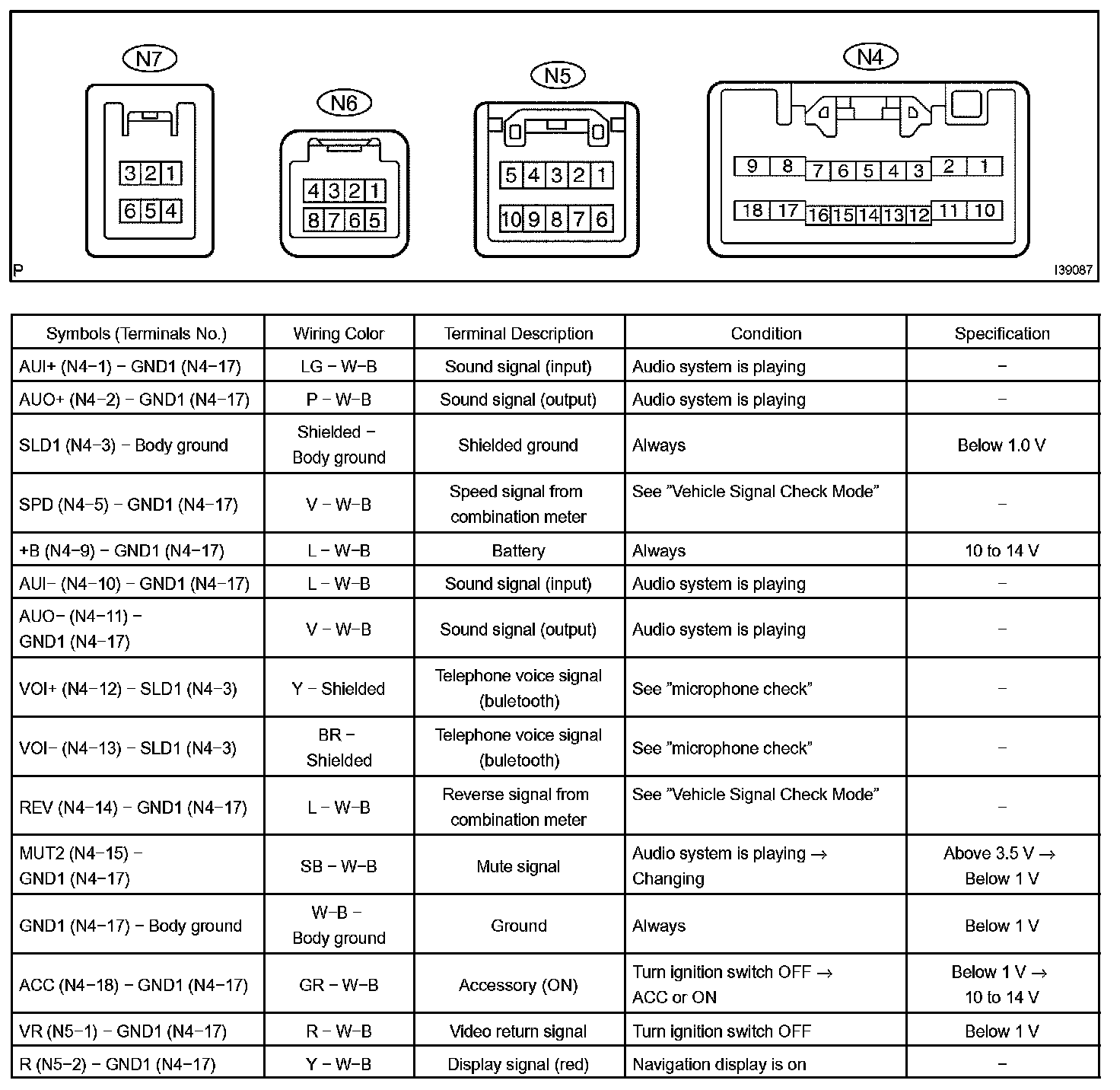

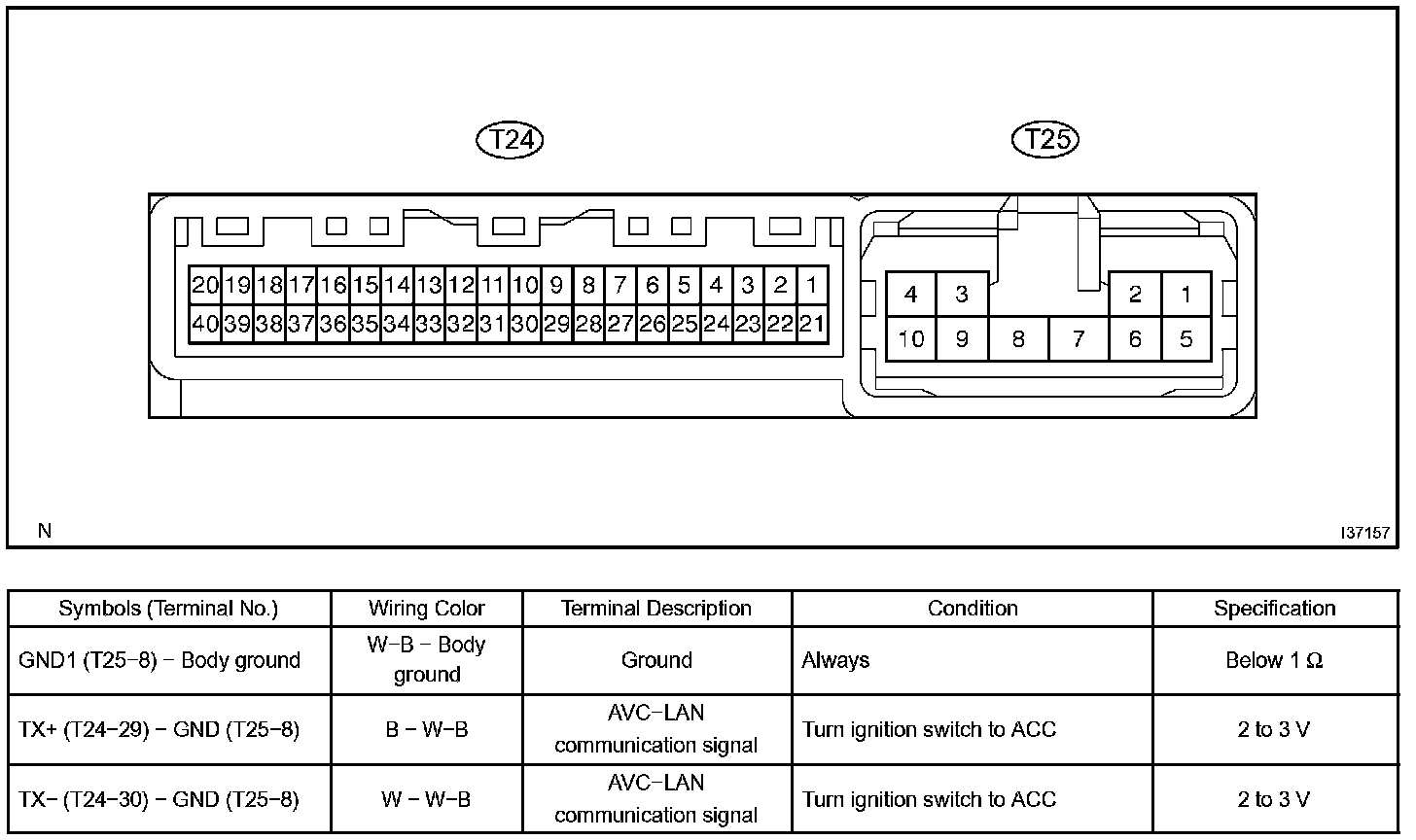

Terminals Of Control Module/Pinouts-Multi-Display Assy (Part 1):

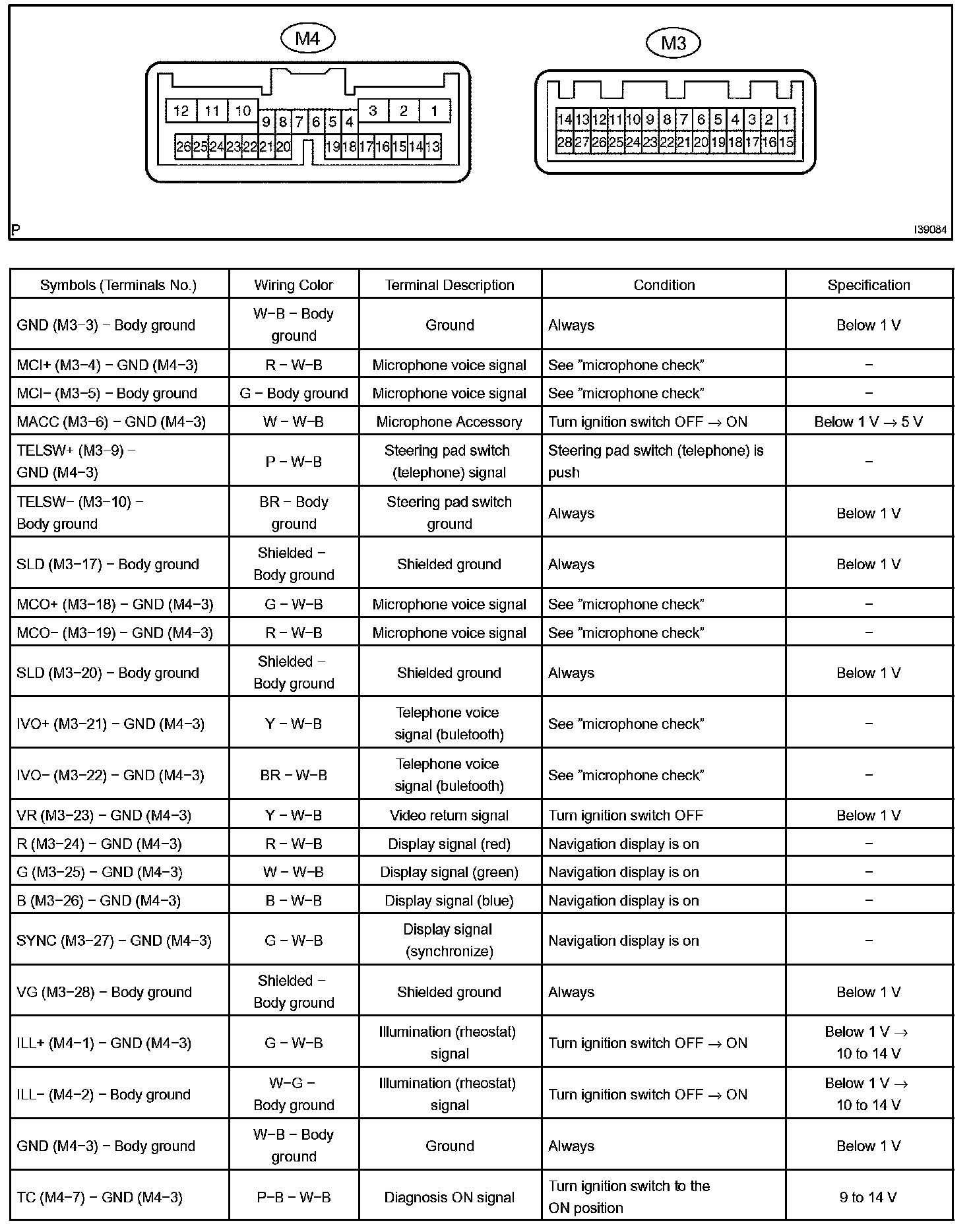

Terminals Of Control Module/Pinouts-Multi-Display Assy (Part 2):

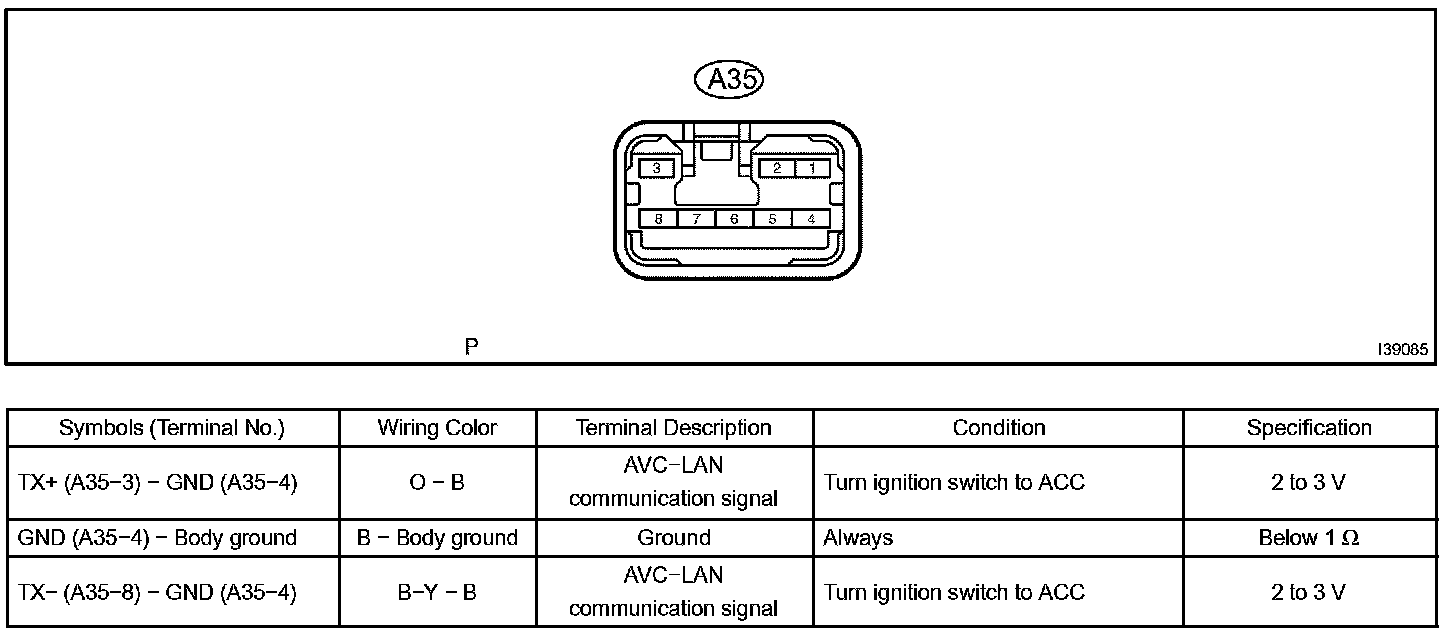

Terminals Of Control Module/Pinouts-Navigation ECU (Part 1):

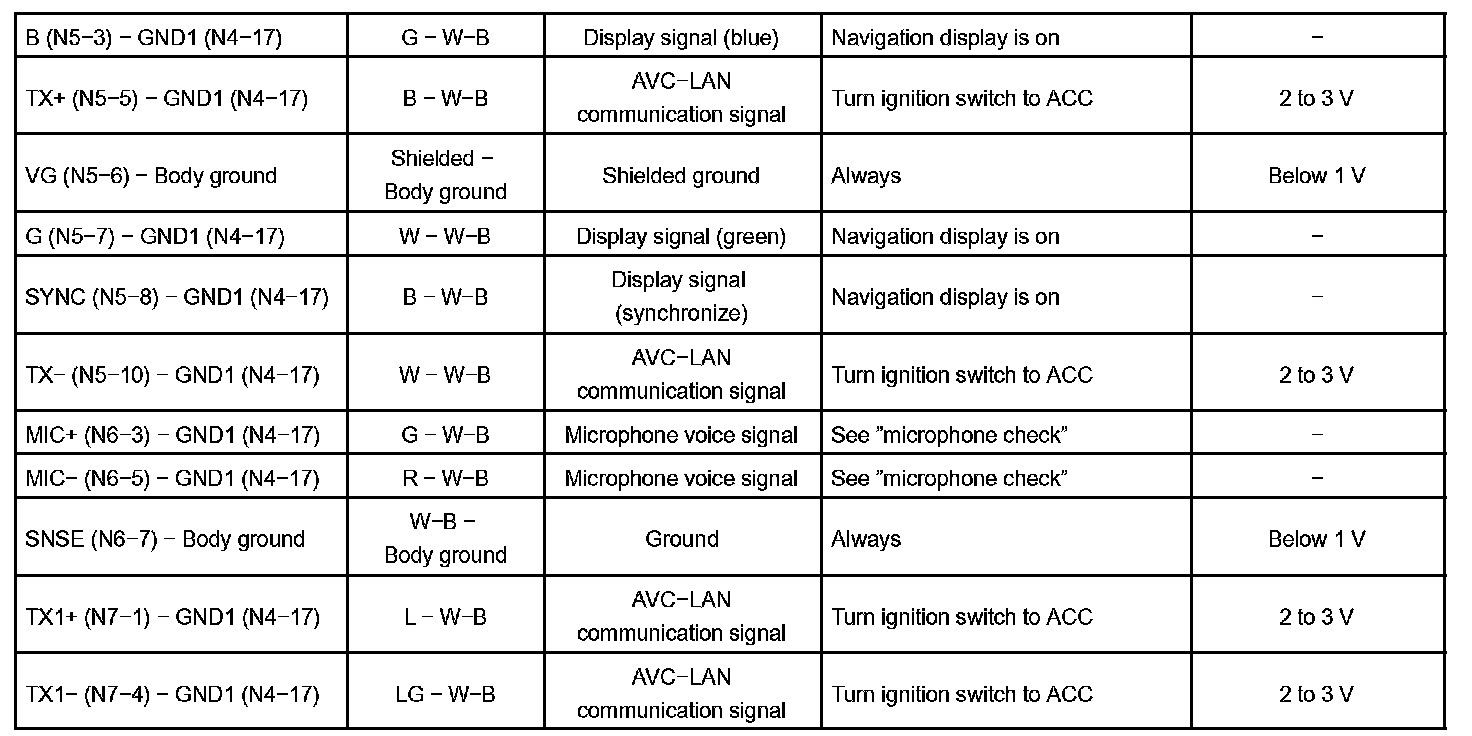

Terminals Of Control Module/Pinouts-Navigation ECU (Part 2):

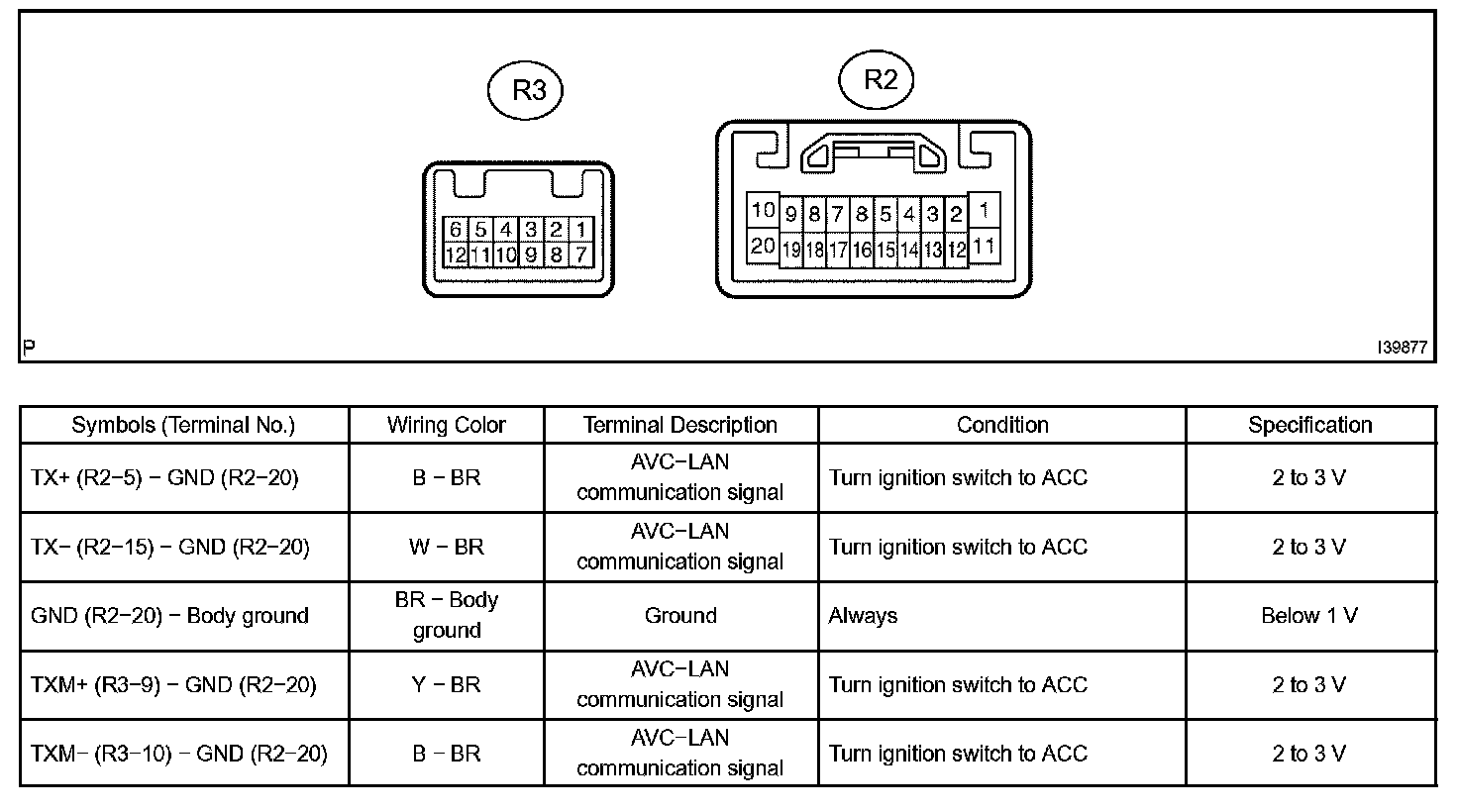

Terminals Of Control Module/Pinouts-Radio Receiver Assy:

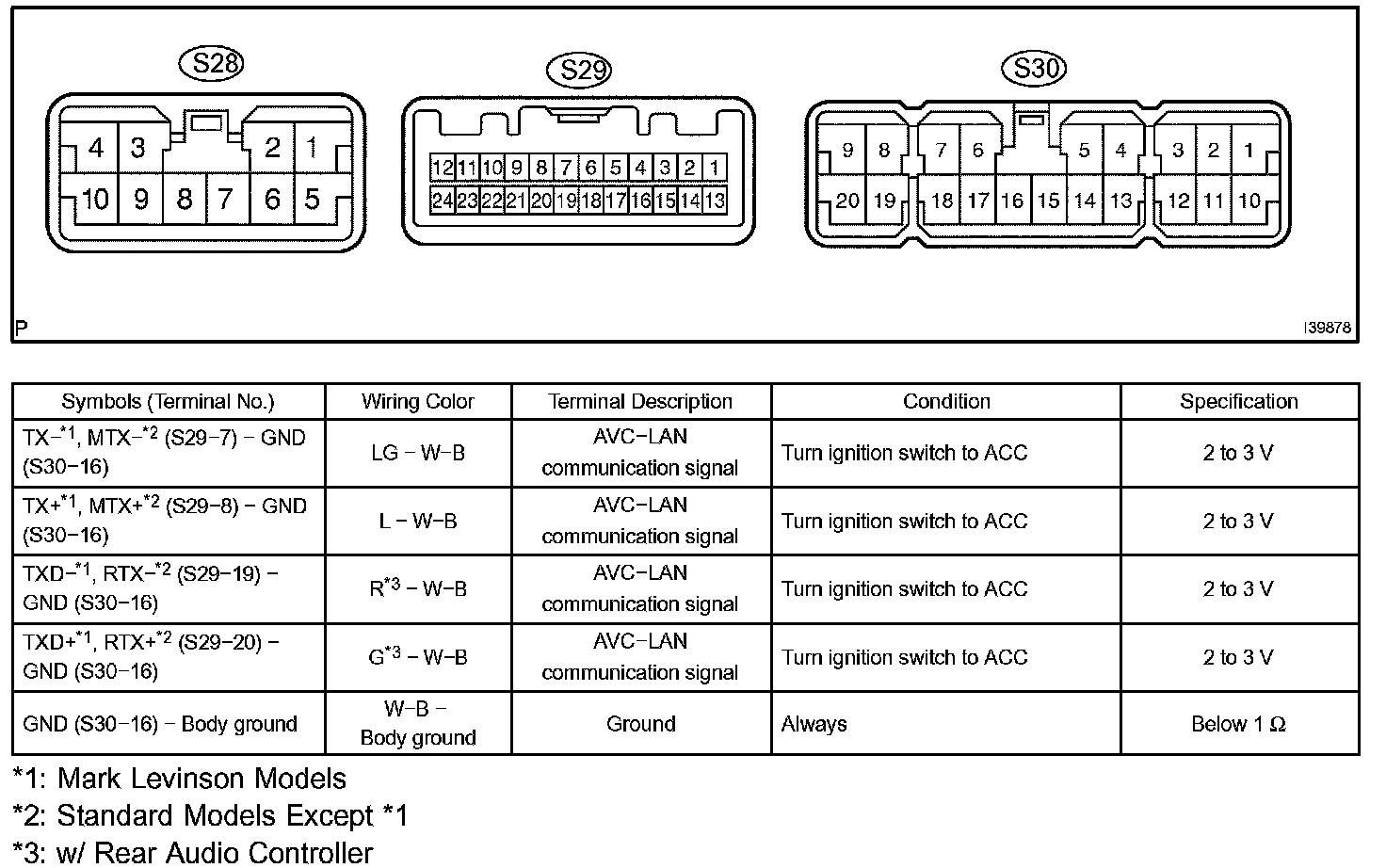

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy:

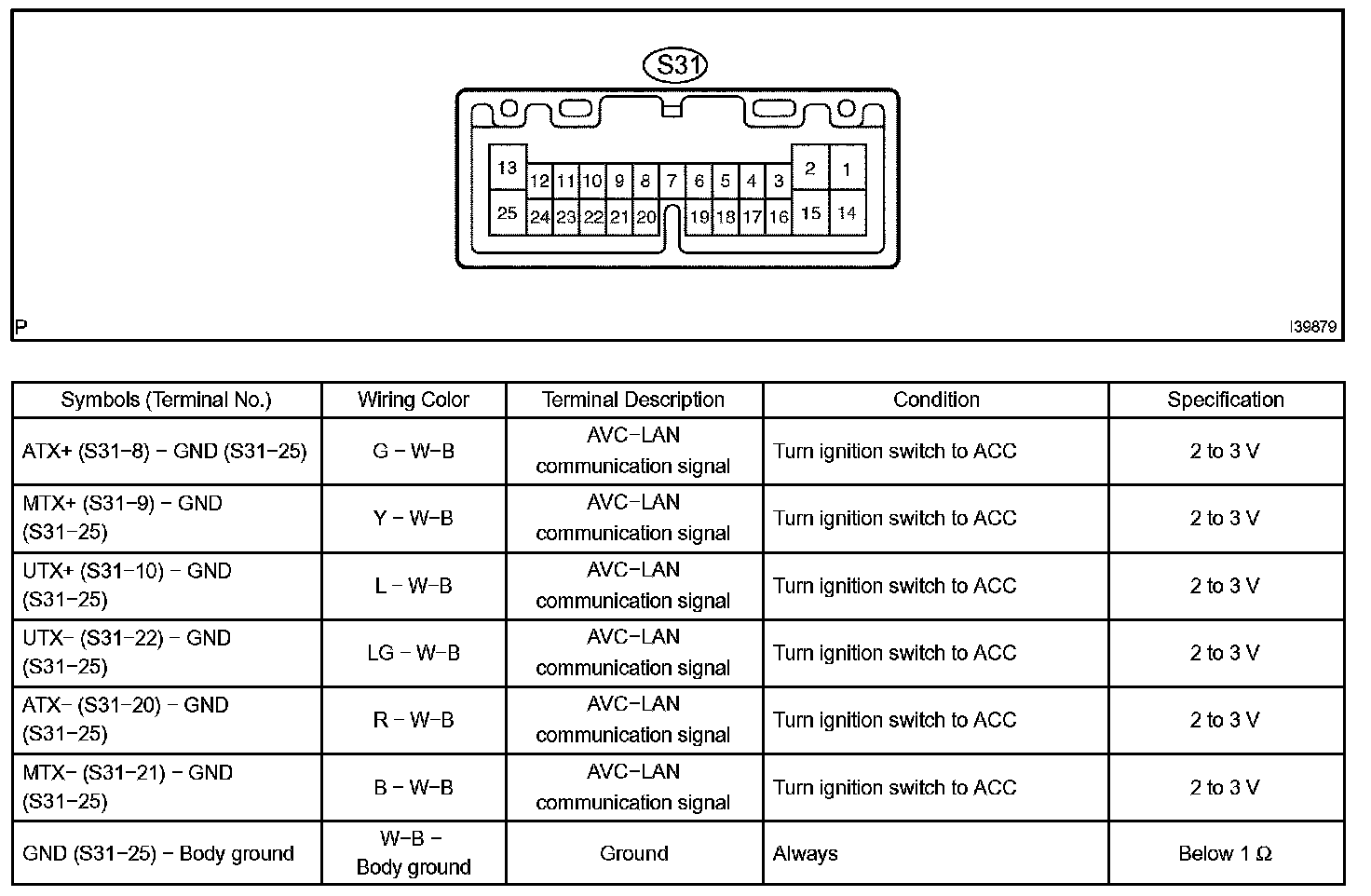

Terminals Of Control Module/Pinouts-Stereo Component Tuner:

Terminals Of Control Module/Pinouts-Audio And Rear A/C Control SW:

Terminals Of Control Module/Pinouts-Television Camera ECU:

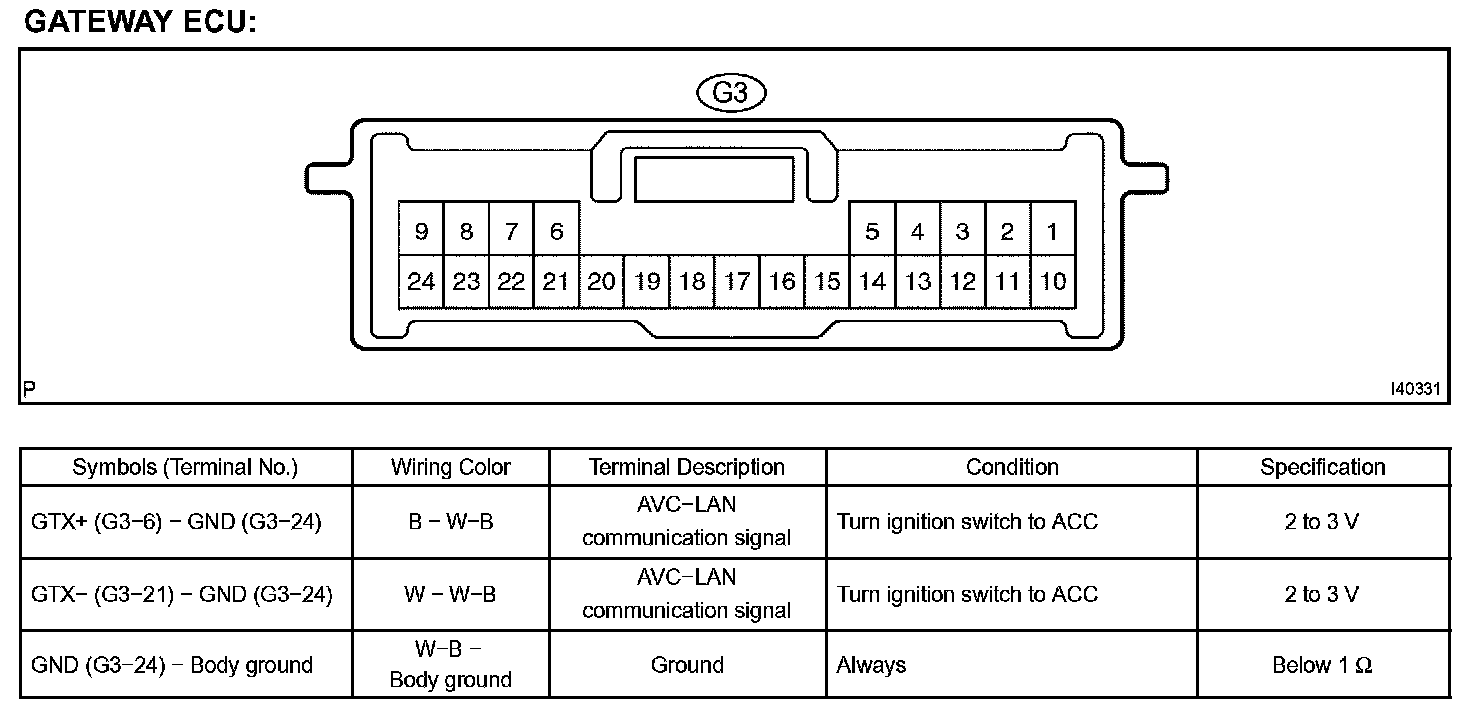

Terminals Of Control Module/Pinouts-Gateway ECU:
