Speed Signal Circuit (Navigation ECU-Combination Meter Assy)

SPEED SIGNAL CIRCUIT (NAVIGATION ECU-COMBINATION METER ASSEMBLY)

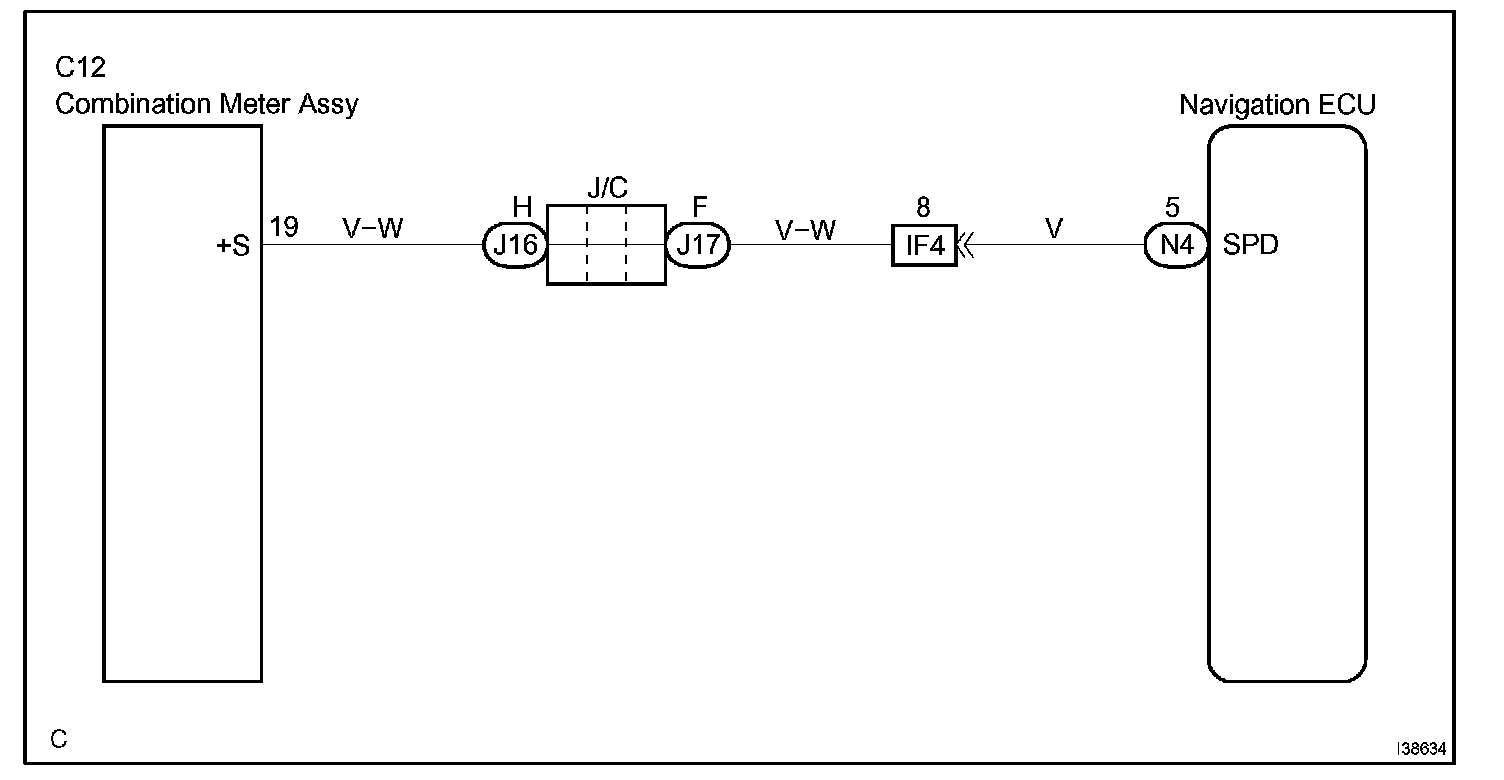

CIRCUIT DESCRIPTION

The navigation ECU receives the vehicle speed signal and information about the GPS antenna, and then adjusts the vehicle position.
