Speed Signal Circuit (Multi Display-Combination Meter Assy

SPEED SIGNAL CIRCUIT (MULTI DISPLAY-COMBINATION METER ASSEMBLY

CIRCUIT DESCRIPTION

The multi display performs the switch operation control during running by receiving the vehicle speed signal from the combination meter assembly.

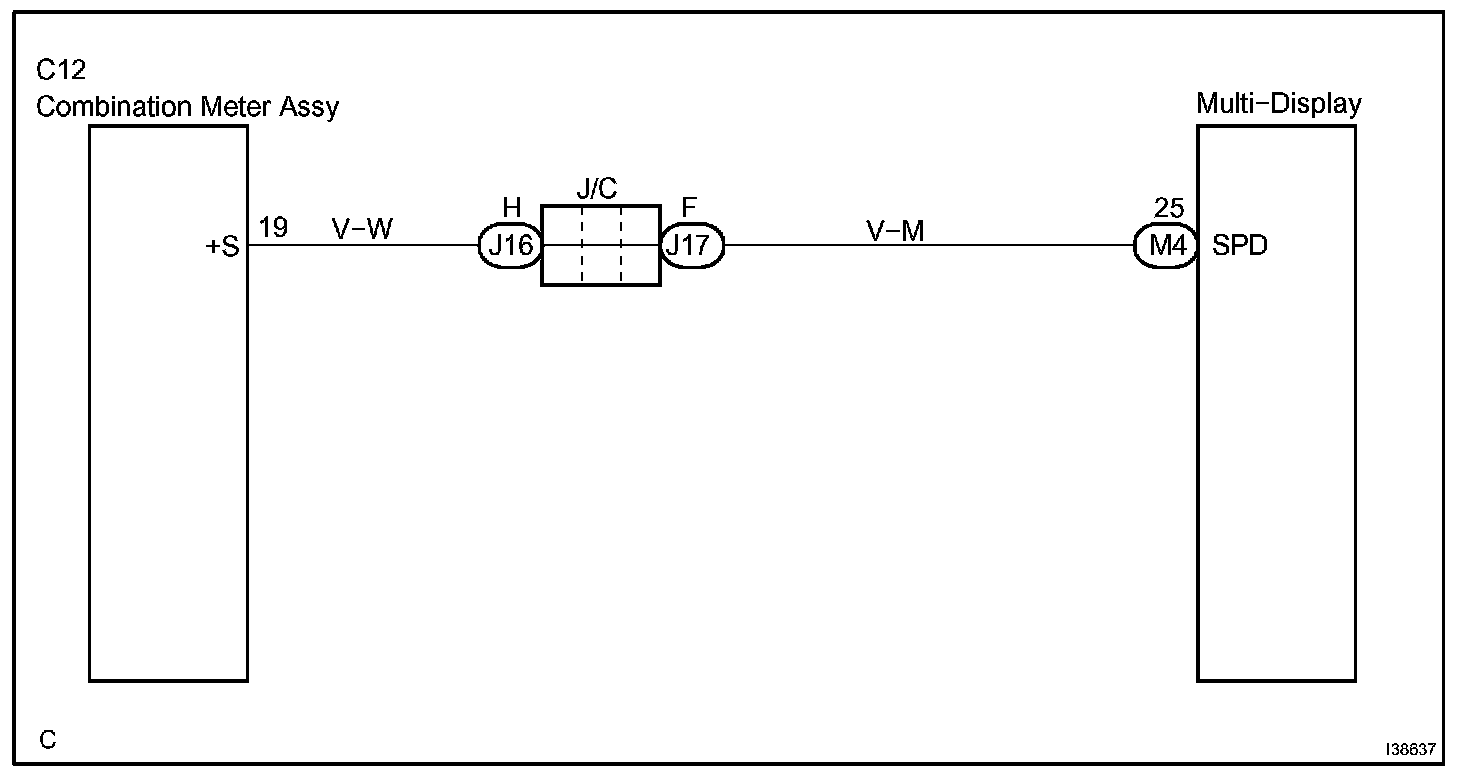

Wiring Diagram:

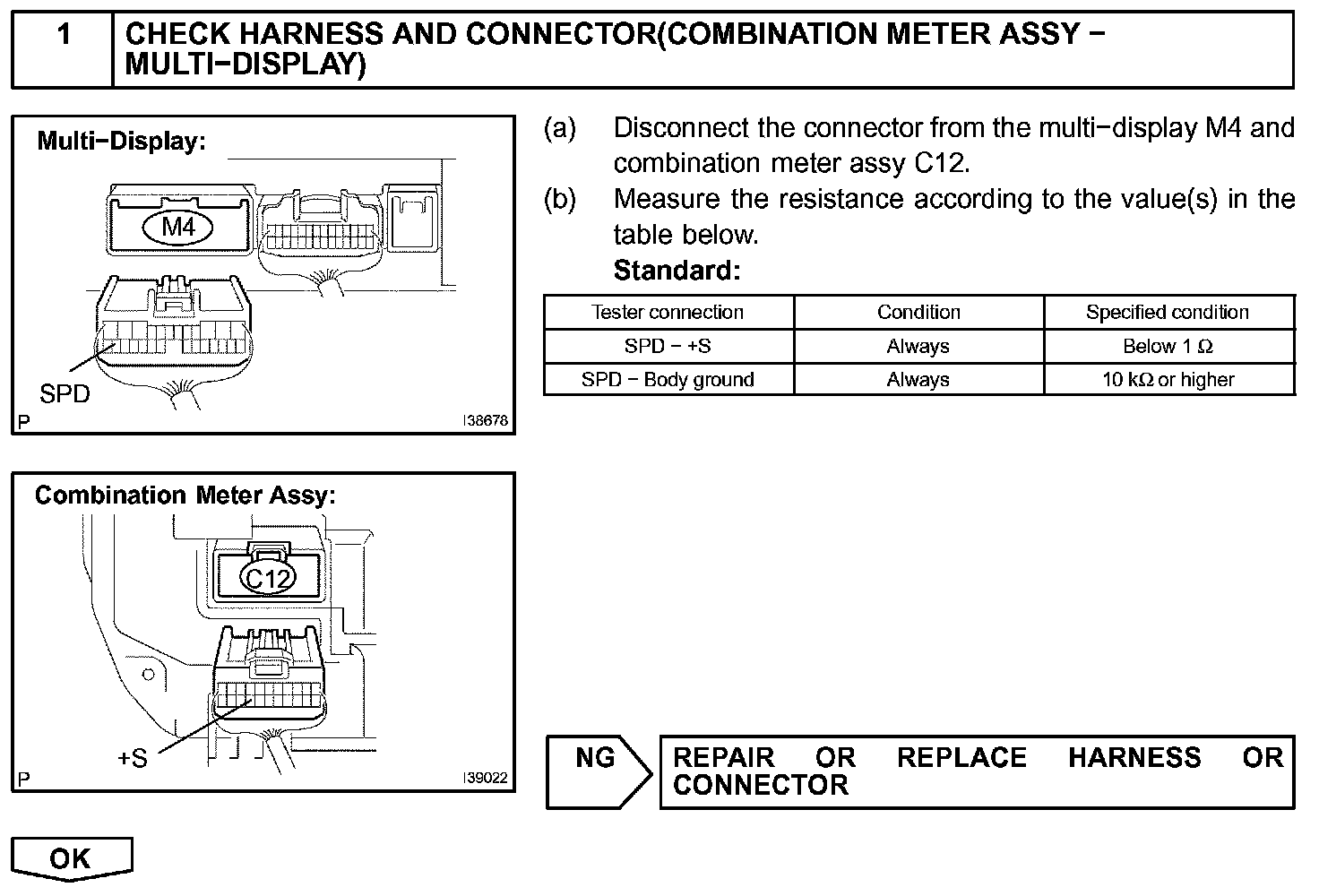

Step 1:

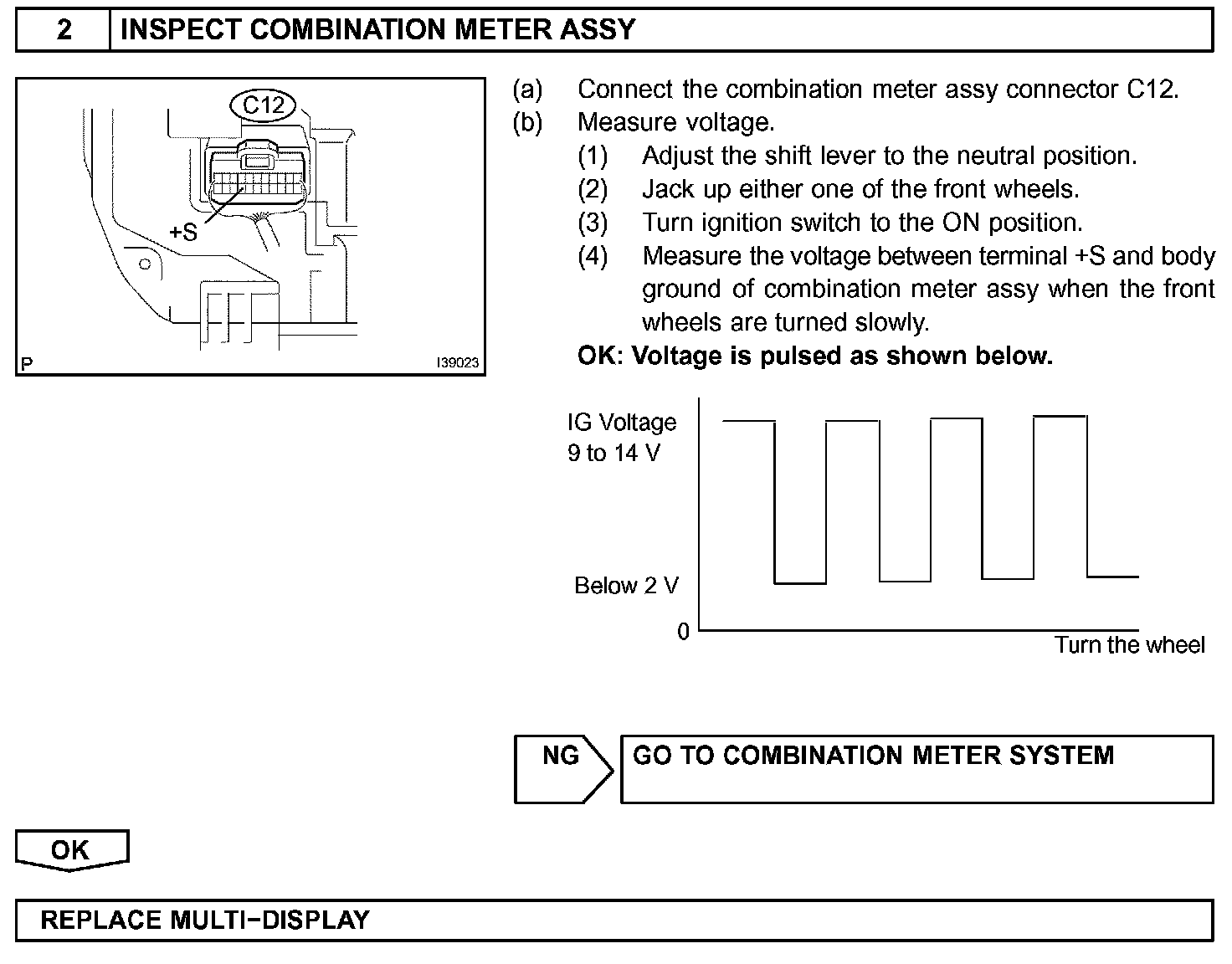

Step 2:




INSPECTION PROCEDURE
