Power Source Circuit (Television Camera ECU)

POWER SOURCE CIRCUIT (TELEVISION CAMERA ECU)

CIRCUIT DESCRIPTION

This circuit provides the power to the television camera ECU.

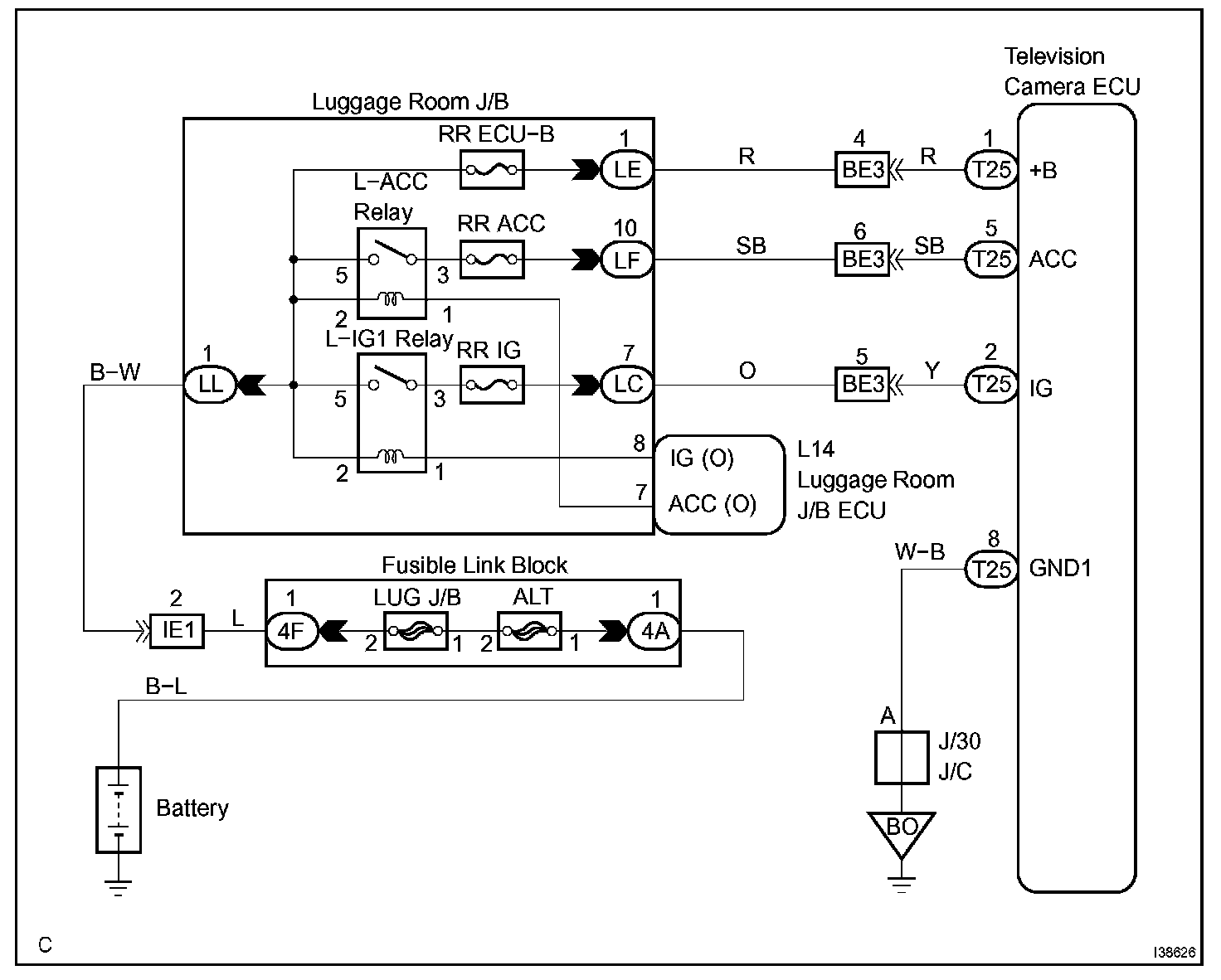

Wiring Diagram:






Step 1:

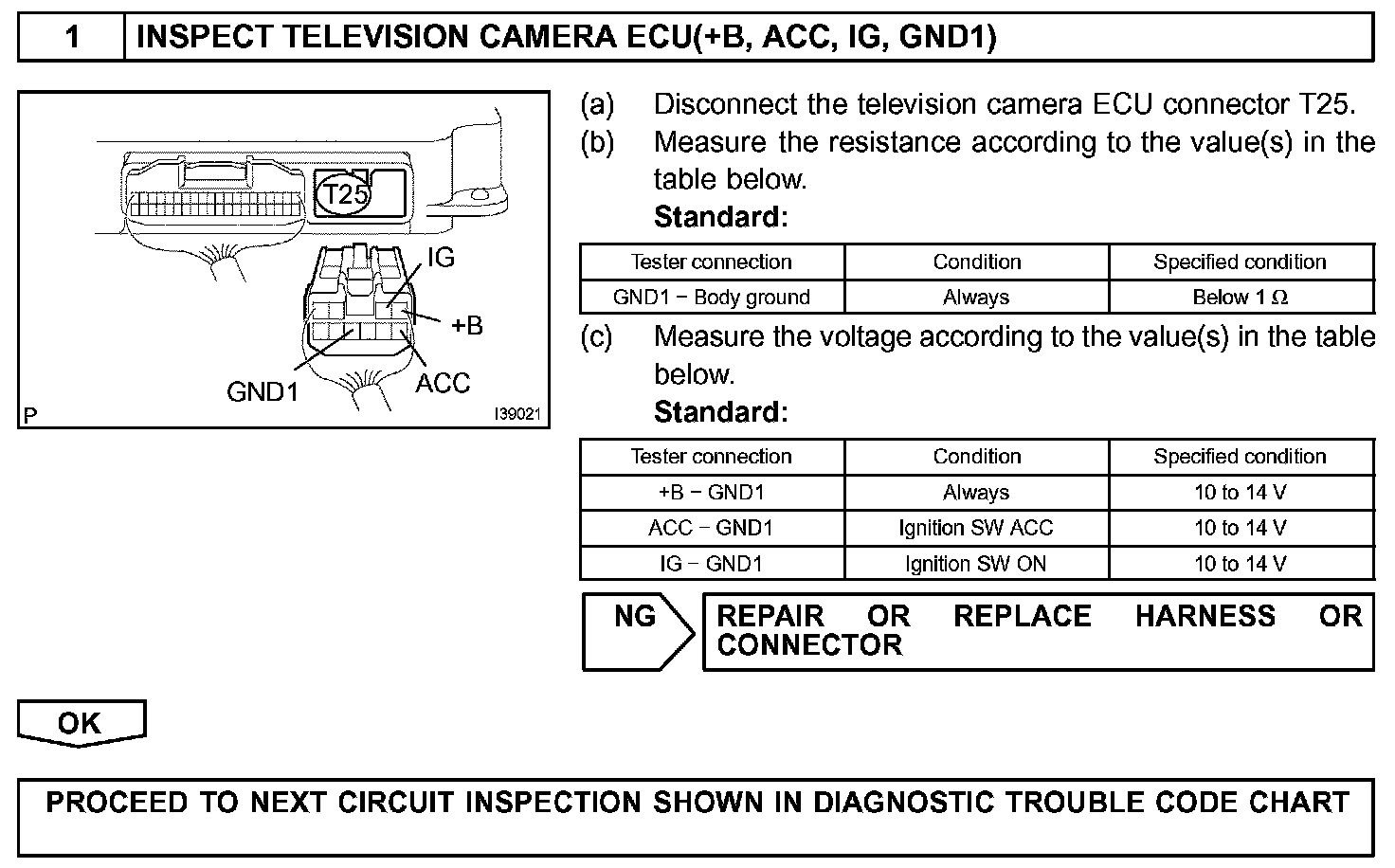

INSPECTION PROCEDURE
