Power Source Circuit (Stereo Component Tuner)

POWER SOURCE CIRCUIT (STEREO COMPONENT TUNER)

CIRCUIT DESCRIPTION

This circuit provides the power to the stereo component tuner.

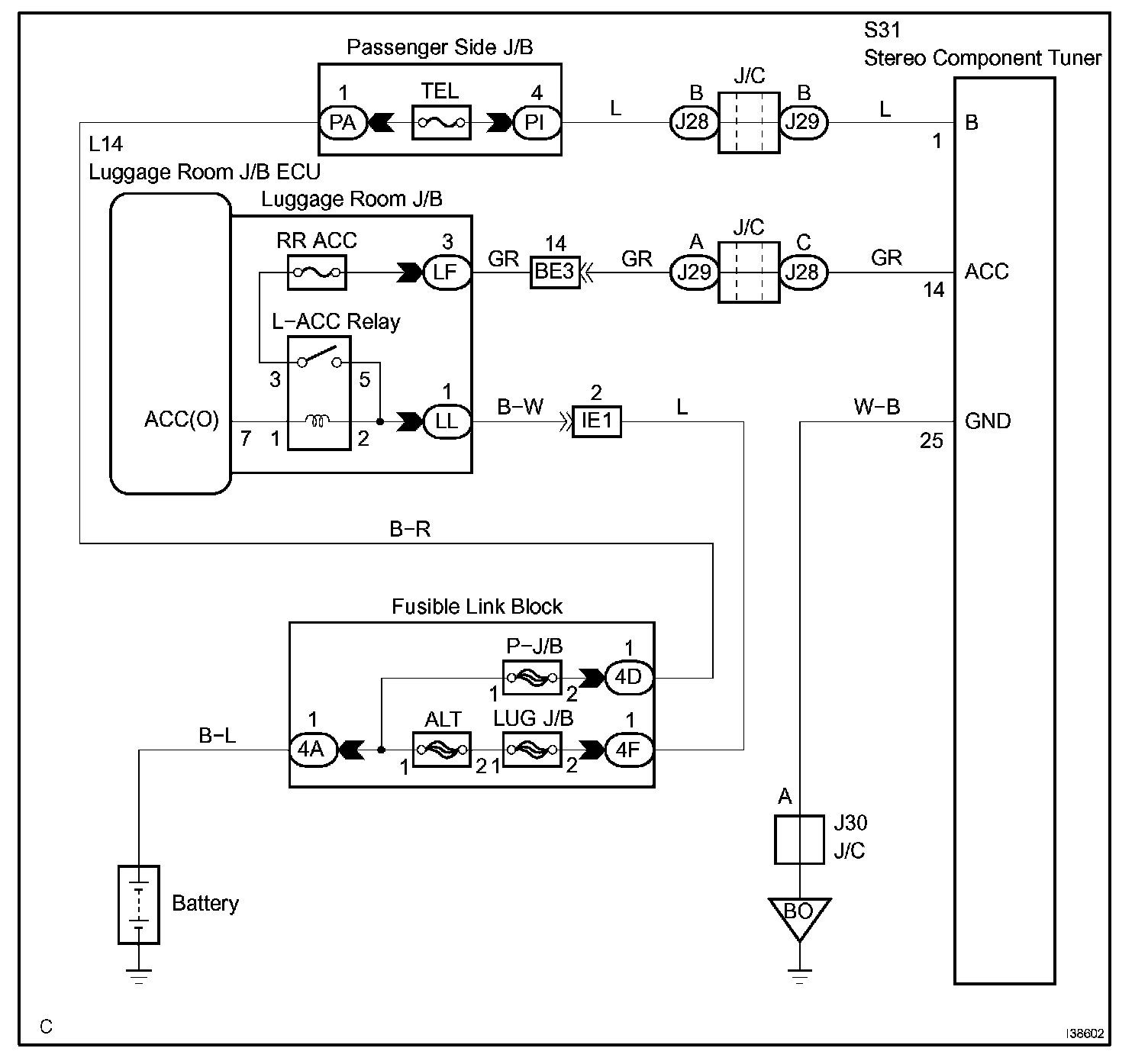

Wiring Diagram:

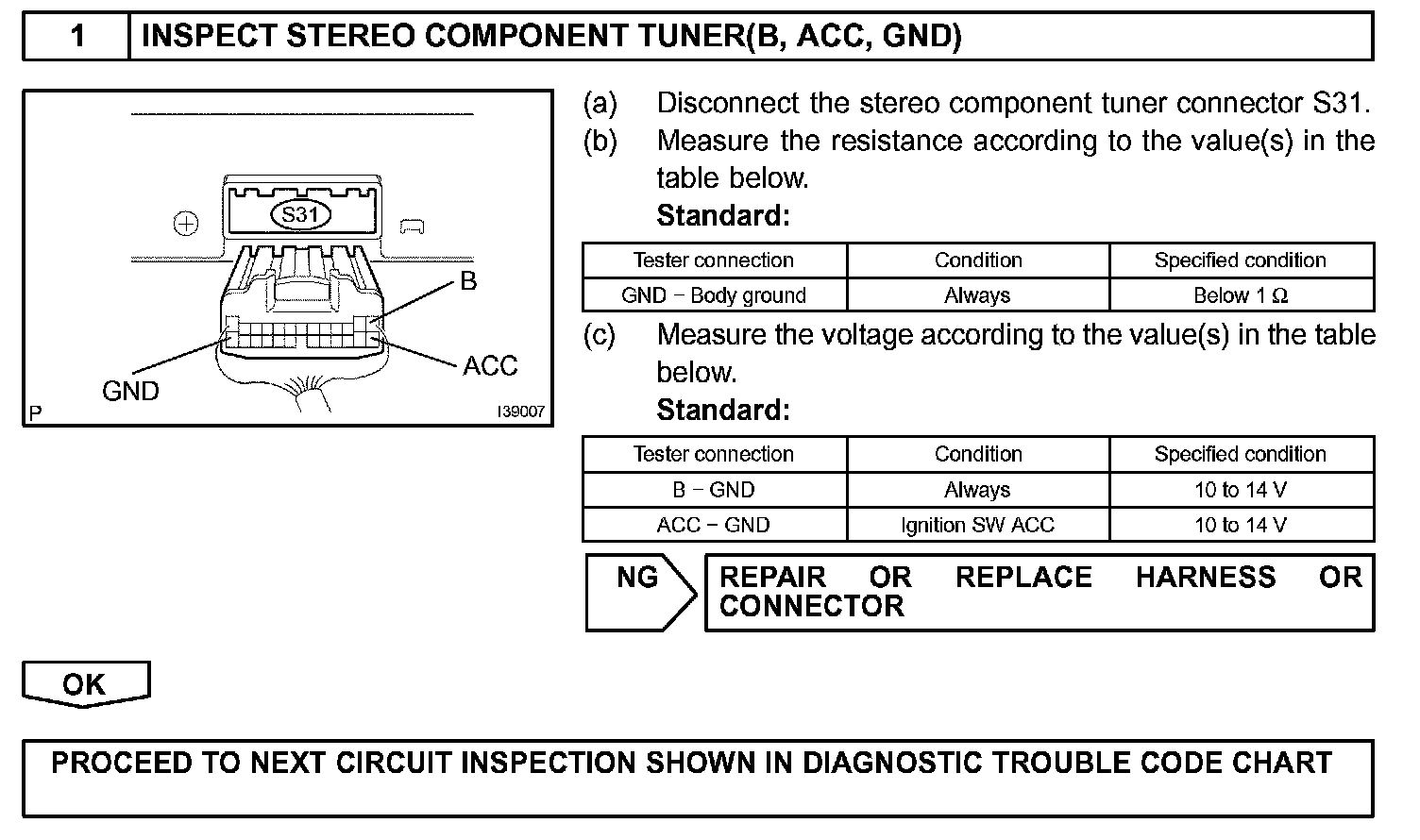

Step 1:

INSPECTION PROCEDURE
