Power Source Circuit (Stereo Component Amplifier Assy)

POWER SOURCE CIRCUIT (STEREO COMPONENT AMPLIFIER ASSEMBLY)

CIRCUIT DESCRIPTION

This circuit provides the power to the stereo component amplifier assembly.

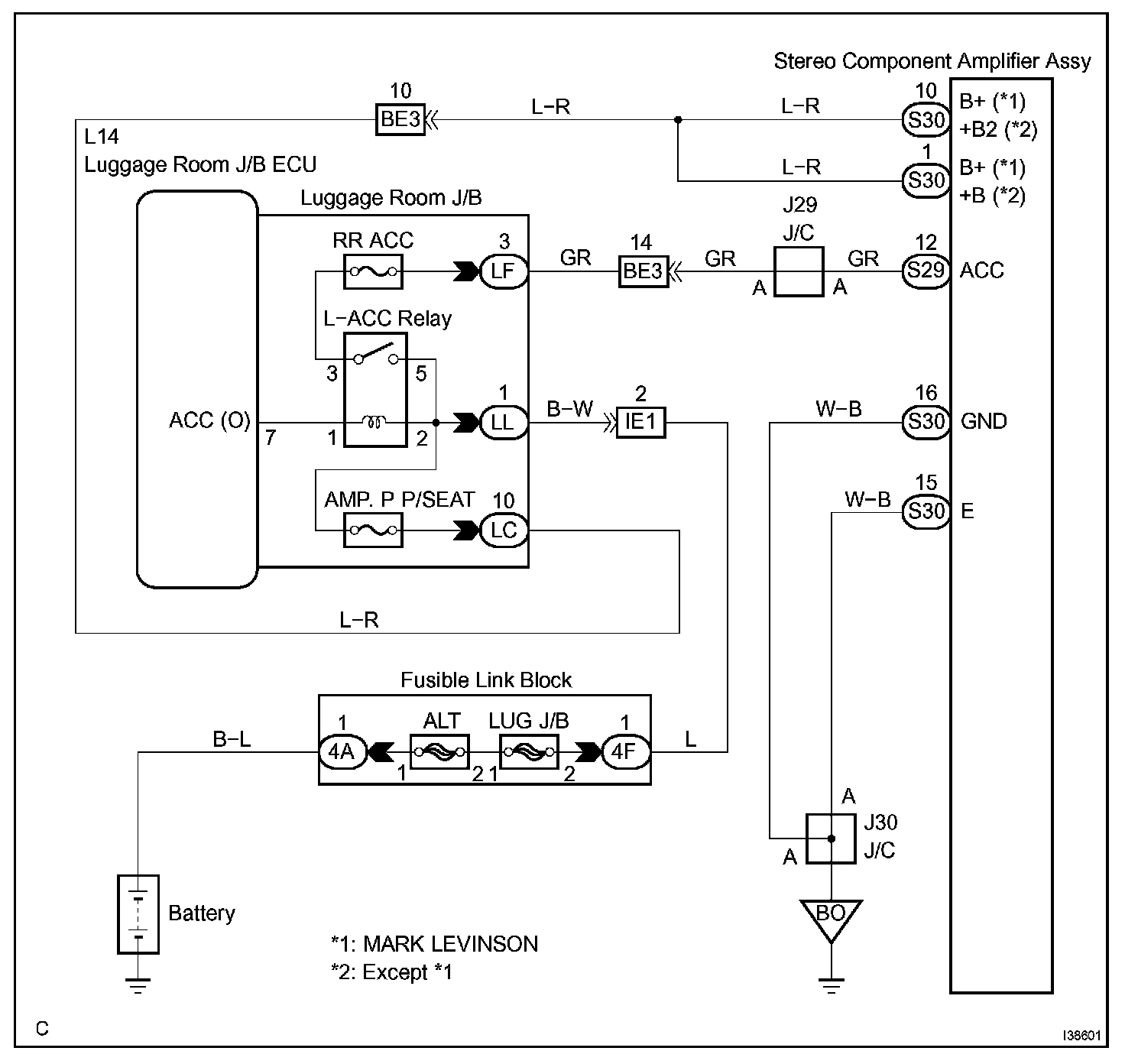

Wiring Diagram:

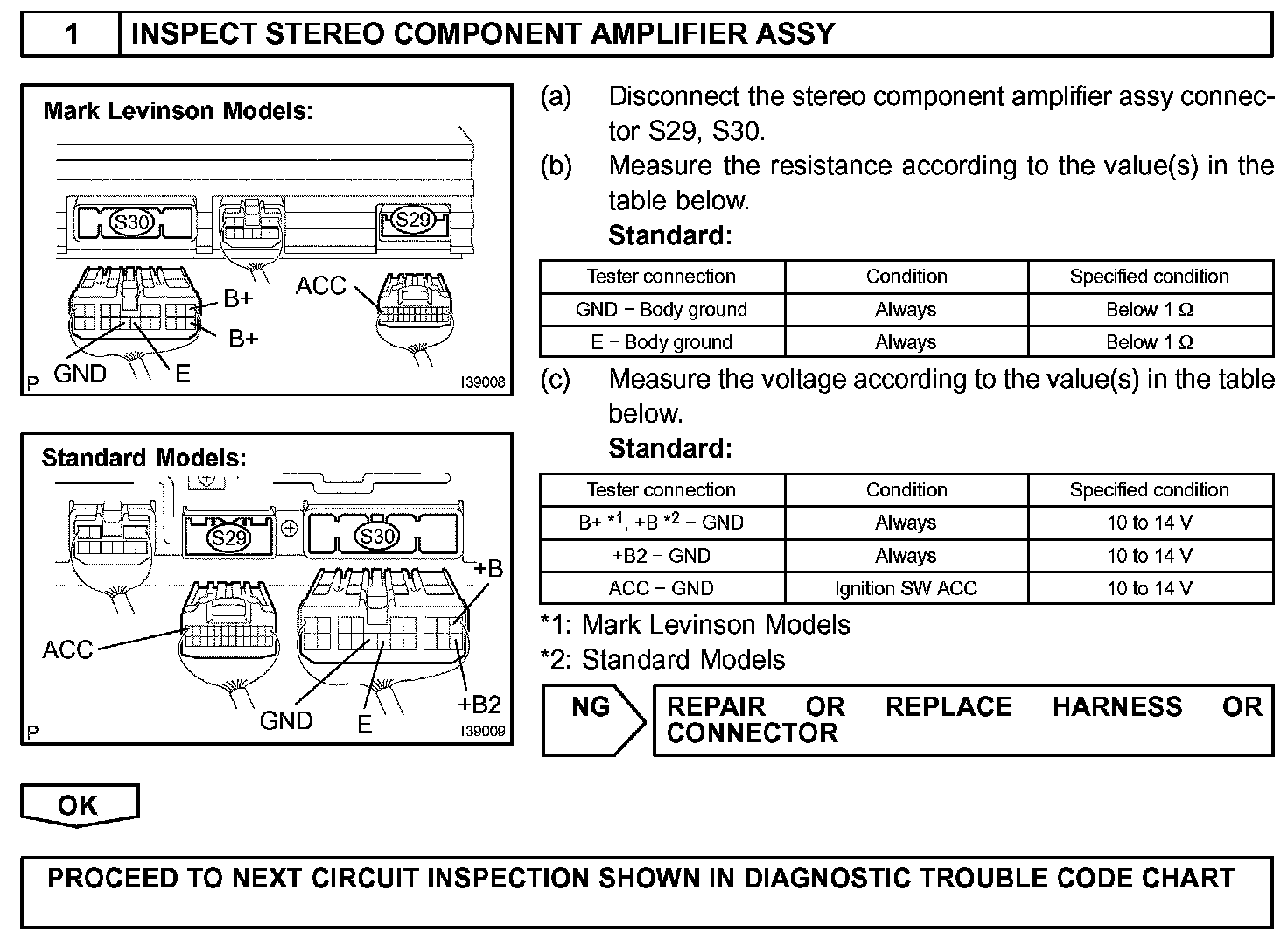

Step 1:




INSPECTION PROCEDURE
