Power Source Circuit (Radio Receiver Assy)

POWER SOURCE CIRCUIT (RADIO RECEIVER ASSEMBLY)

CIRCUIT DESCRIPTION

This circuit provides the power to the radio receiver assembly.

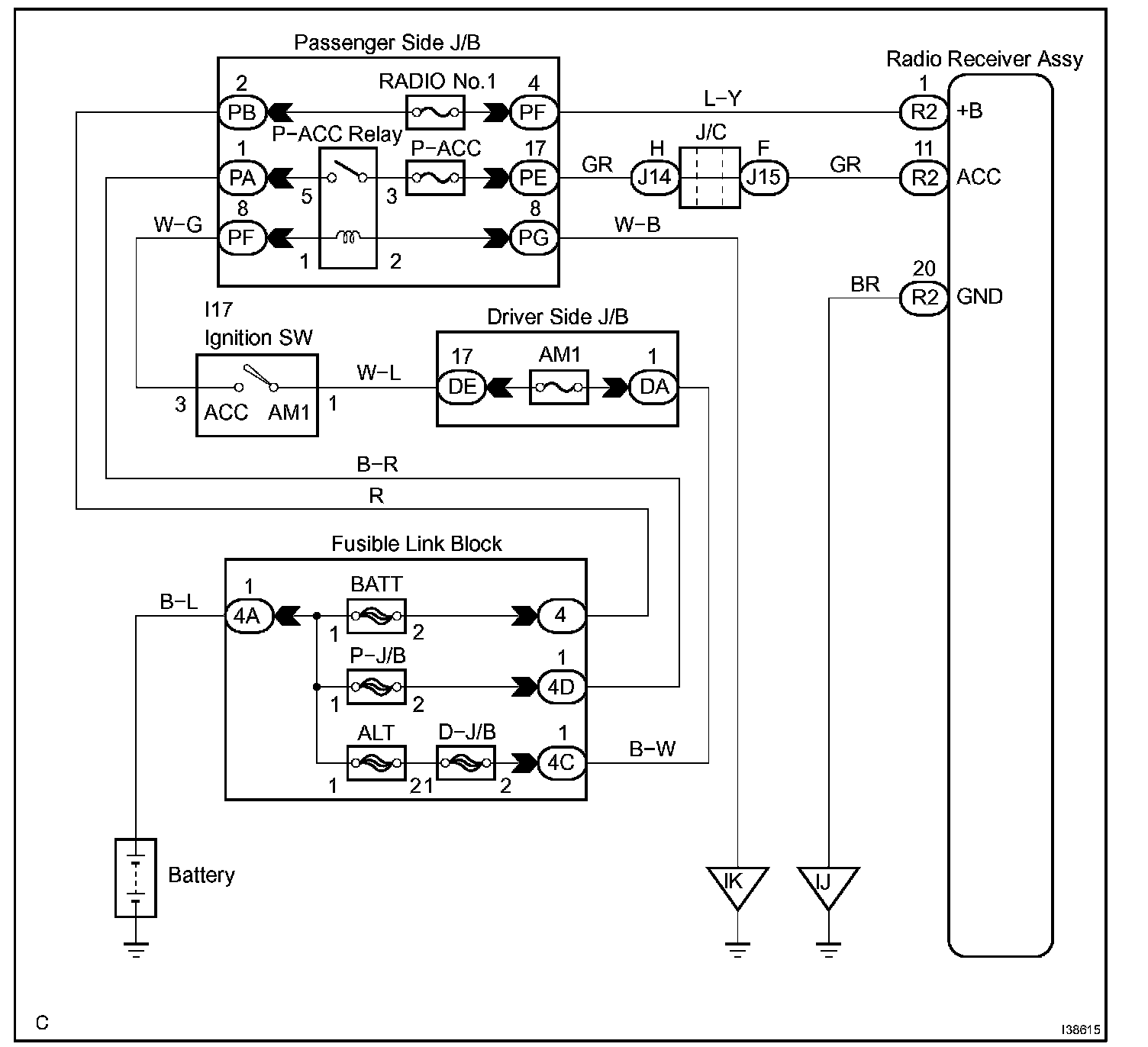

Wiring Diagram:

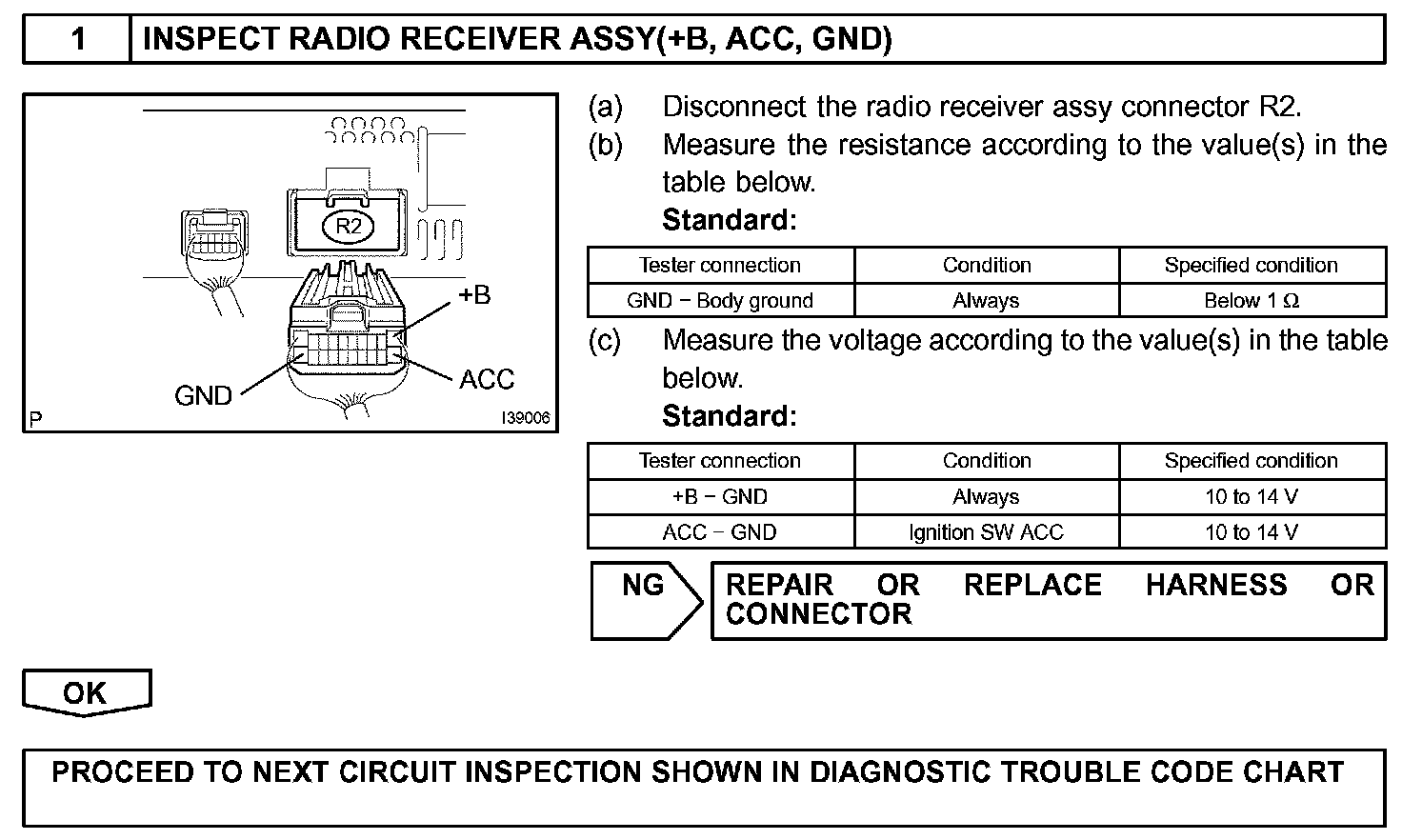

Step 1:




INSPECTION PROCEDURE
