Power Source Circuit (Multi Display)

POWER SOURCE CIRCUIT (MULTI DISPLAY)

CIRCUIT DESCRIPTION

This circuit provides the power to the multi display.

Wiring Diagram:

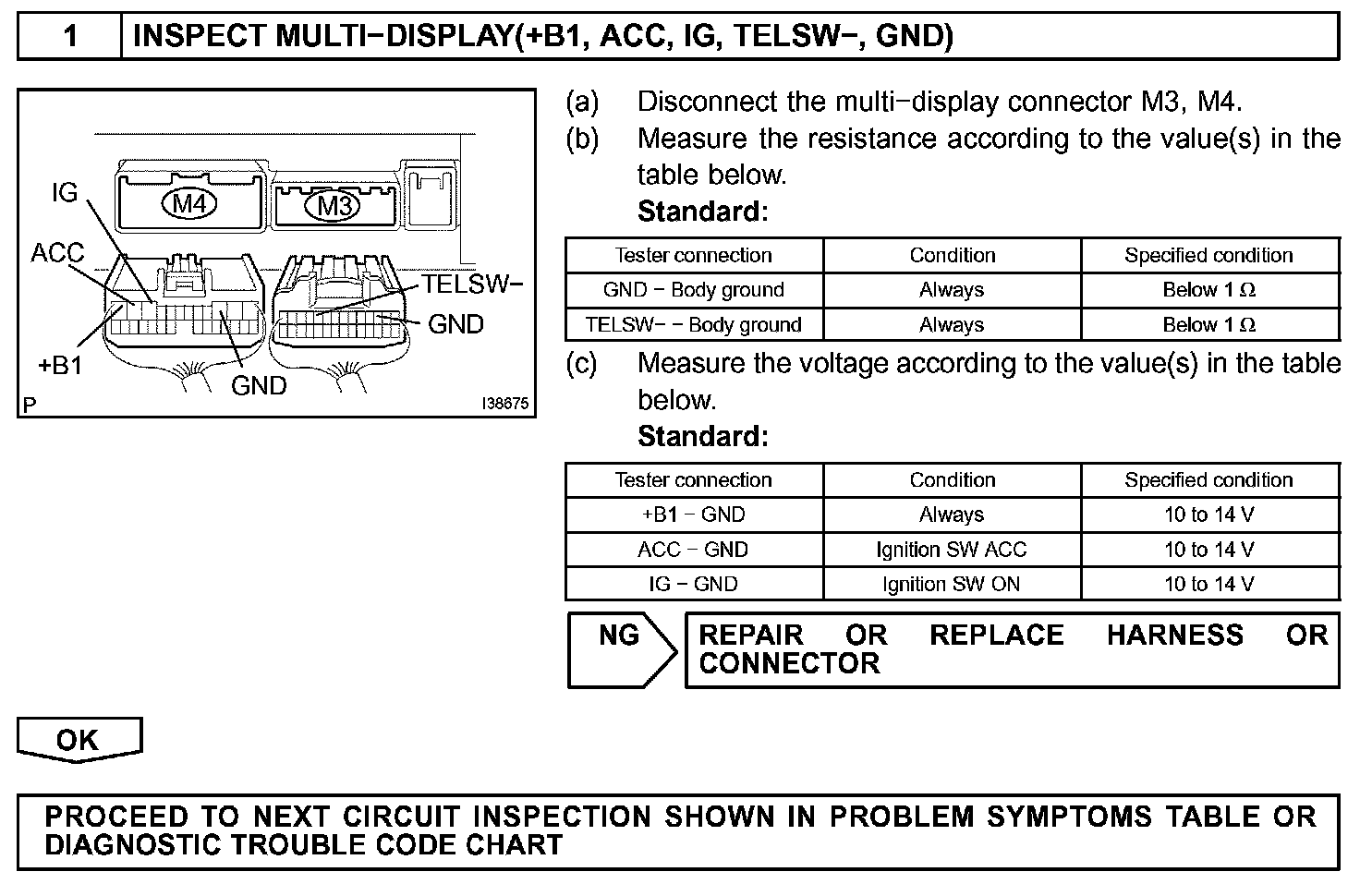

Step 1:




INSPECTION PROCEDURE
