Power Source Circuit (Audio and Rear A/C Control Sw)

POWER SOURCE CIRCUIT (AUDIO AND REAR A/C CONTROL SW)

CIRCUIT DESCRIPTION

This circuit provides the power to the audio and rear A/C control switch.

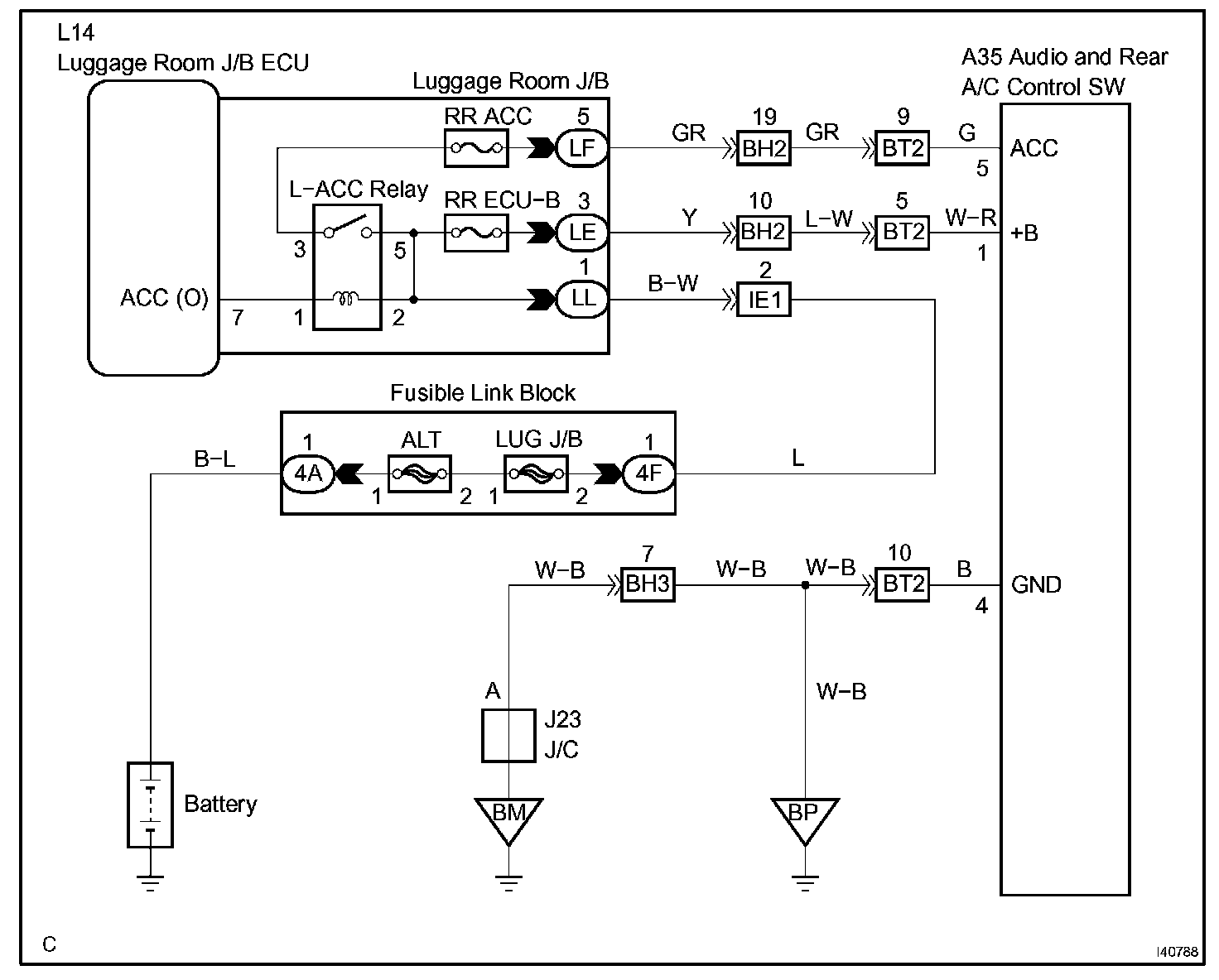

Wiring Diagram:

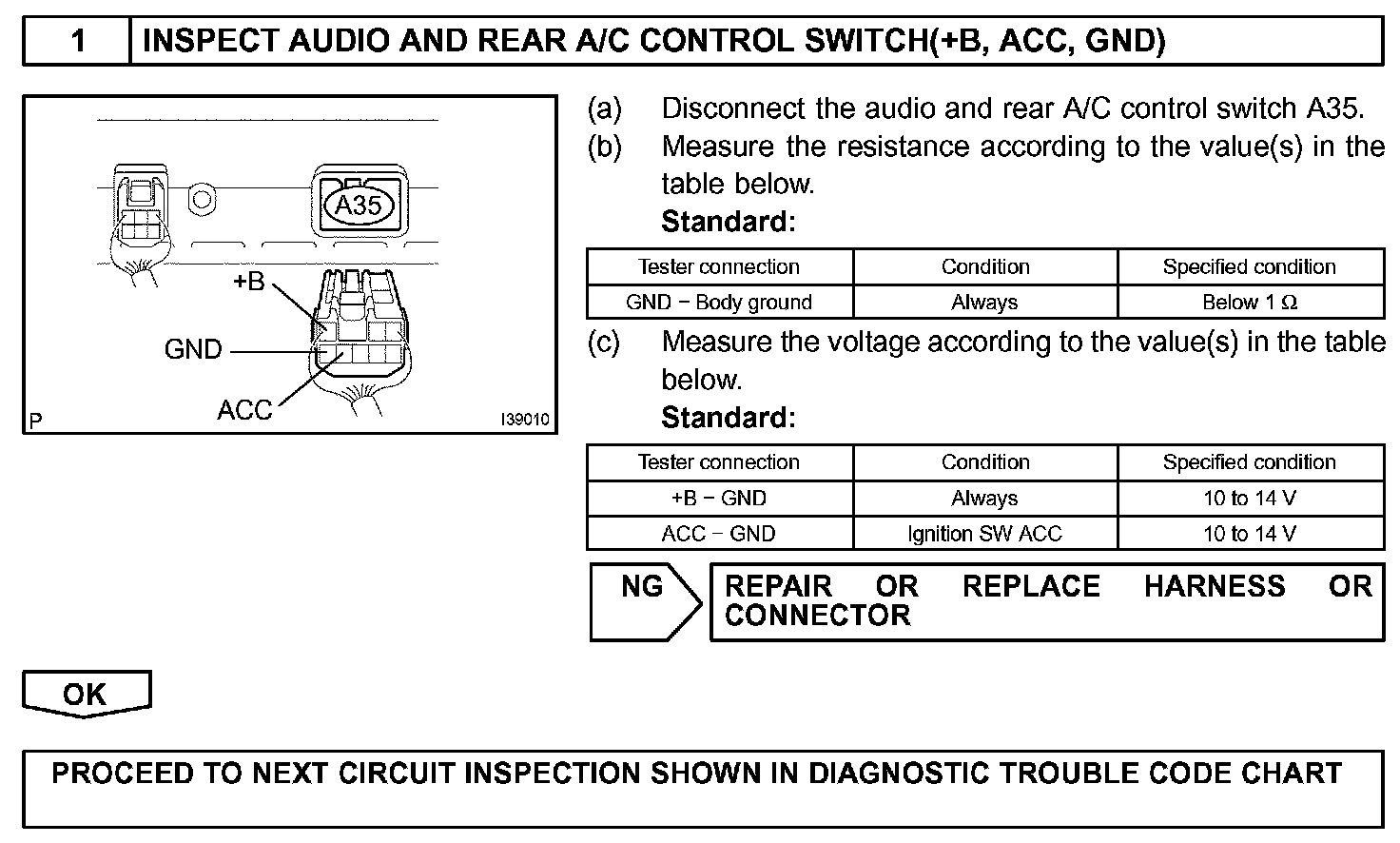

Step 1:

INSPECTION PROCEDURE
