Parking brake switch circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This is circuit from the parking brake switch to the multi display.

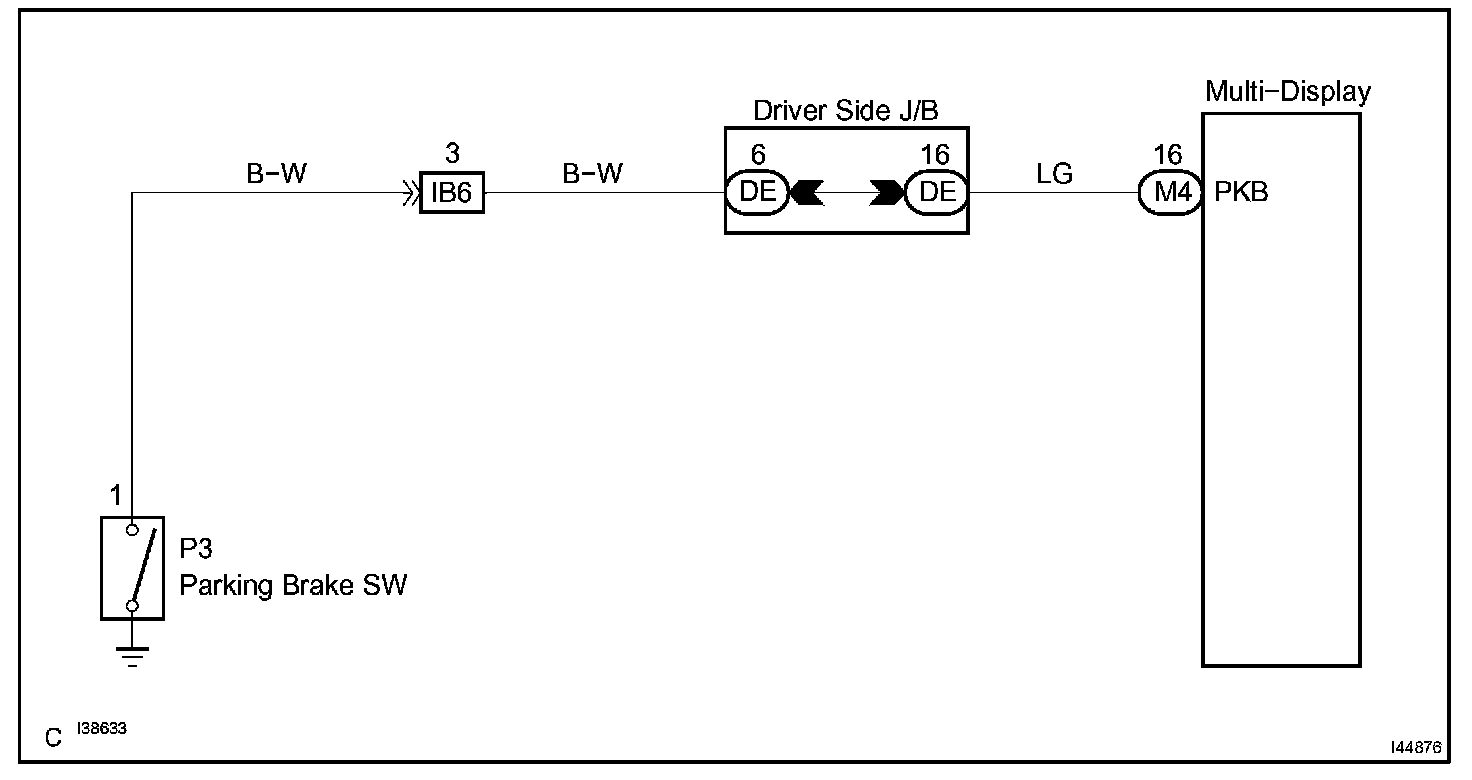

Wiring Diagram:






Step 1-3:

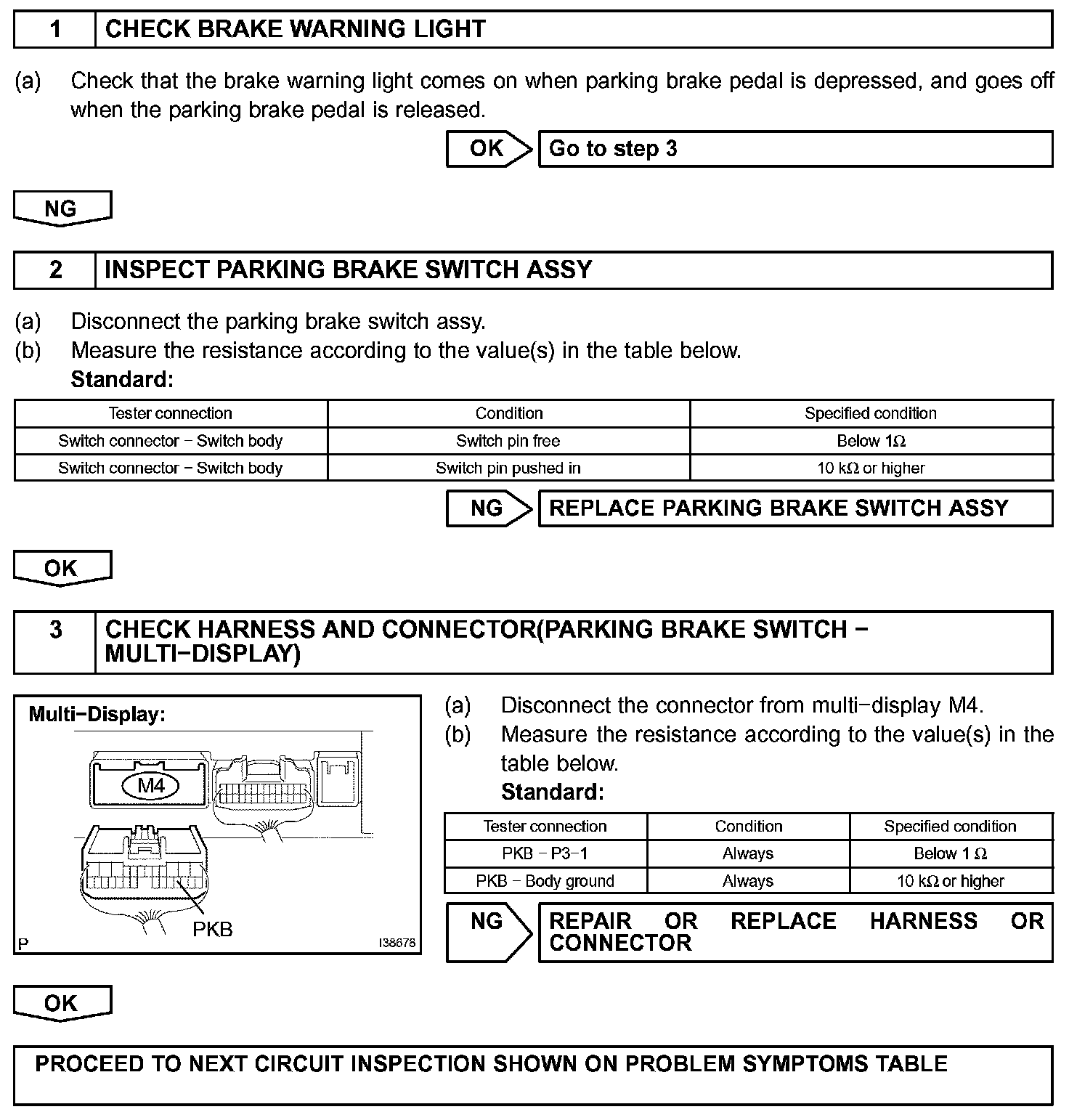

INSPECTION PROCEDURE
