AVC-LAN Circuit (Radio Receiver Assy-Gateway ECU)

AVC-LAN CIRCUIT (RADIO RECEIVER ASSEMBLY - GATEWAY ECU)

CIRCUIT DESCRIPTION

Each unit of the navigation system connected to AVC-LAN (communication bus) communicates by transferring the signals from each switch.

When +B short and GND short occur in this AVC-LAN, navigation system will not function normally as communication is discontinued.

In AVC-LAN, multi display becomes the communication master, and the radio receiver assembly has enough resistance necessary for transmitting the communication.

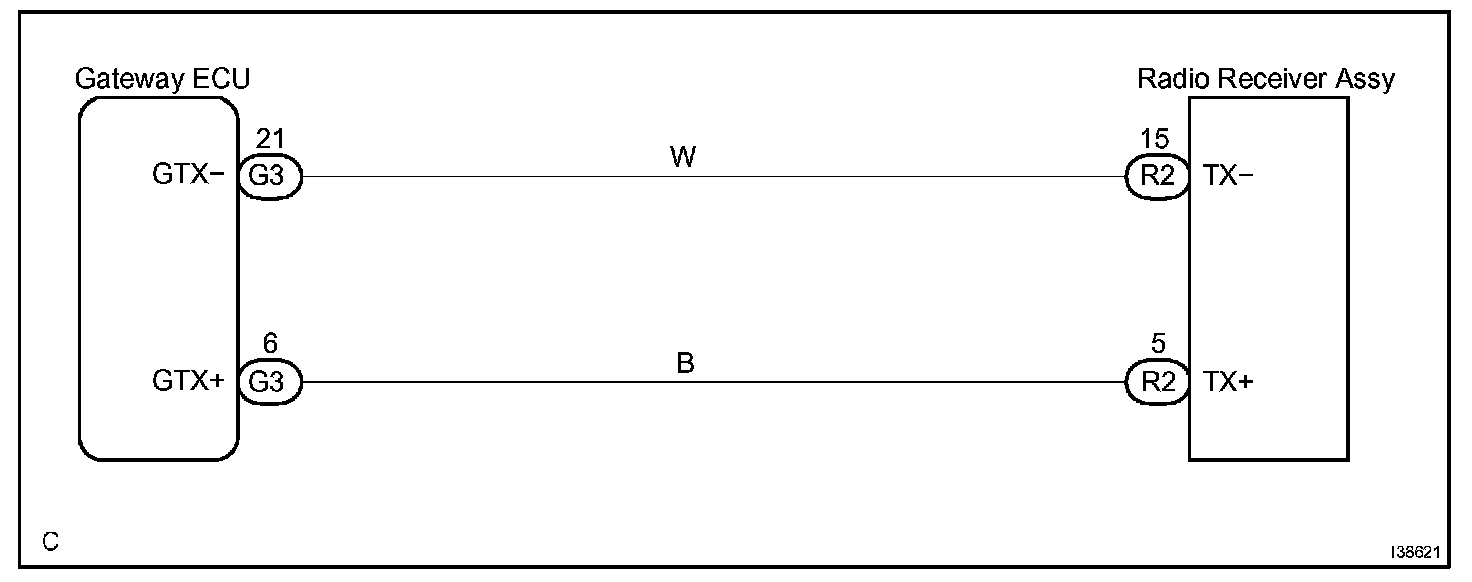

Wiring Diagram:

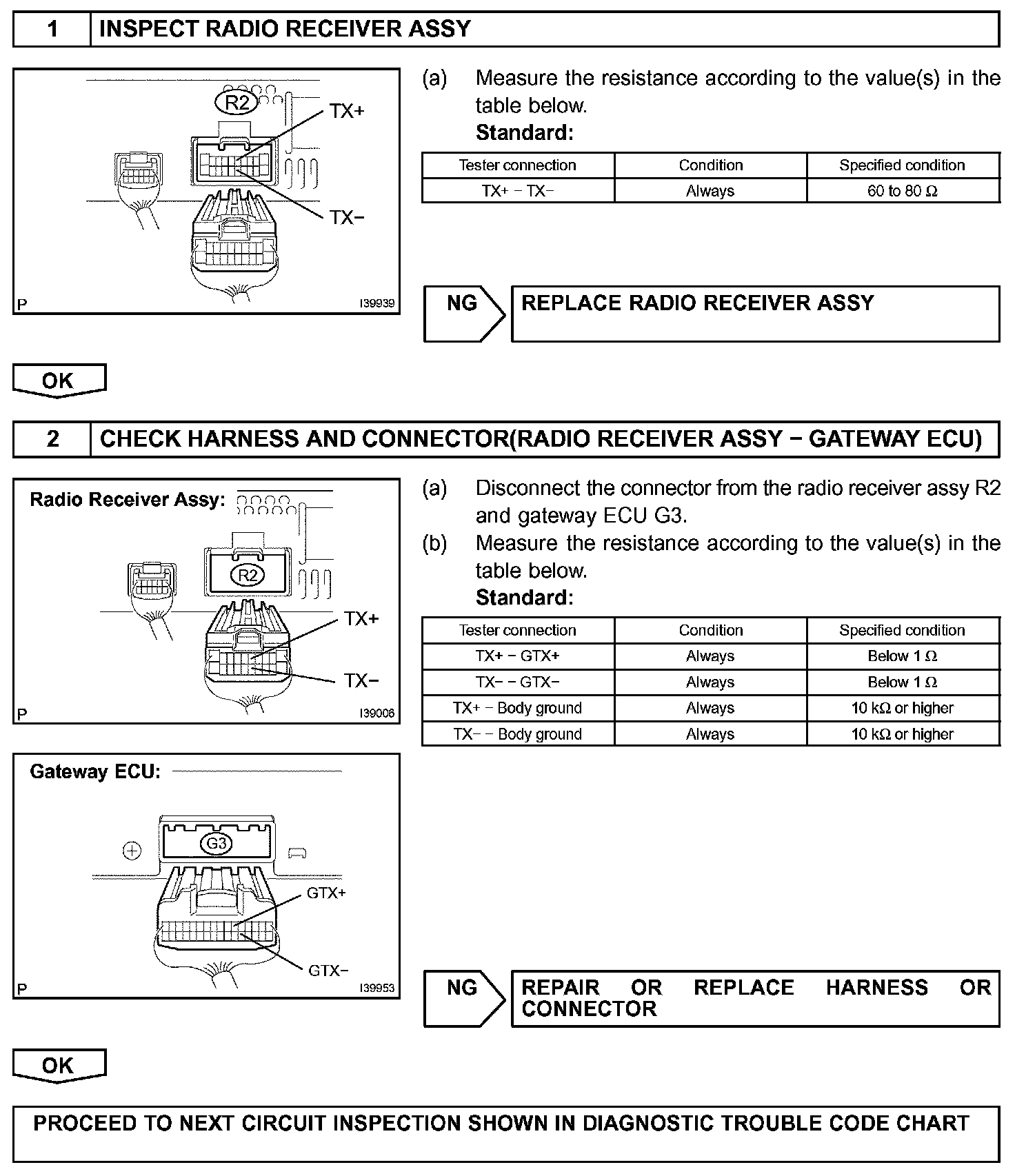

Step 1-2:

INSPECTION PROCEDURE
