Rear View Monitor System

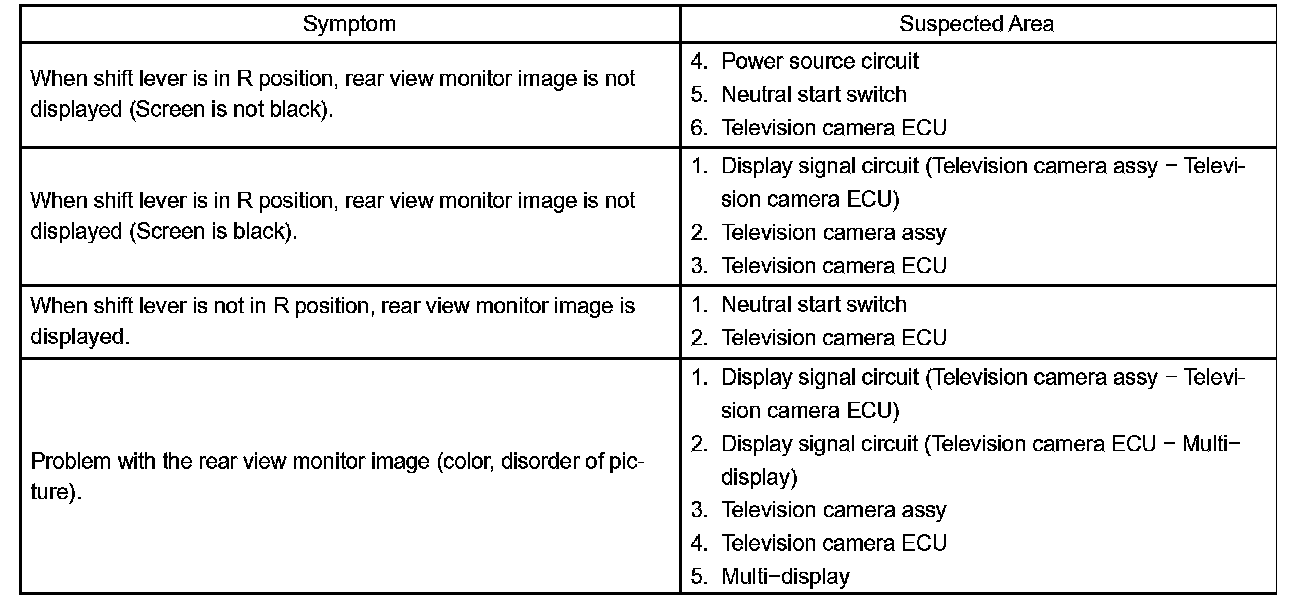

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table:




Check the circuits for each problem symptom in the order given in the table, and proceed to the relevant troubleshooting.
