With Manufacturer's Scan Tool

DTC CHECK




1. CHECK DTCs
a. Prepare the hand-held tester.

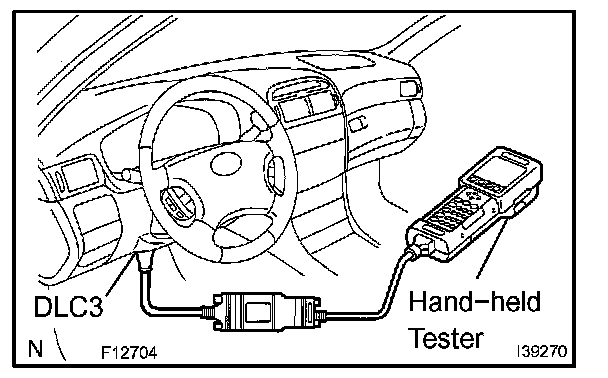

b. Connect the hand-held tester to the DLC3 at the lower part of the instrument panel.
c. Turn the ignition switch to the ON position and turn the hand-held tester on.
d. Use the hand-held tester to check the DTCs and the freeze frame data, and note or print the results. (Refer to the operator's manual for operating instructions.)
e. Diagnostic Trouble Code Chart to confirm the details of the DTCs.
