Power Source Circuit

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to the television camera ECU.

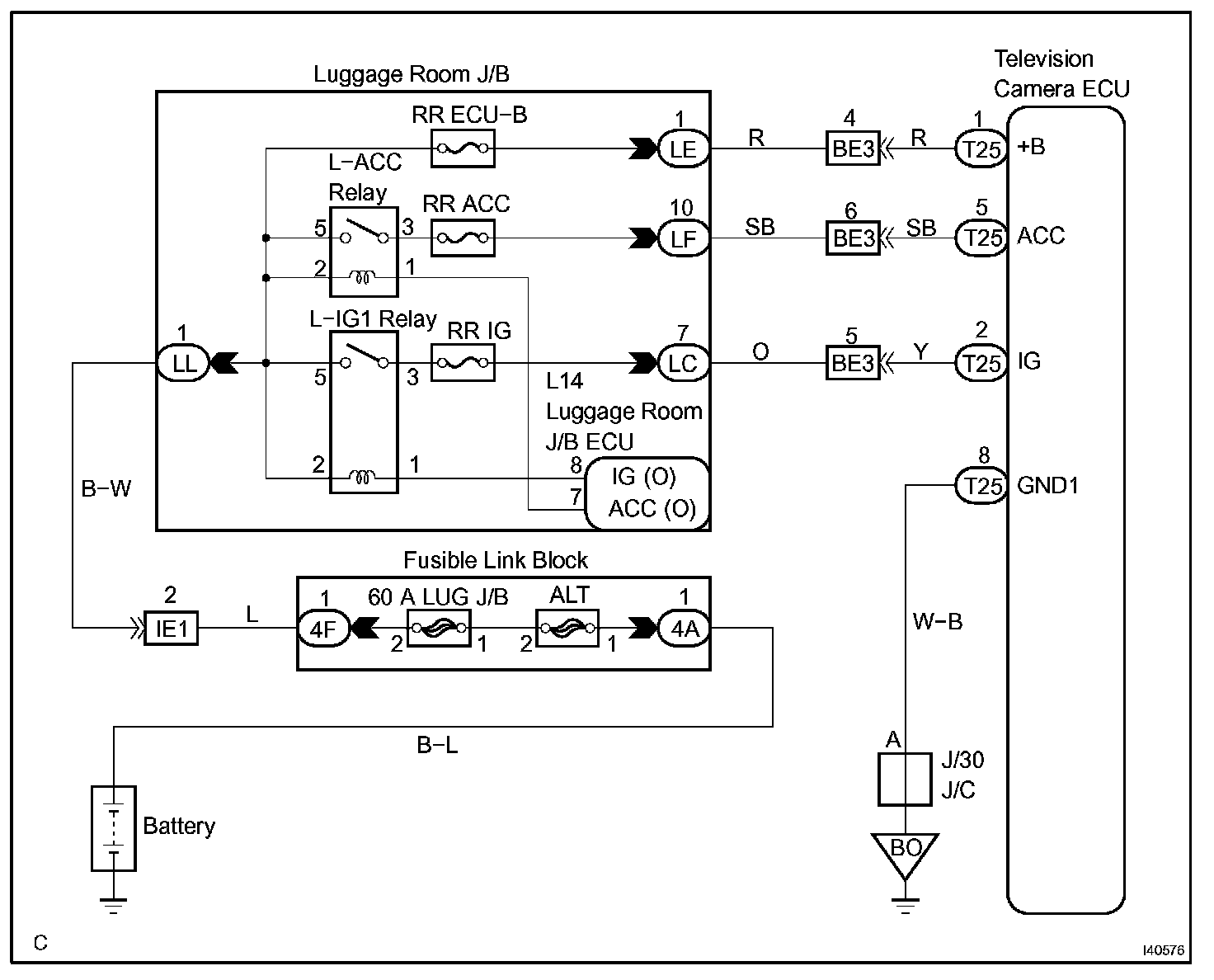

Wiring Diagram:

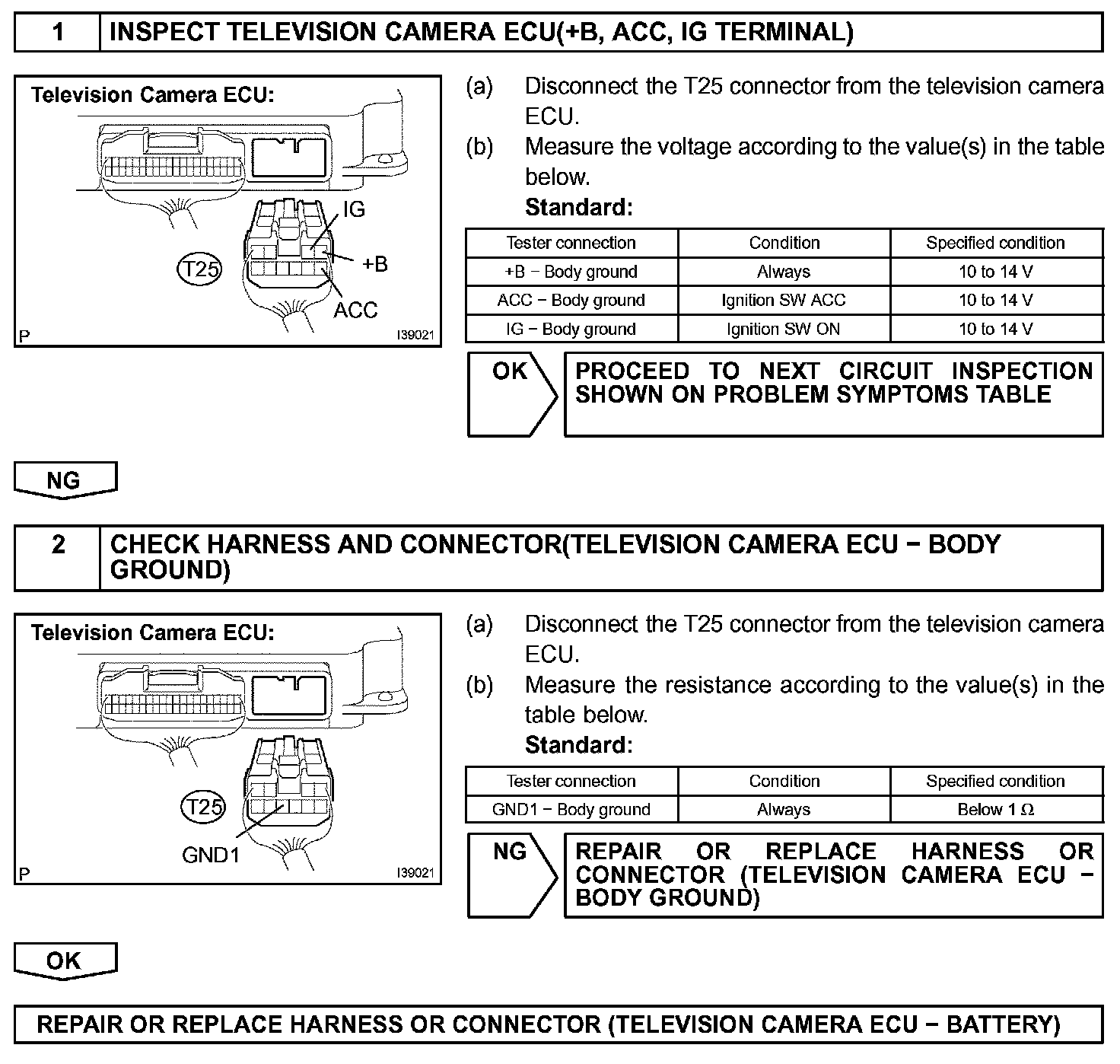

Step 1-2:

INSPECTION PROCEDURE
