Display Signal Circuit (Television Camera Assy - Television Camera ECU)

DISPLAY SIGNAL CIRCUIT (TELEVISION CAMERA ASSEMBLY - TELEVISION CAMERA ECU)

CIRCUIT DESCRIPTION

This is the display signal circuit of the television camera assembly.

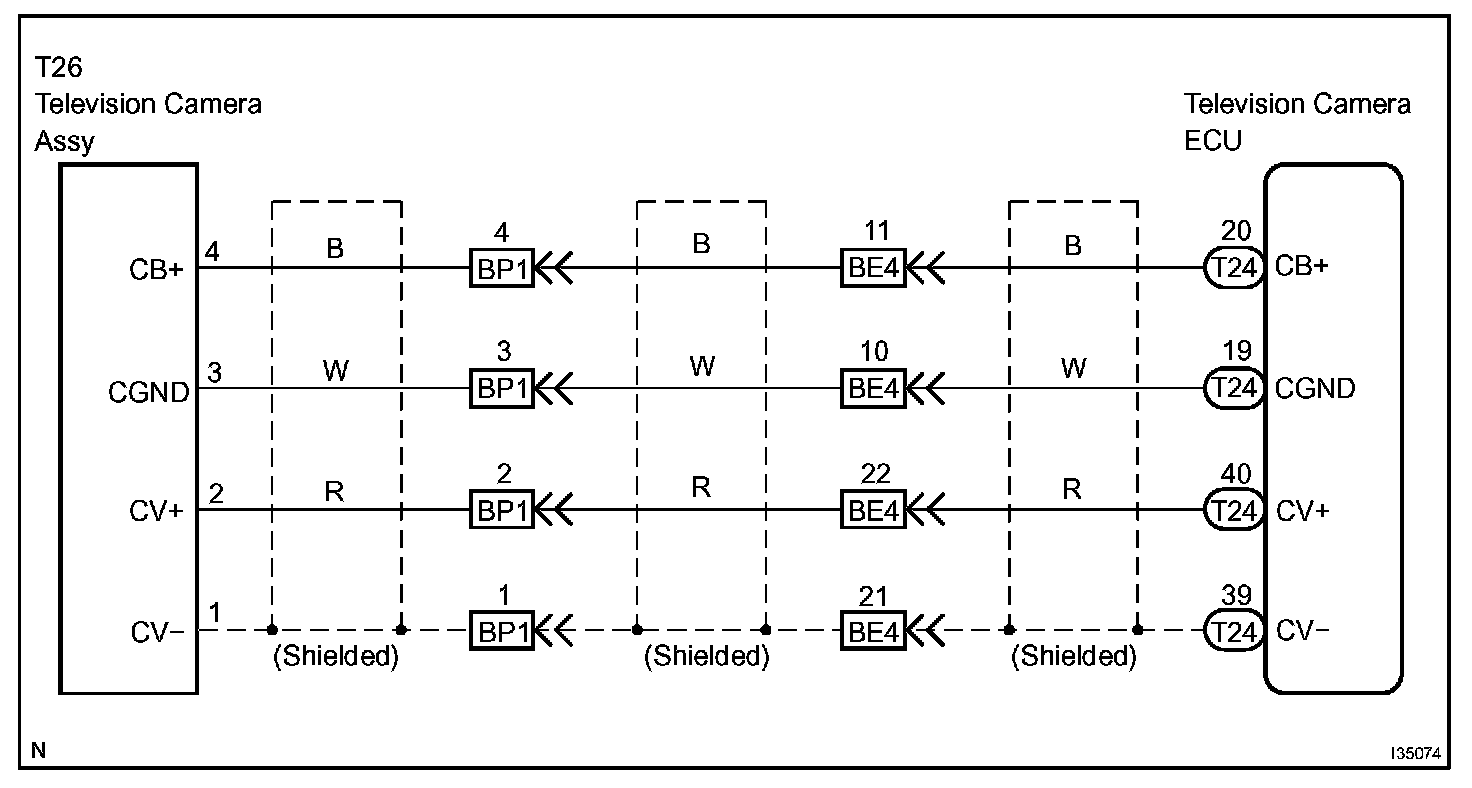

Wiring Diagram:

Step 1:

Step 2:

Step 3:

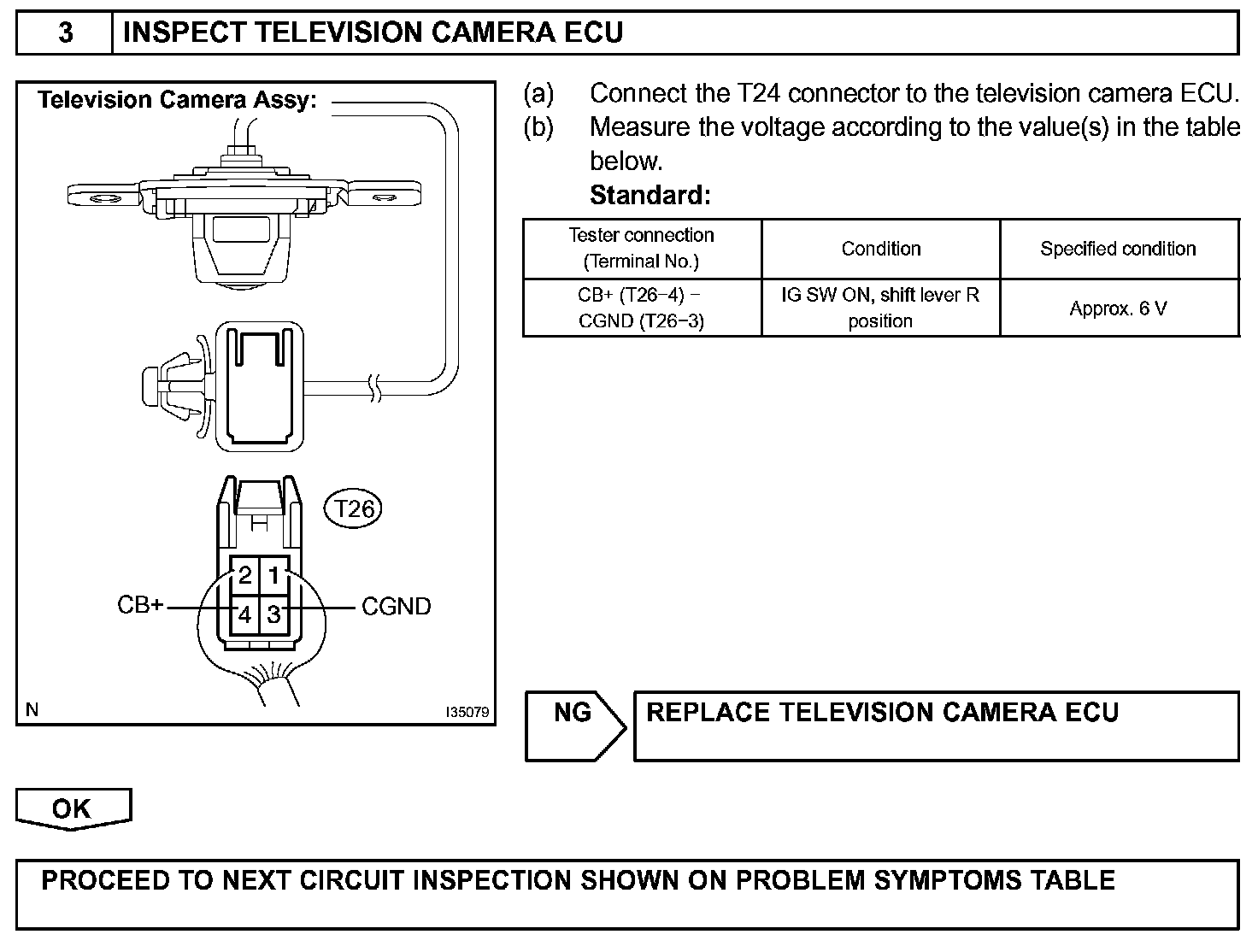

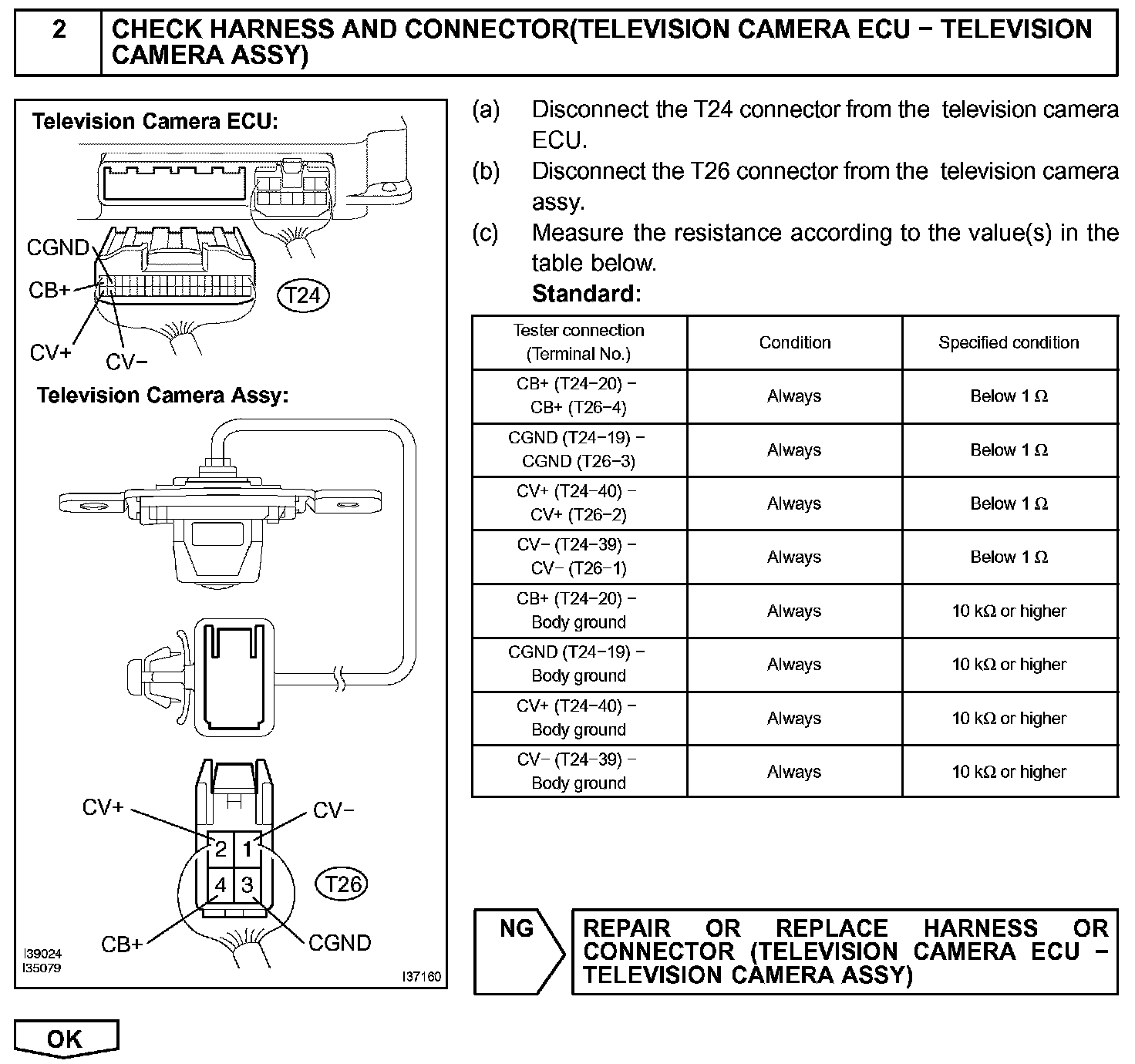

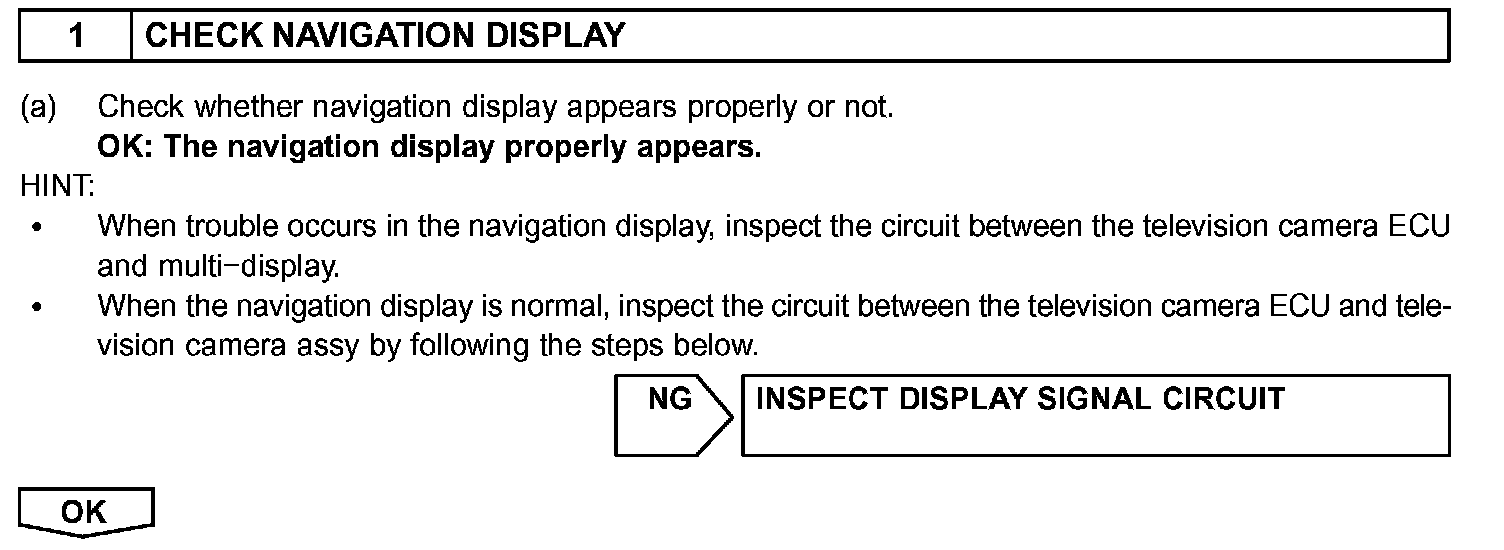

INSPECTION PROCEDURE
