Clearance Sonar Main Switch Circuit

CLEARANCE SONAR MAIN SWITCH CIRCUIT

CIRCUIT DESCRIPTION

Turning this switch on activates the clearance sonar system.

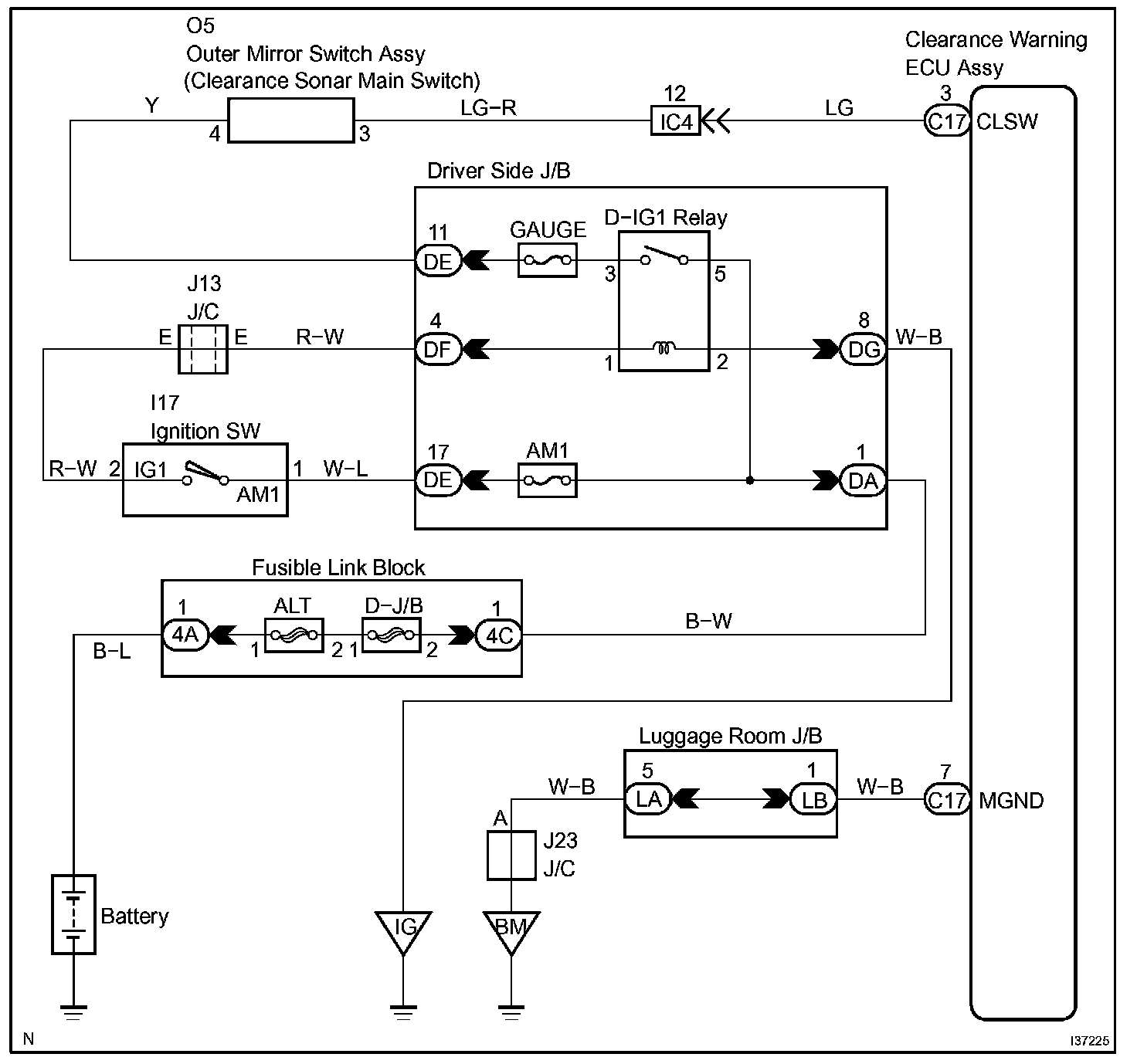

Wiring Diagram:

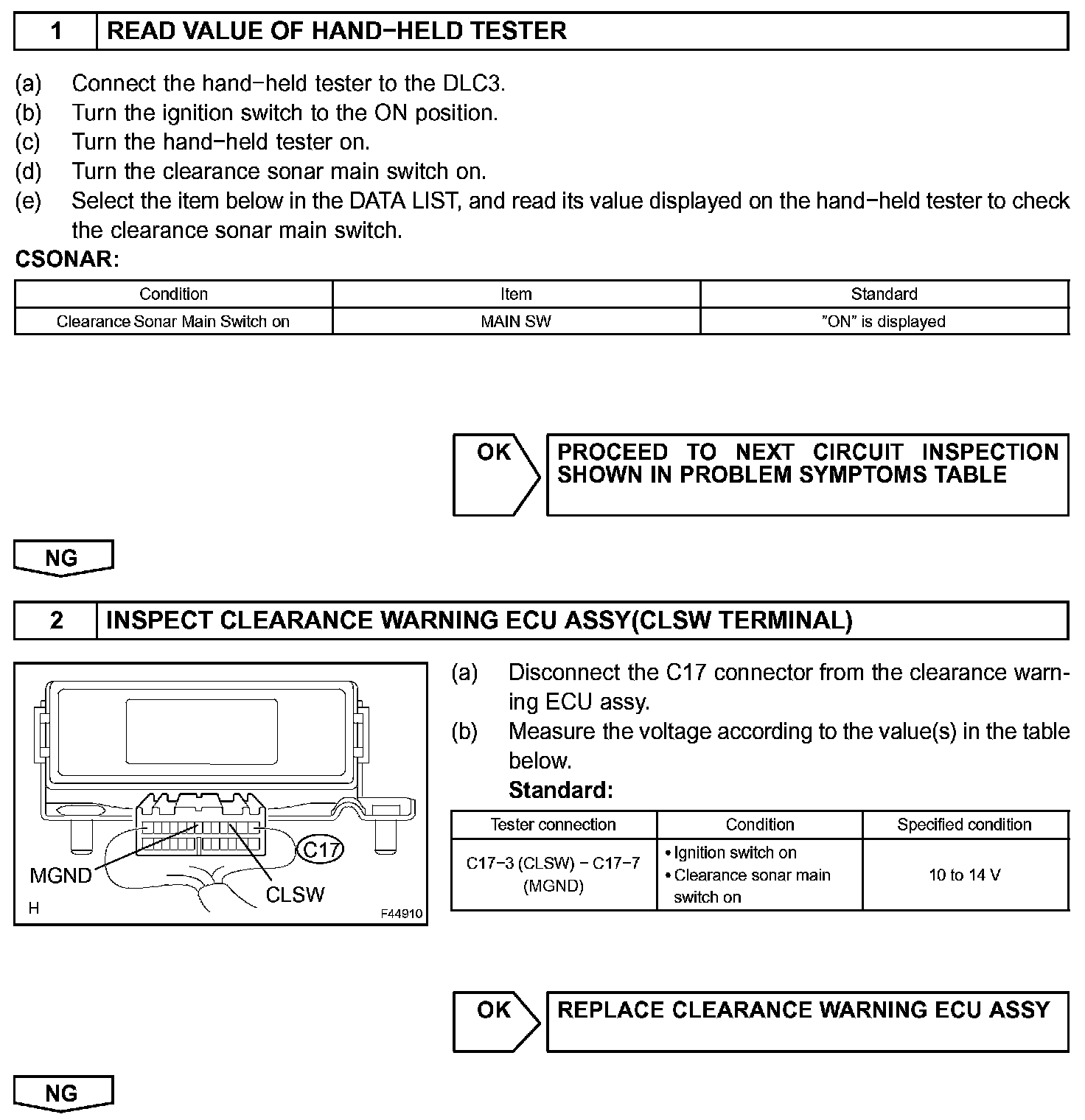

Step 1-2:

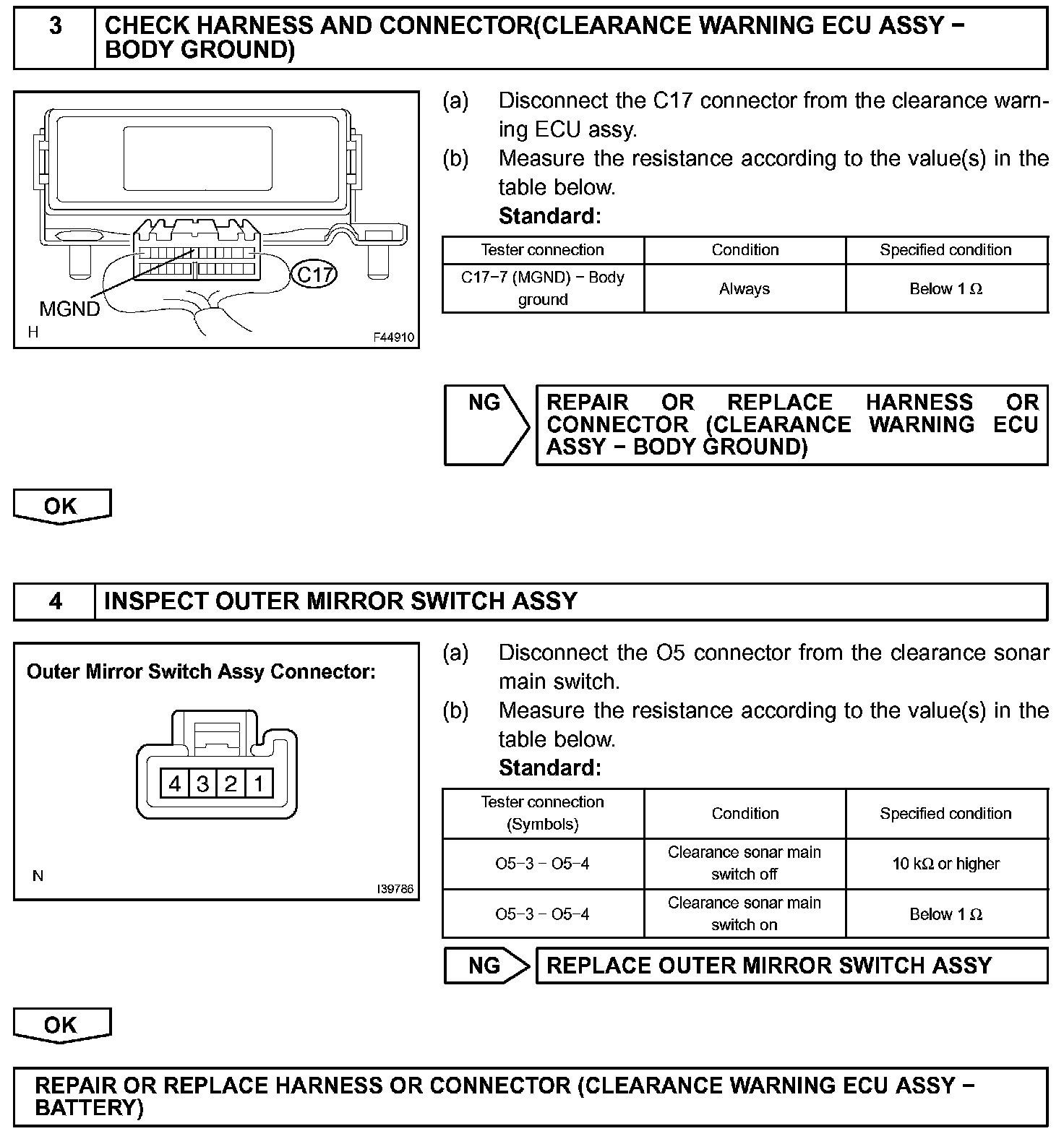

Step 3-4:




INSPECTION PROCEDURE
