Microphone Assy

Audio Visual System Part 1:

MICROPHONE ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE MAP LAMP ASSEMBLY




2. REMOVE MICROPHONE ASSEMBLY

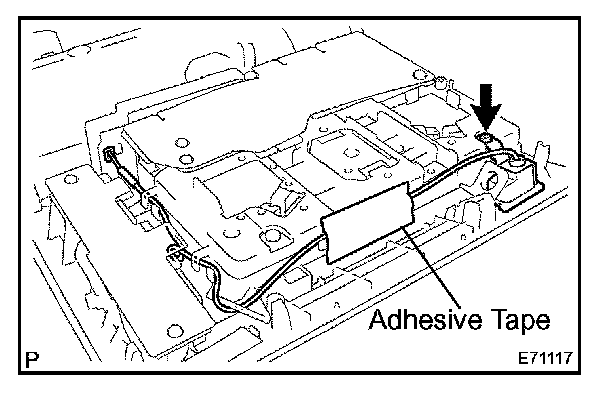

a. Disconnect the connector.
b. Remove the screw.
c. Peel the adhesive tape and remove the microphone assembly.
