MICROPHONE AMPLIFIER ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE MAP LAMP ASSEMBLY
2. REMOVE MICROPHONE ASSEMBLY




3. REMOVE MICROPHONE AMPLIFIER ASSEMBLY

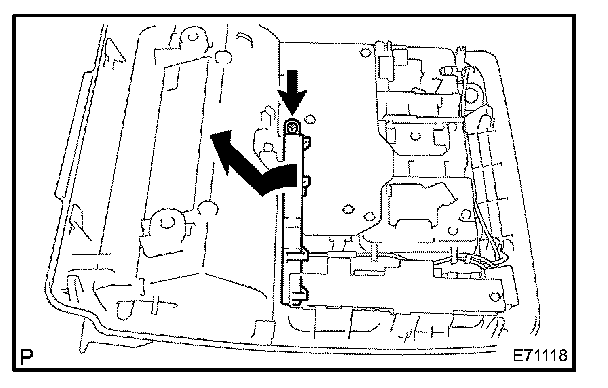

a. Remove the screw.

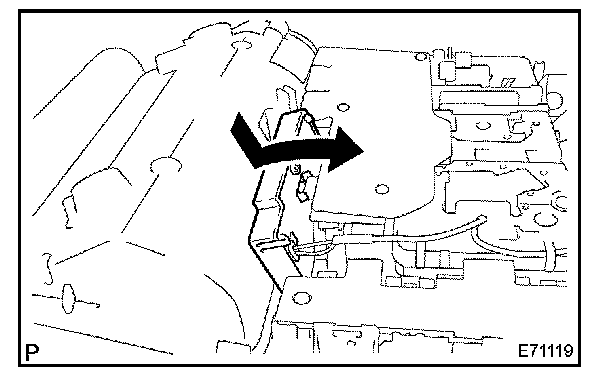

b. Disconnect the connector as shown in the illustration, and remove the microphone amplifier assembly.




4. INSTALL MICROPHONE AMPLIFIER ASSEMBLY
a. Connect the connector as shown in the illustration, and install the microphone amplifier assembly.
b. Install the screw.
