Engine Immobilizer System (W/ Smart Key System)

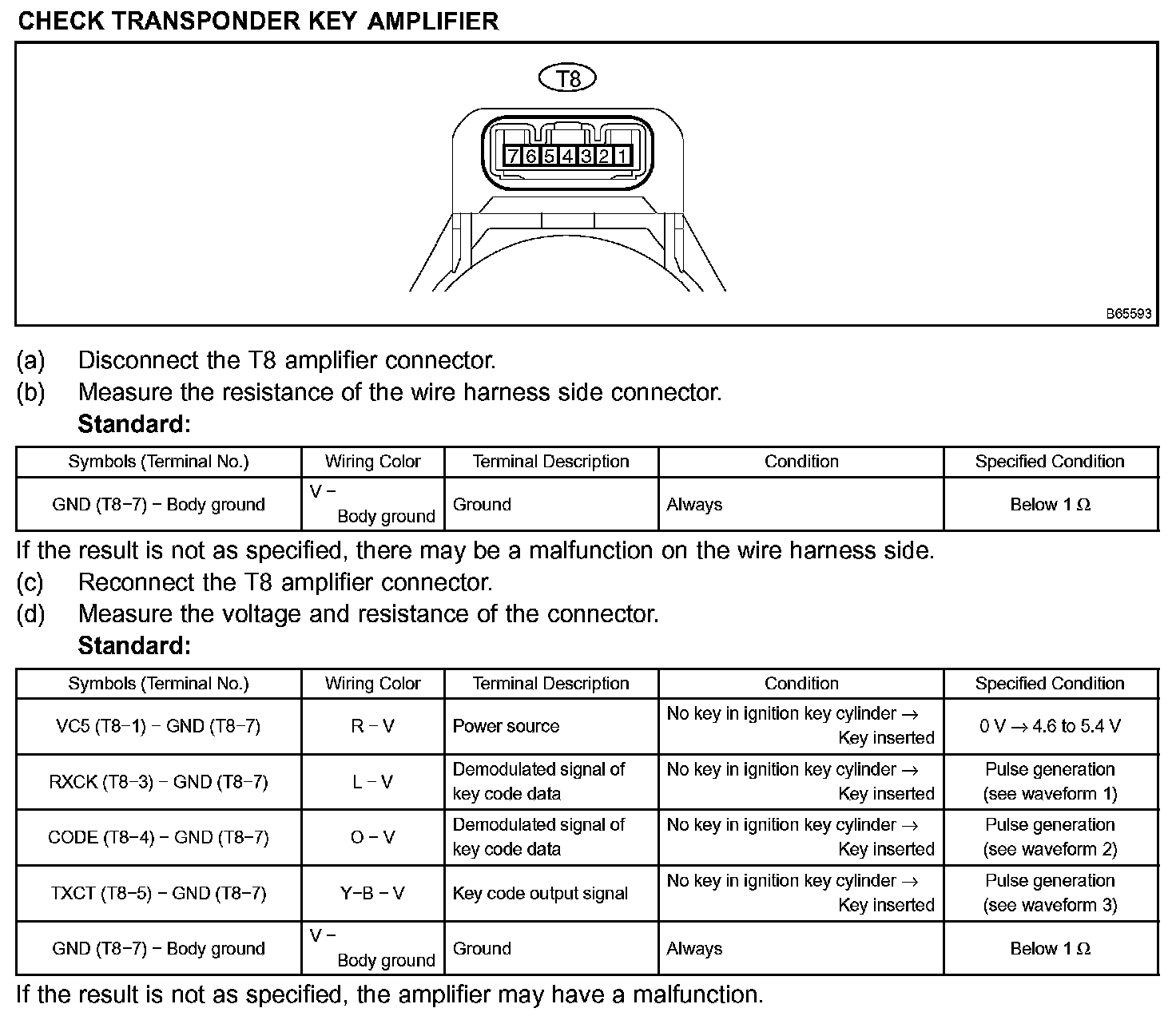

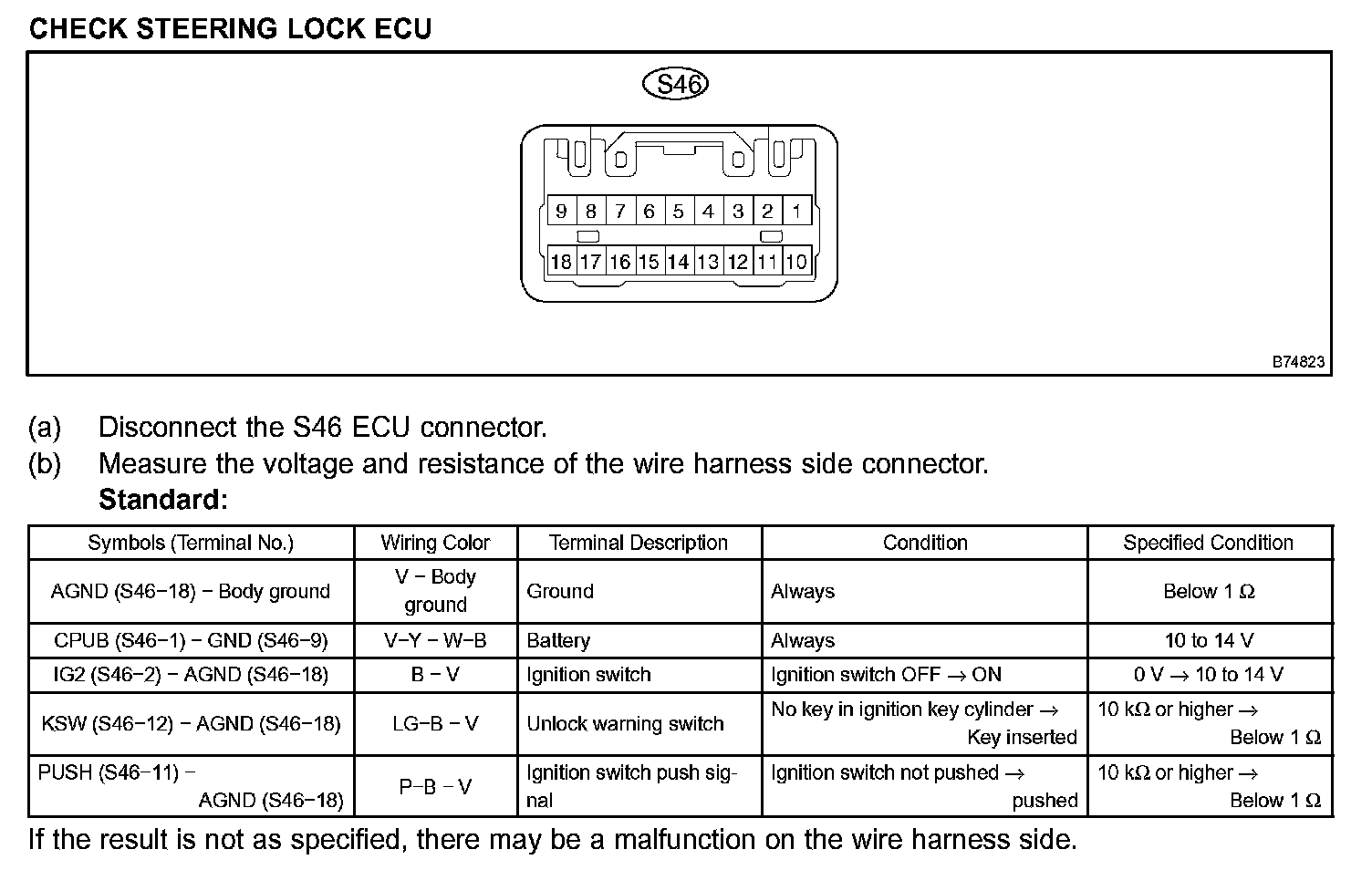

Terminals Of Control Module/Pinouts:

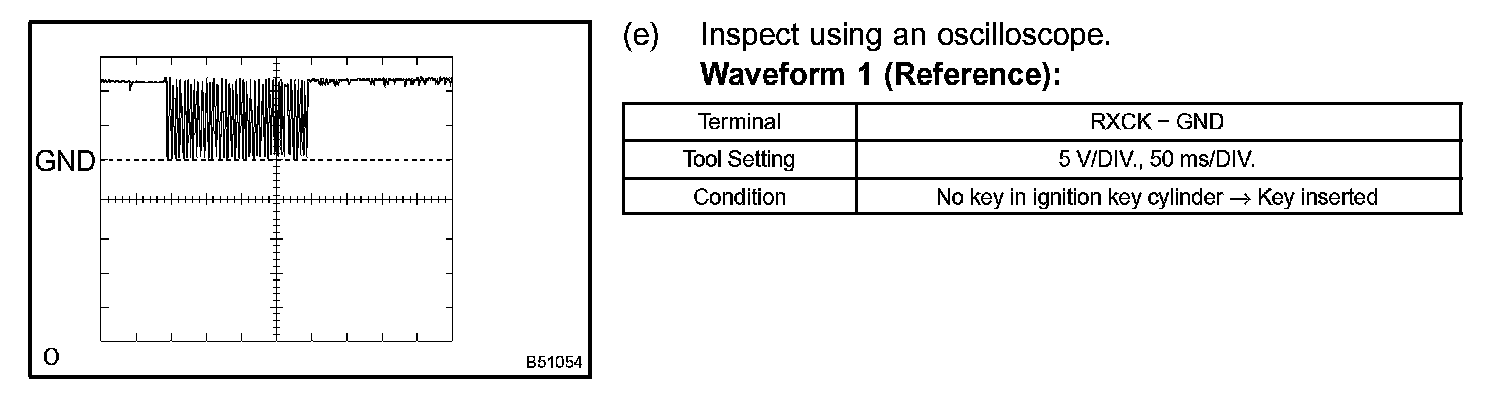

Oscilloscope Waveform:

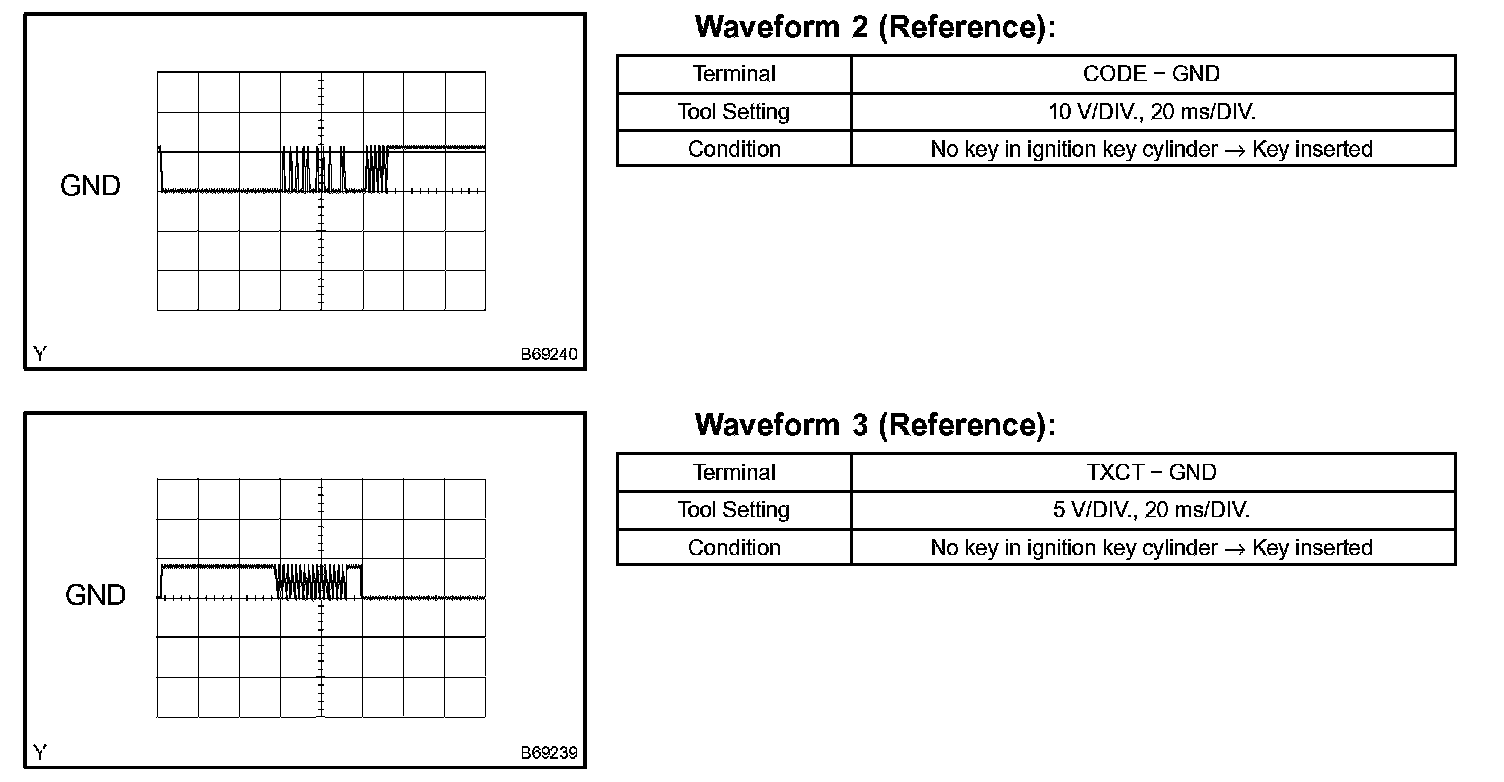

Oscilloscope Waveforms:



Terminals Of Control Module/Pinouts (Part 1):

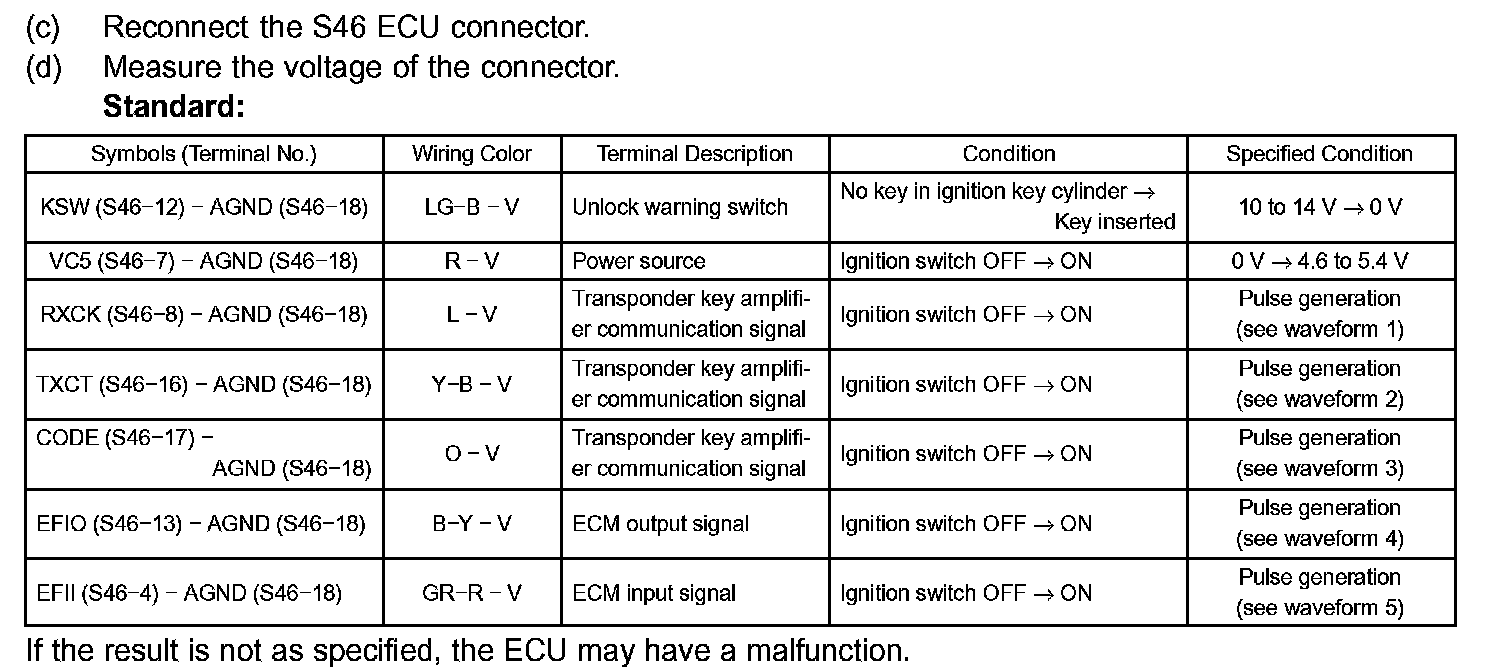

Terminals Of Control Module/Pinouts (Part 2):

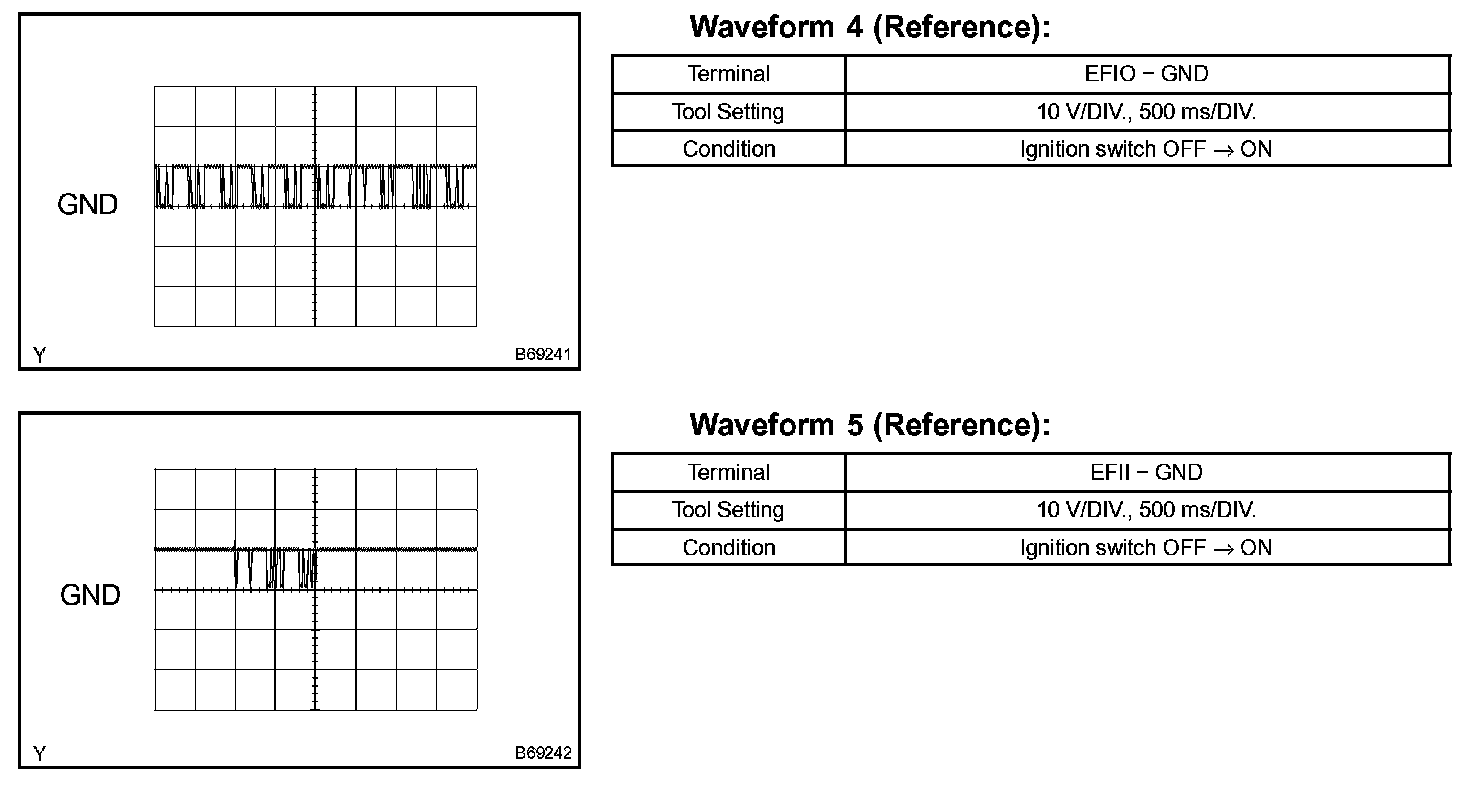

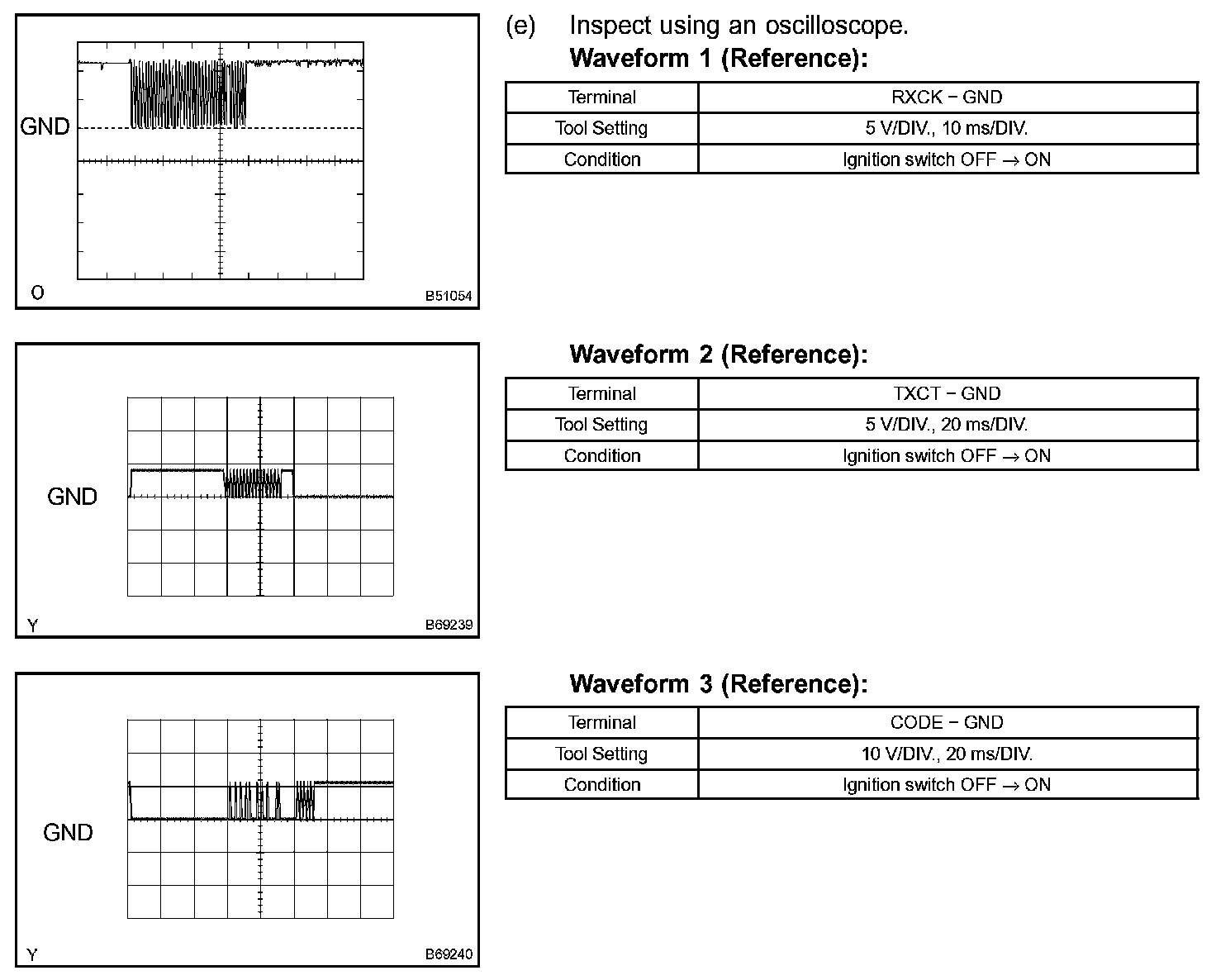

Oscilloscope Waveforms:



Oscilloscope Waveforms:

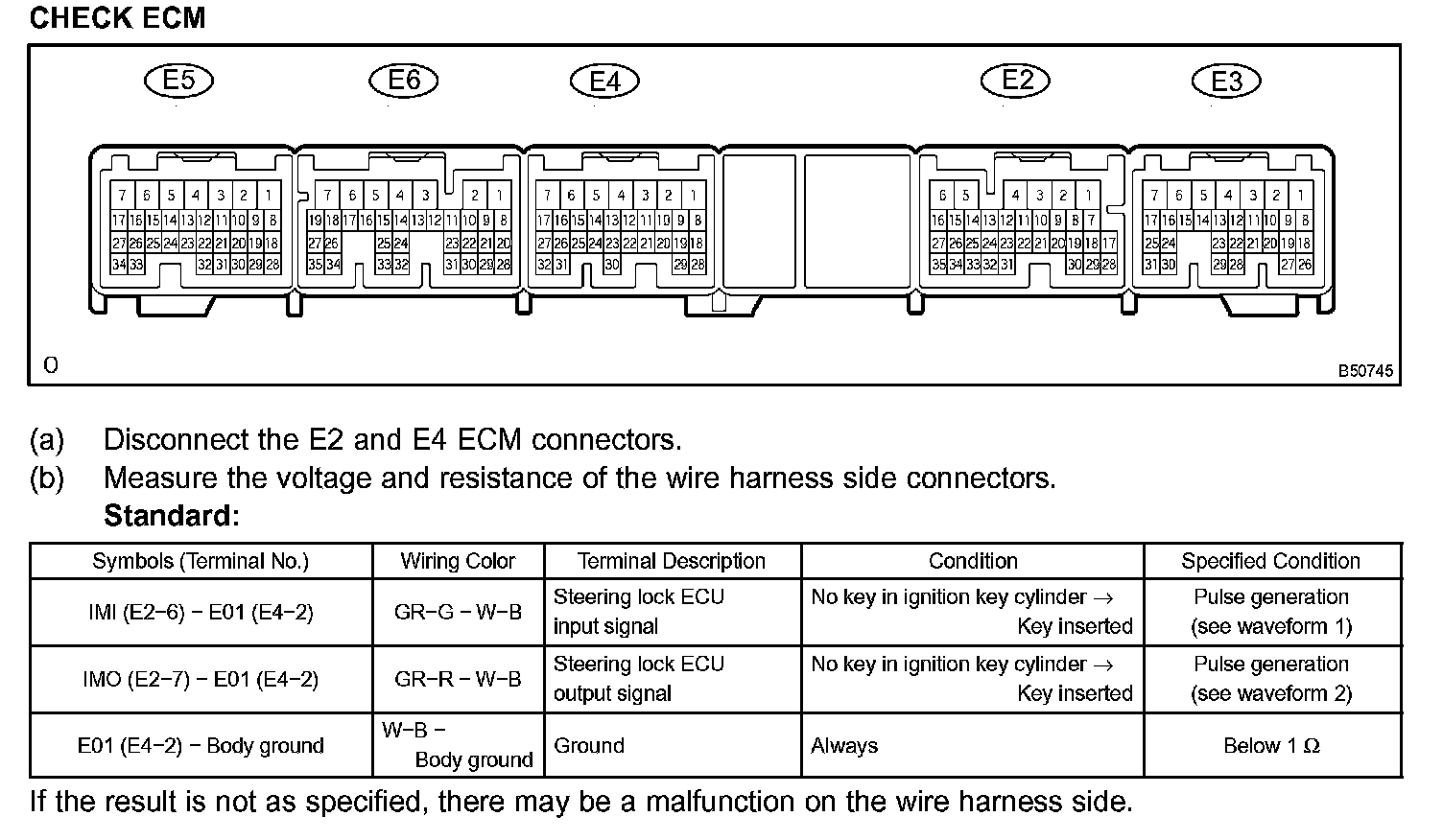

Terminals Of Control Module/Pinouts:

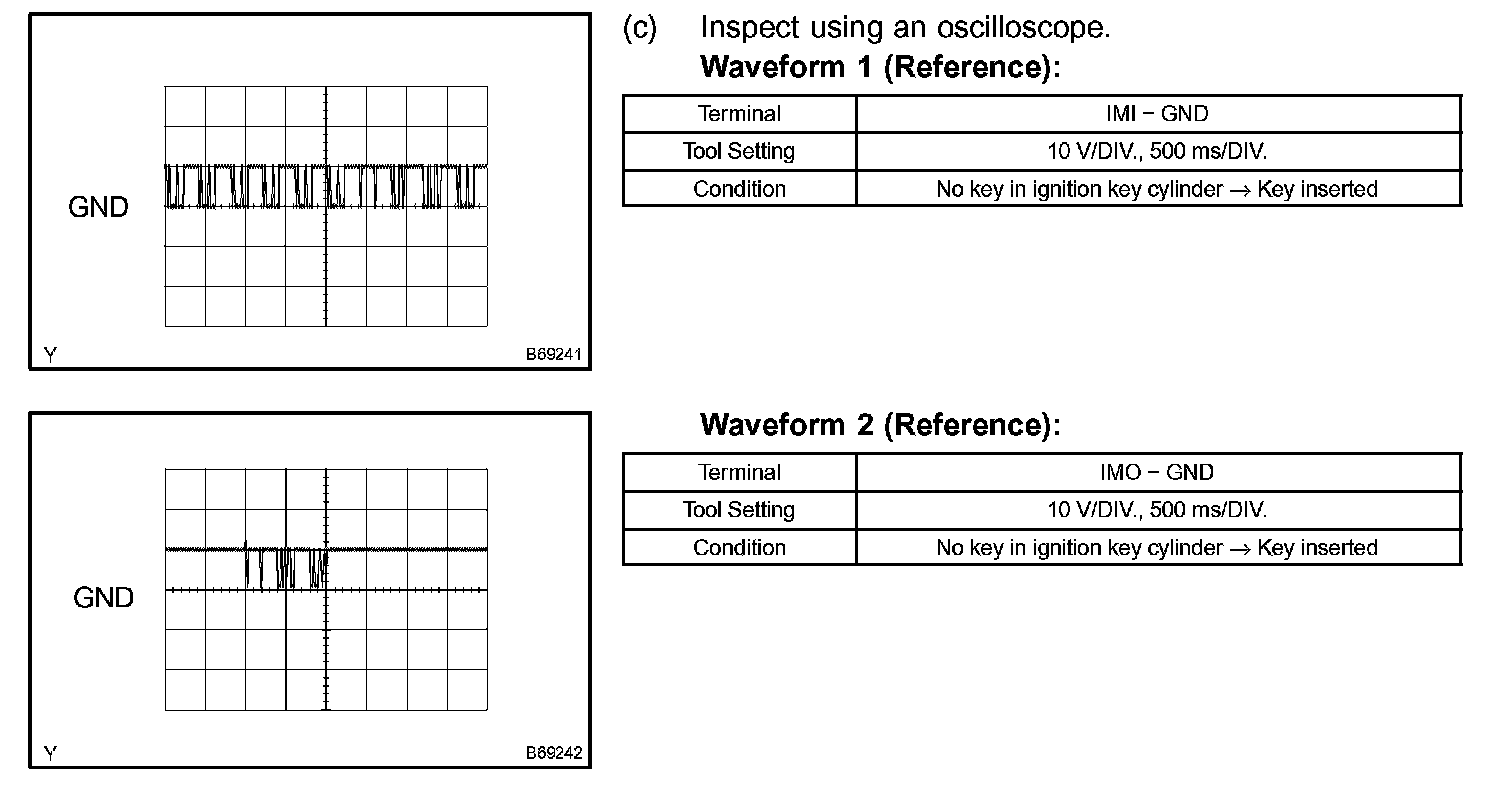

Oscilloscope Waveforms:
