Ignition Switch Circuit

IGNITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION

When the ignition switch is turned ON, battery positive voltage is applied to the theft warning ECU (theft deterrent ECU).

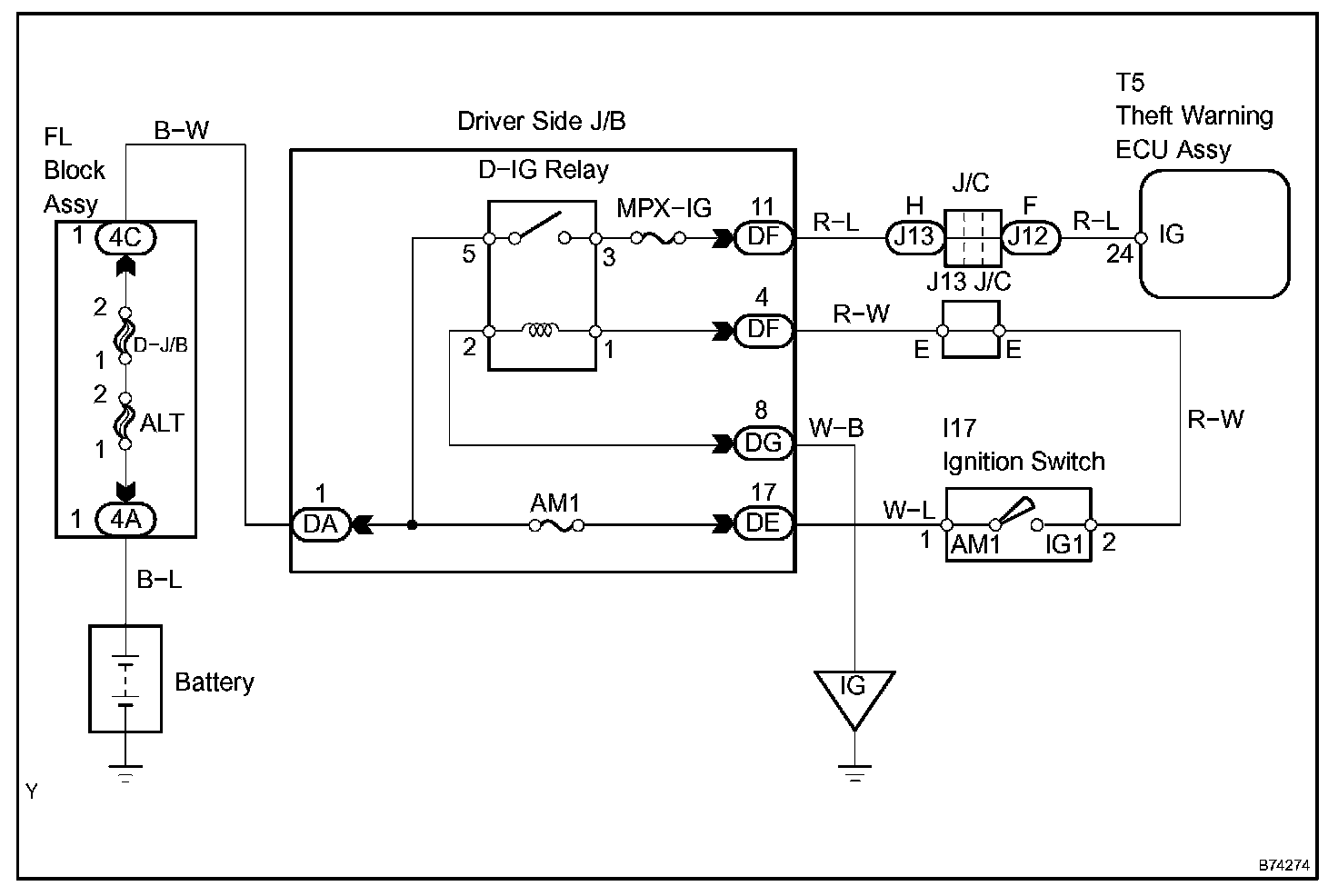

Wiring Diagram:

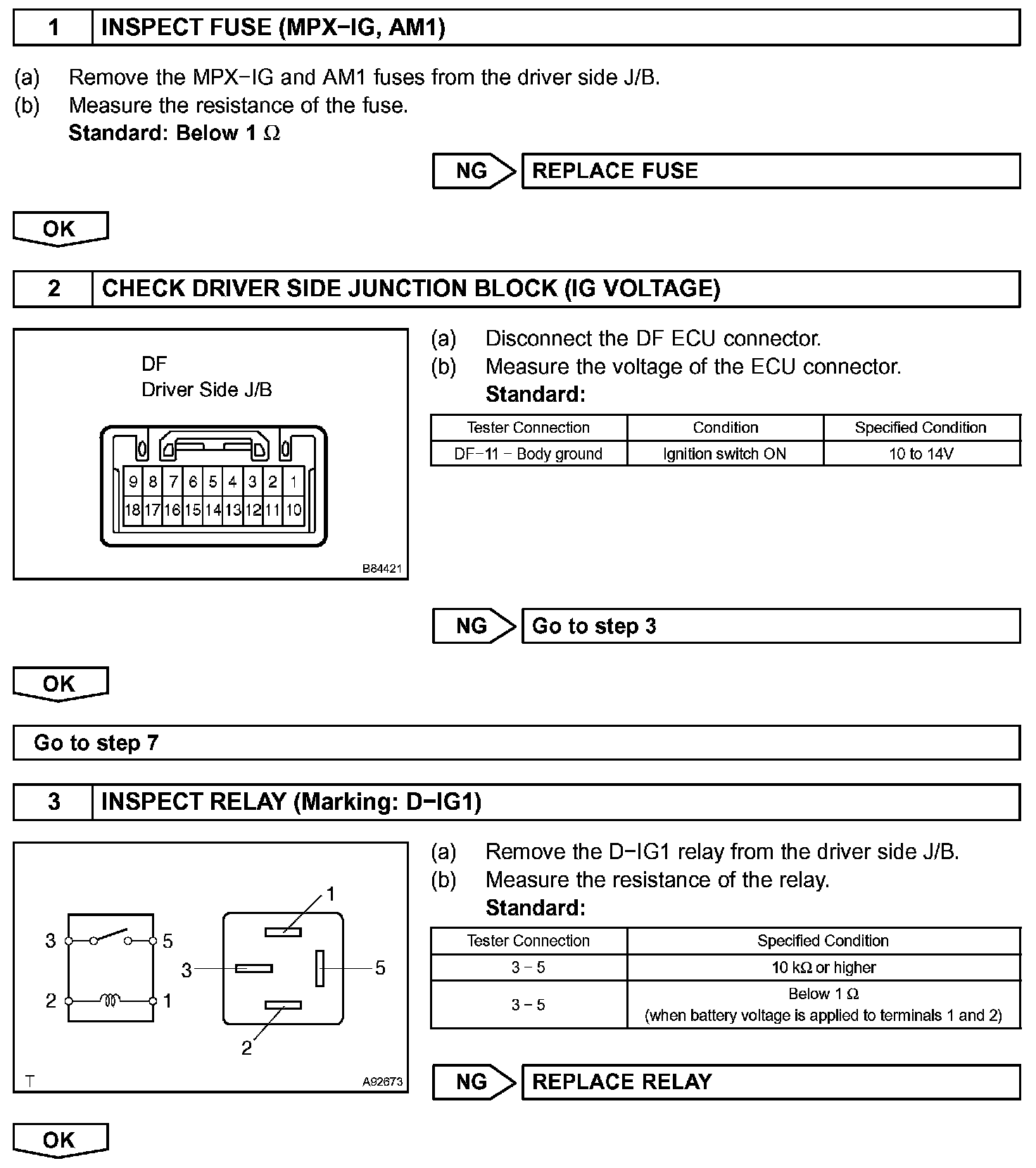

Step 1:

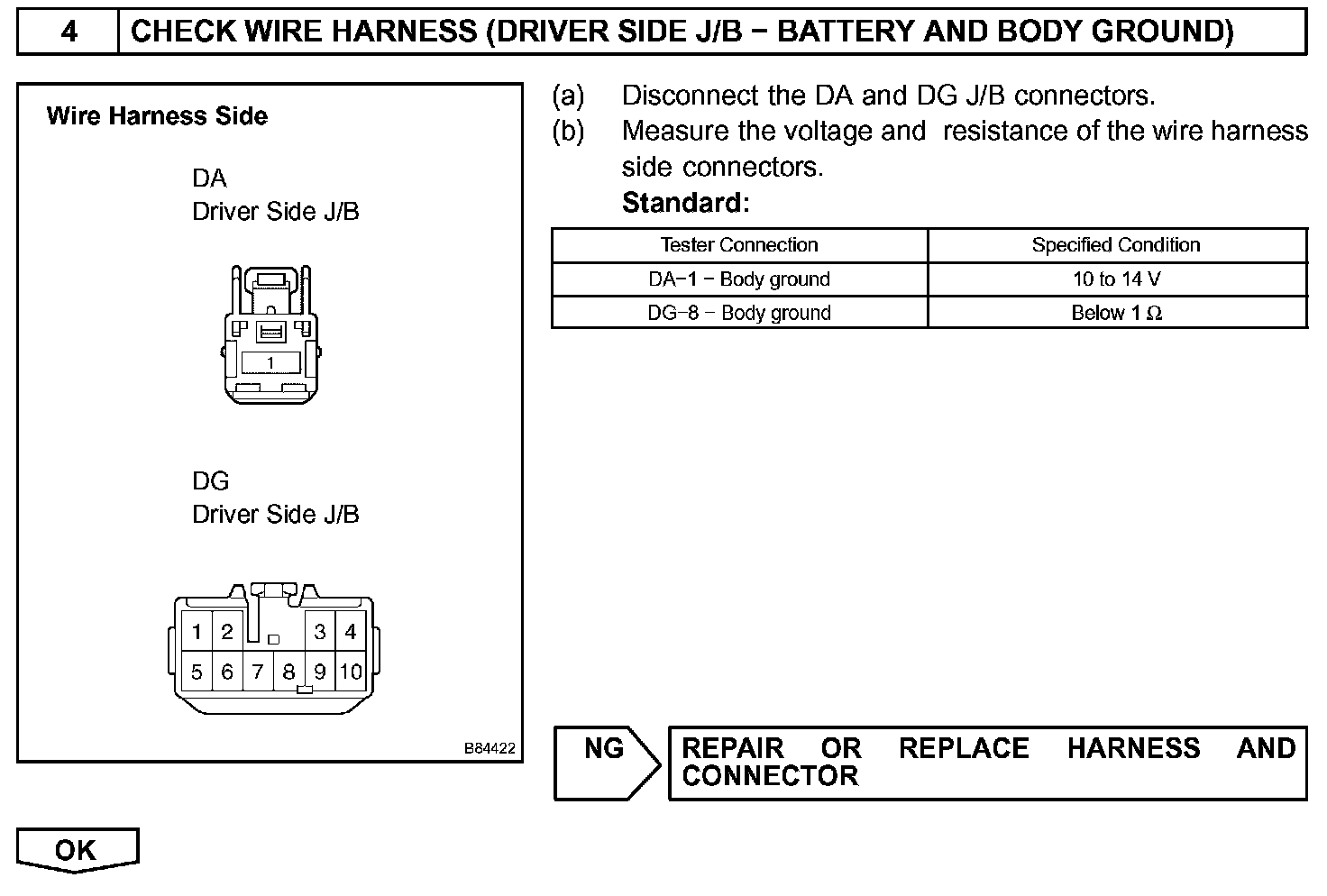

Step 4:

Step 5-6:

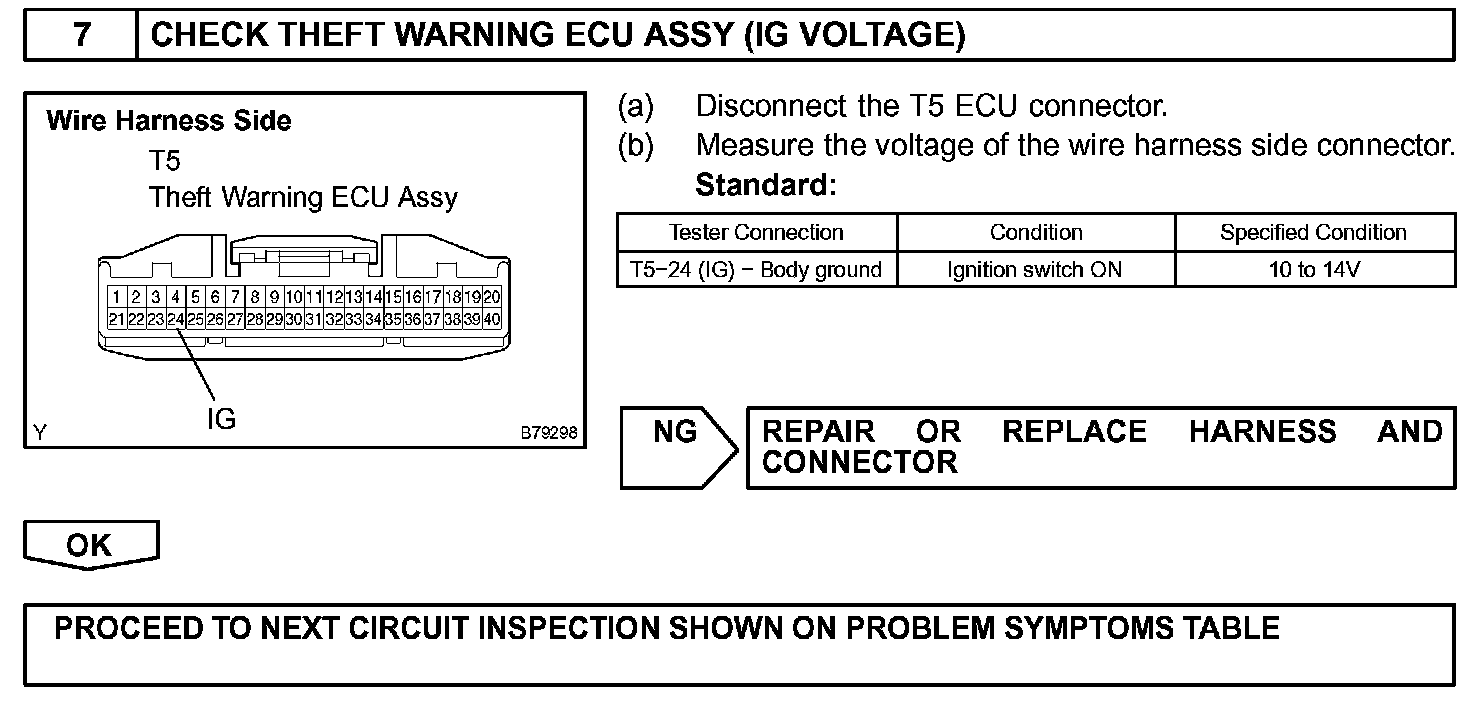

Step 7:

INSPECTION PROCEDURE
