Component Inspection

INSPECTION

1. INSPECT SECURITY HORN ASSEMBLY

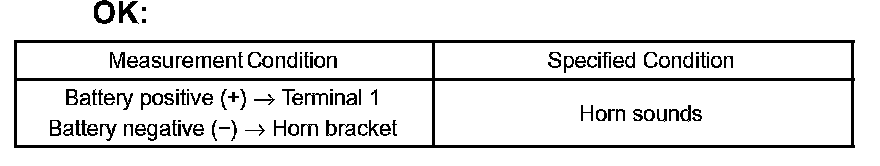

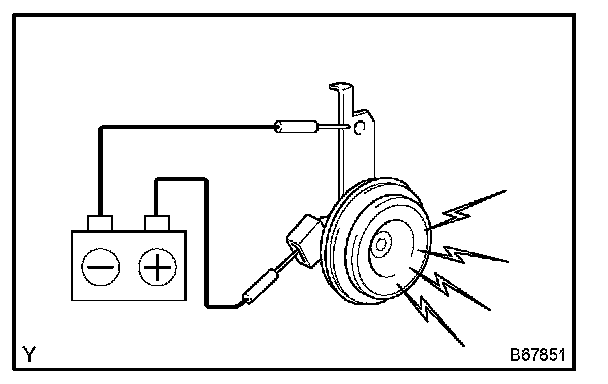

a. Check operation of the horn.

2. INSPECT LIGHT CONTROL RHEOSTAT
a. Remove the rheostat.

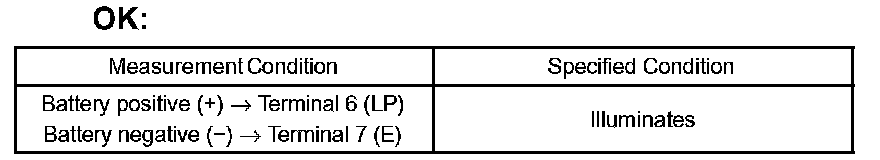

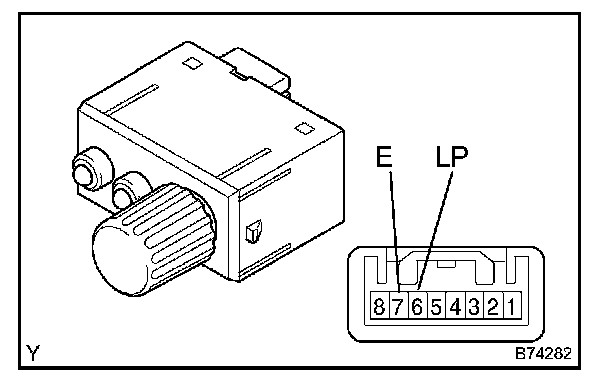

b. Apply 12 V positive voltage between the terminals of the indicator, and check the lighting condition of the security indicator.

NOTE:
- If the positive (+) lead and the negative (-) lead are incorrectly connected, the security indicator does not illuminate.
- Voltage of more than 12 V will damage the security indicator.
- If the voltage is too low, the security indicator will not illuminate.

3. INSPECT ENGINE HOOD COURTESY SWITCH
a. Remove the courtesy switch from the hood lock.

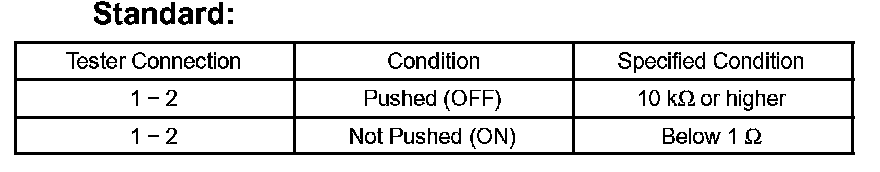

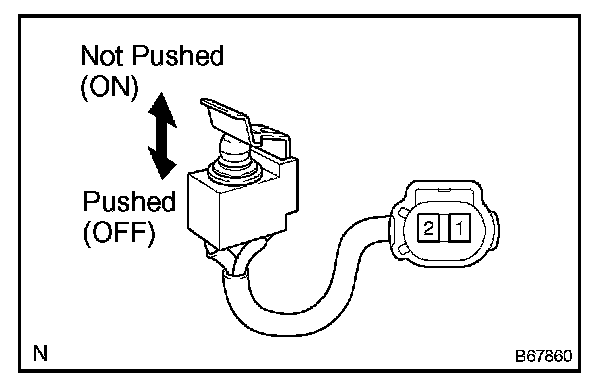

b. Measure the resistance of the switch.

4. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY

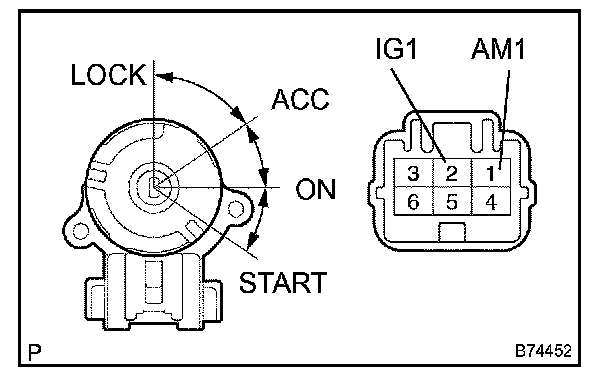

a. Measure the resistance of the switch.

5. INSPECT RELAY (Marking: D-IG1)







a. Remove the D-IG1 relay from the driver side J/B.

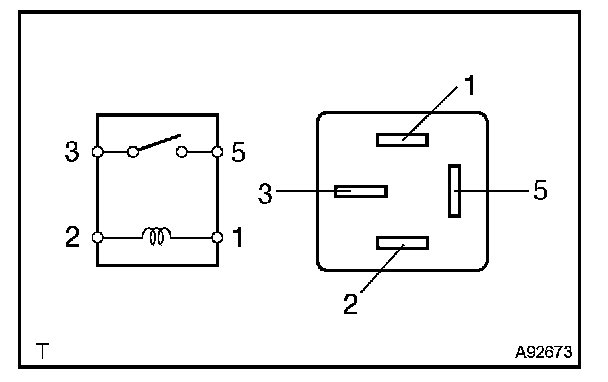

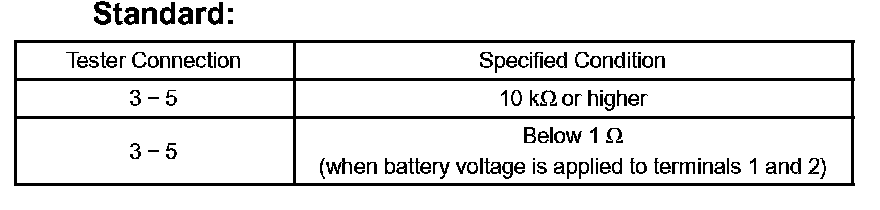

b. Measure the resistance of the relay.
