Power Source Circuit

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the steering lock ECU.

Wiring Diagram:

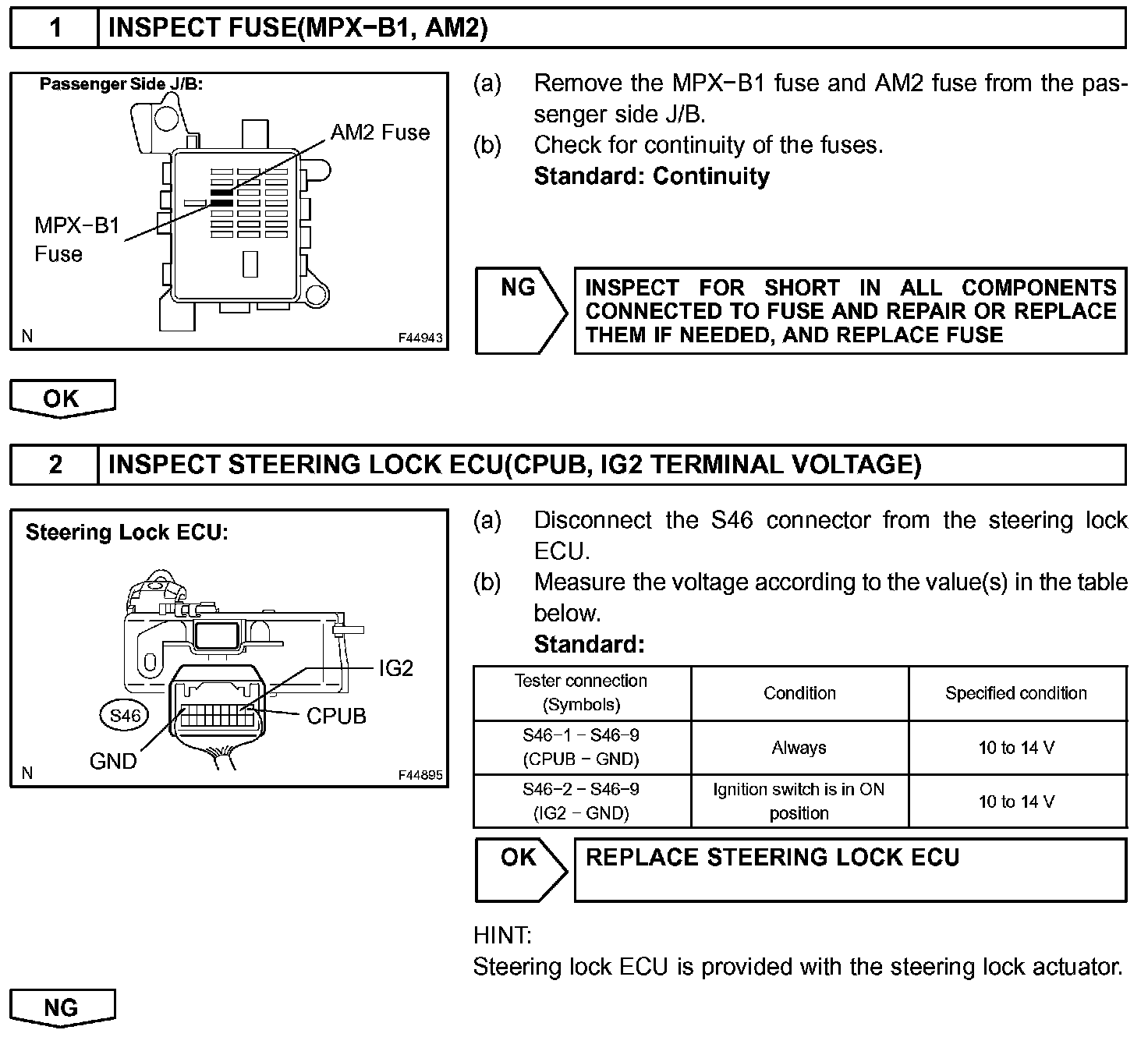

Step 1-2:

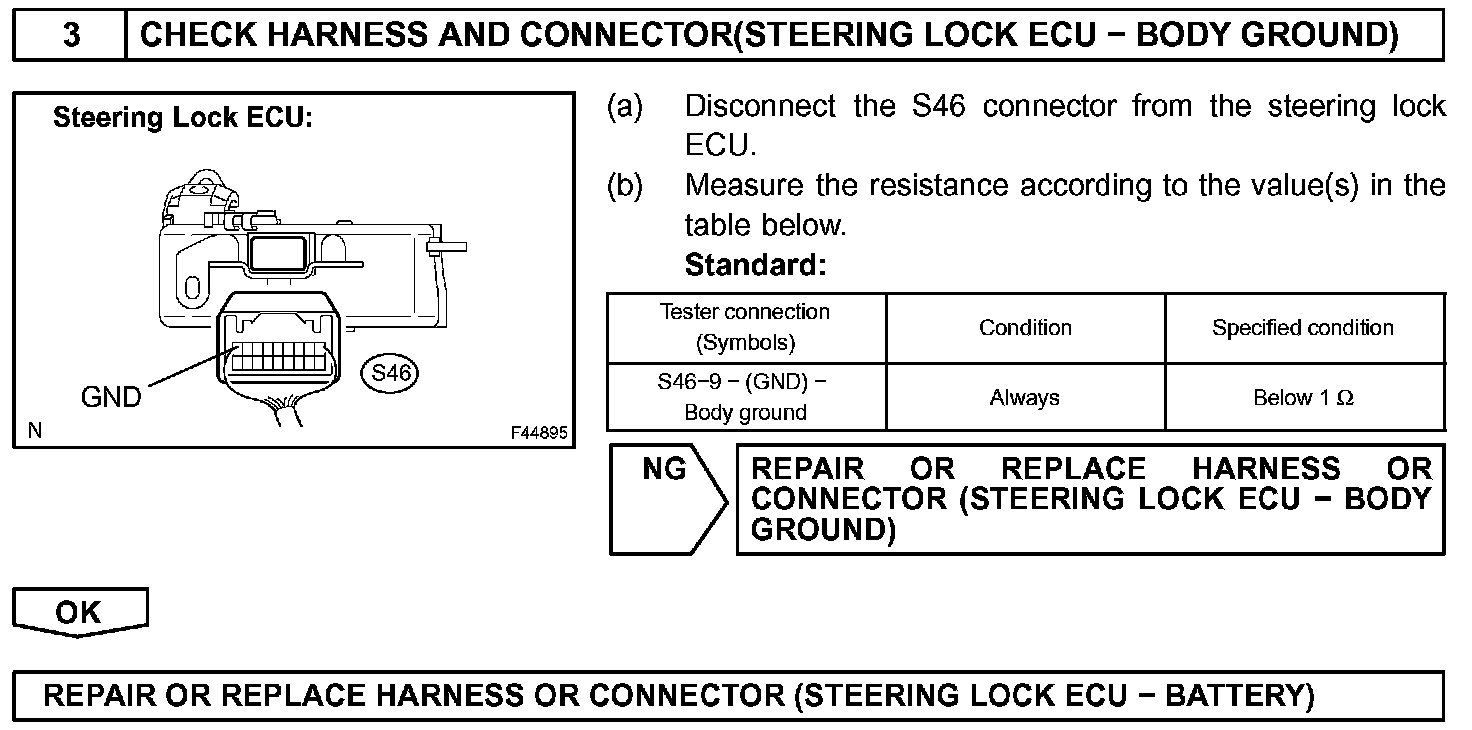

Step 3:




INSPECTION PROCEDURE
