Touch Sensor Circuit

TOUCH SENSOR CIRCUIT

CIRCUIT DESCRIPTION

This circuit receives the signal indicating whether or not a touch sensor signal is detected.

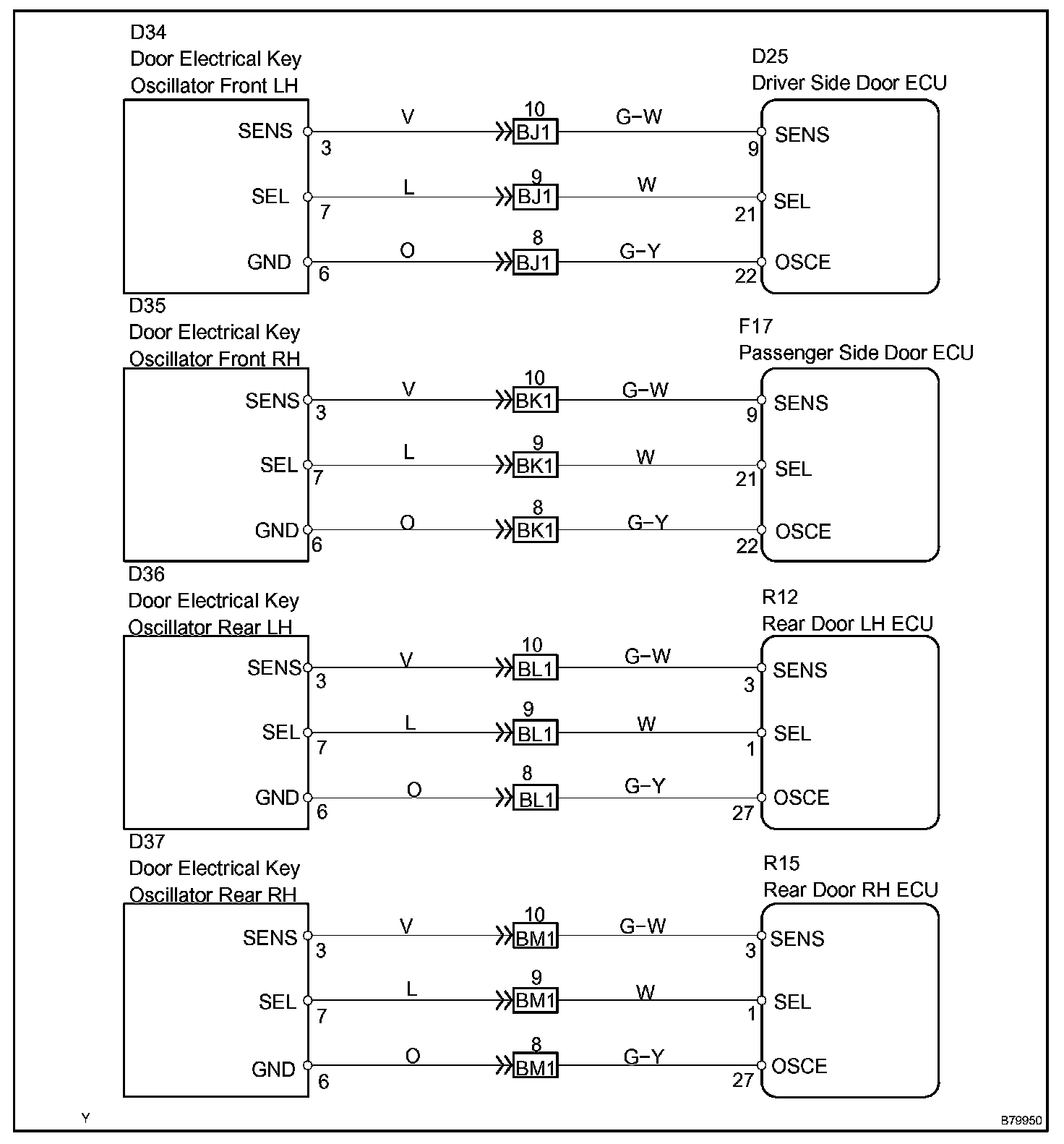

Wiring Diagram:

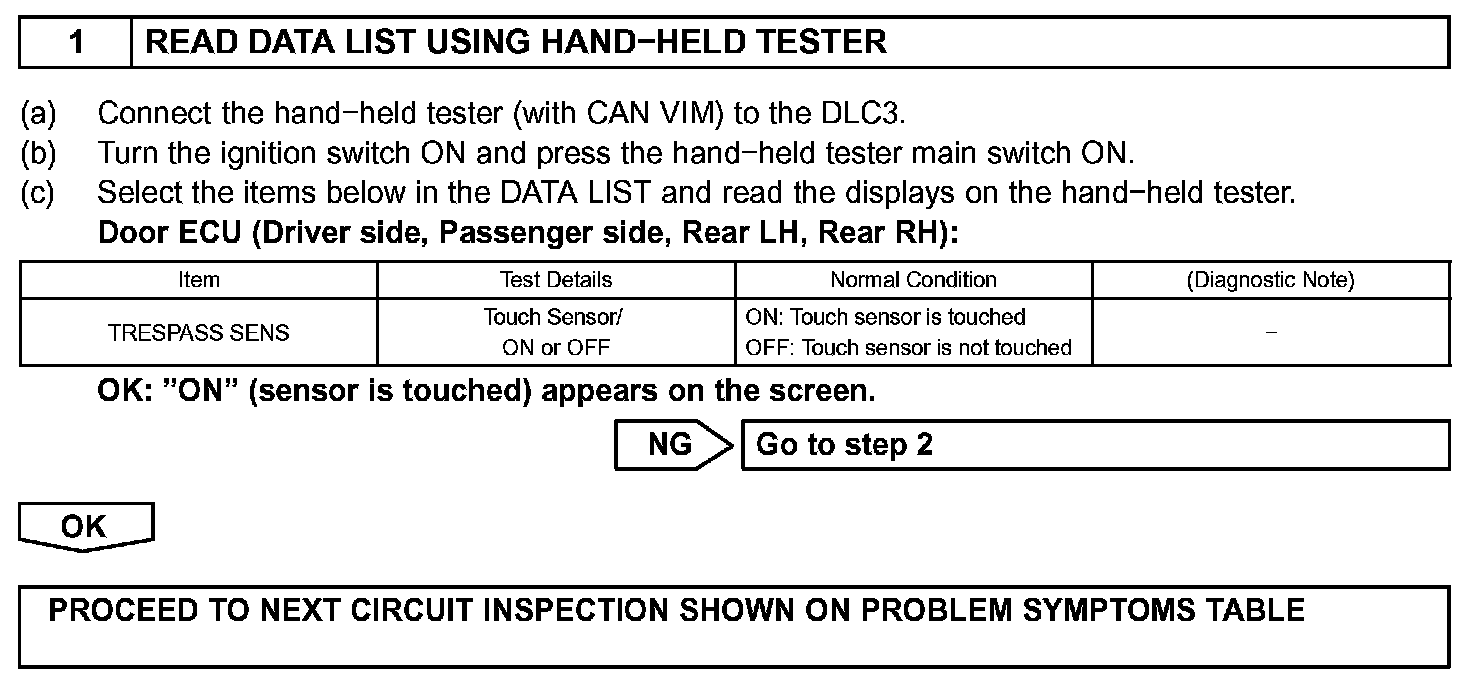

Step 1:




Step 2:

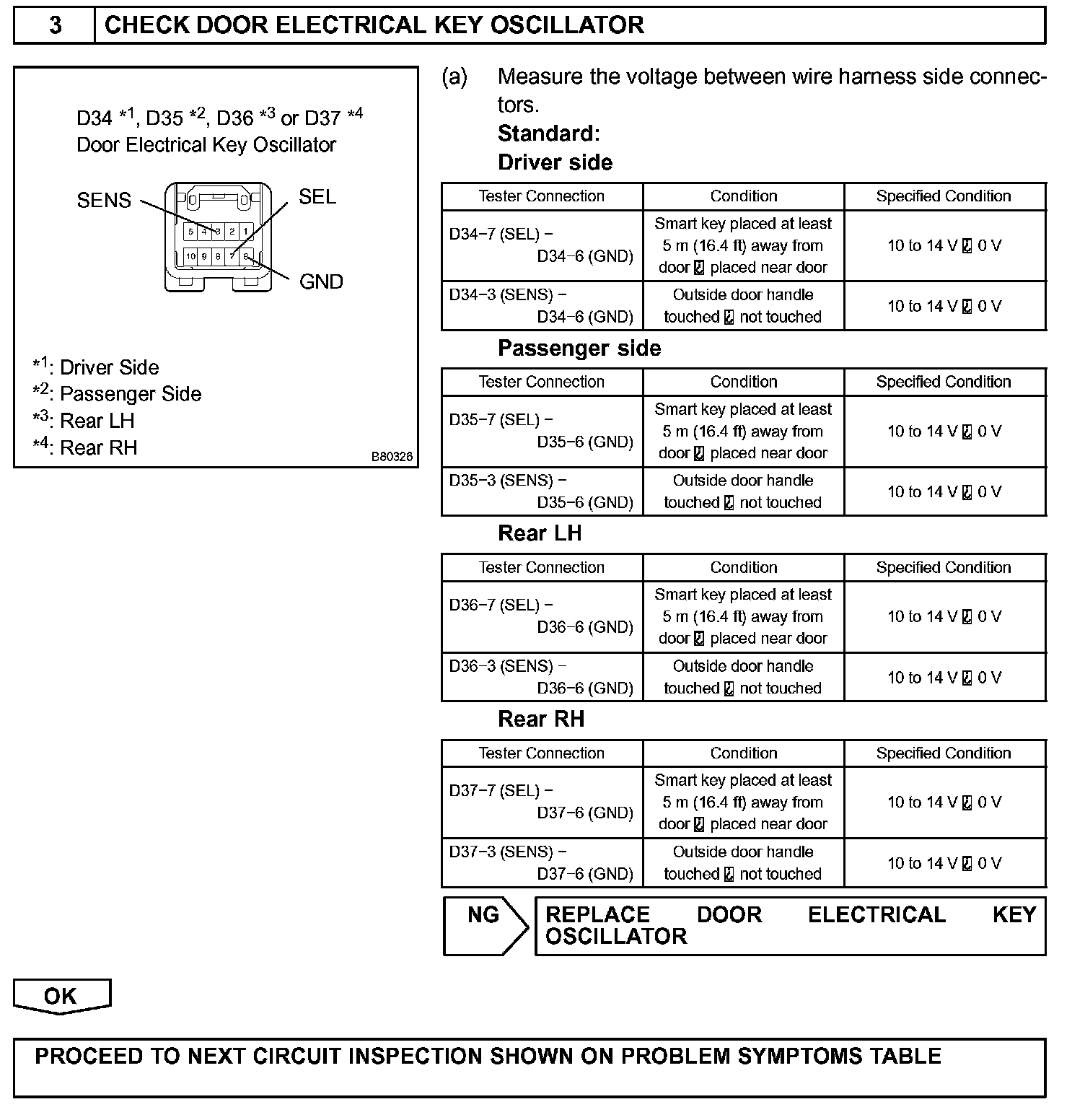

Step 3:




INSPECTION PROCEDURE
