Antenna Circuit
ANTENNA CIRCUITCIRCUIT DESCRIPTION
Terminals ANT1 and ANT2 of the door outside handle detect if the smart key is within the detection area around the door outside handle.

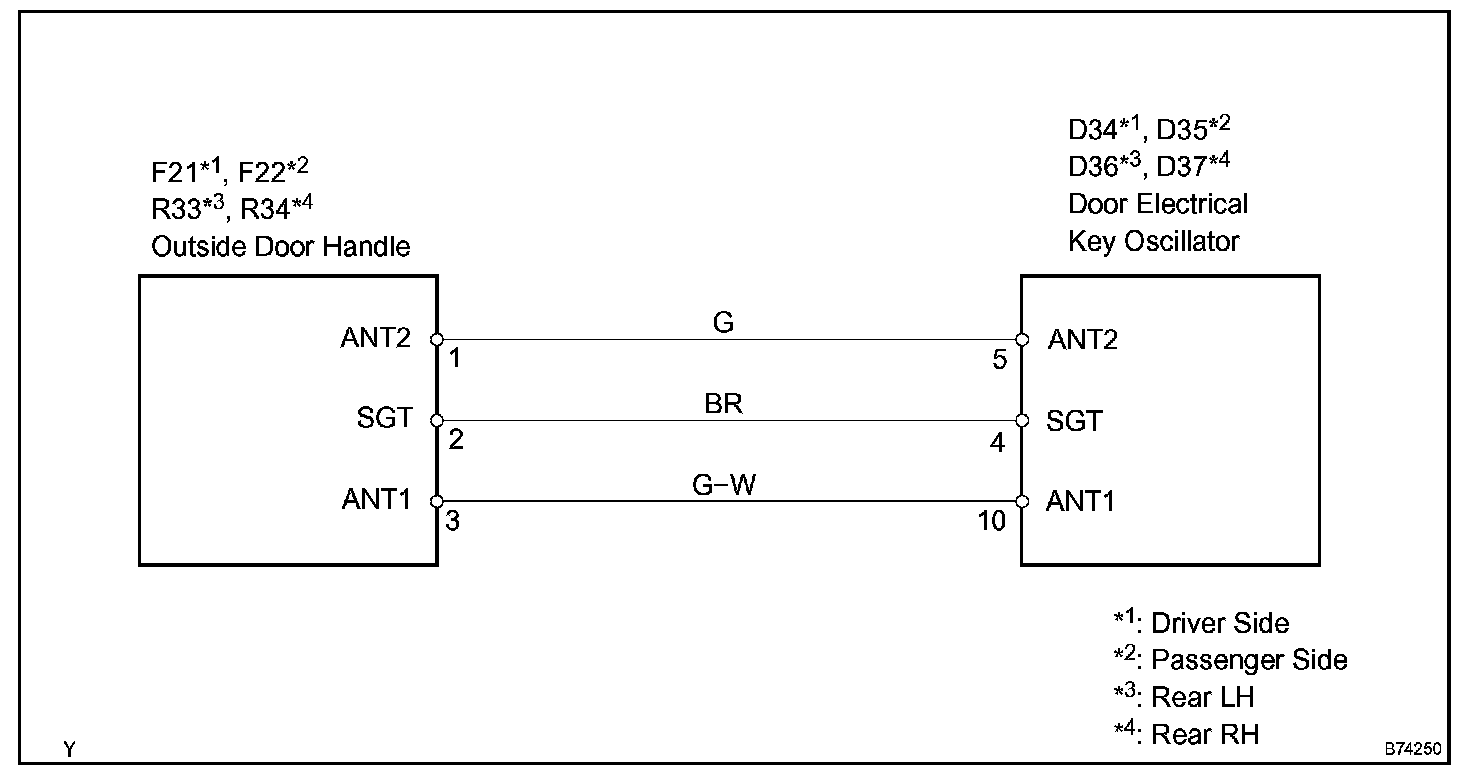

Wiring Diagram:

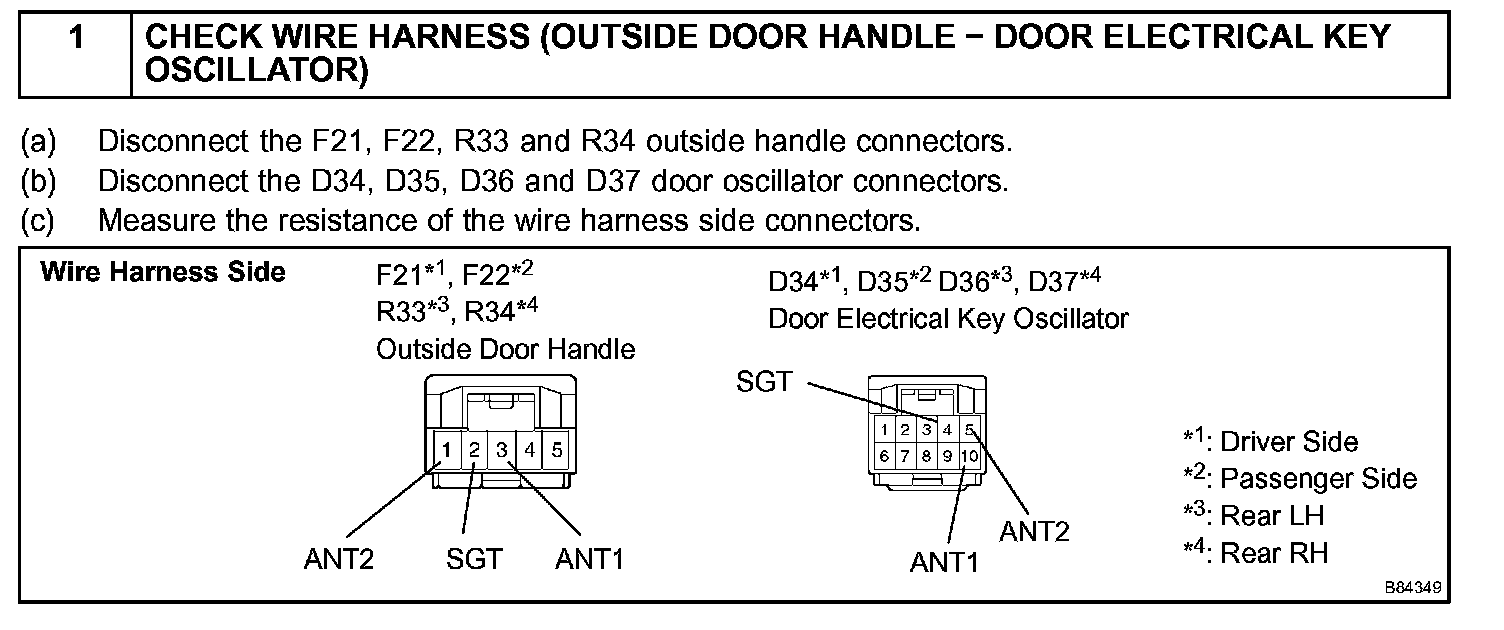

Step 1:

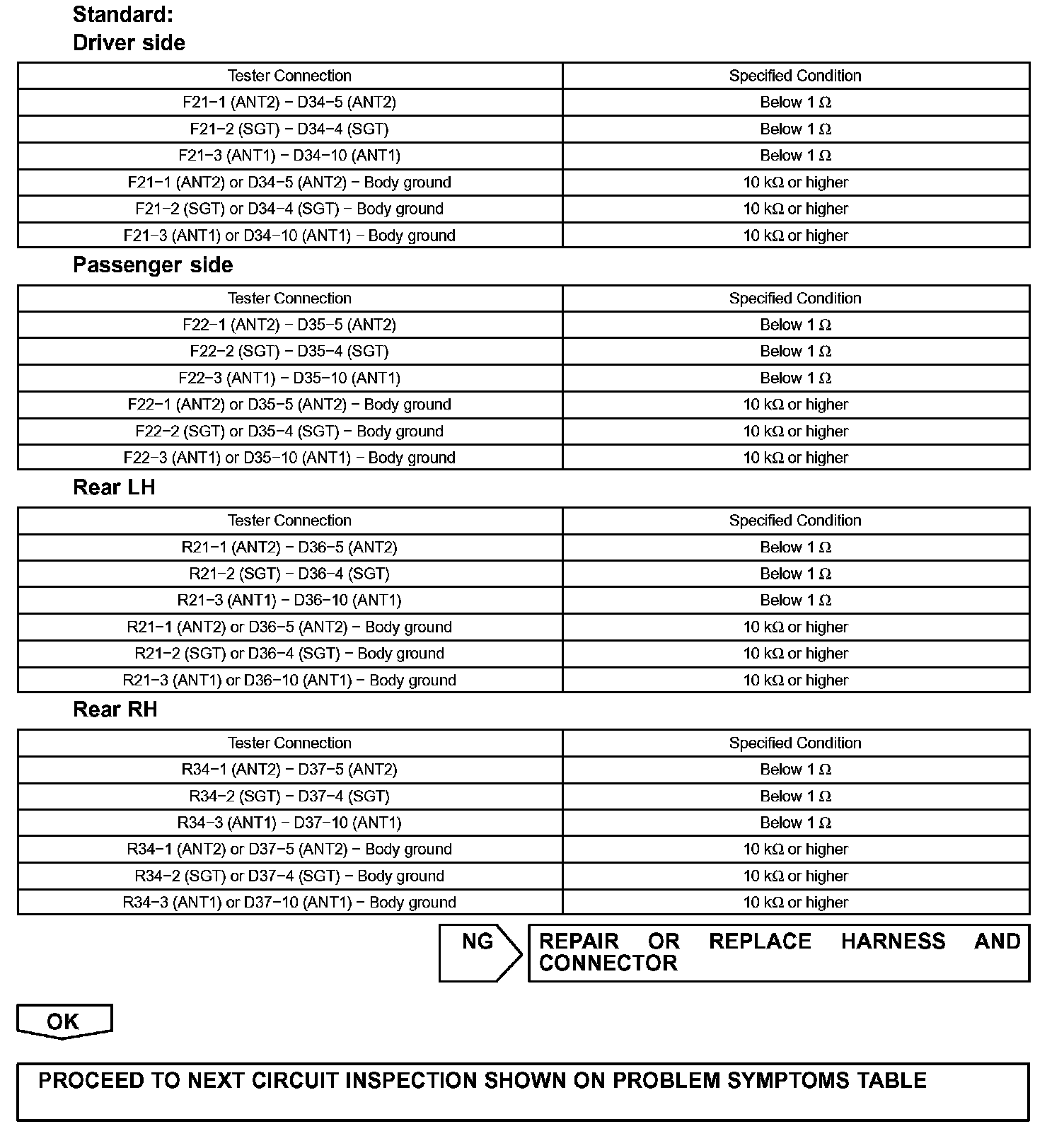

Step 1(continued):
INSPECTION PROCEDURE
