Engine Immobilizer System (W/ Smart Key System)

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the steering lock ECU.

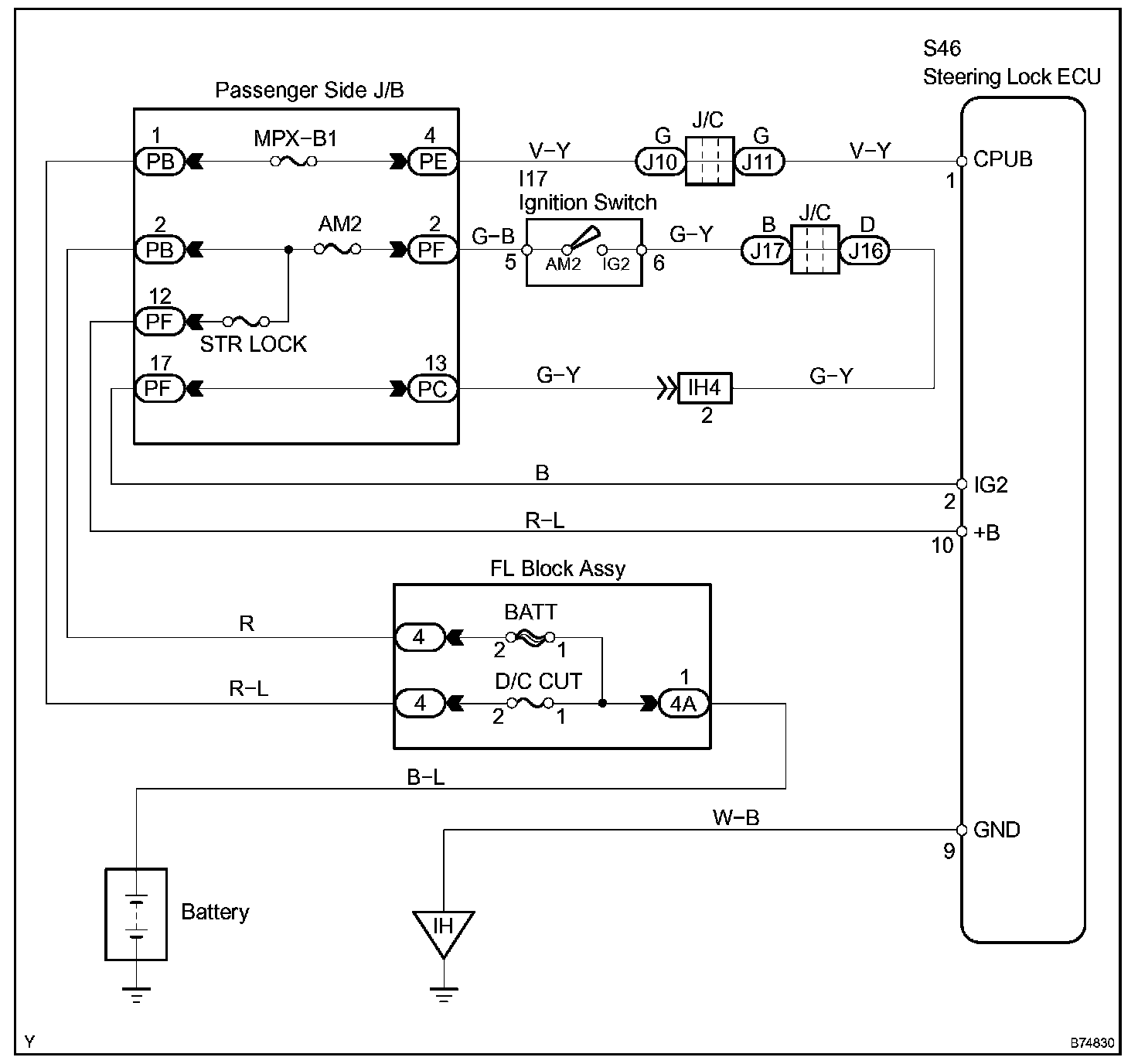

Wiring Diagram:

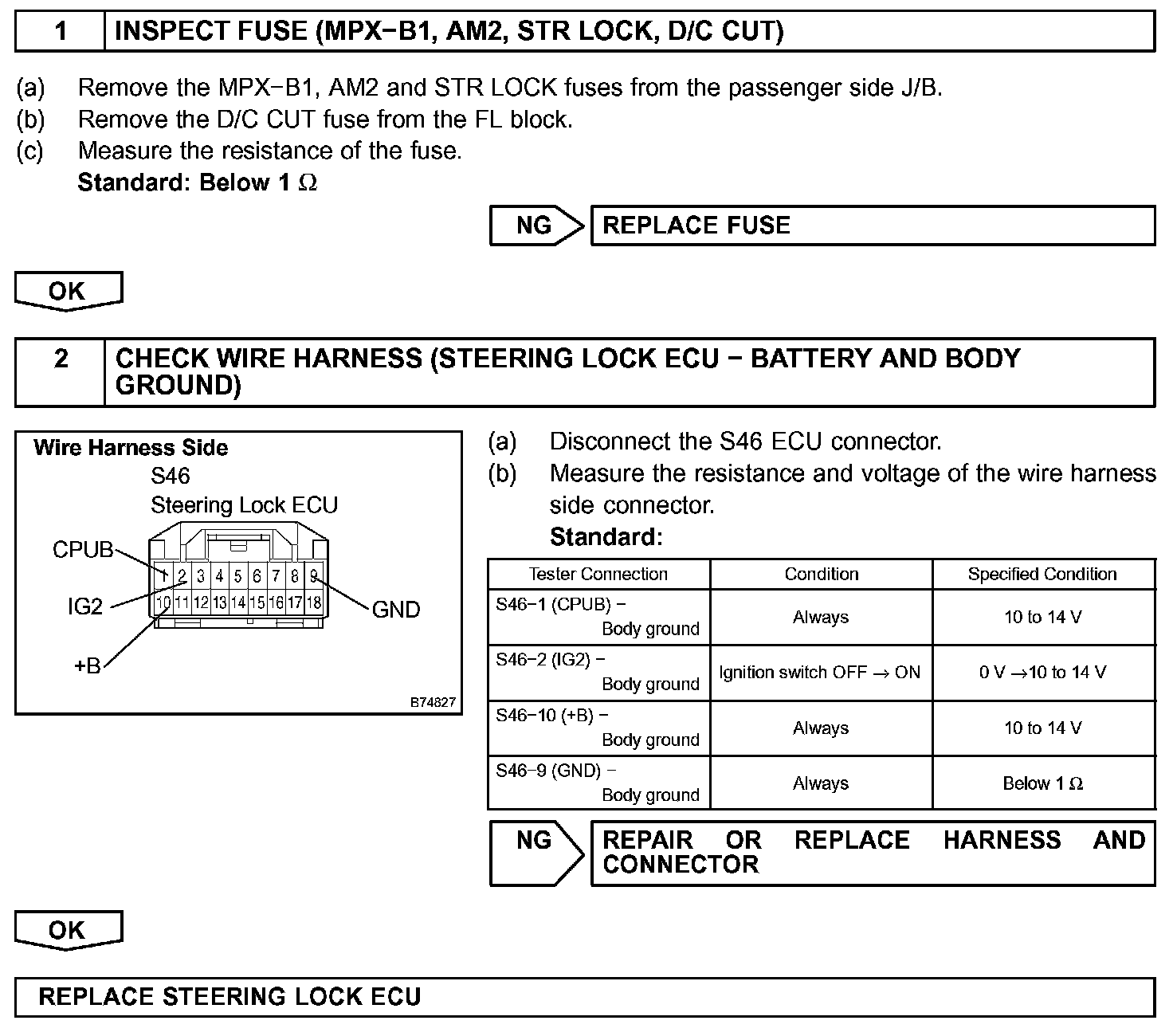

Step 1-2:




INSPECTION PROCEDURE
