Keyless Entry: Locations

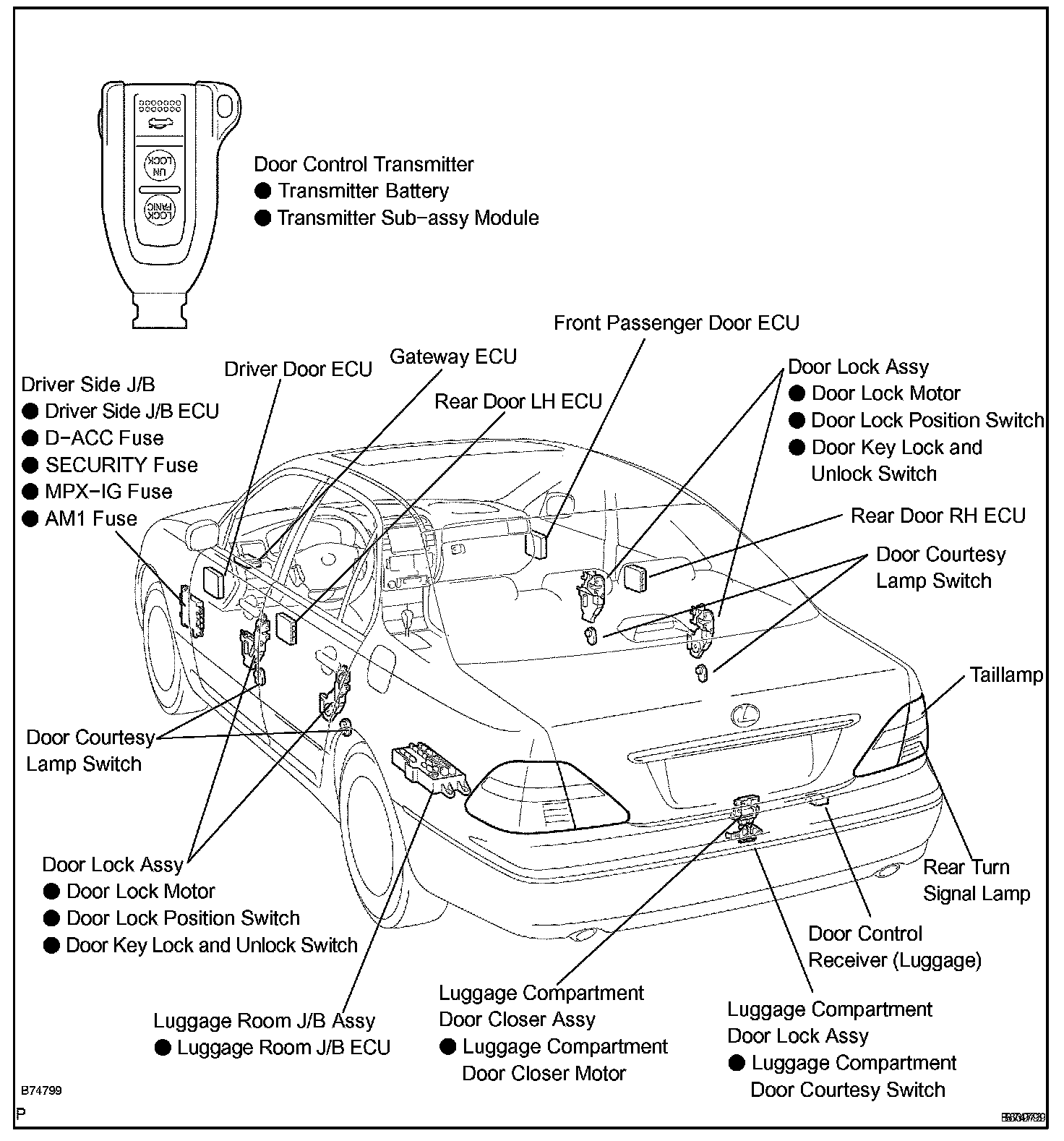

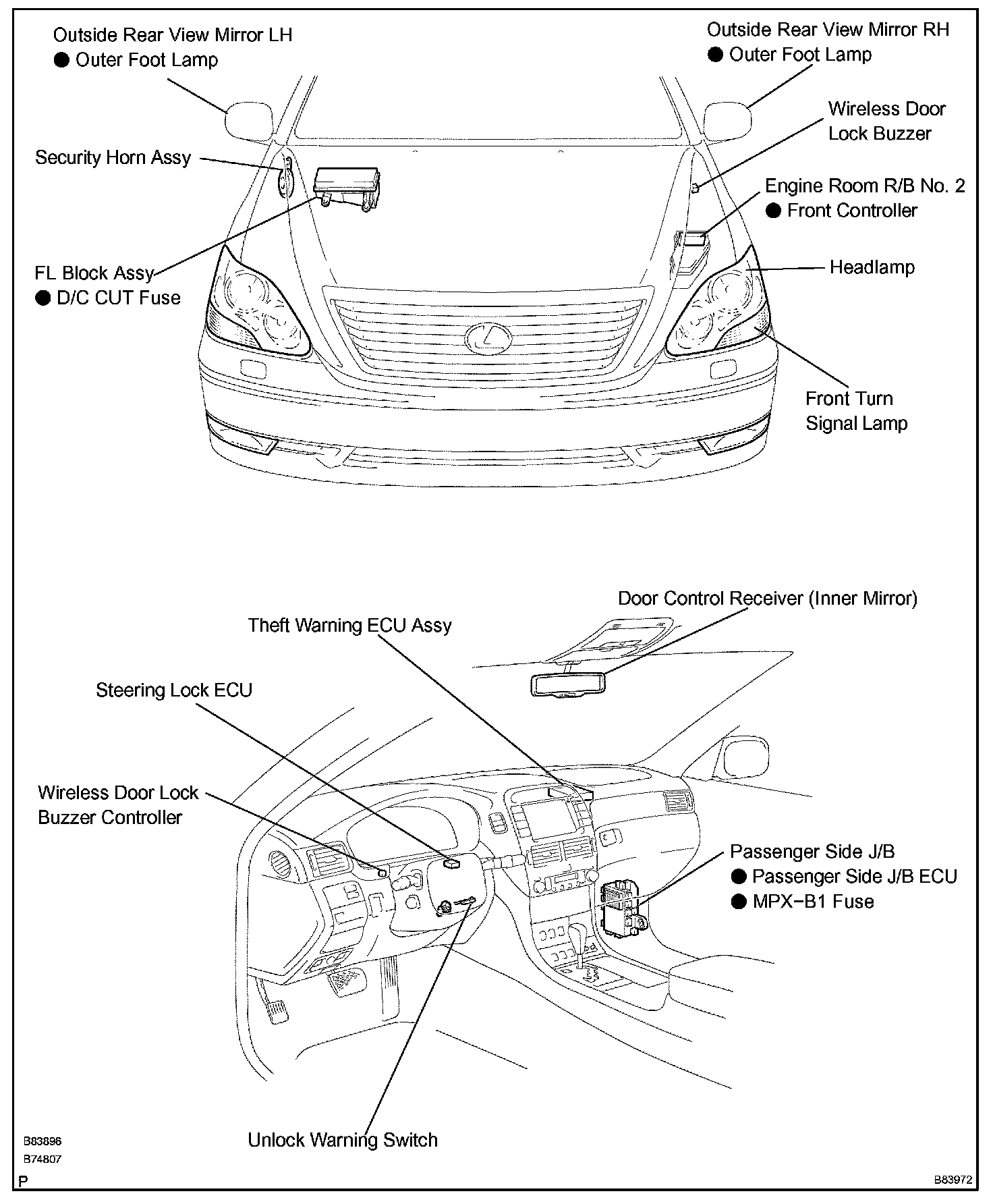

Wireless Door Lock Control System (W/ Smart Key System):



Wireless Door Lock Control System (W/ Smart Key System):

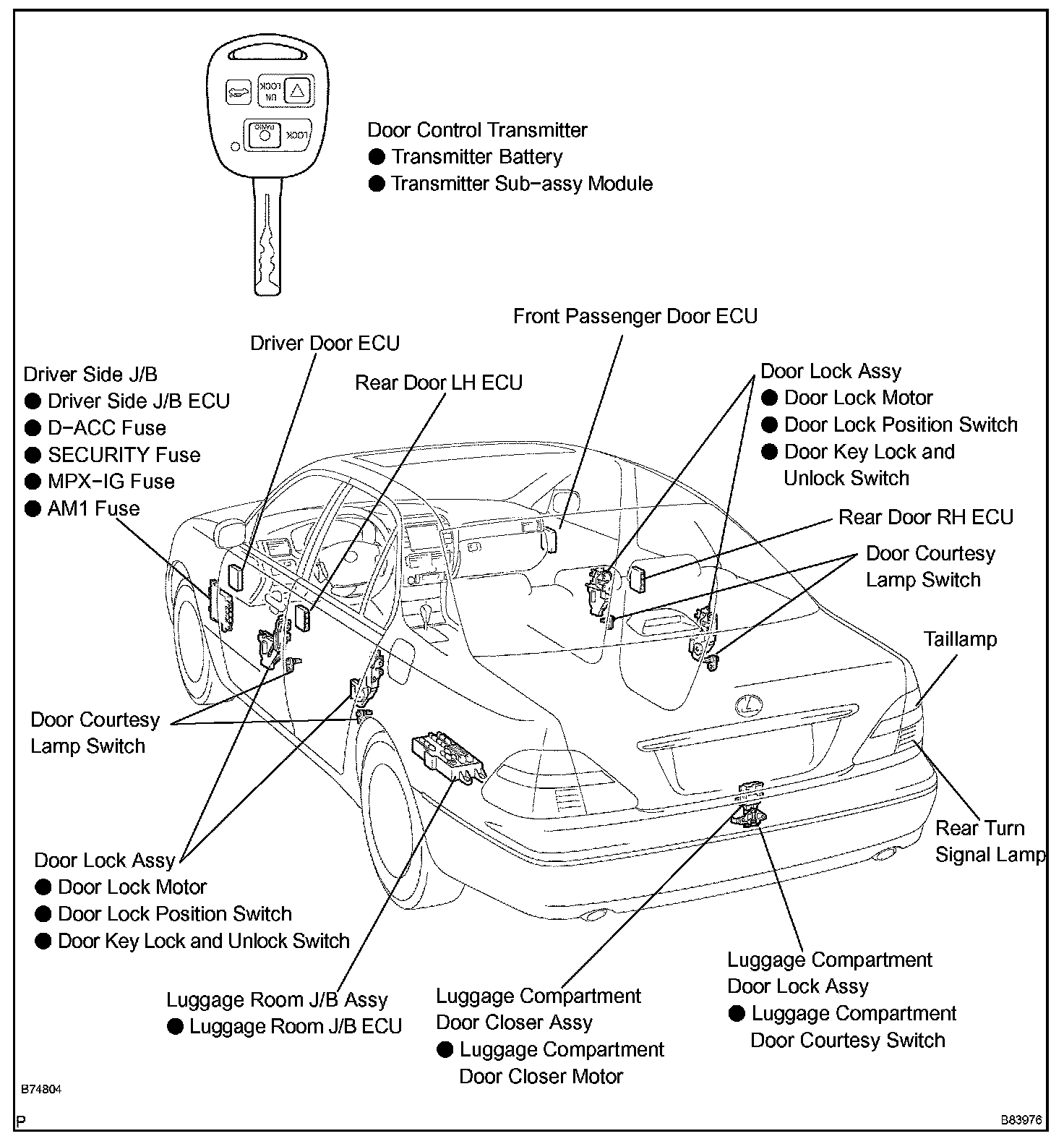

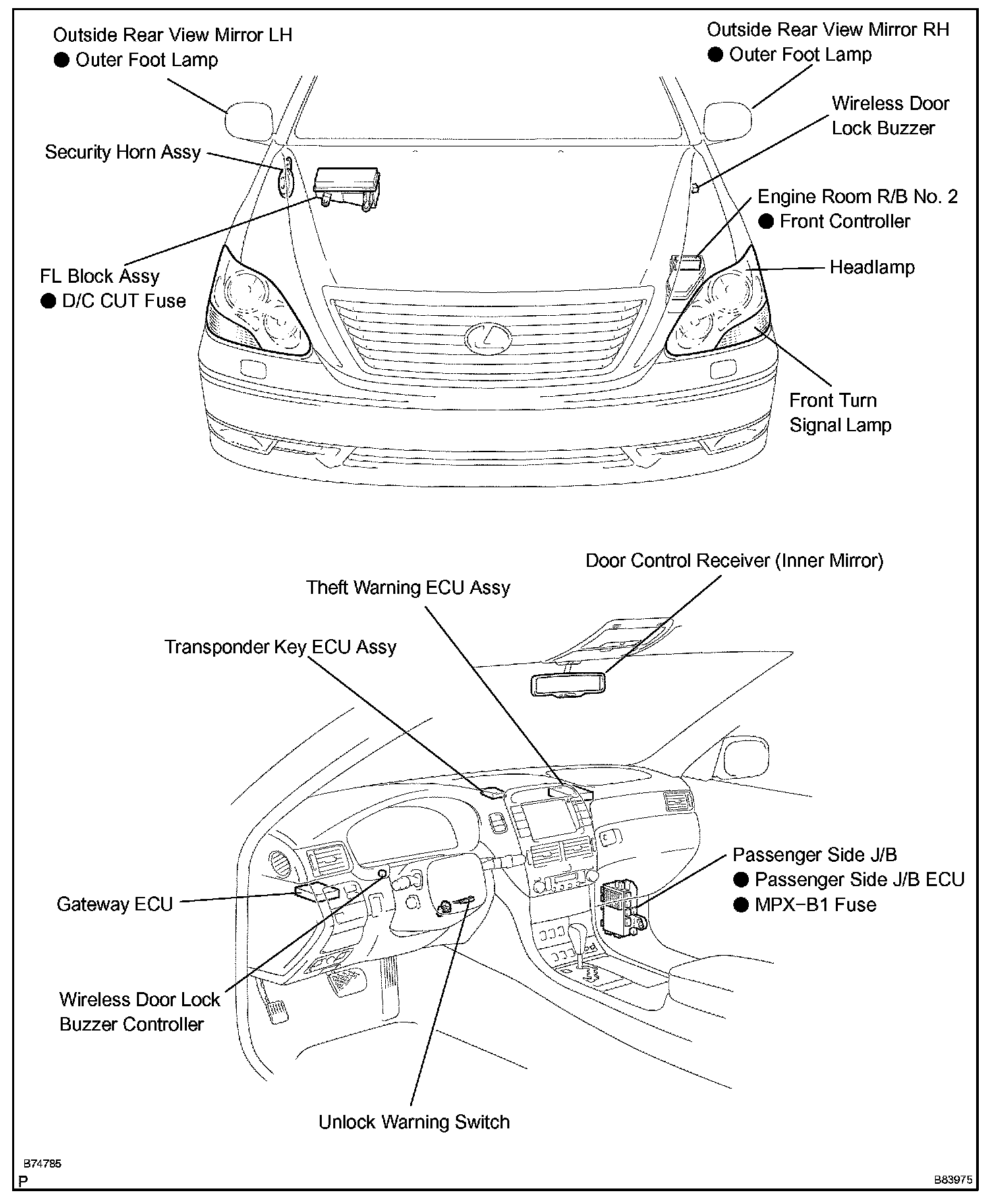

Wireless Door Lock Control System (W/O Smart Key System):



Wireless Door Lock Control System (W/O Smart Key System):
