Antenna Cable: Service and Repair

Audio Visual System Part 3:

ANTENNA CORD SUB-ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE DECK TRIM SIDE BOARD RH
3. REMOVE REAR FLOOR FINISH PLATE
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
6. REMOVE ROOF HEADLINING ASSEMBLY

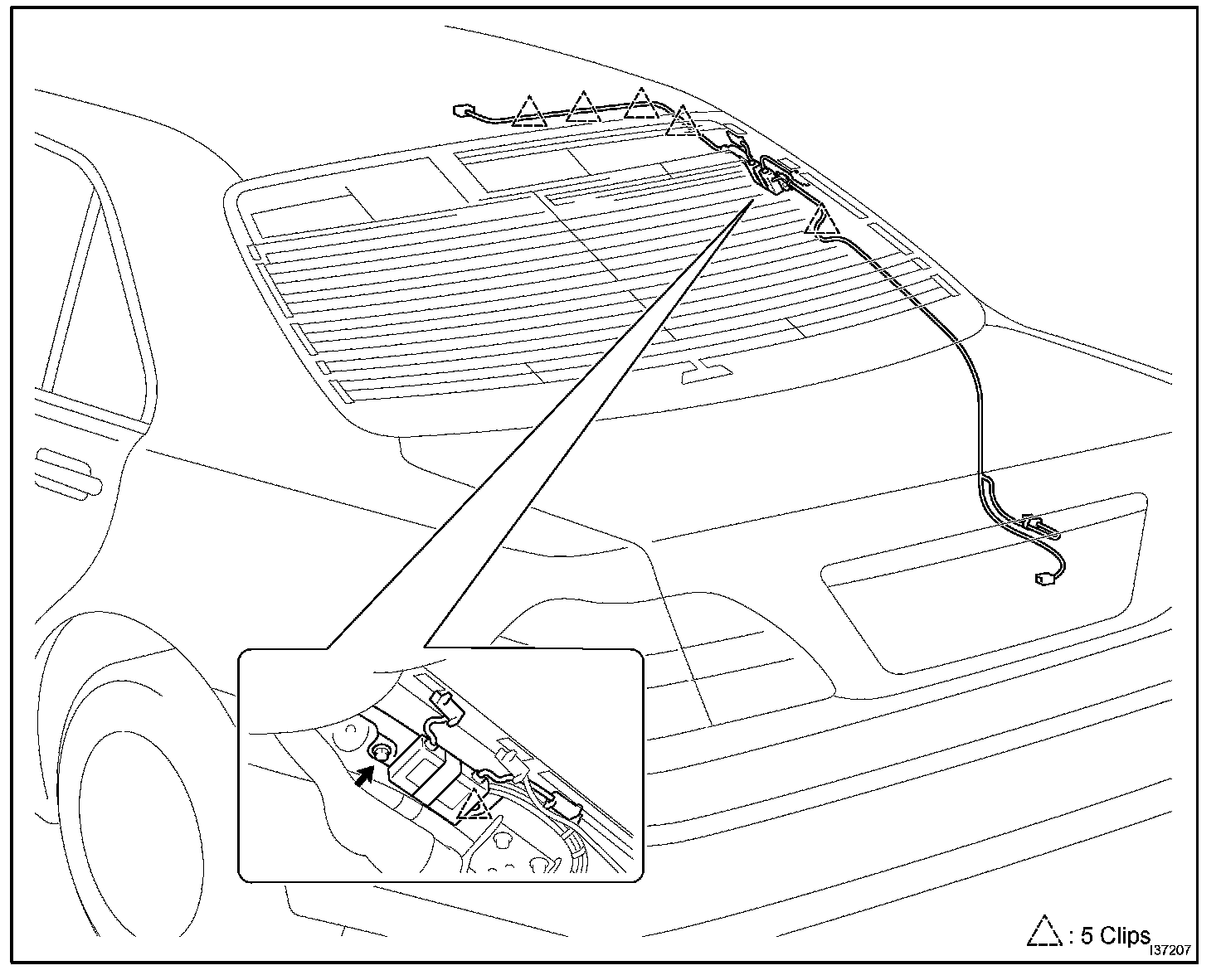

7. REMOVE ANTENNA CORD SUB-ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt.




c. Disengage the 5 clips and remove the antenna cord sub-assembly.
