Antenna, Phone: Service and Repair

Audio Visual System Part 3:

TELEPHONE ANTENNA BASE

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

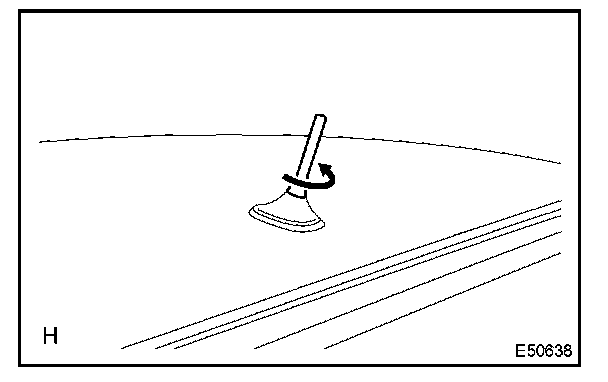

1. REMOVE TELEPHONE ANTENNA ROD
a. Rotate the telephone antenna rod in the direction indicated by the arrow to remove it.

2. REMOVE ROOF HEADLINING ASSEMBLY

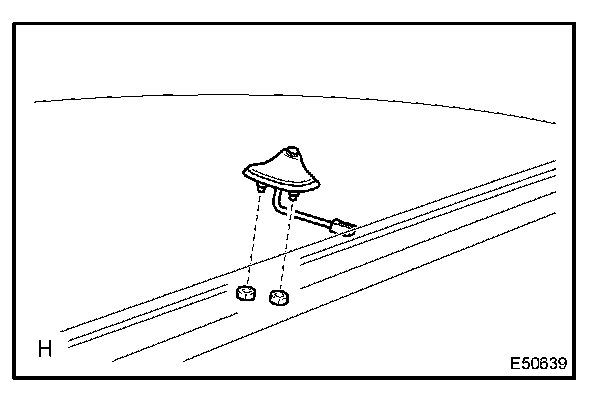

3. REMOVE TELEPHONE ANTENNA BASE
a. Disconnect the connector.
b. Remove the 2 nuts and telephone antenna base.
