Antenna, Navigation: Service and Repair

Instrument Panel/Meter:

Audio Visual System Part 1:

NAVIGATION ANTENNA ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY




2. REMOVE NAVIGATION ANTENNA ASSEMBLY

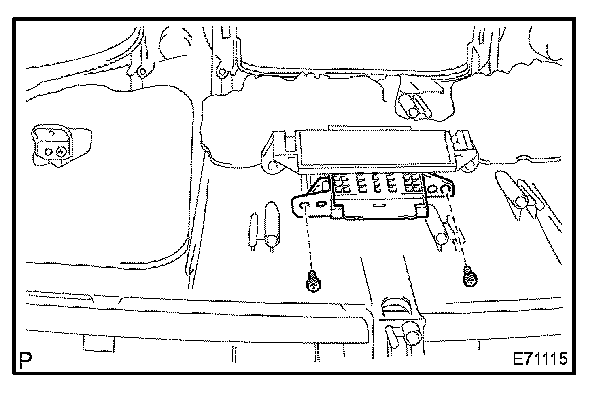

a. Remove the 2 screws and navigation antenna assembly from the instrument panel safety pad.
