Accessory Control Display: Service and Repair

Audio Visual System Part 1:

MULTI-DISPLAY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. SHIP MODE SETTING
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
3. REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER
4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
5. SHIP MODE CONFIRMATION

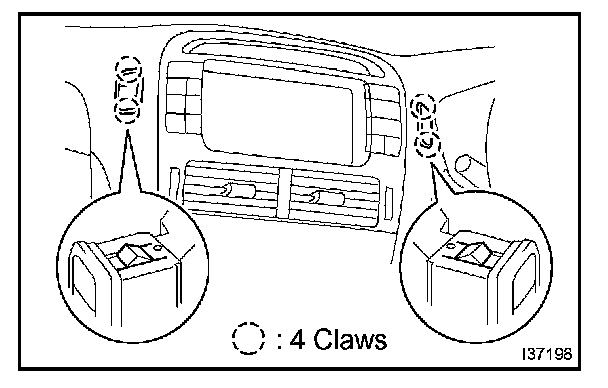

6. REMOVE TEMPERATURE CONTROL SWITCH ASSEMBLY
a. Disengage the 2 claws.
b. Disconnect the connector and remove the temperature control switch assembly.
c. Perform the same procedure on the other side.

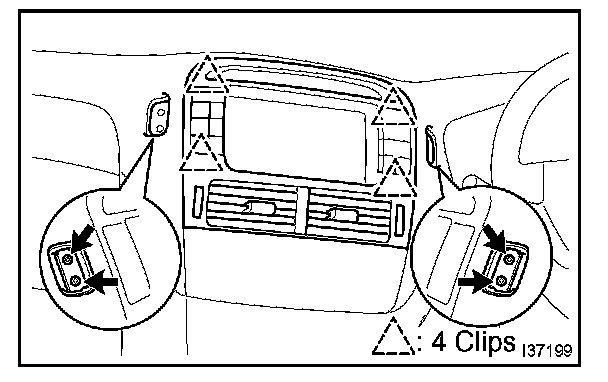

7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
a. Remove the 4 bolts.
b. Disengage the 4 clips.

NOTE: In order to prevent the safety pad from being damaged, do not pry with a screwdriver or similar tool.

c. Disconnect the connector and remove the instrument cluster finish panel sub-assembly center.

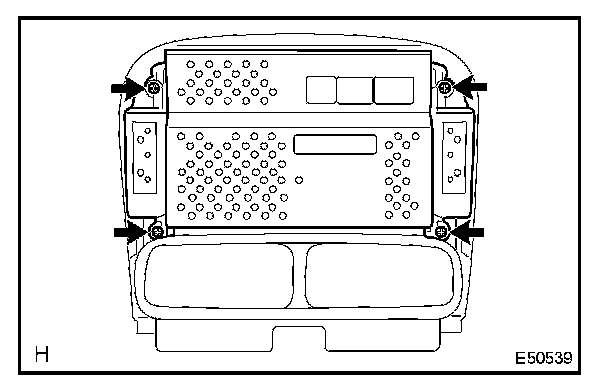

8. REMOVE MULTI-DISPLAY
a. Remove the 4 screws and multi-display.

HINT: After the replacement, perform the screen noise automatic adjustment when screen noise occurs.
