Dynamic Laser Cruise Control System

DTC U0235 LOST COMMUNICATION WITH CRUISE CONTROL FRONT DISTANCE RANGE SENSOR

CIRCUIT DESCRIPTION

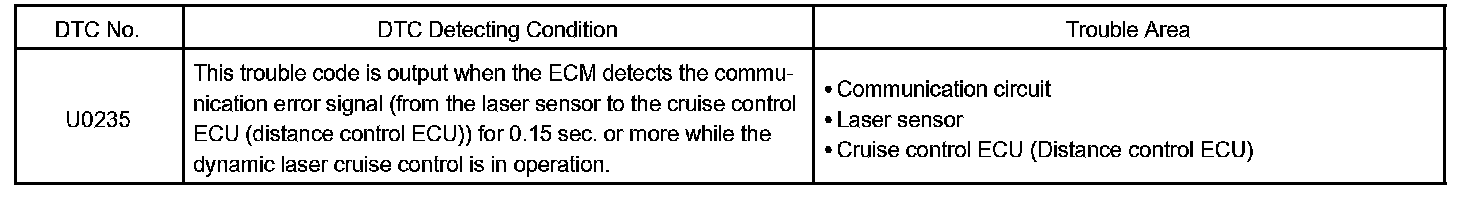

DTC Detecting Condition:

The laser sensor and cruise control ECU (distance control ECU) transmit the data for general vehicle control and diagnosis function along the communication line.

The laser sensor transmits information about the vehicle in front to the cruise control ECU (distance control ECU).

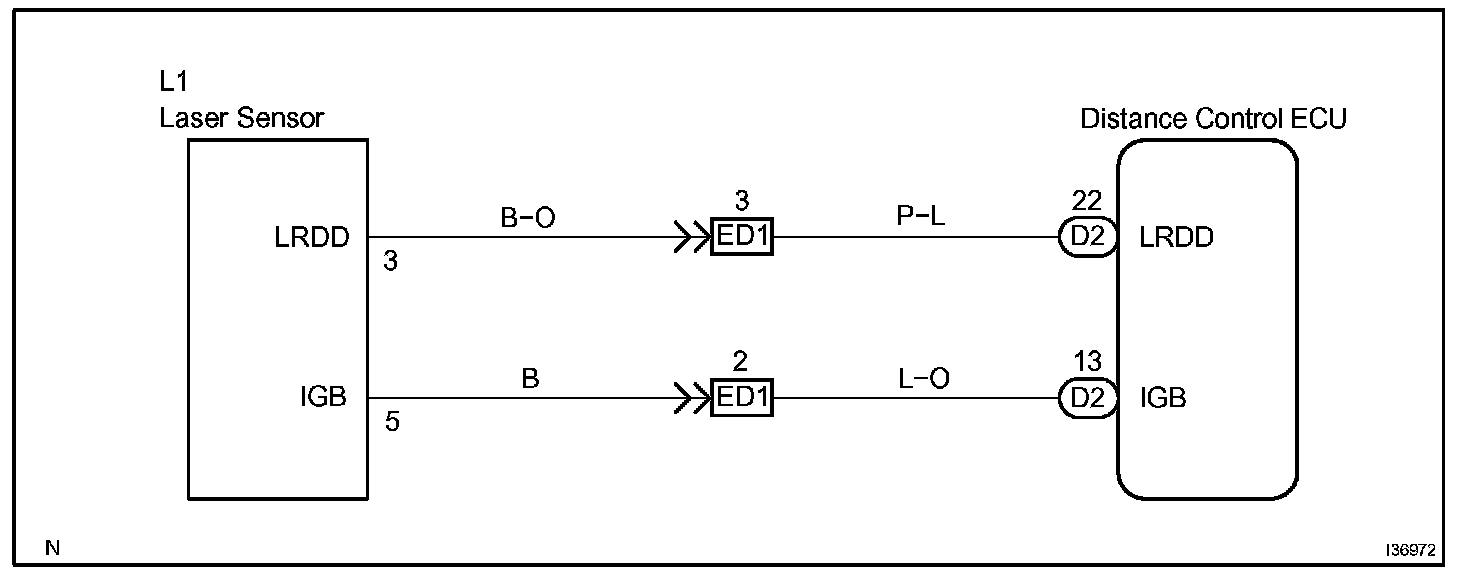

Wiring Diagram:

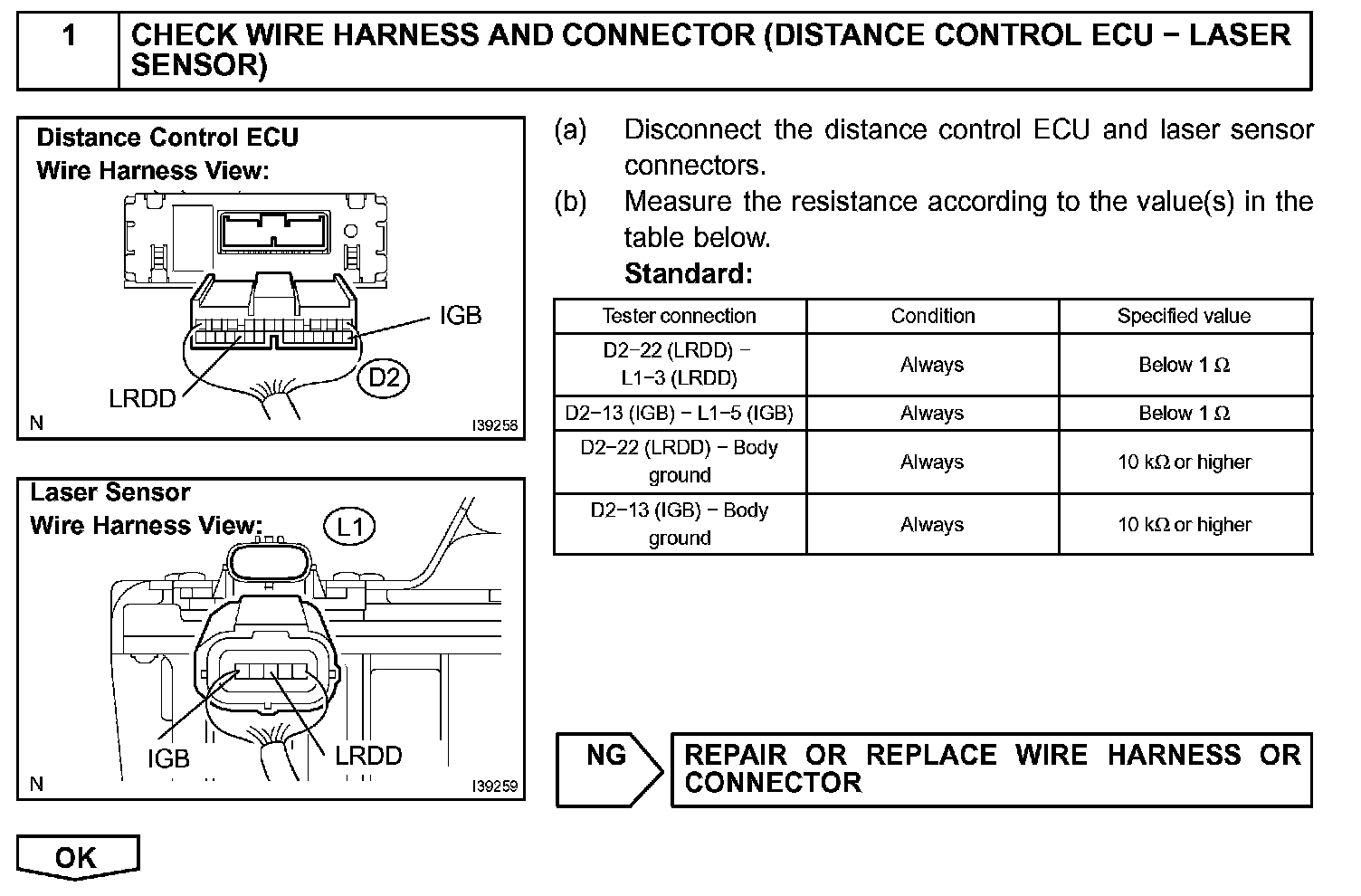

Step 1:

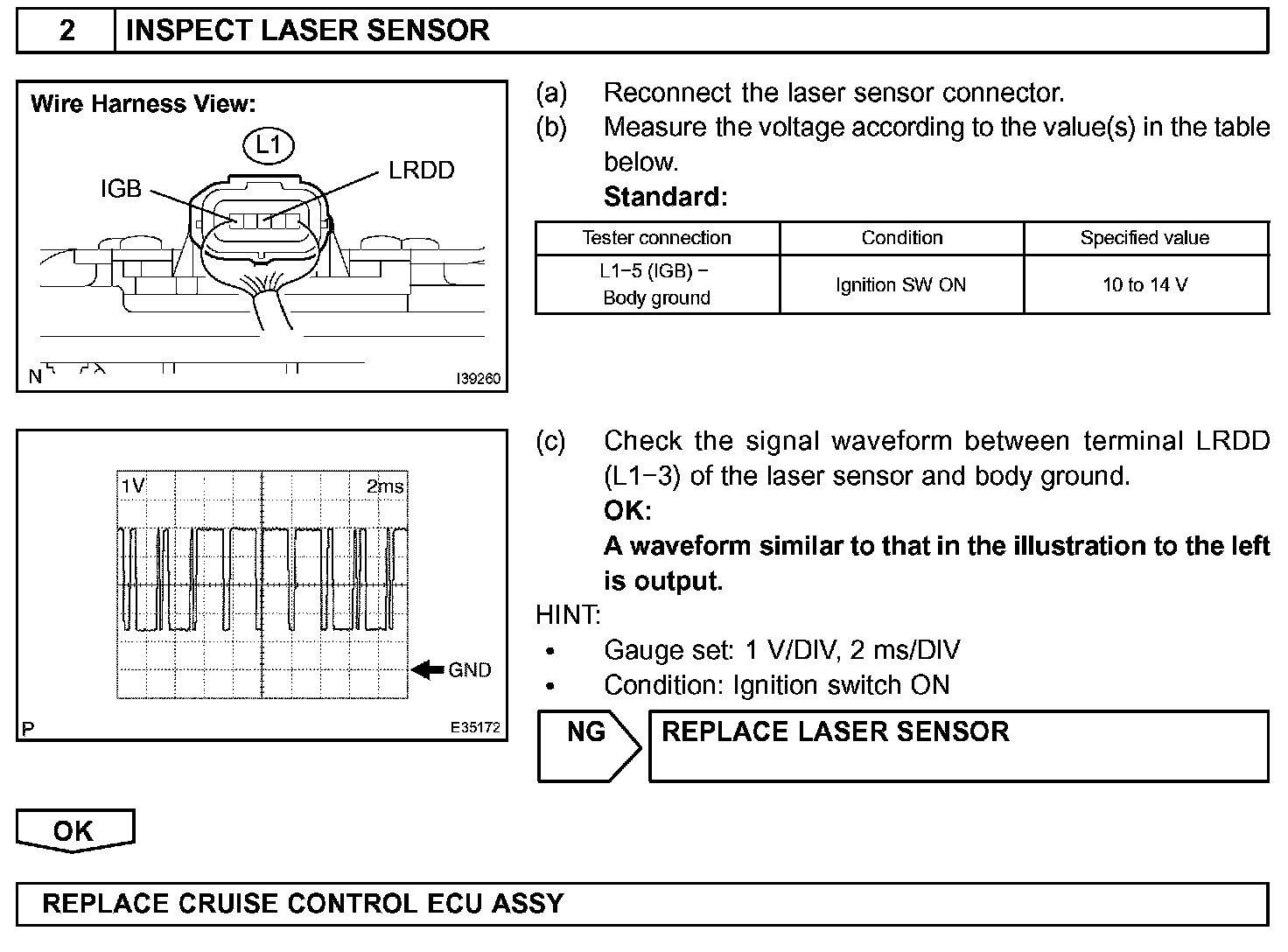

Step 2:

INSPECTION PROCEDURE
