Dynamic Radar Cruise Control System

DTC P1630 COMMUNICATION ERROR FROM VSC TO ECM
DTC U0122 LOST COMMUNICATION WITH VEHICLE DYNAMIC CONTROL MODULE

CIRCUIT DESCRIPTION

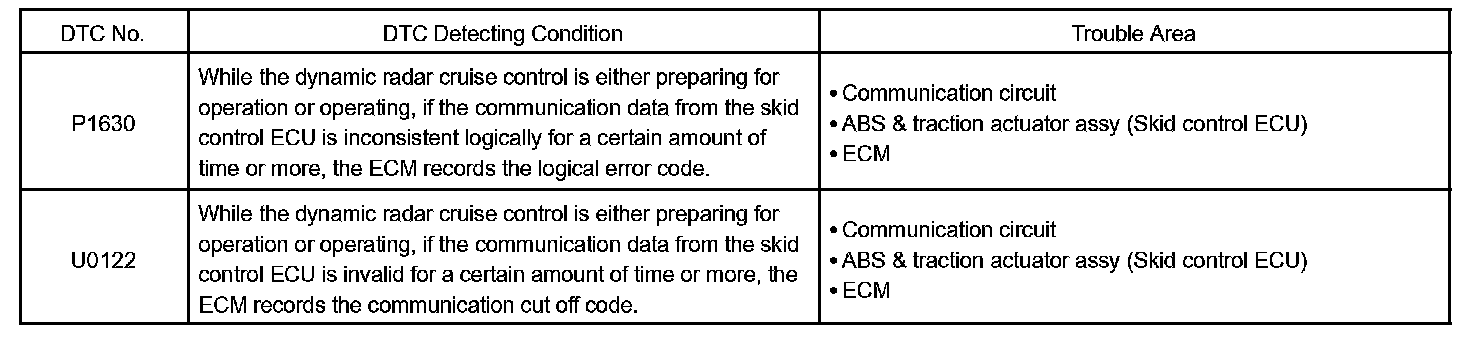

DTC Detecting Condition:

The skid control ECU sends signals such as cruise control cancel demand signal, brake operation demand response signal from the ECM, etc. to the ECM when the dynamic radar cruise control system is in operation.

Step 1:

INSPECTION PROCEDURE

HINT: This circuit uses CAN for communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system is/are output.
