Dynamic Laser Cruise Control System

DTC P1575 WARNING BUZZER MALFUNCTION

CIRCUIT DESCRIPTION

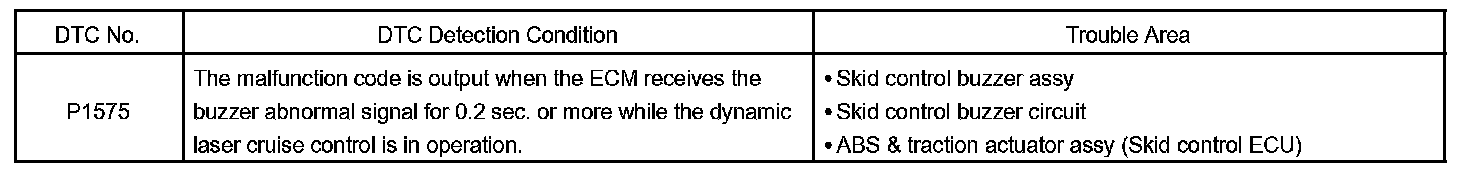

DTC Detection Condition:

The ABS & traction actuator assembly (skid control ECU) receives the alarm demand signal from the ECM and operates the skid control buzzer.

The buzzer sounds to warn that the distance between the vehicle in front and your own vehicle is shortening.

Wiring Diagram:

Step 1-2:

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
