Dynamic Laser Cruise Control System

DTC P1572 IMPROPER AIMING OF RADAR SENSOR BEAM AXIS

CIRCUIT DESCRIPTION

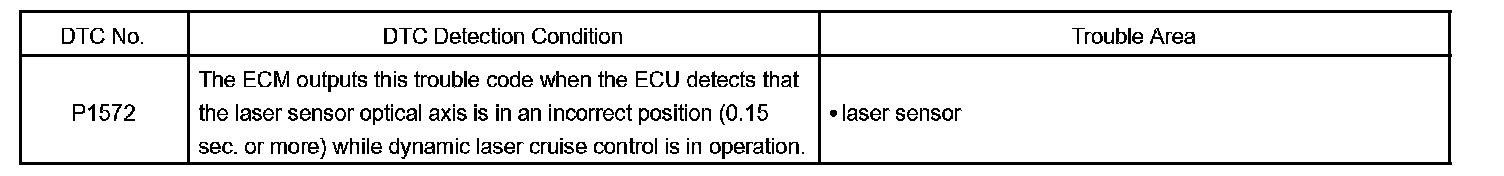

DTC Detection Condition:

This DTC is output when the scanning angle of the laser sensor is incorrect.

This DTC is also output when the laser sensor optical axis is in an incorrect position is detected.

HINT: If the optical axis deviates to the upper/lower side ±2 degrees or more and/or the right/left side ±4 degrees or more, this DTC is detected.

INSPECTION PROCEDURE

ADJUST LASER SENSOR
