Cruise Control System

DTC P0500 VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION
DTC P0503 VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

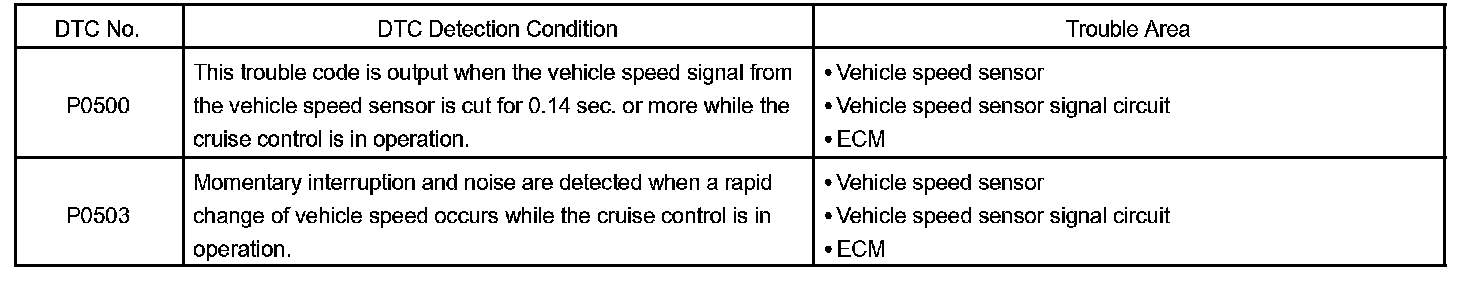

DTC Detection Condition:

The Vehicle speed sensor outputs a 4 pulse signal for every revolution of the rotor shaft, which is rotated by the transmission output shaft via the driven gear. The ECM determines the vehicle speed based on this signal.

Wiring Diagram:

Step 1-2:

Step 3-4:

Step 5-6:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was LEAN or RICH, and other data from the time the malfunction occurred.
