SFI System

DIAGNOSTIC TROUBLE CODE CHART

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

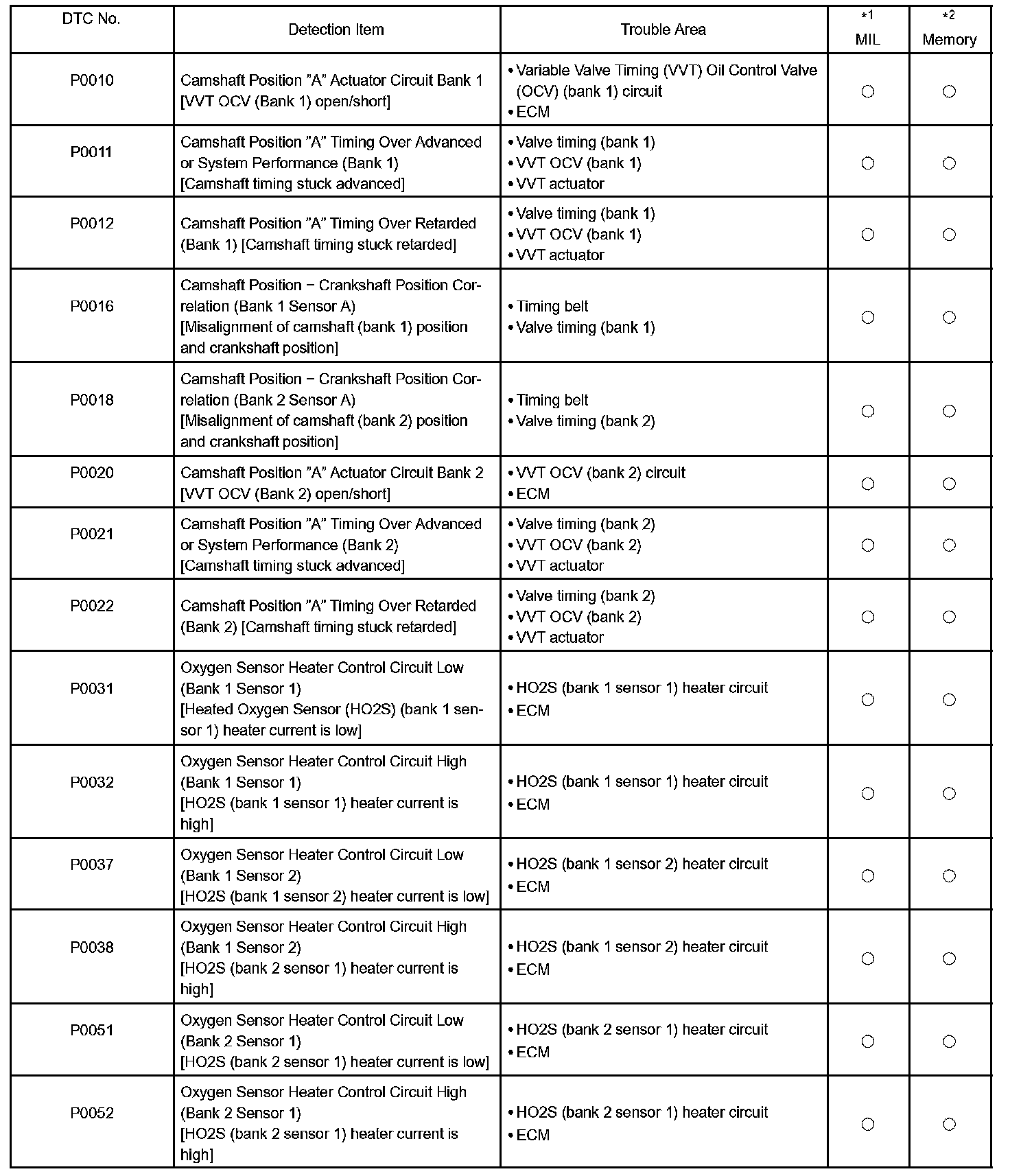

P0010-P0052:

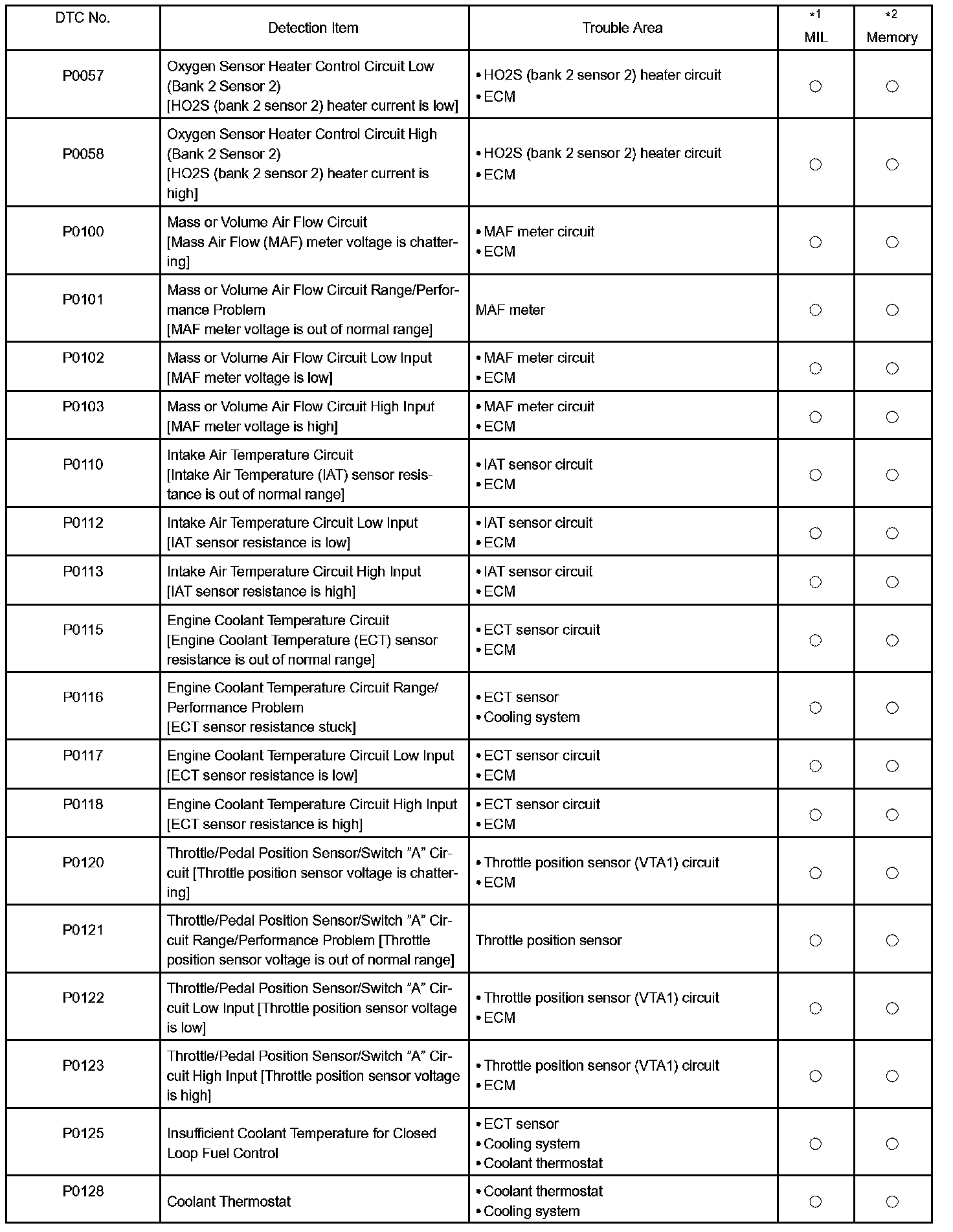

P0057-P0128:

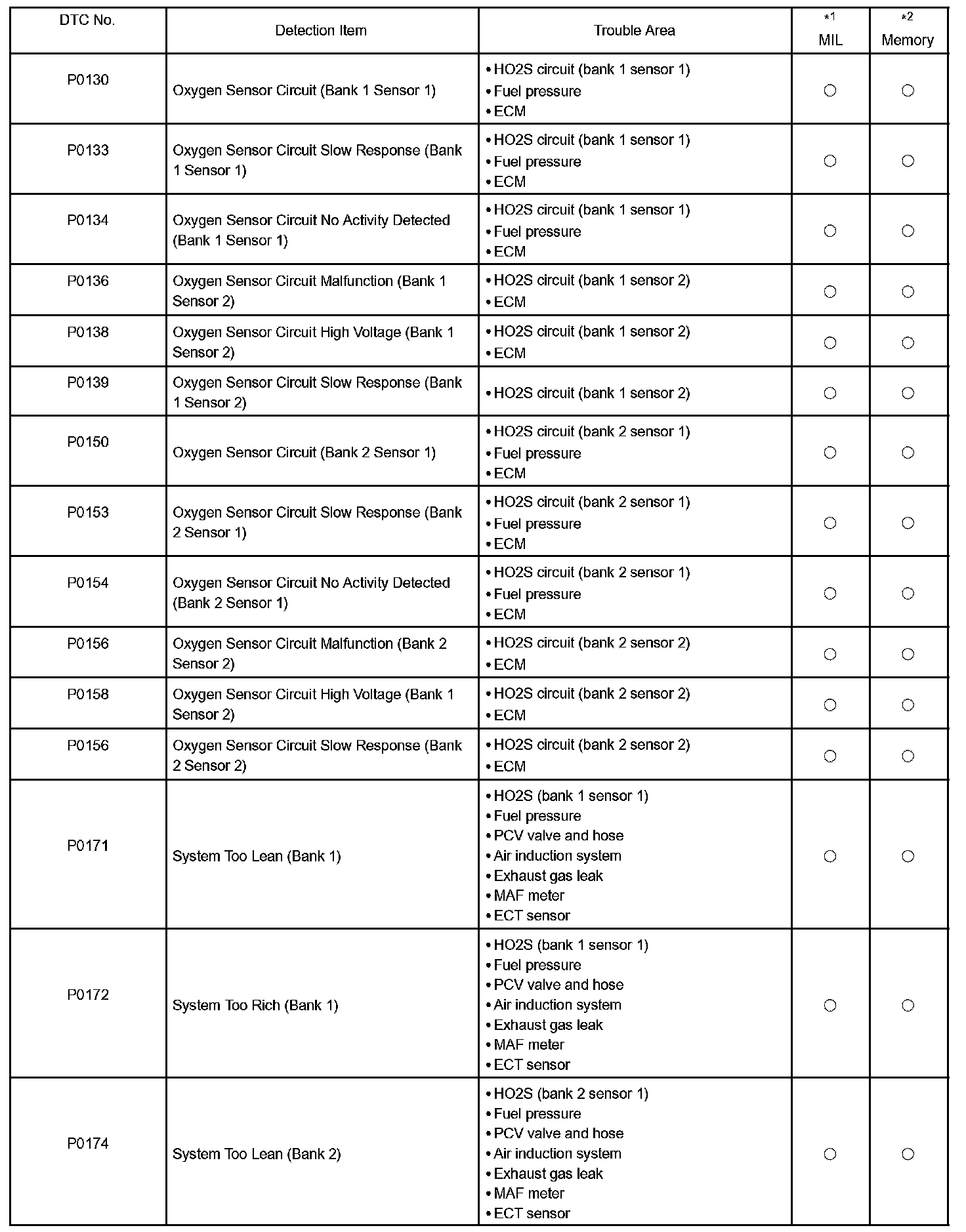

P0130-P0174:

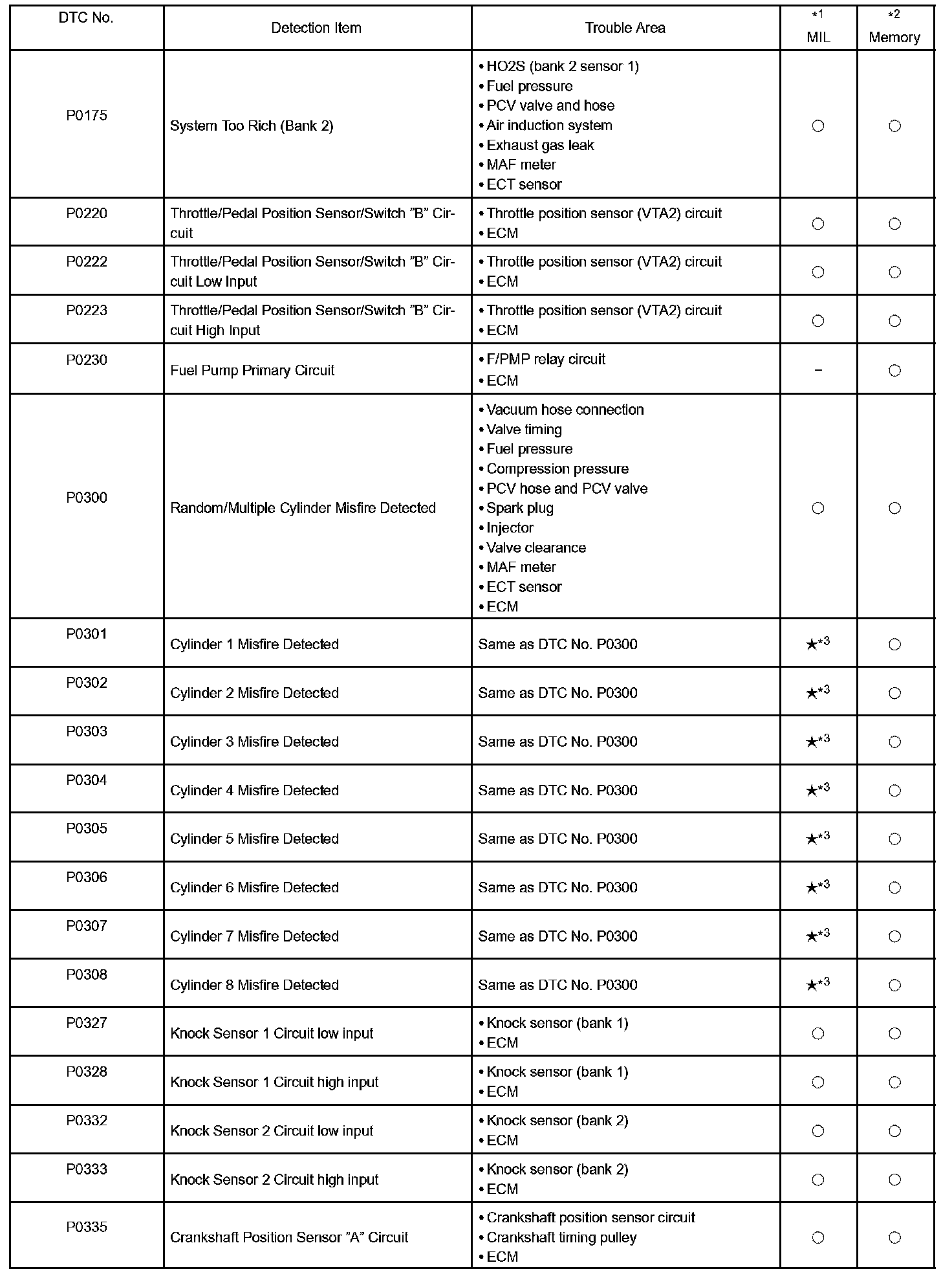

P0175-P0335:

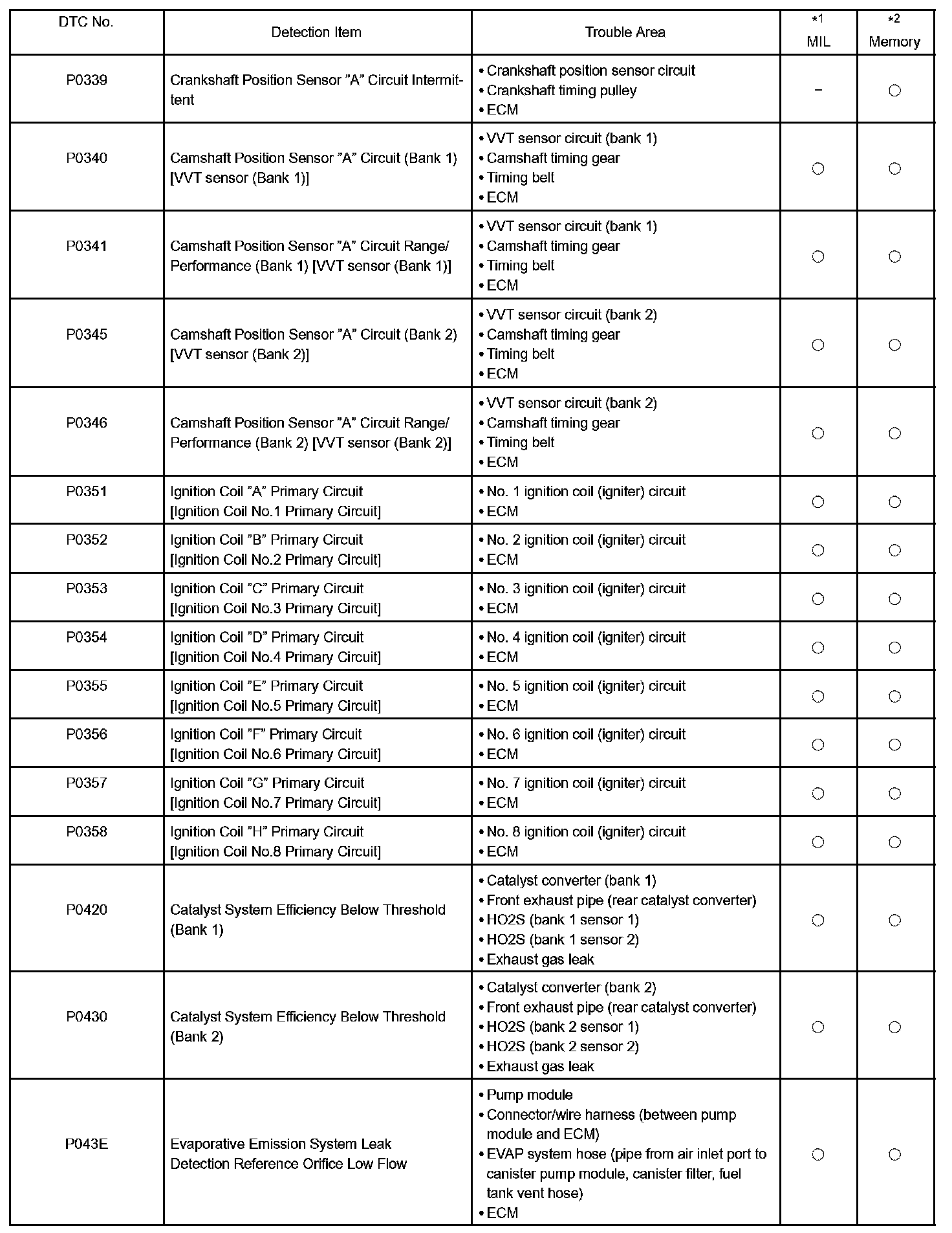

P0339-P043E:

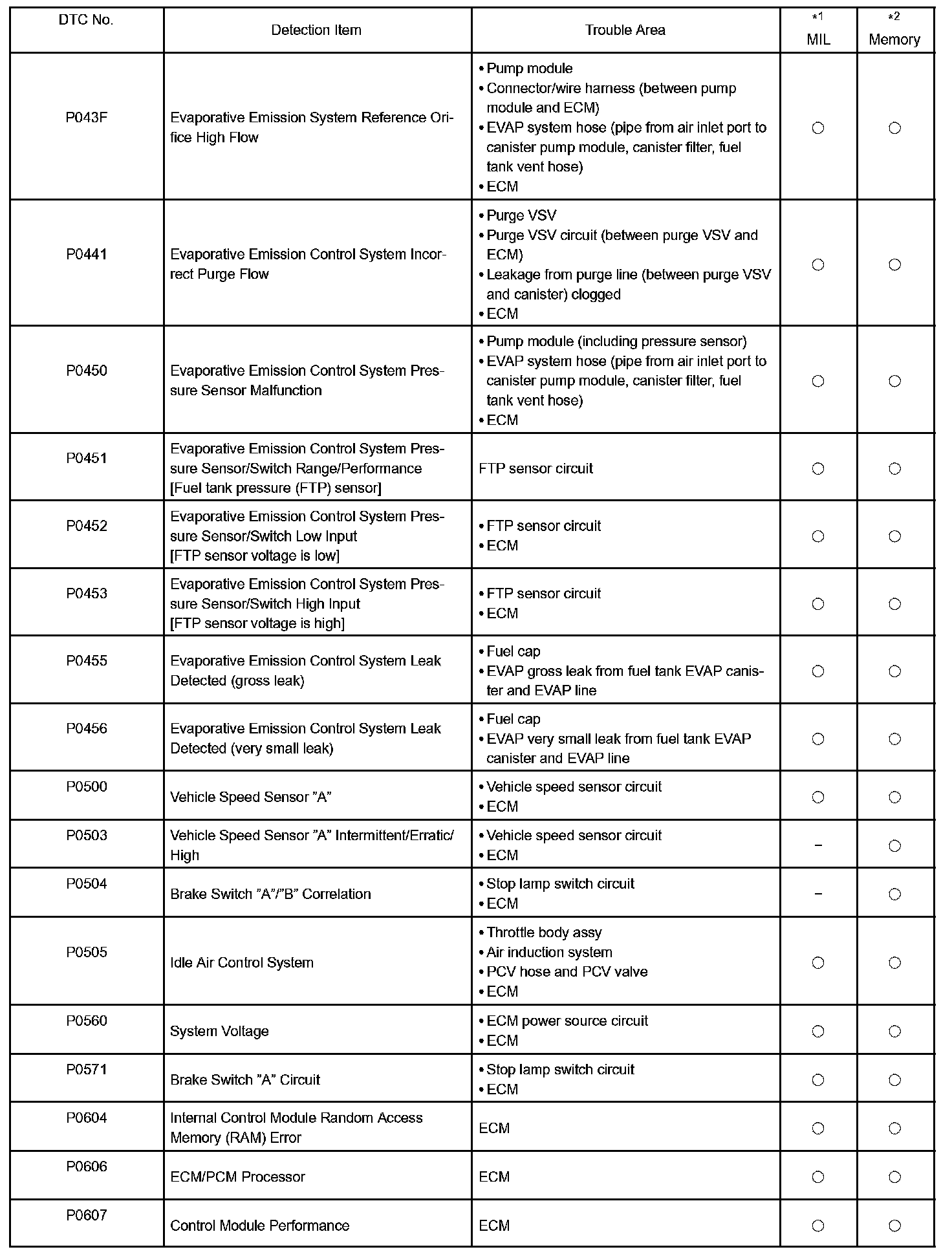

P043F-P0607:

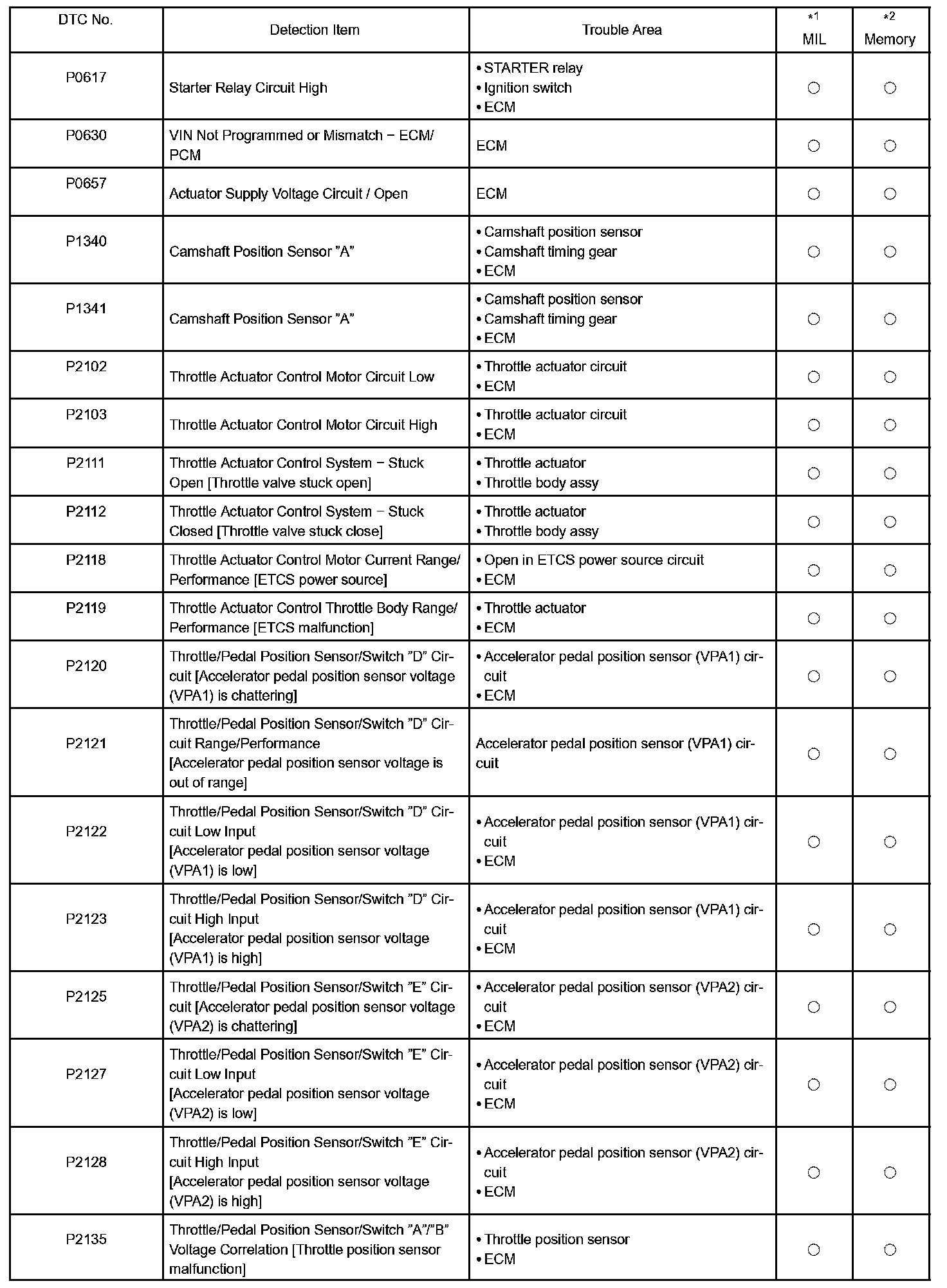

P0617-P2135:

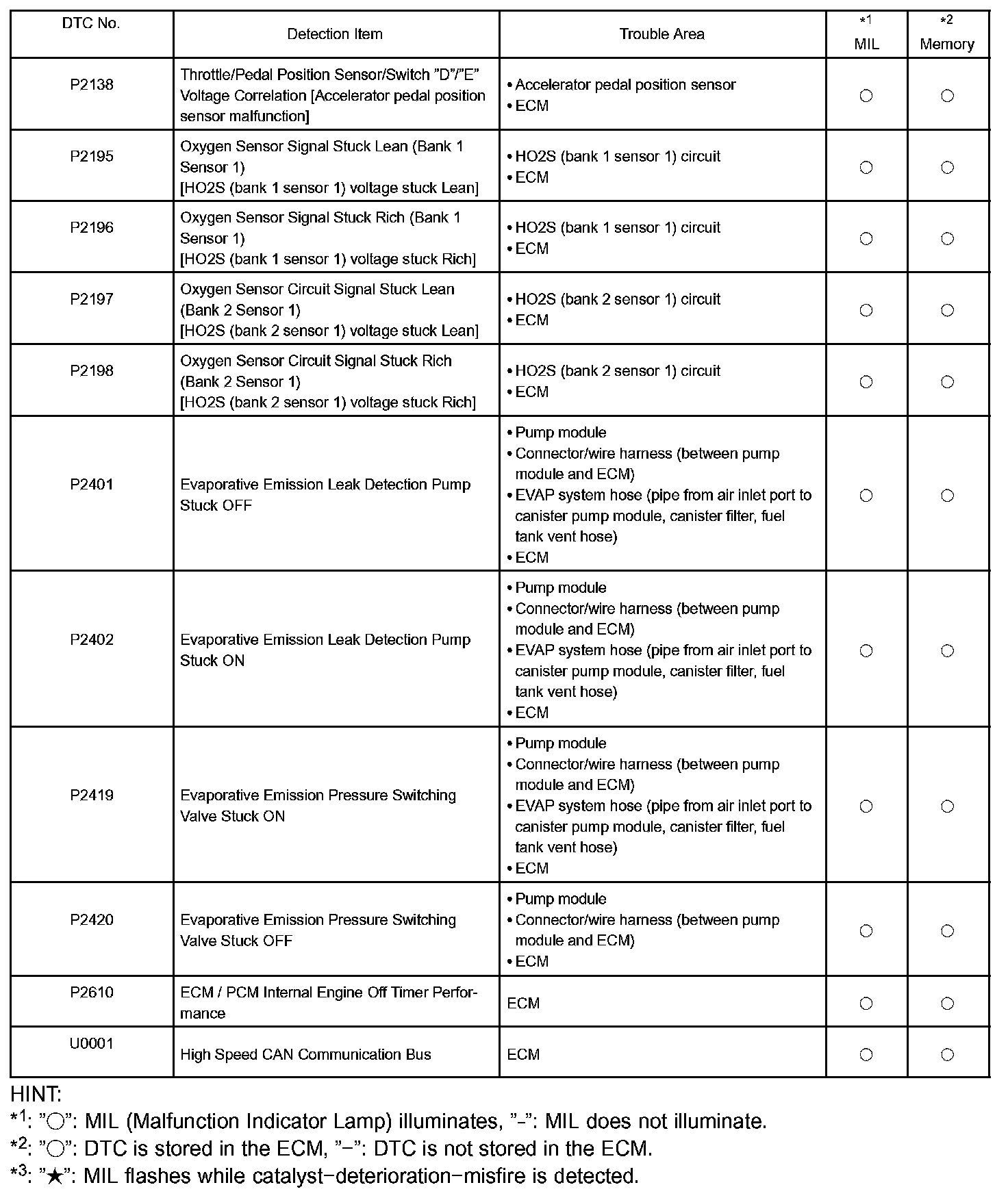

P2138-U0001:

If a Diagnostic Trouble Code (DTC) is displayed, check the trouble area for the DTC listed in the table. For details of each DTC. refer to the respective "DTC NO." in the DTC chart.
