Rear View Monitor System
DIAGNOSTIC TROUBLE CODE CHARTHINT: DTC is displayed on the multi-display.
TELEVISION CAMERA ECU (Physical address: 1AC)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the ignition switch is turned to the START position again 1 minute after the engine start.
- *3: This code may be stored when the ignition switch is turned to the START position again after the engine start.
- *4: When 210 seconds have elapsed after pulling out the power supply connector of the master component with the ignition switch in the ACC or ON position, this code is stored.

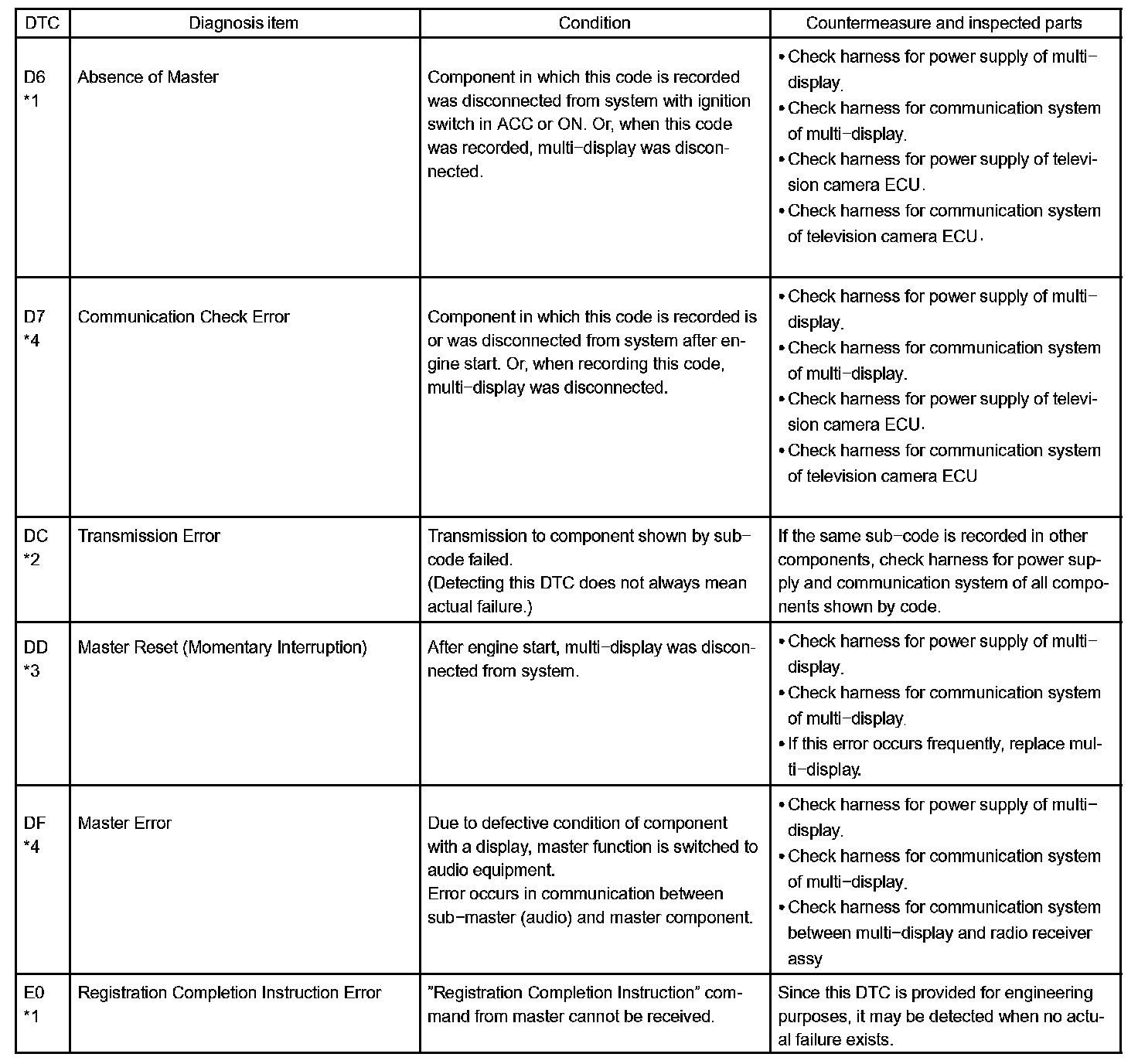

Part 1:
Part 2:

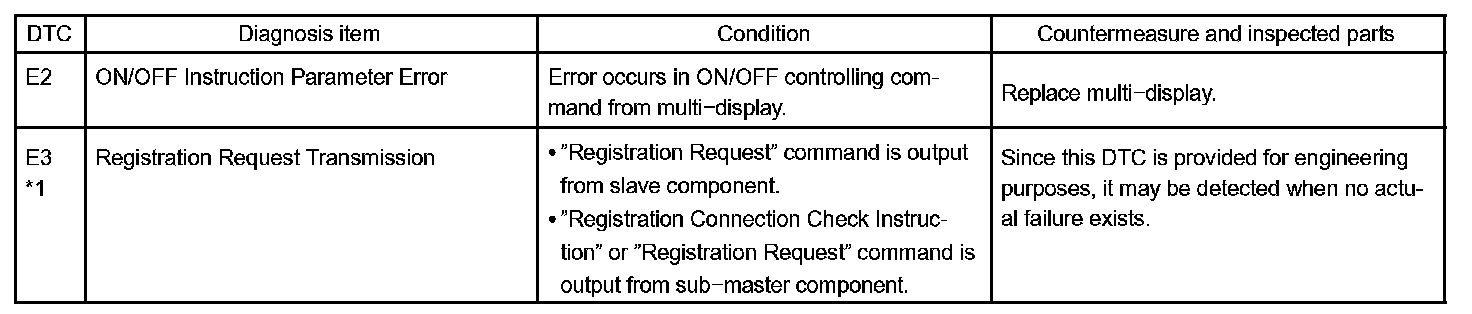

a. Logical address: 01 (Communication control)

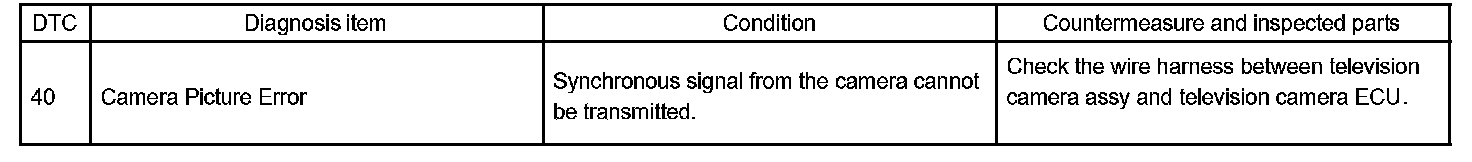

b. Logical address: 5C (Camera unit)
