Engine Immobiliser System (W/O Smart Key System)

DIAGNOSTIC TROUBLE CODE CHART

B2780-B2798:

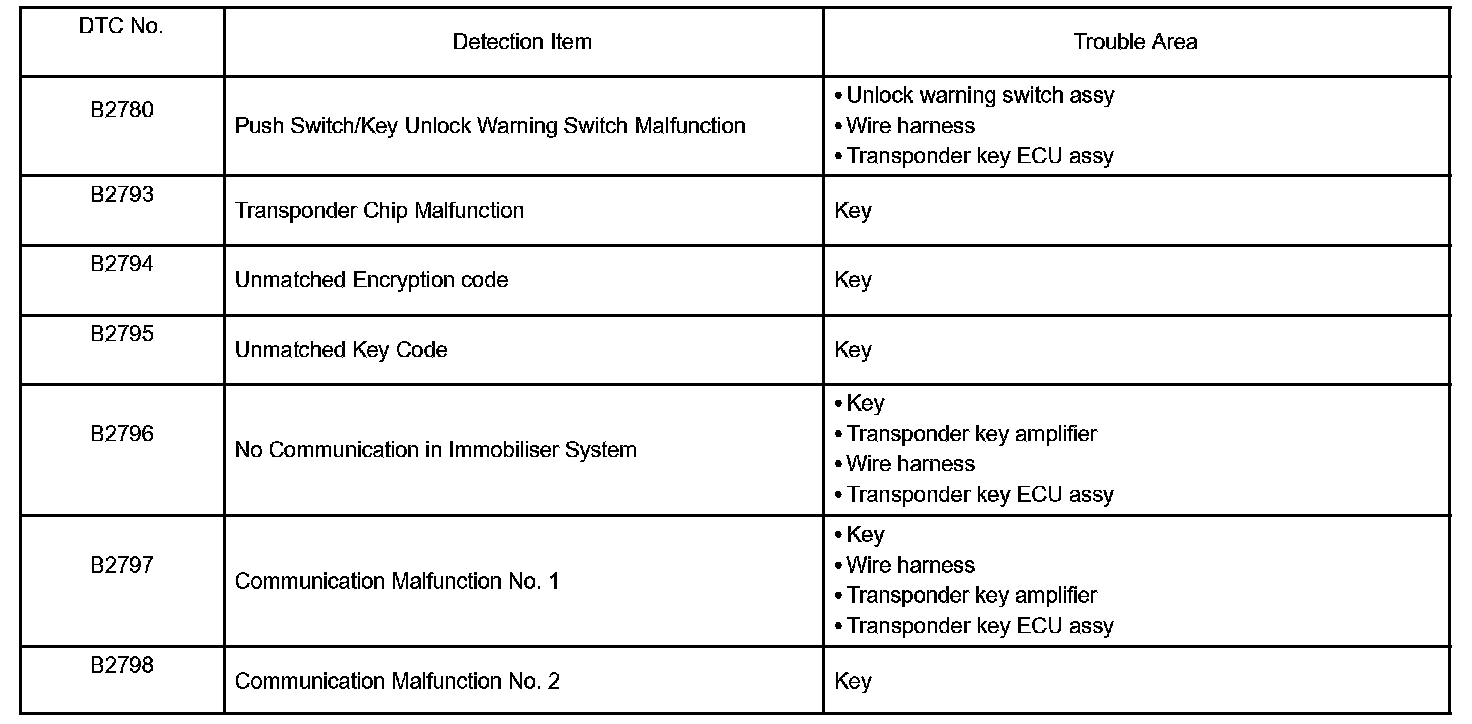

1. TRANSPONDER KEY ECU DTC CHART

B2799:

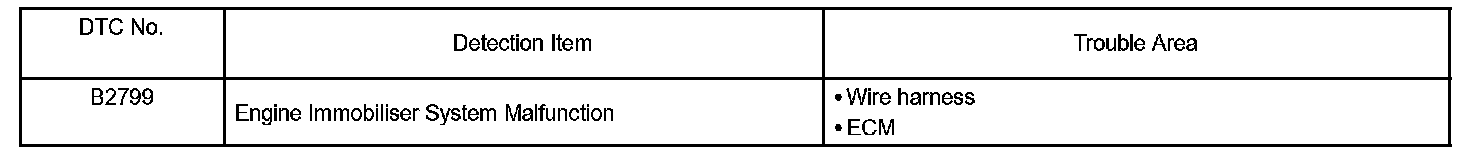

2. ECM DTC CHART

NOTE: The DTCs for the immobilizer system are specified. If the other codes are output, check the DTC(s) chart for the SFI system.
