Door Closer System
Door Closer System

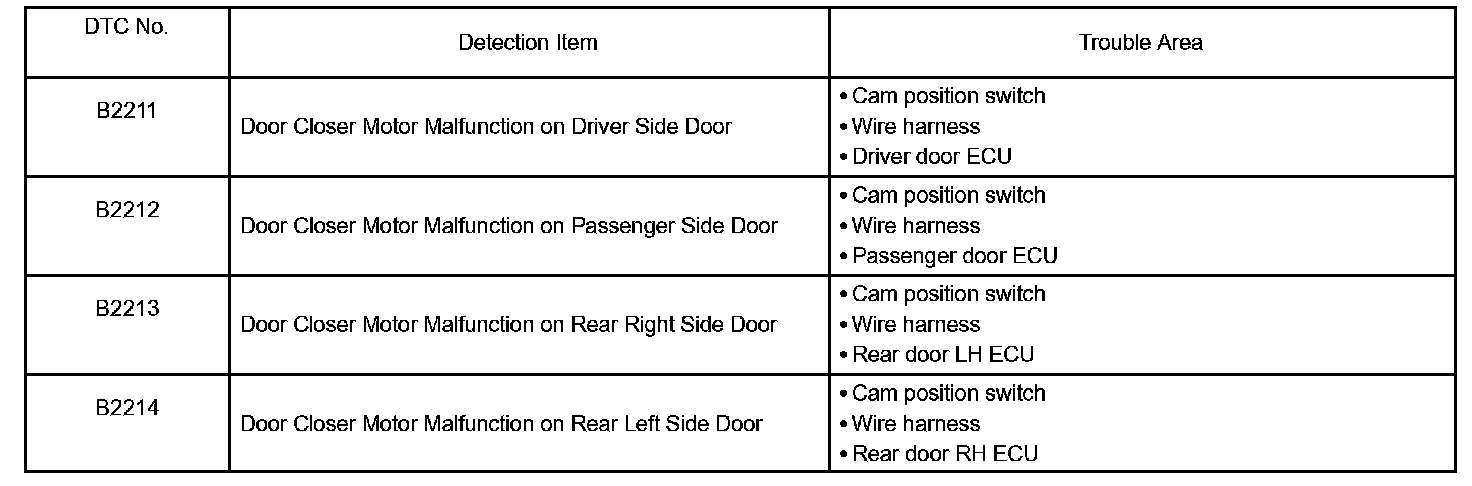

DIAGNOSTIC TROUBLE CODE CHART
B2211-B2214:
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table. Then proceed to the troubleshooting given for the circuit.
