Climate Control Seat System

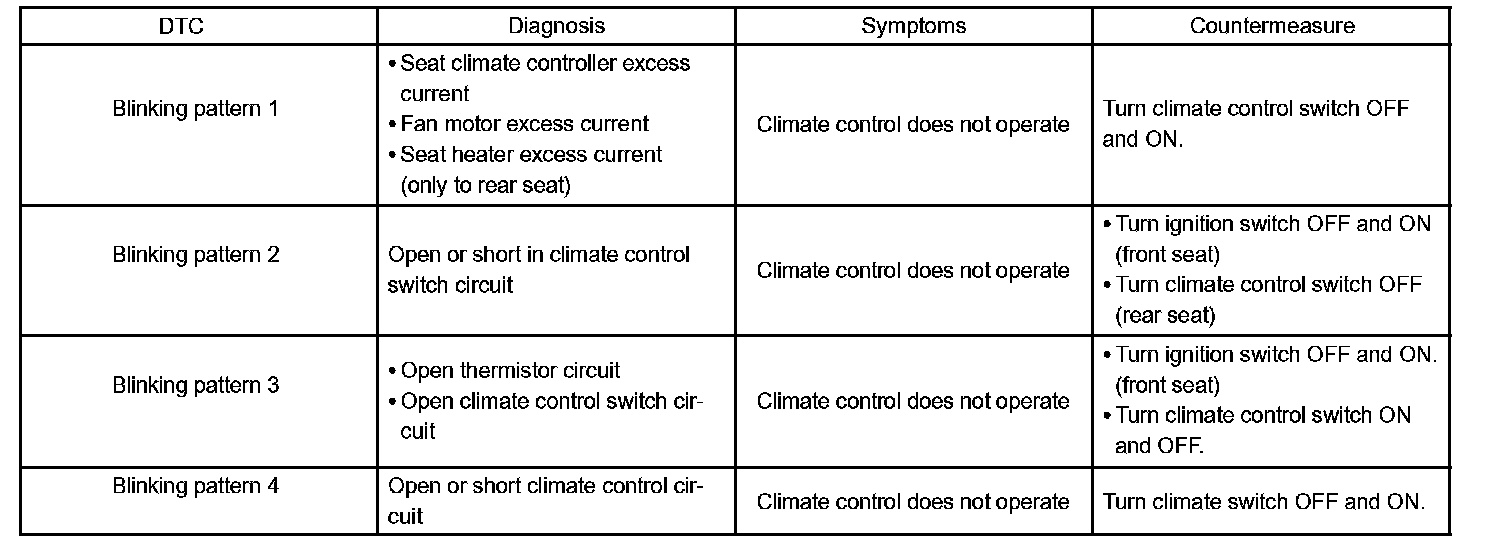

DIAGNOSTIC TROUBLE CODE CHART

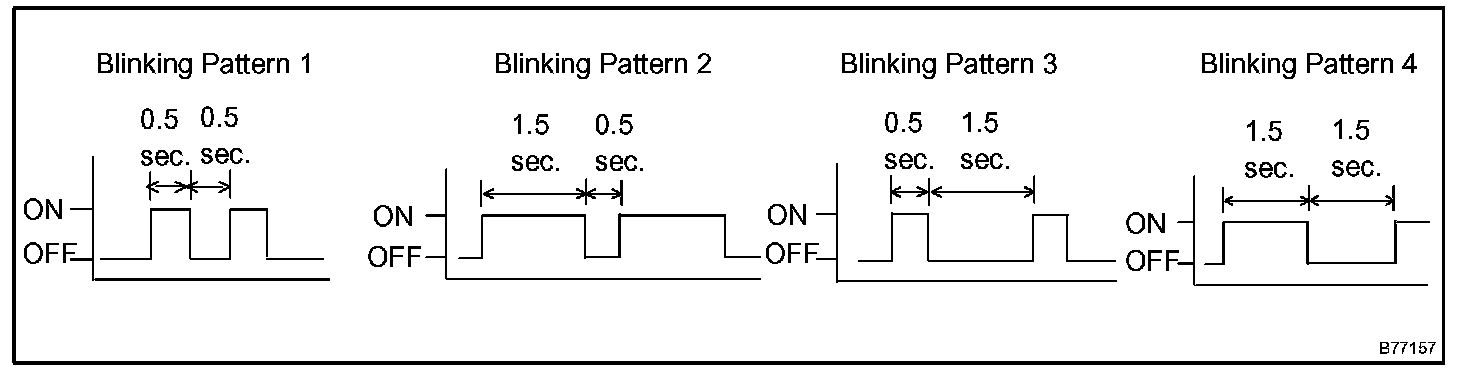

HINT: While the climate control seat is operated, if the indicator of the climate control switch blinks in any of the patterns shown in the illustration, the climate control ECU will enter fail-safe mode.






HINT: After identifying the blinking pattern, troubleshoot according to the flow chart.
