LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission System
Automatic Transmission System
DIAGNOSTIC TROUBLE CODE CHART

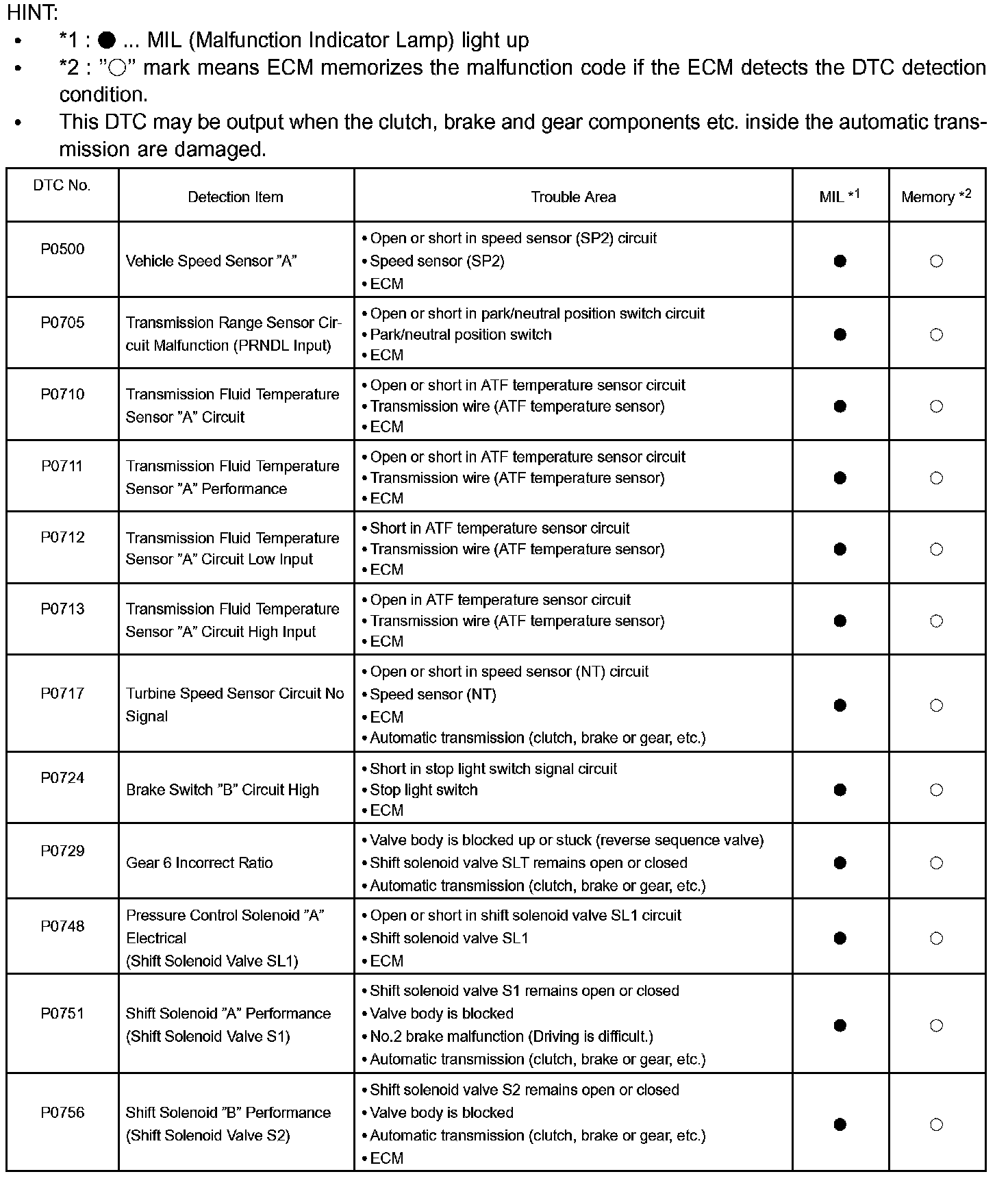

P0500-P0756:

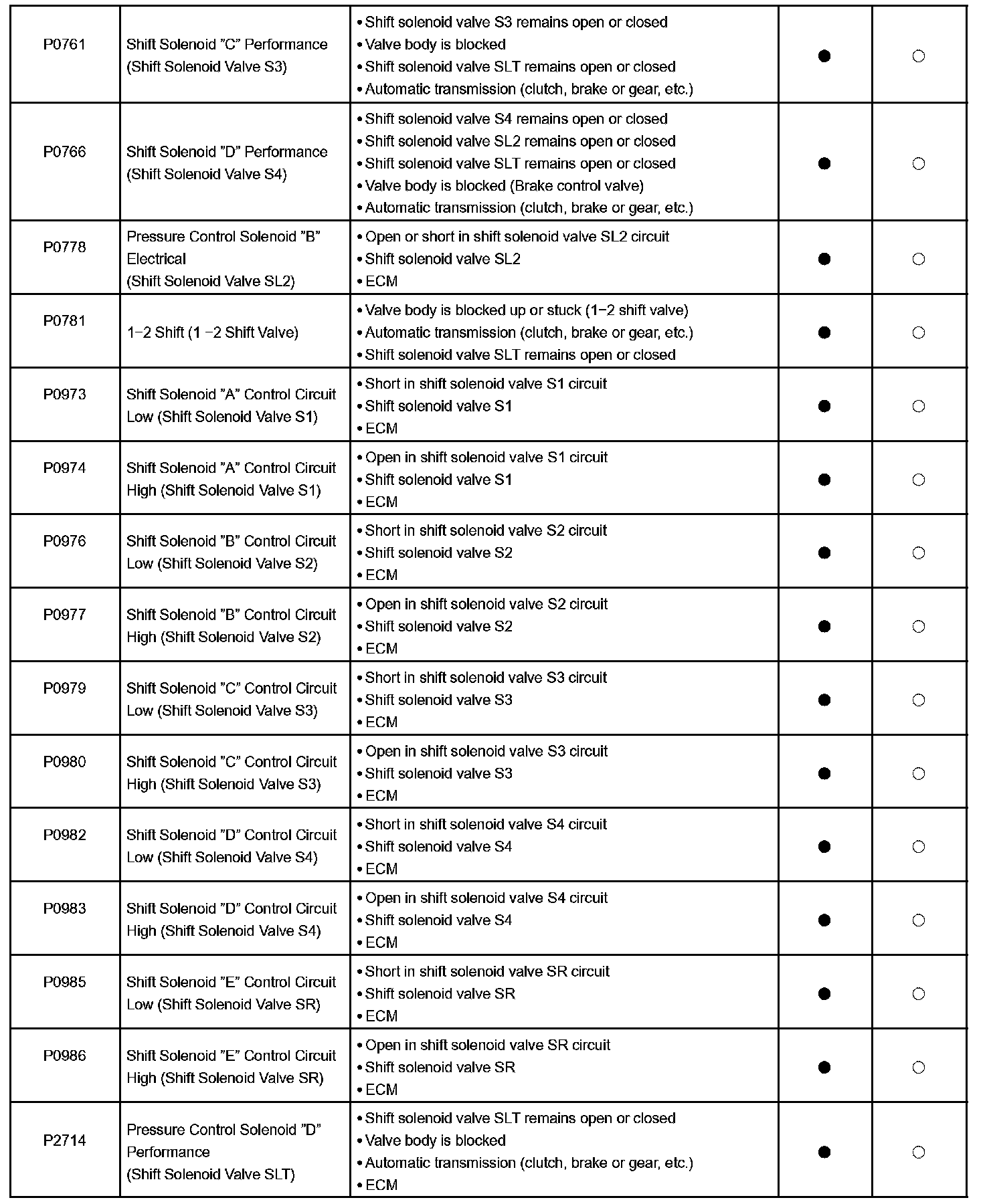

P0761-P2714:

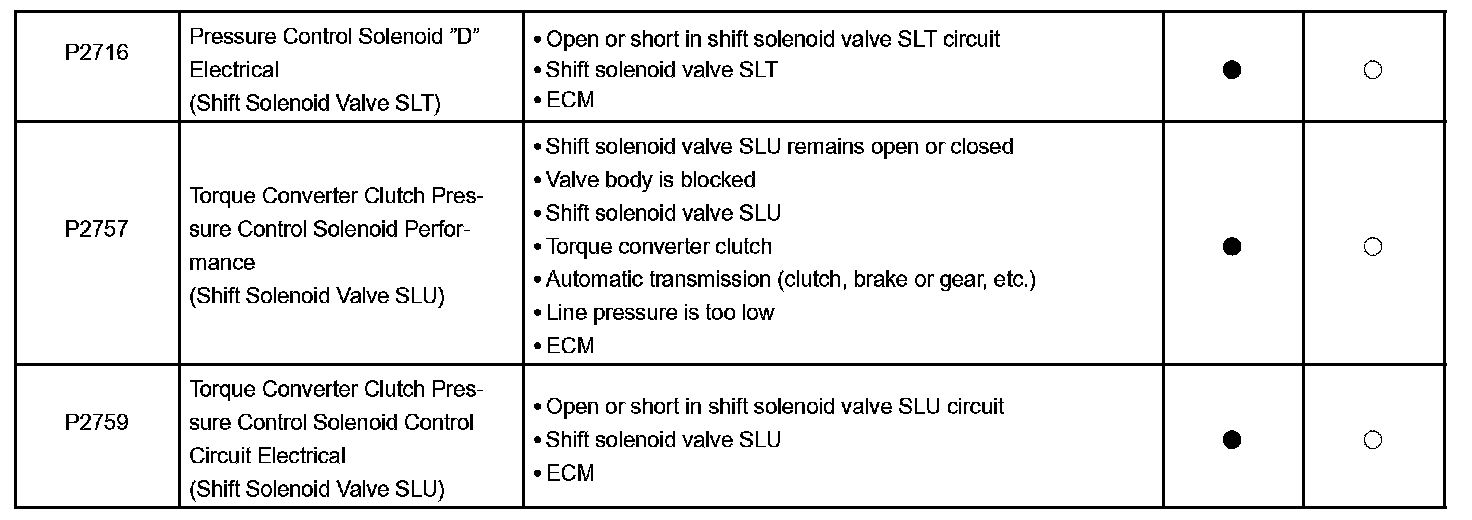

P2716-P2759:
If a DTC is displayed during the DTC check, check the parts listed in the table.
