C1249

DTC C1249/49 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

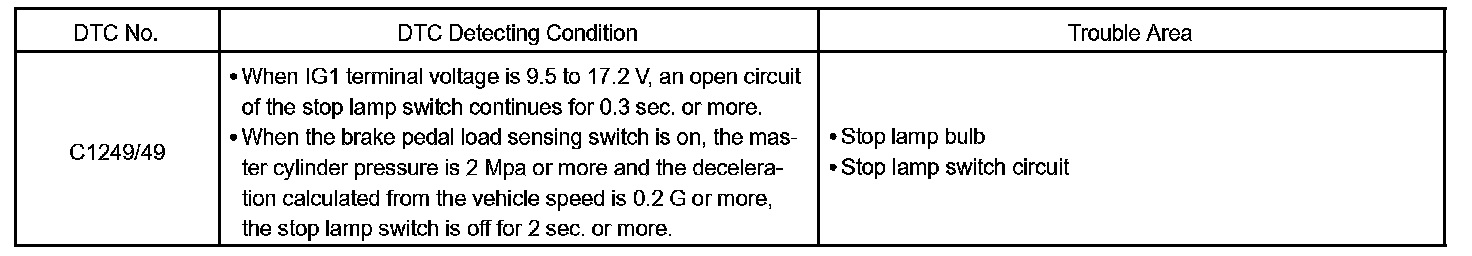

DTC Detecting Condition:

Recognition of brake operation by sending stop lamp signal to skid control ECU.

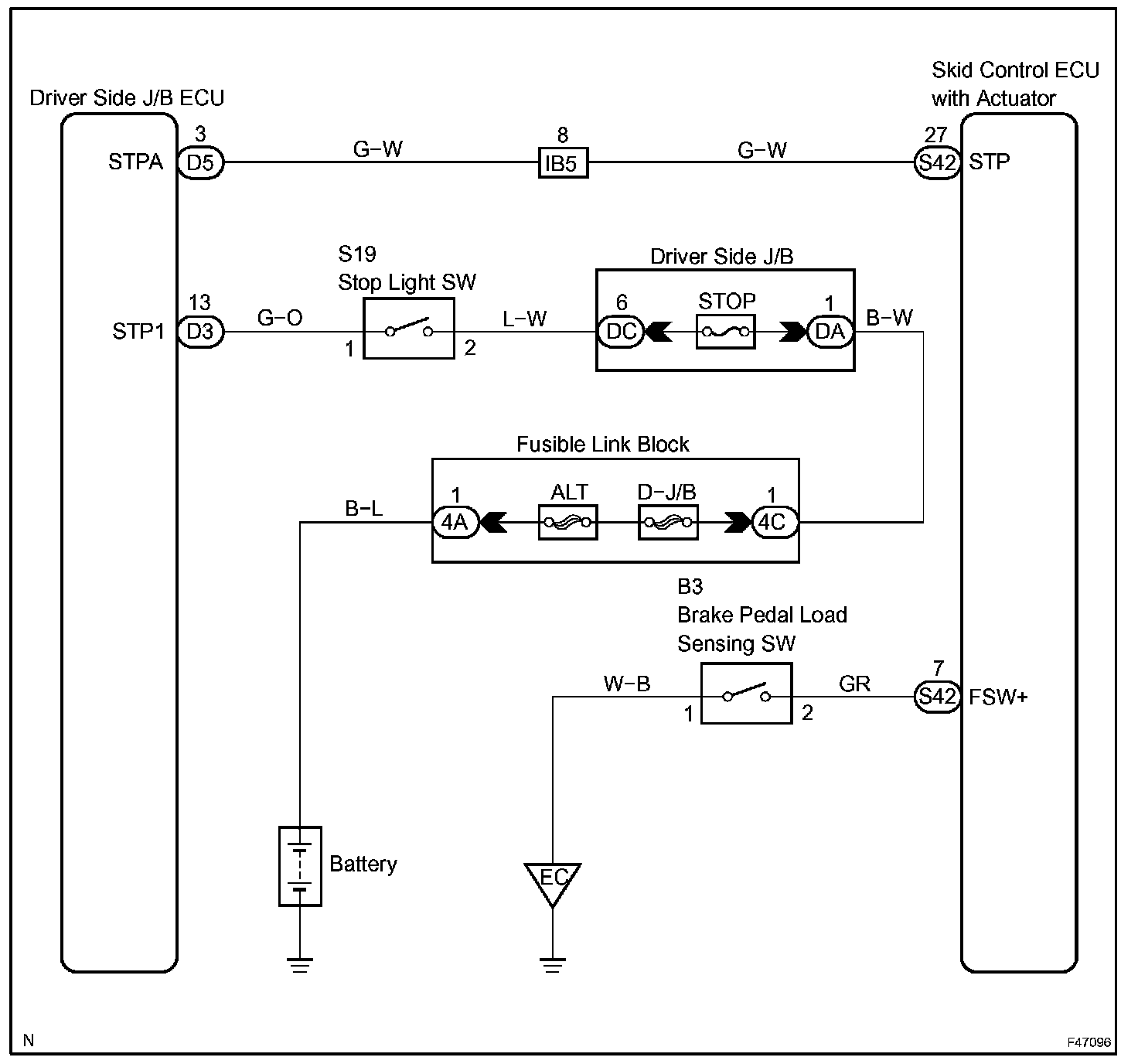

Wiring Diagram:

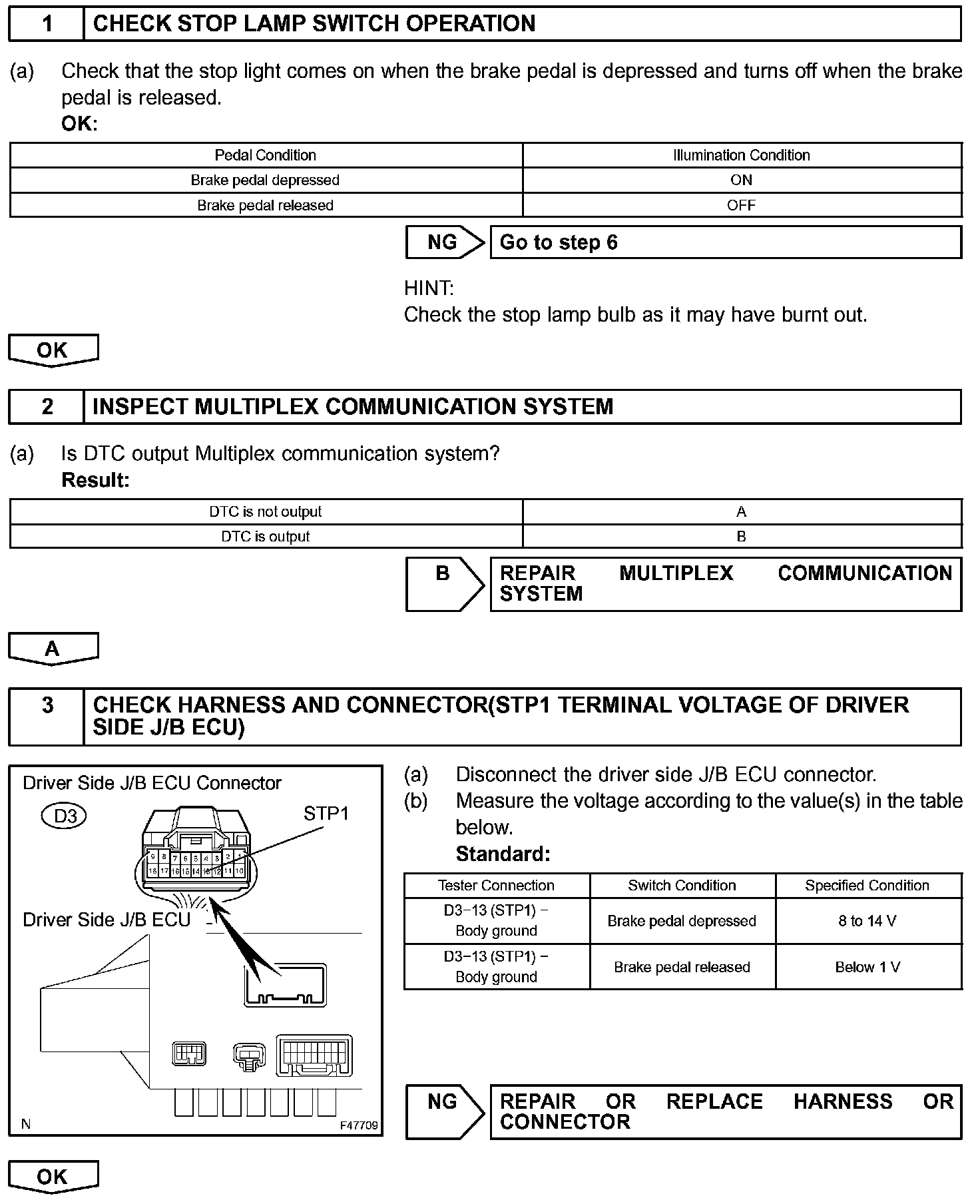

Step 1-3:

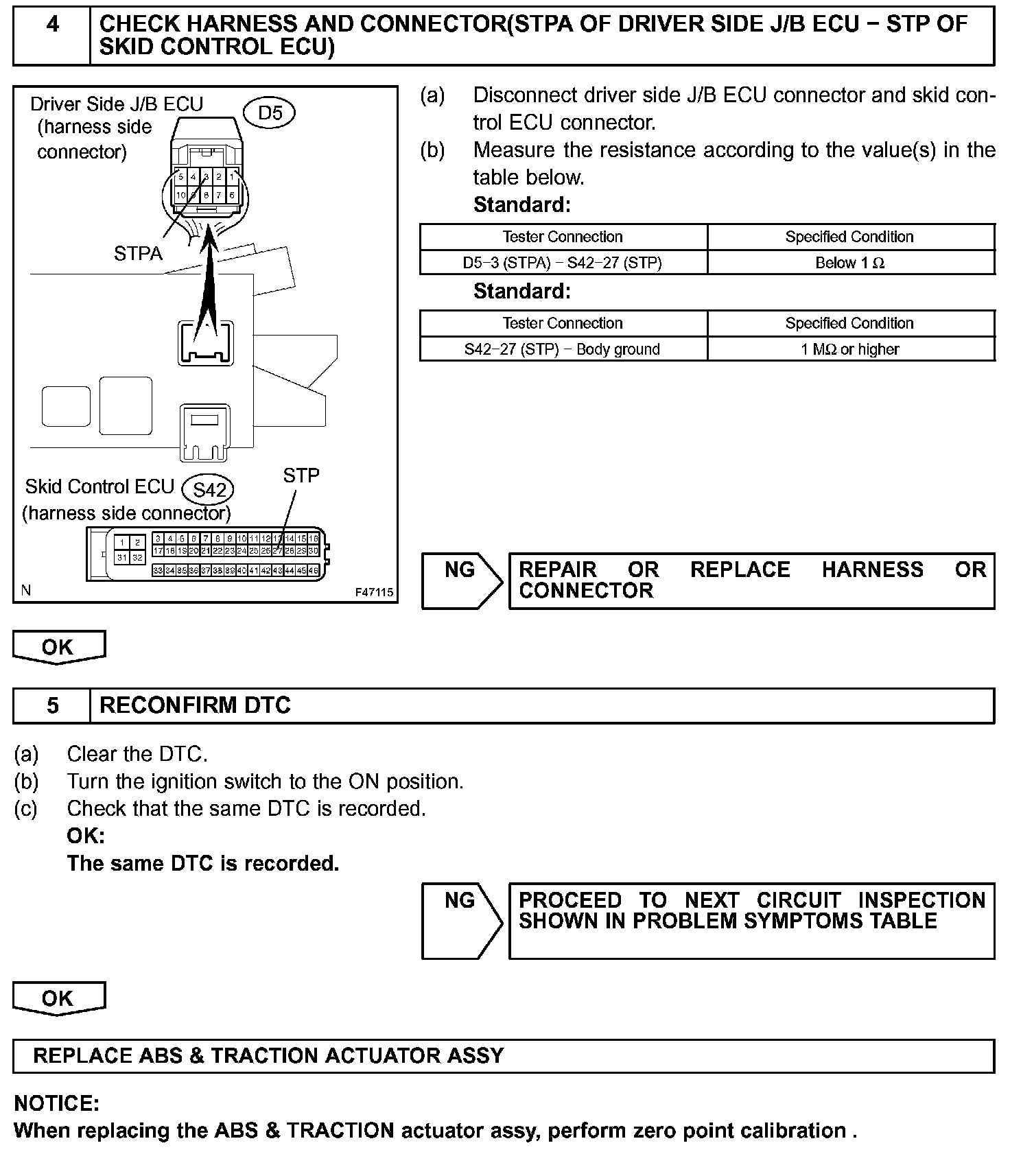

Step 4-5:

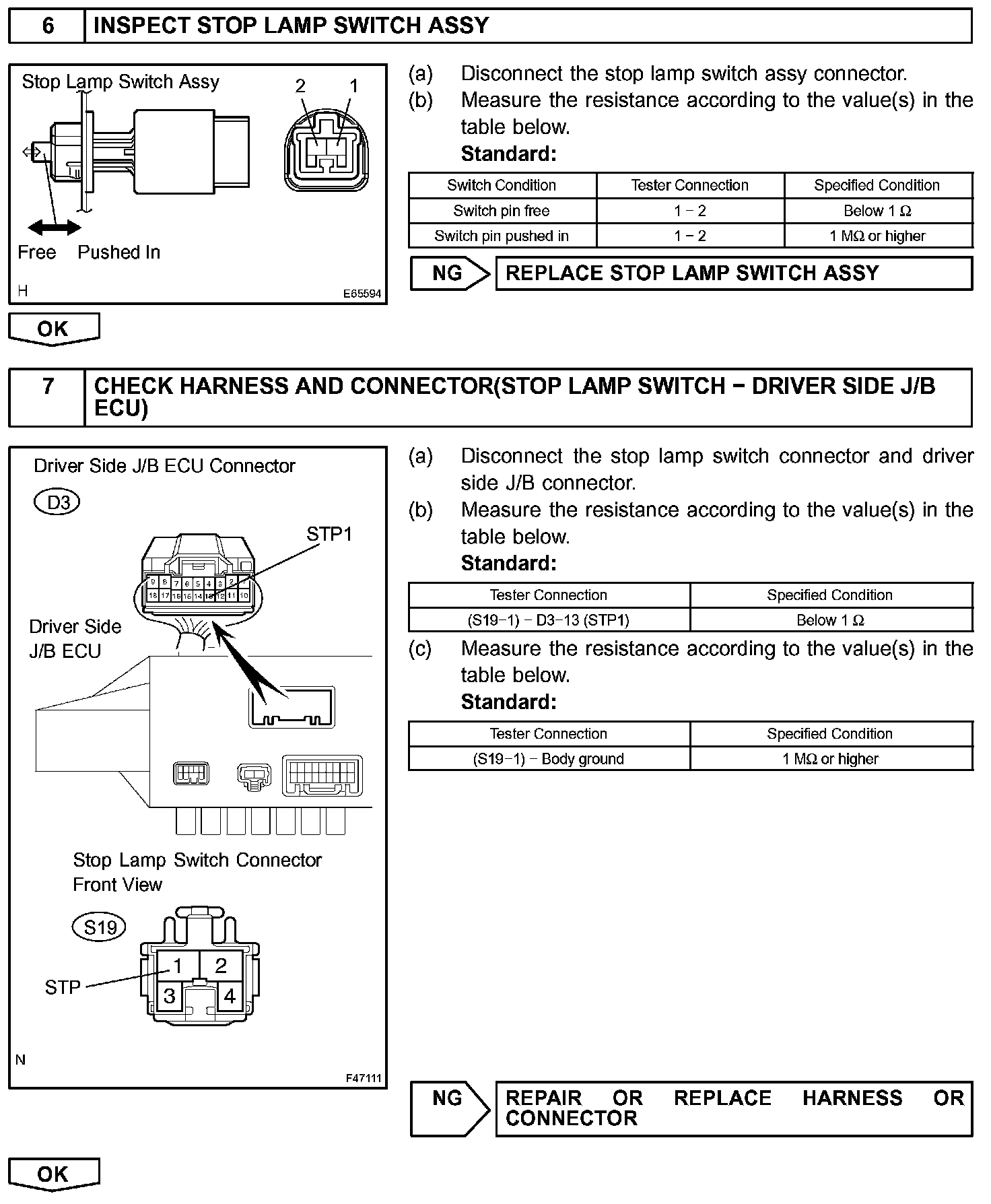

Step 6-7:

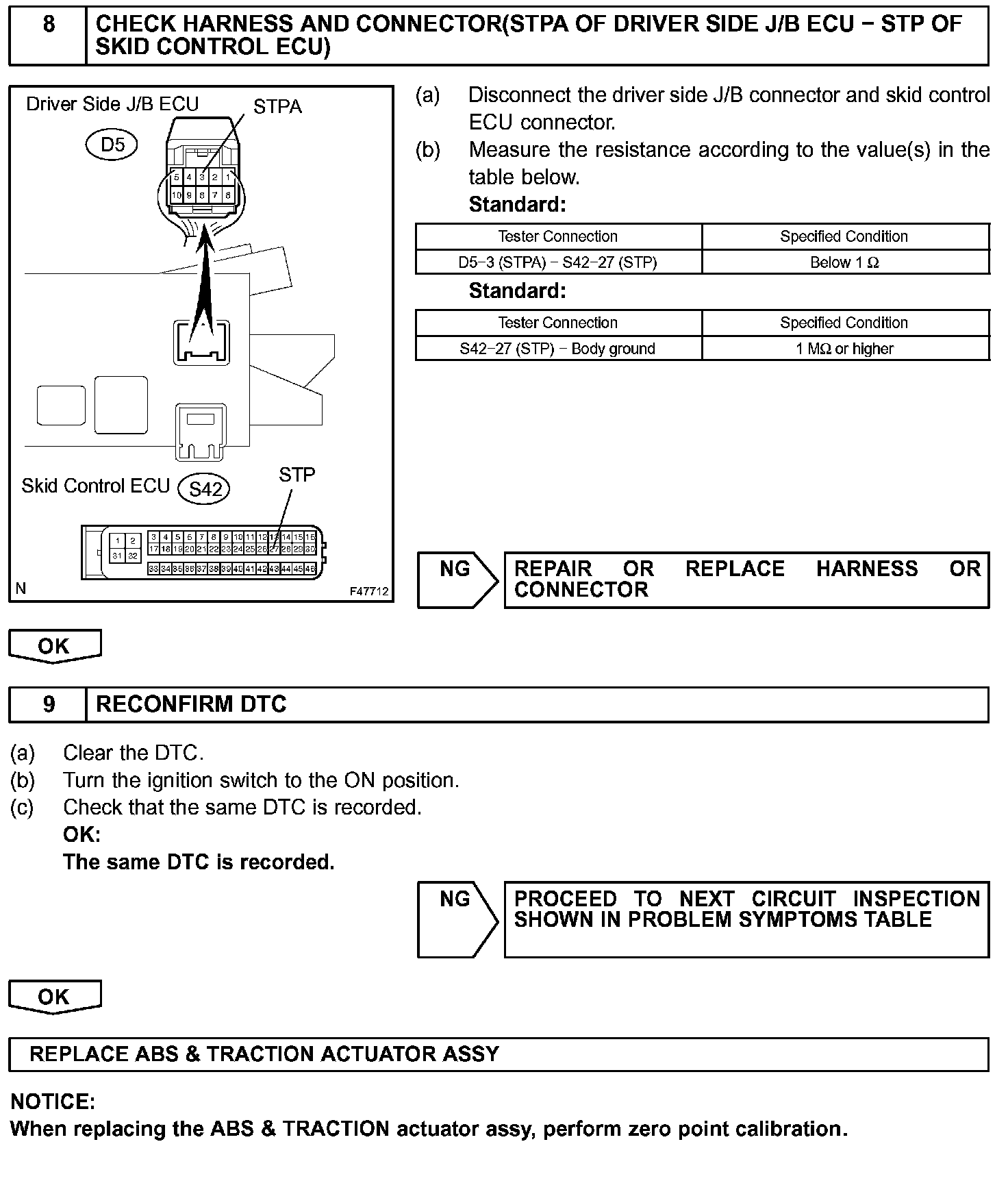

Step 8-9:

INSPECTION PROCEDURE
