C0278

DTC C0278/11 OPEN CIRCUIT IN ABS SOLENOID RELAY CIRCUIT

CIRCUIT DESCRIPTION

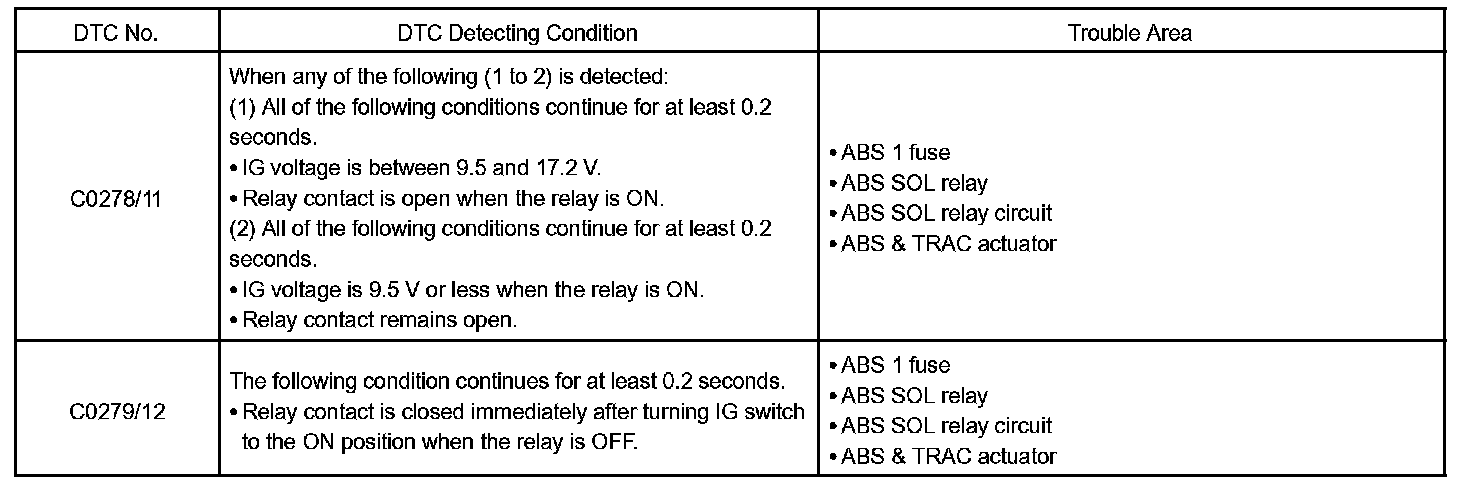

DTC Detecting Condition:

The ABS solenoid relay is built in the ABS & TRACTION Actuator assembly.
This relay supplies power to each ABS solenoid. If the initial check is OK, after the ignition switch is turned to the ON position, the relay stays on.

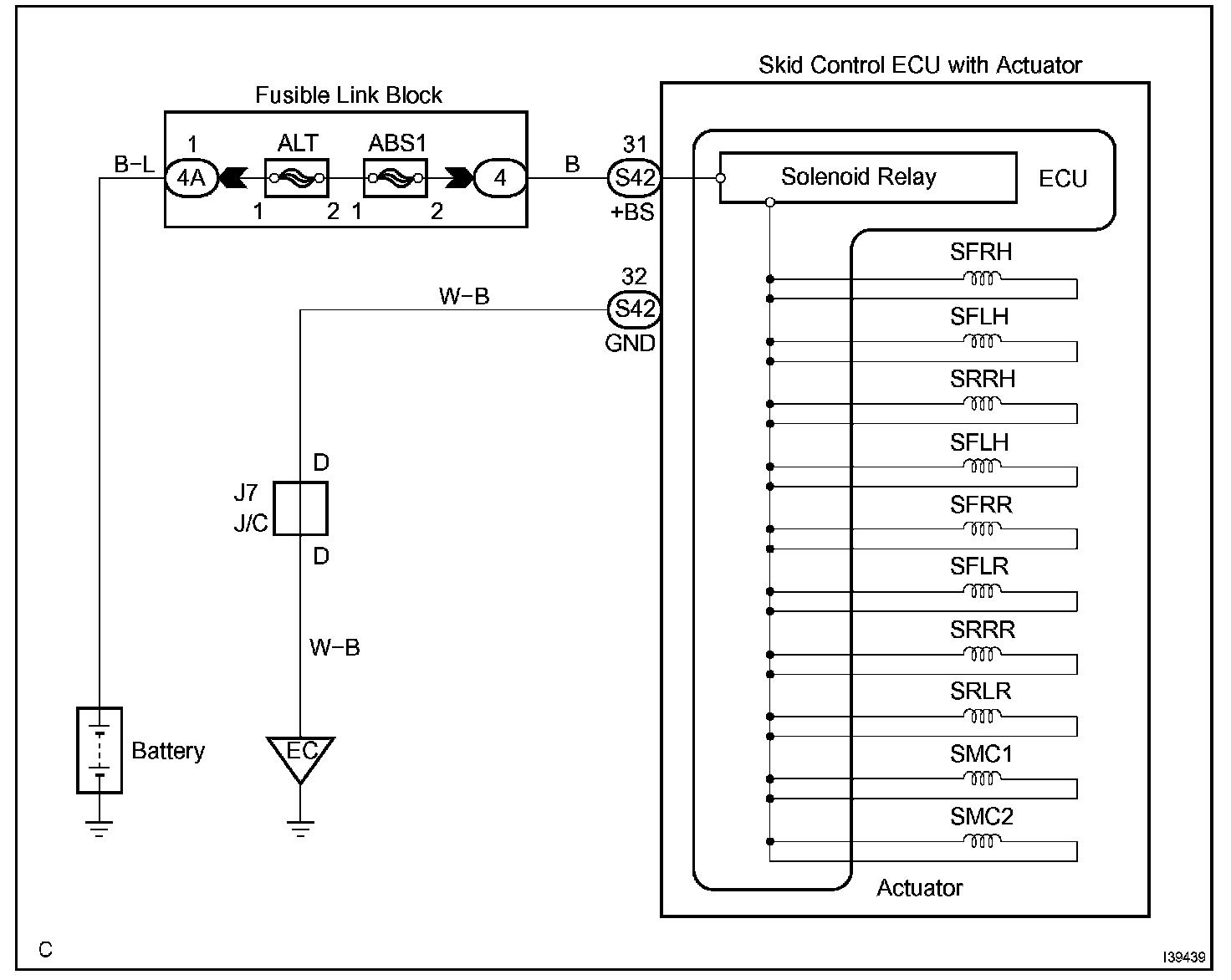

Wiring Diagram:

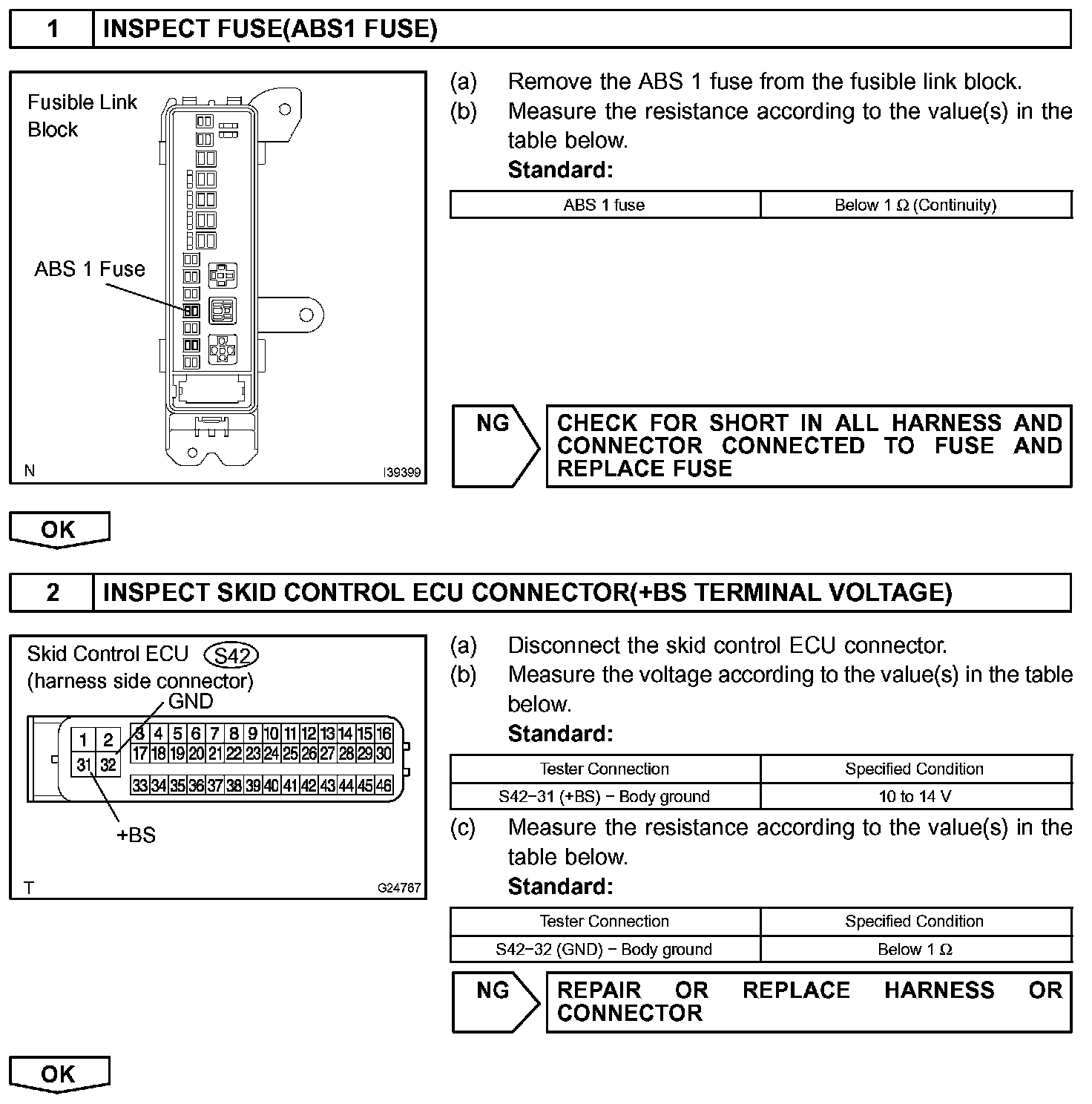

Step 1-2:

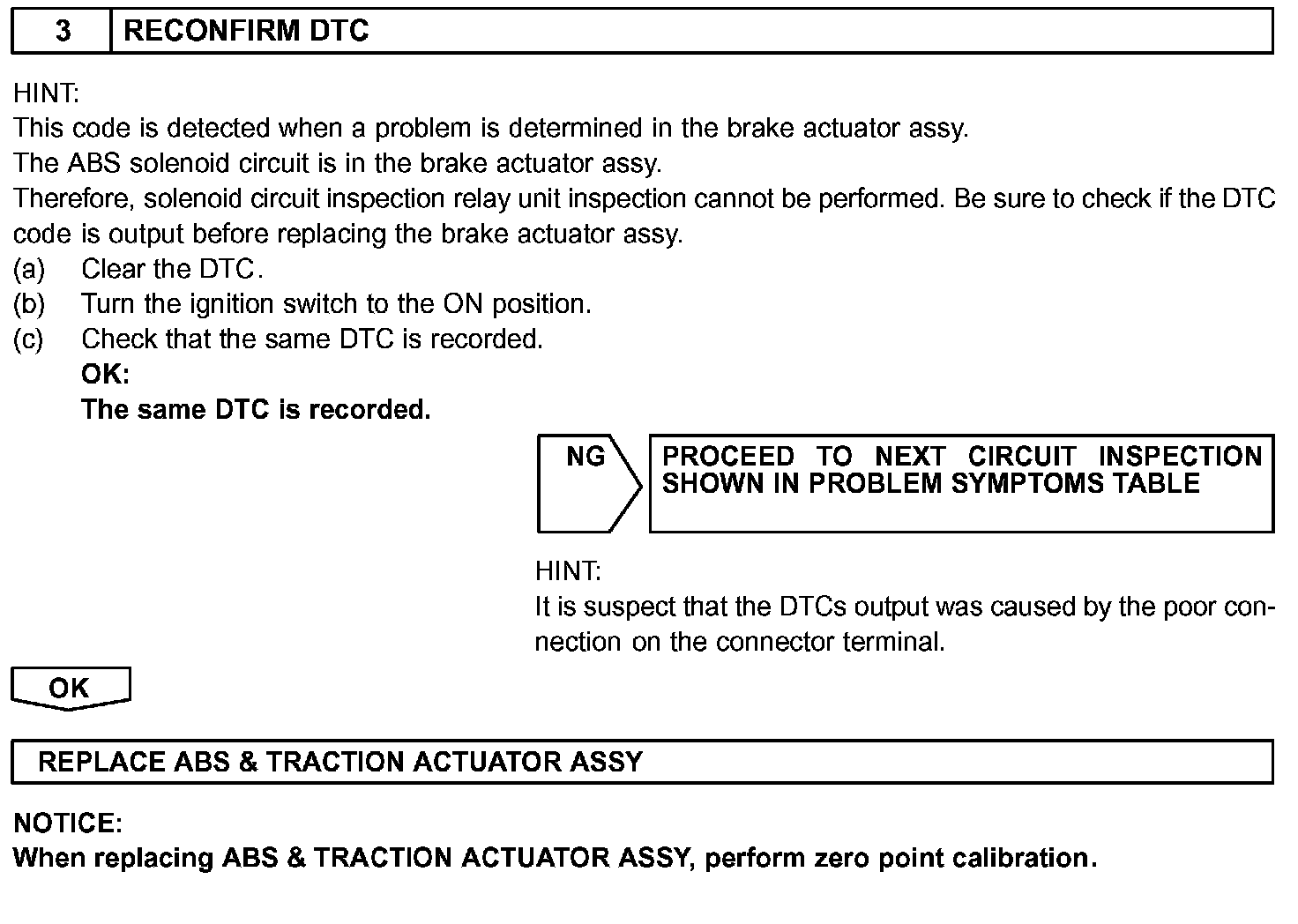

Step 3:

INSPECTION PROCEDURE
