B2611

DTC B2611 TELESCOPIC POSITION SENSOR OR TELESCOPIC MOTOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

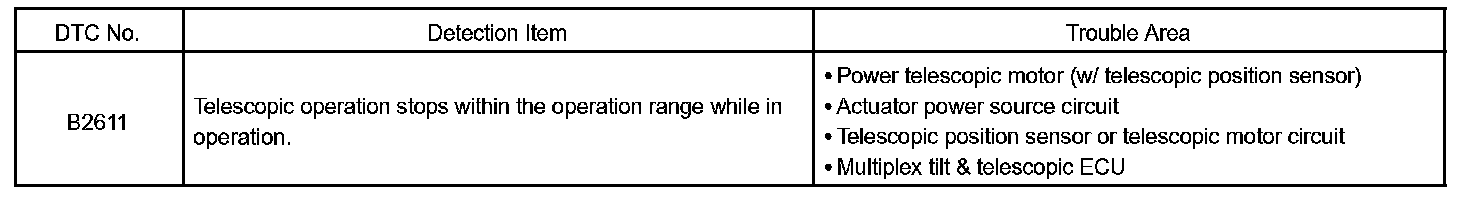

Detection Item:

The telescopic motor is operated by the power source voltage supplied from the multiplex tilt & telescopic ECU and makes the steering column slide forwards and backwards. The telescopic position sensor (Hole IC) in the telescopic motor detects the sliding position in the forward and backward direction of the steering column and outputs a signal to the CPU based on that sliding amount.

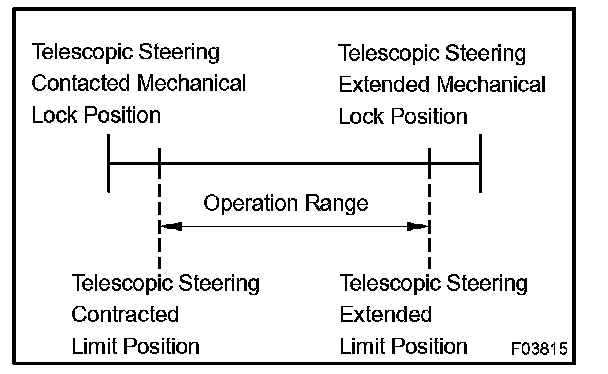

HINT: Limit positions can be confirmed on the screen of the handheld tester.

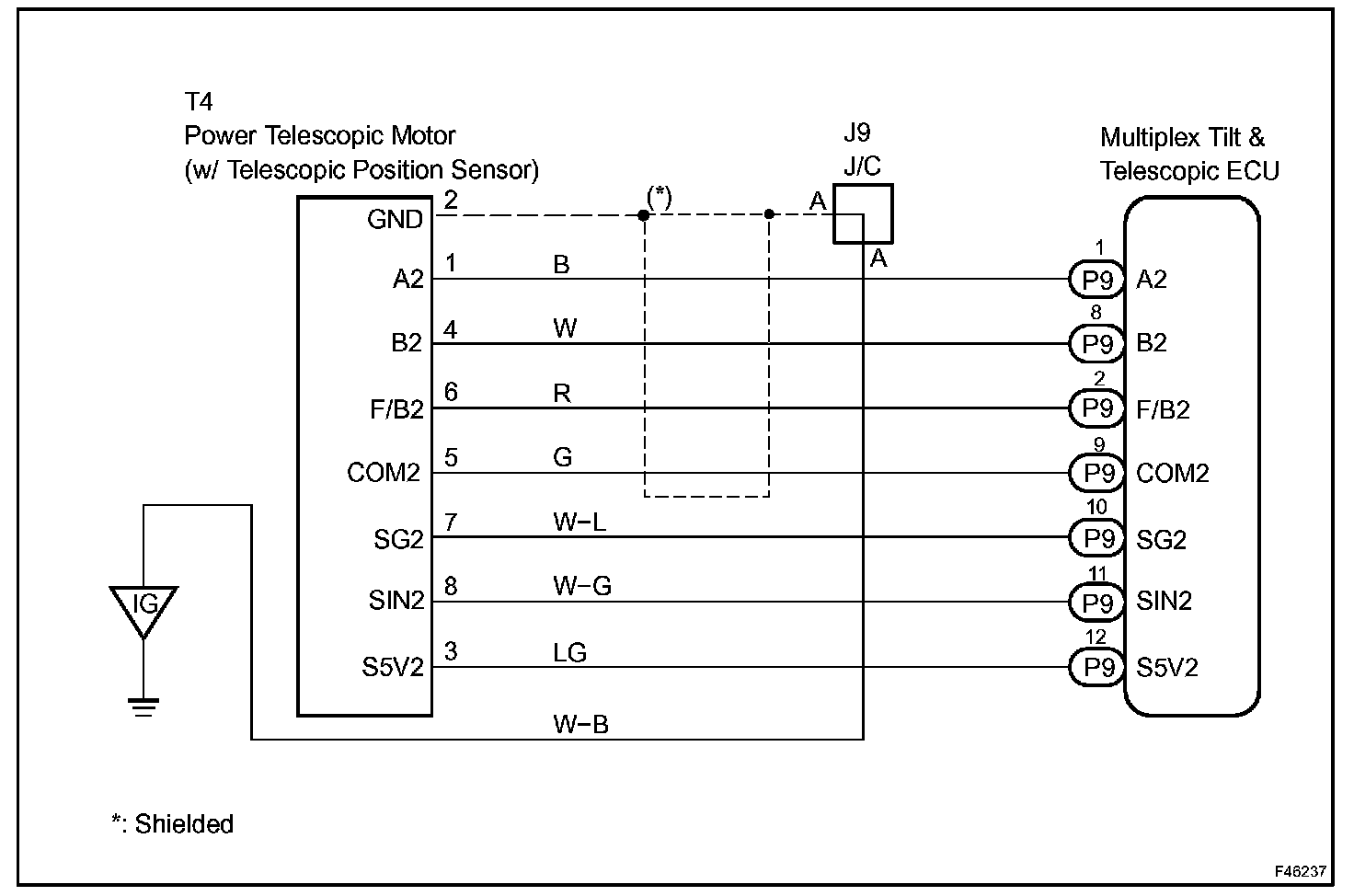

Wiring Diagram:

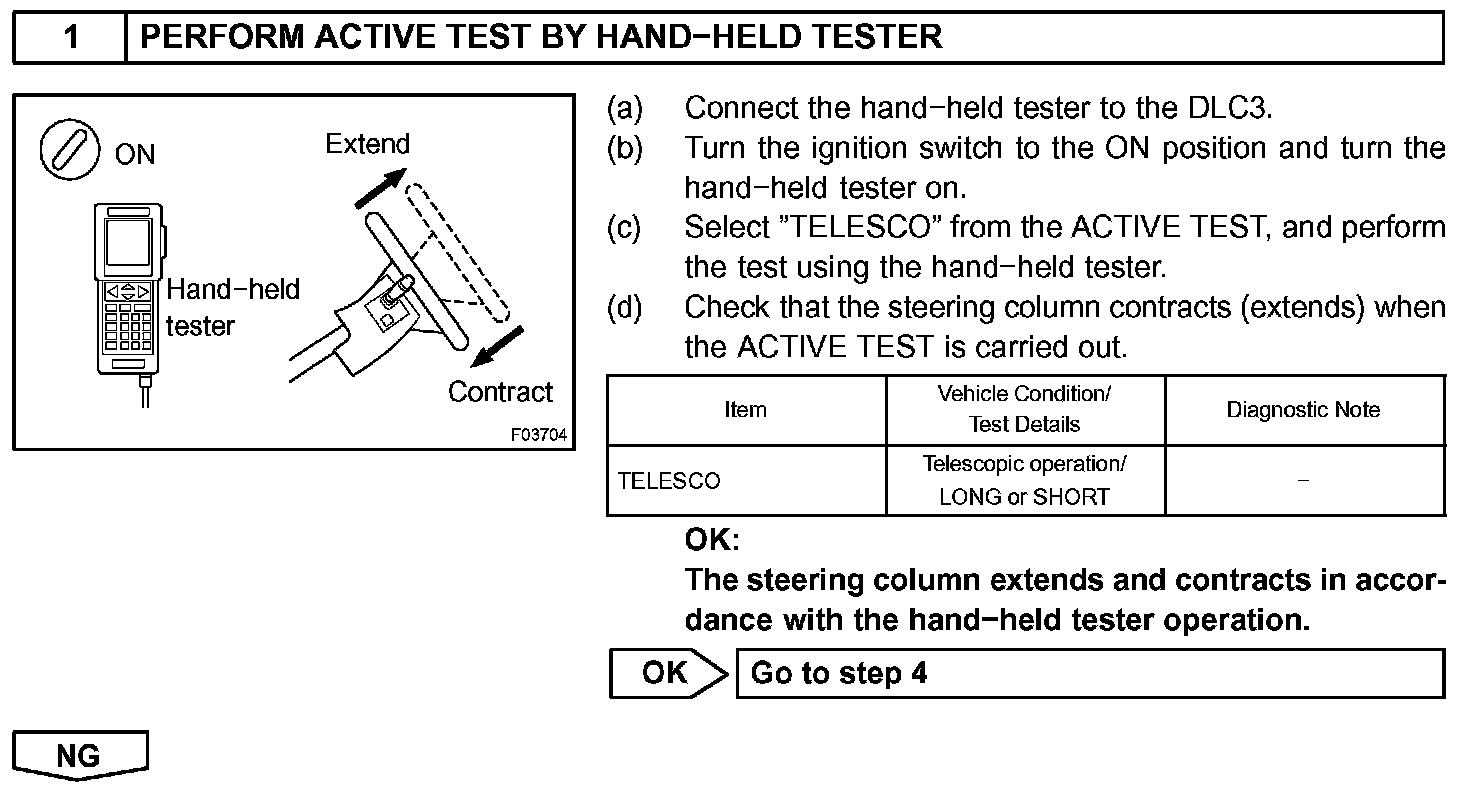

Step 1:

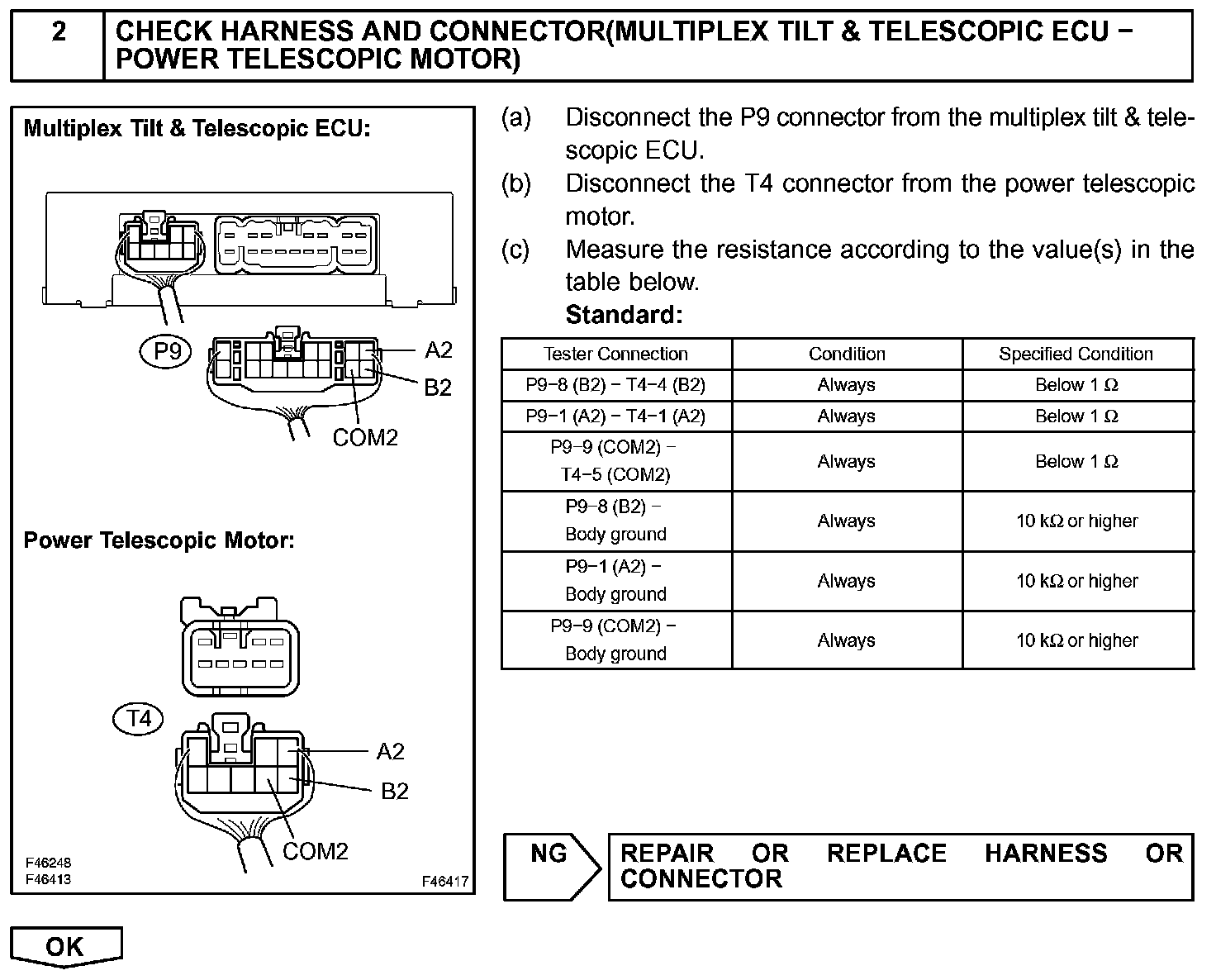

Step 2:

Step 3:

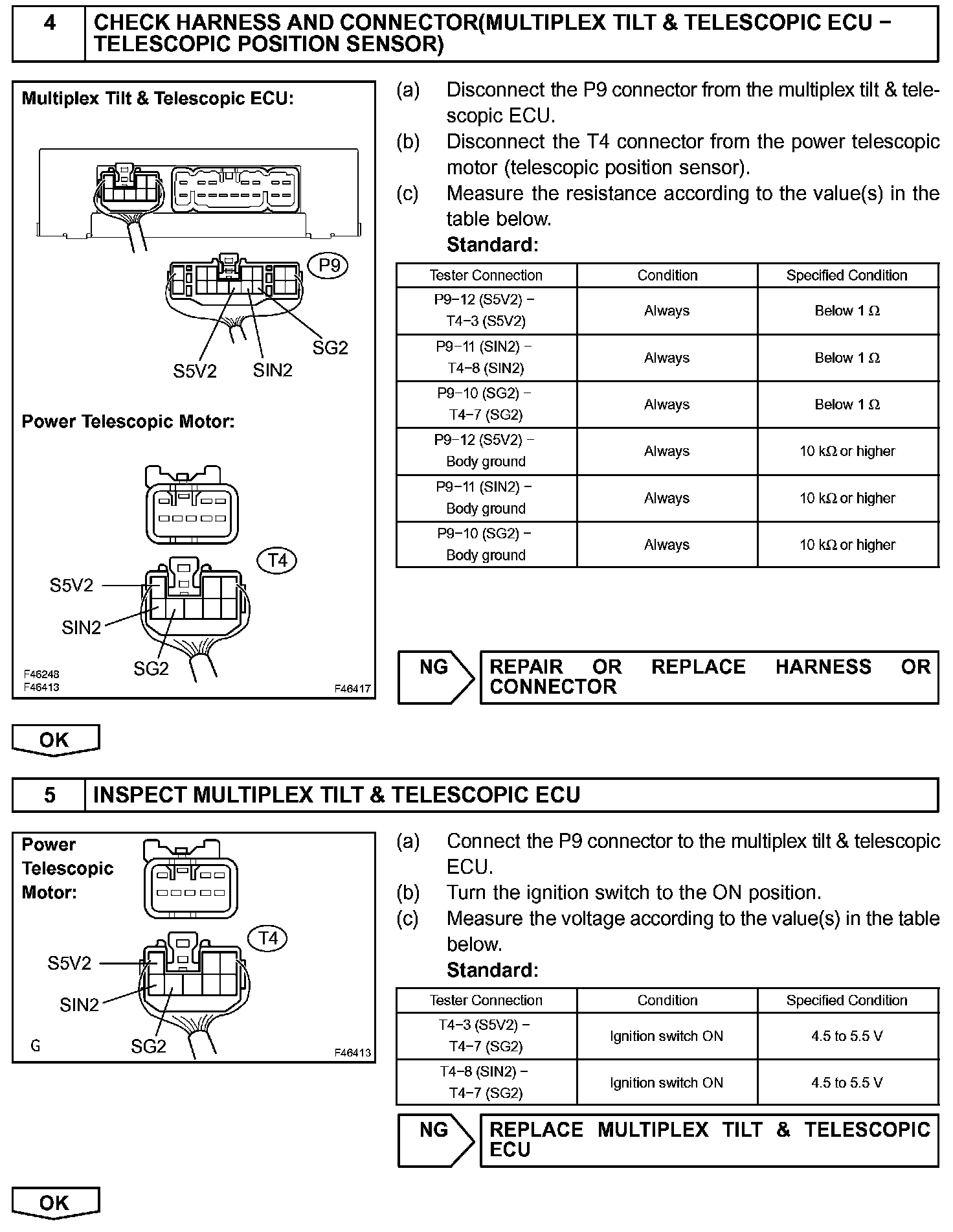

Step 4-5:

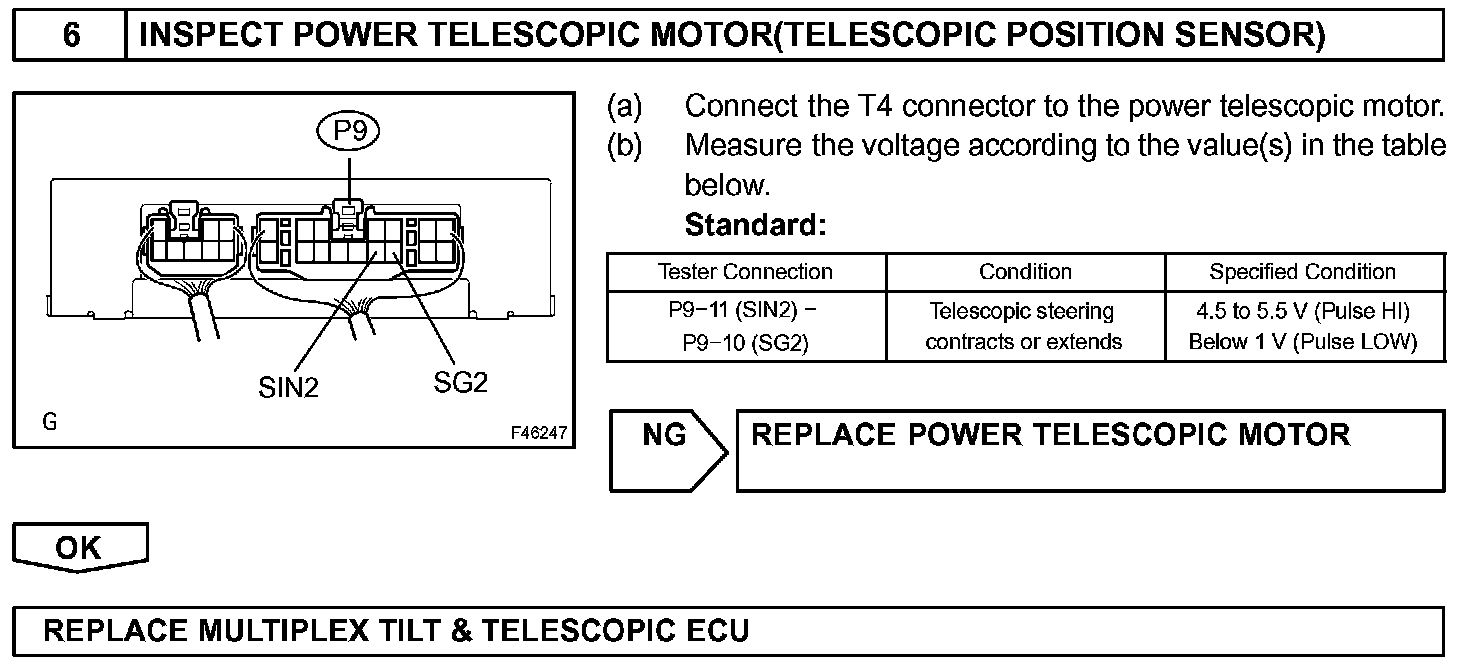

Step 6:

INSPECTION PROCEDURE

HINT: First, troubleshoot the actuator power source circuit when DTCs B2610 and B2611 are output simultaneously.
