B2610

DTC B2610 TILT POSITION SENSOR OR TILT MOTOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

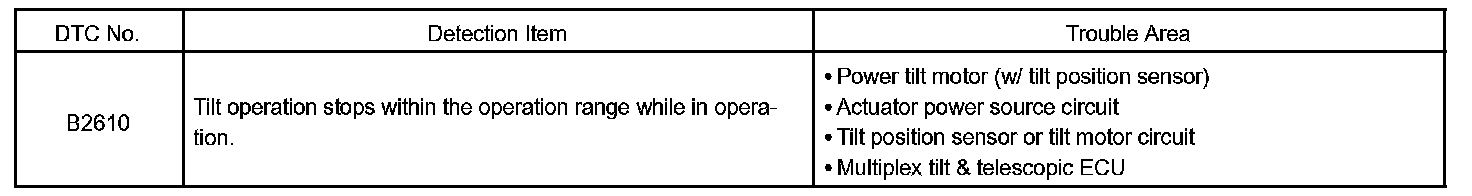

Detection Item:

The tilt motor is operated by the power source voltage supplied from the multiplex tilt & telescopic ECU and makes the steering column tilt up and down. The tilt position sensor (hole IC) in the tilt motor detects the tilt angle of the steering column and outputs a signal to the CPU based on that tilt.

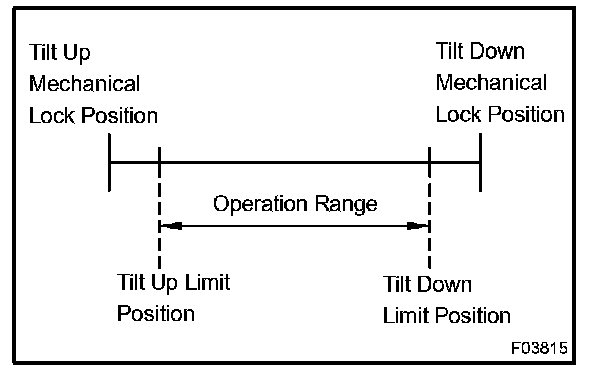

HINT: Limit positions can be confirmed on the screen of the handheld tester.

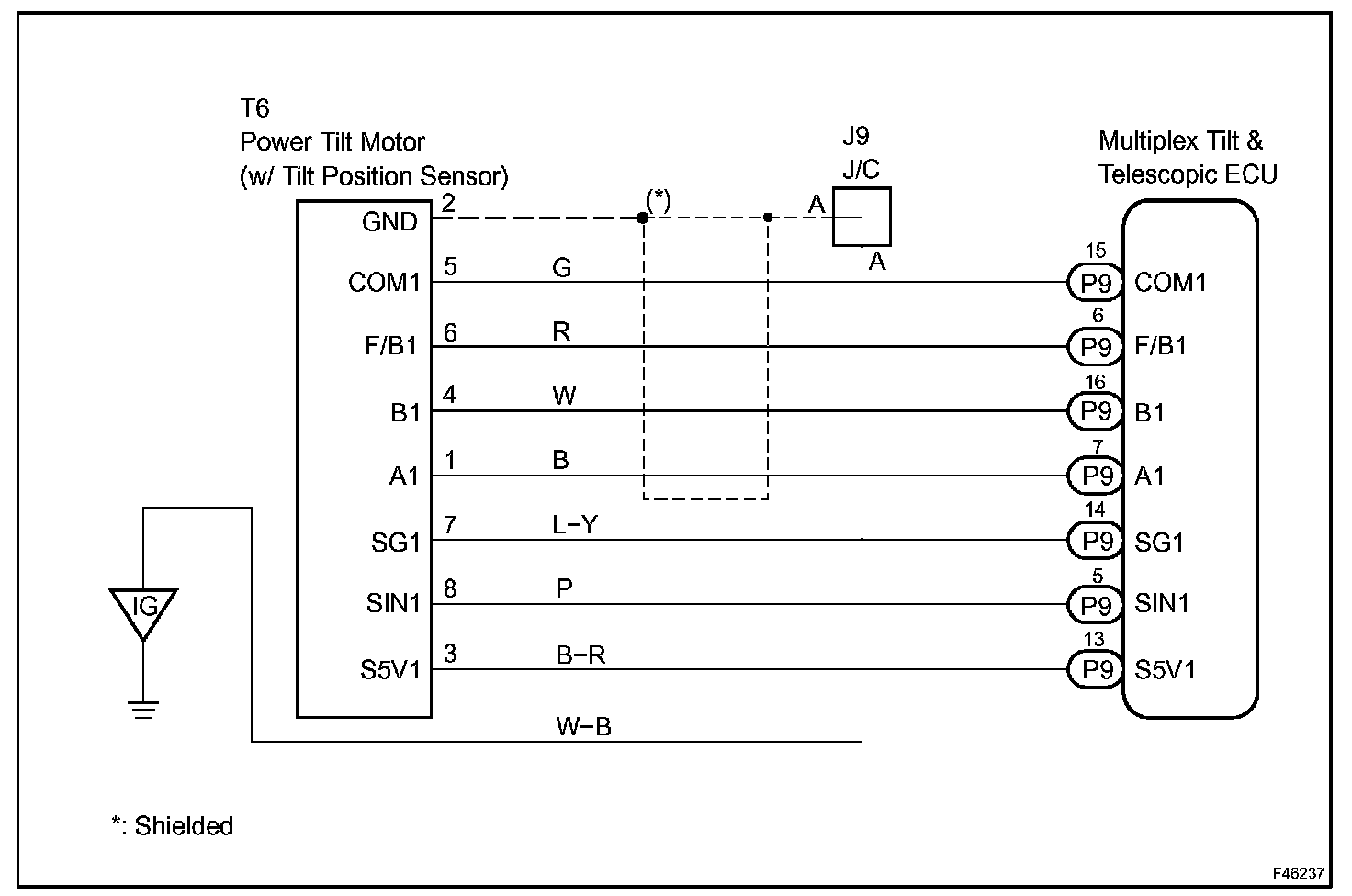

Wiring Diagram:

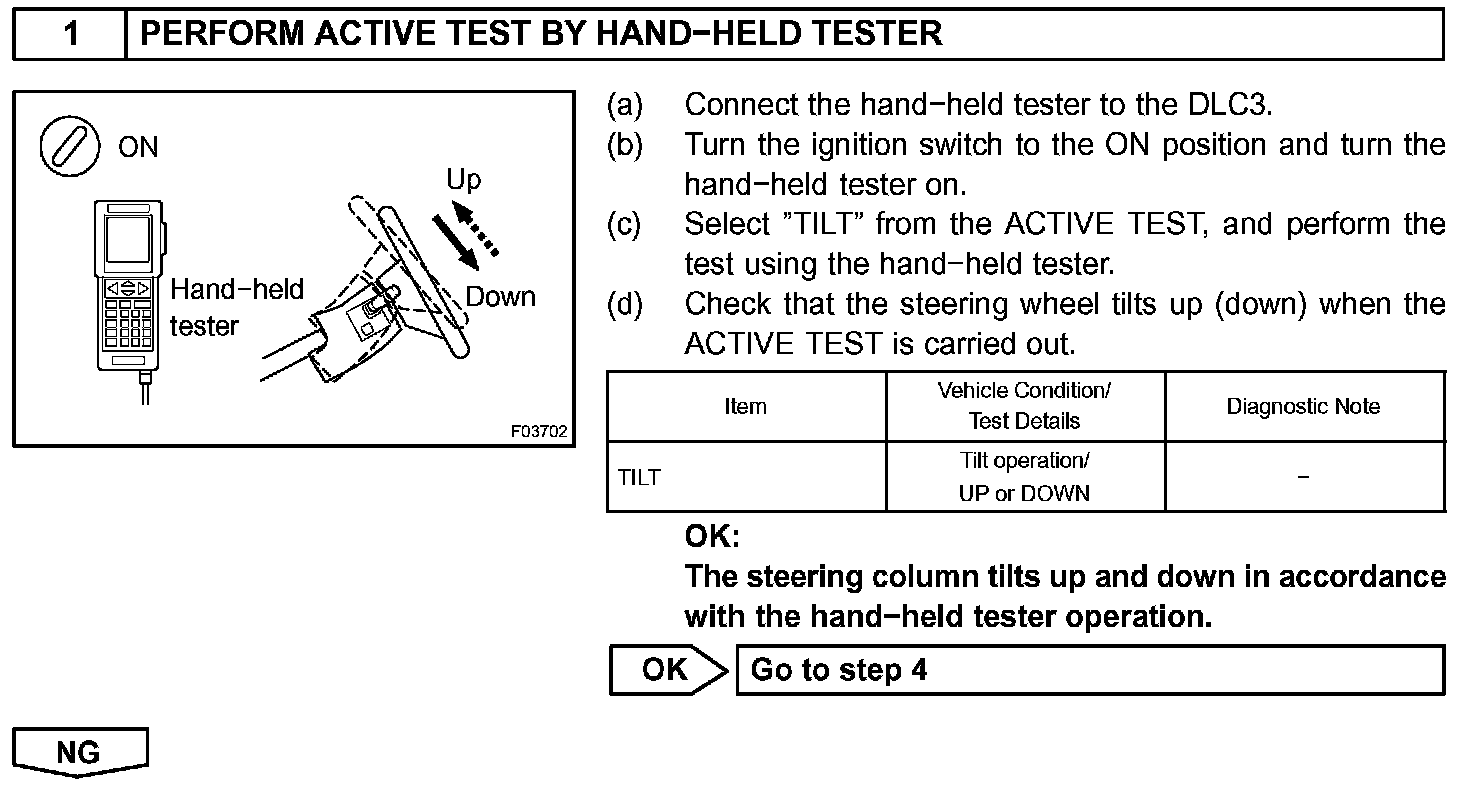

Step 1:

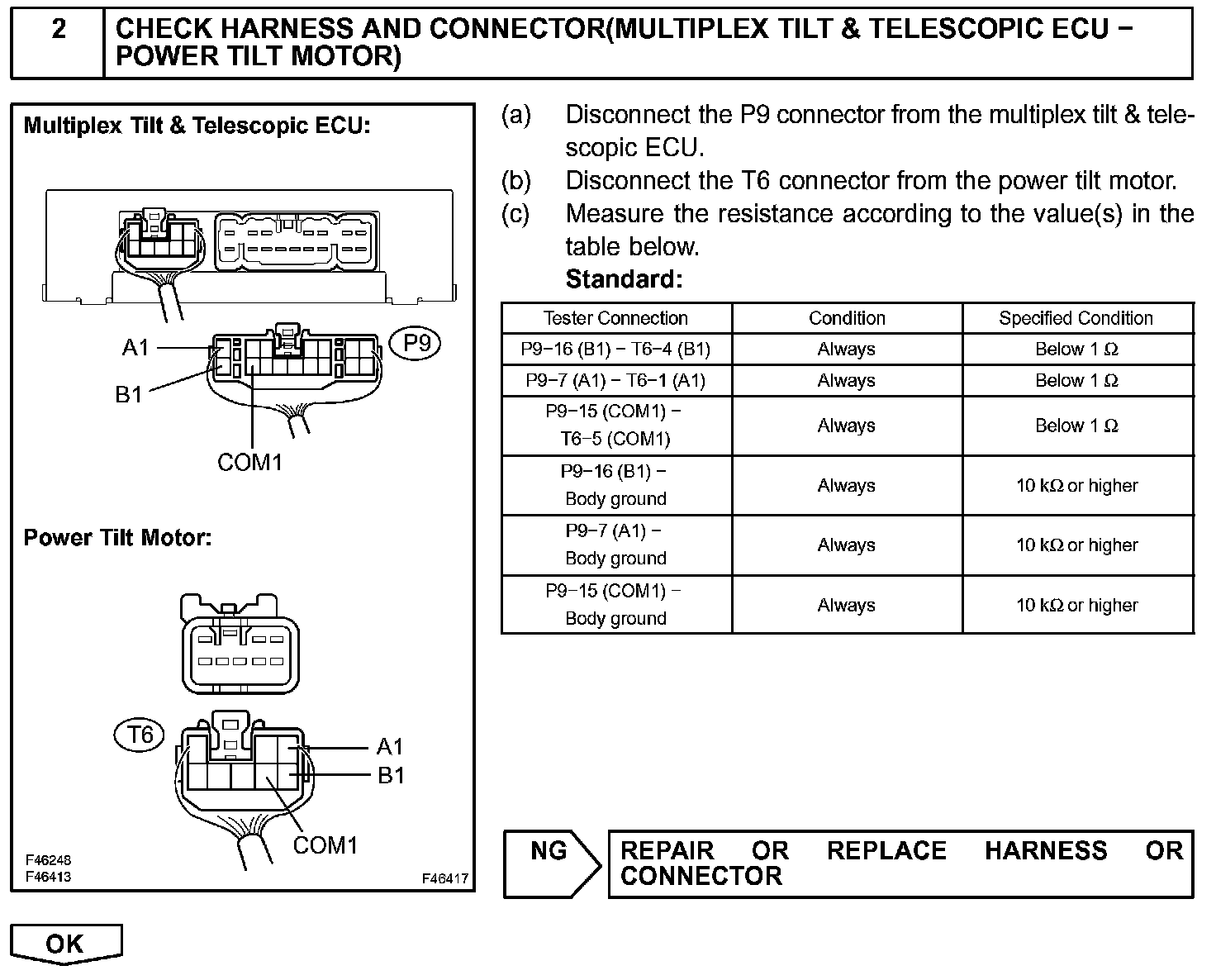

Step 2:

Step 3:

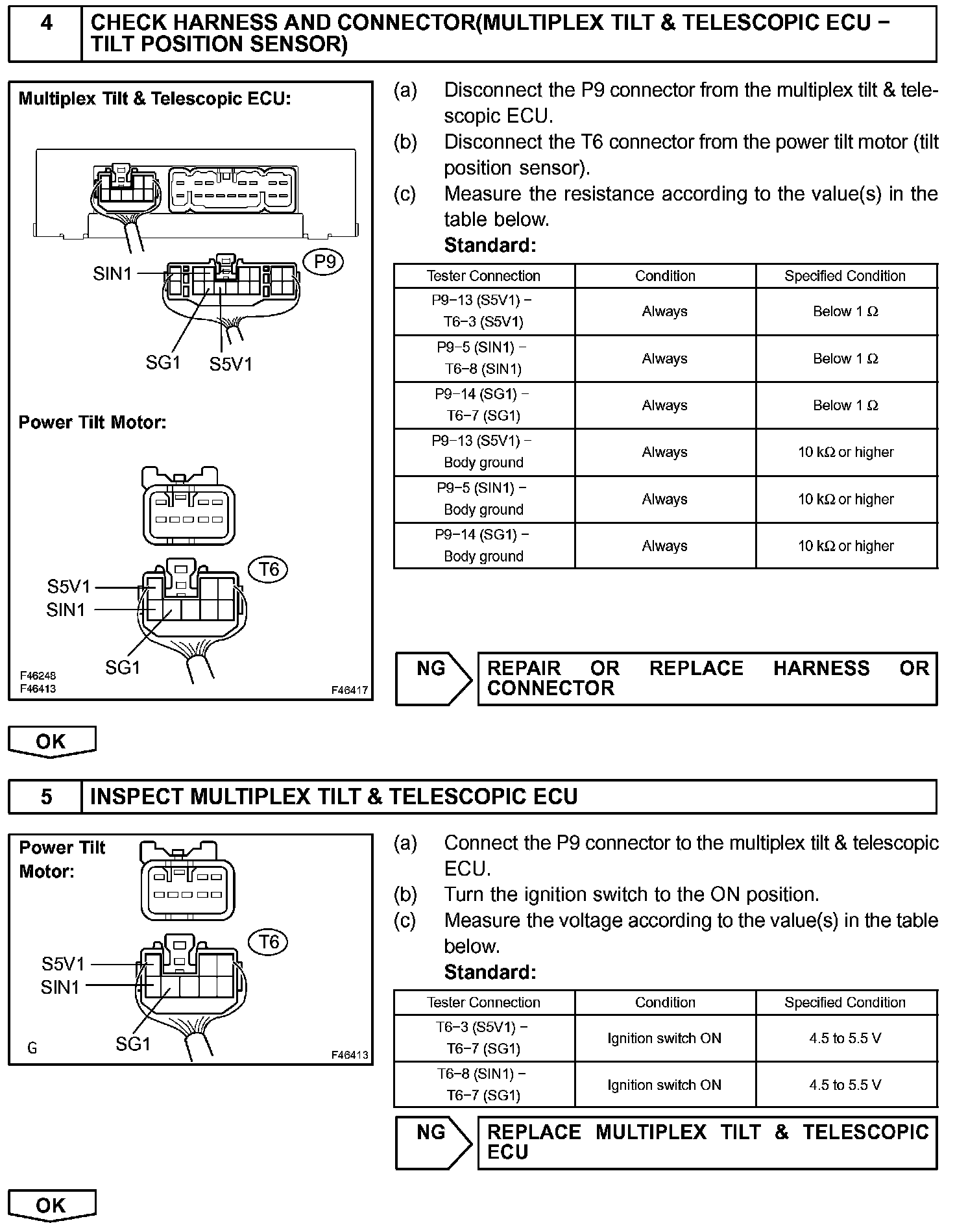

Step 4-5:

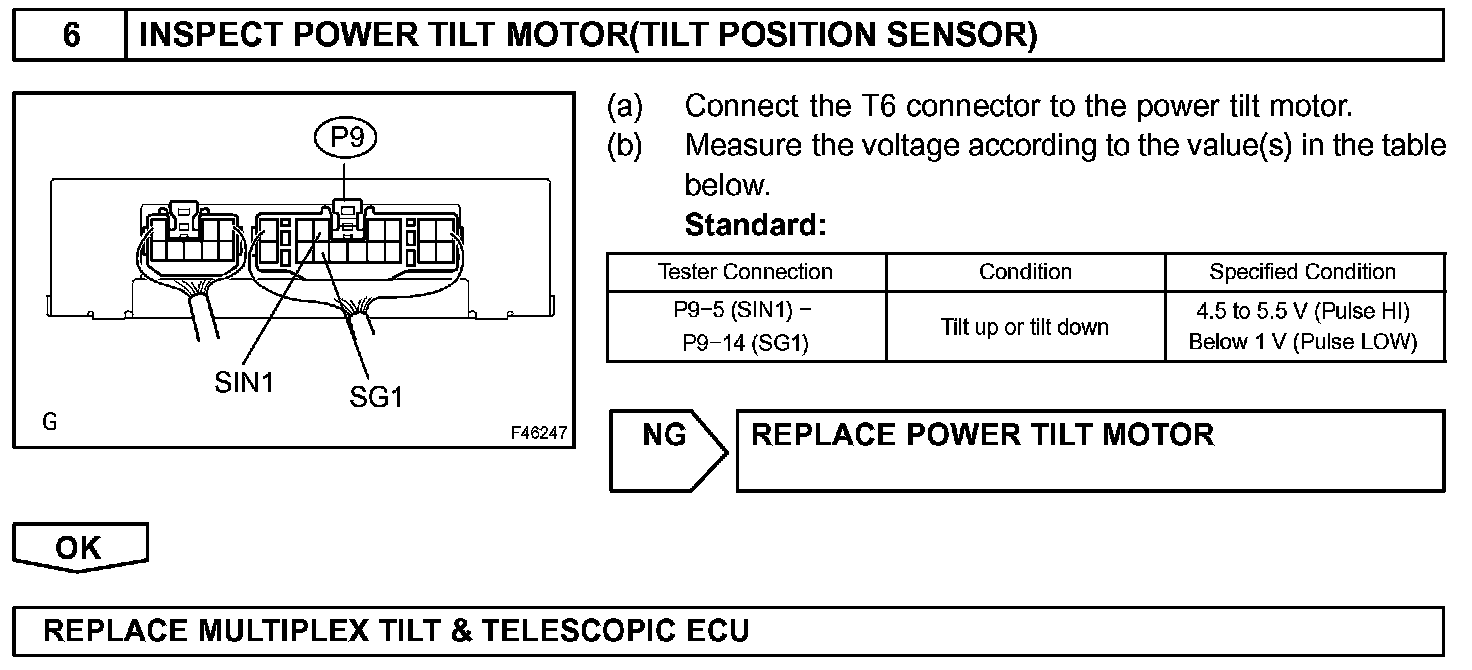

Step 6:

INSPECTION PROCEDURE

HINT: First, troubleshoot the actuator power source circuit when DTCs B2610 and B2611 are output simultaneously.
