B2416

DTC B2416 HEIGHT CONTROL SENSOR MALFUNCTION

Circuit Description

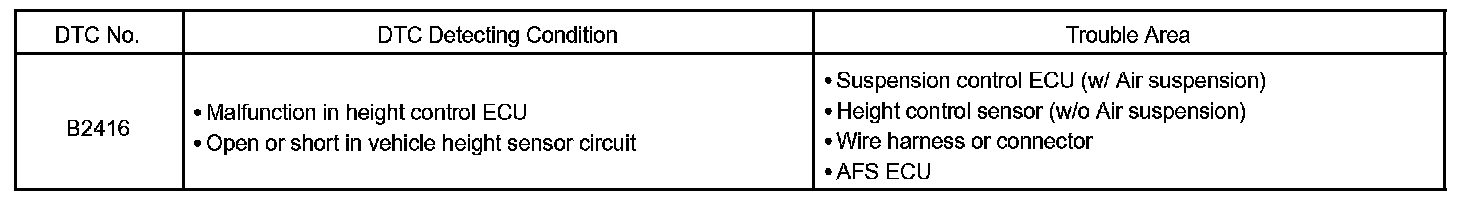

DTC Detecting Condition:

The AFS ECU receives signals regarding the height of the front/rear of the vehicle from the suspension control ECU. If the vehicle doesn't have a suspension control ECU, the AFS ECU has also height control sensors.

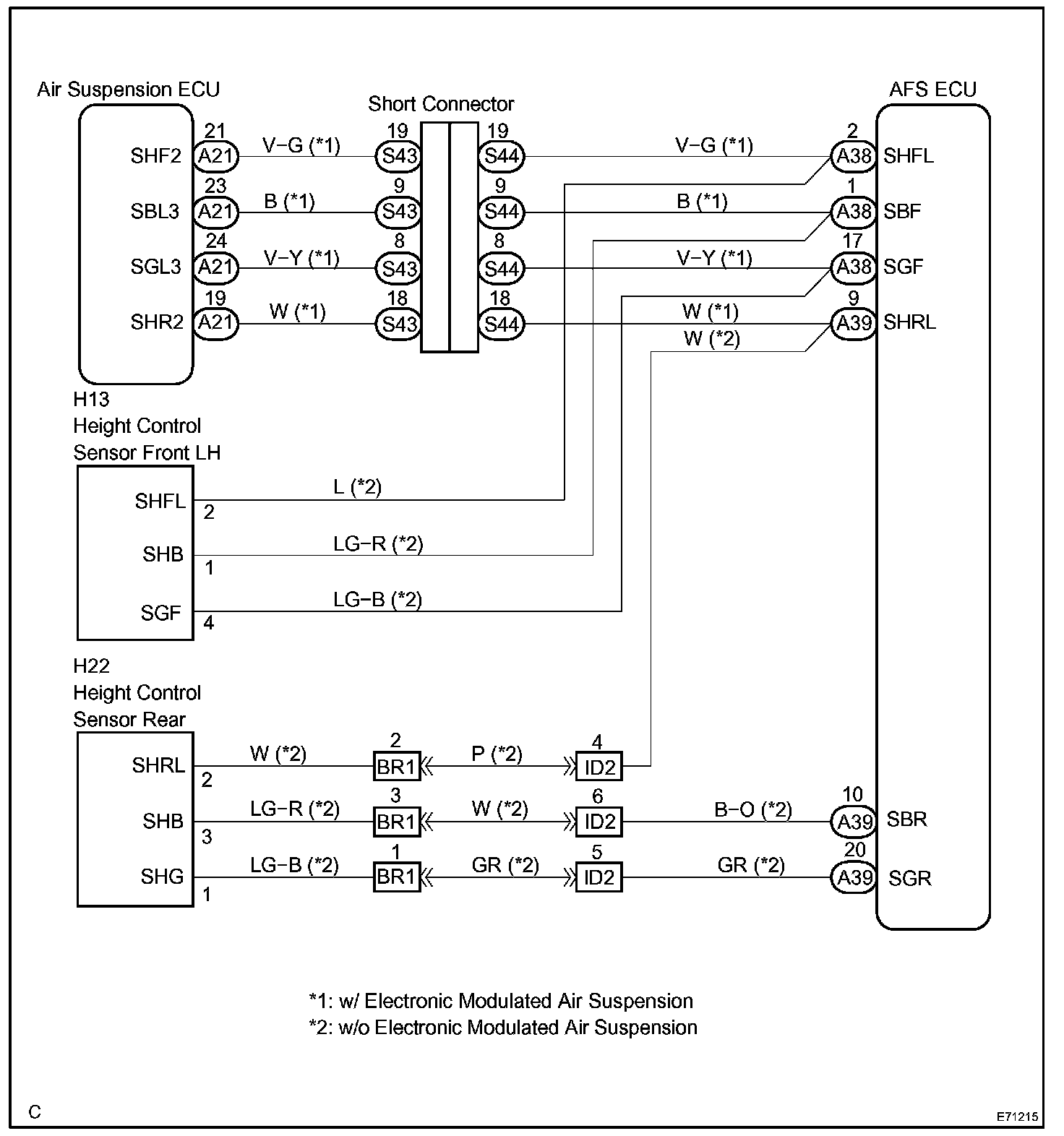

Wiring Diagram:

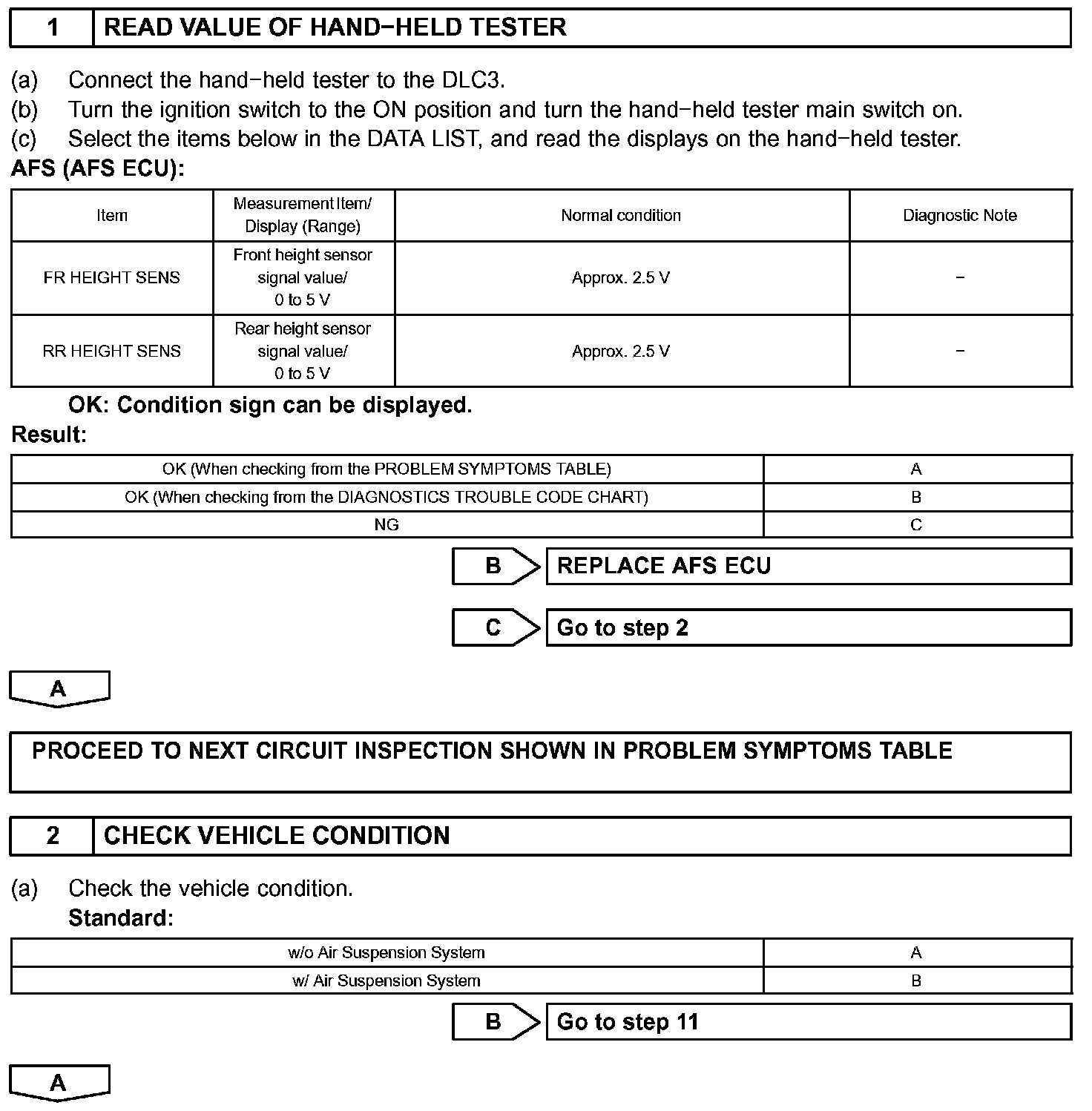

Step 1-2:

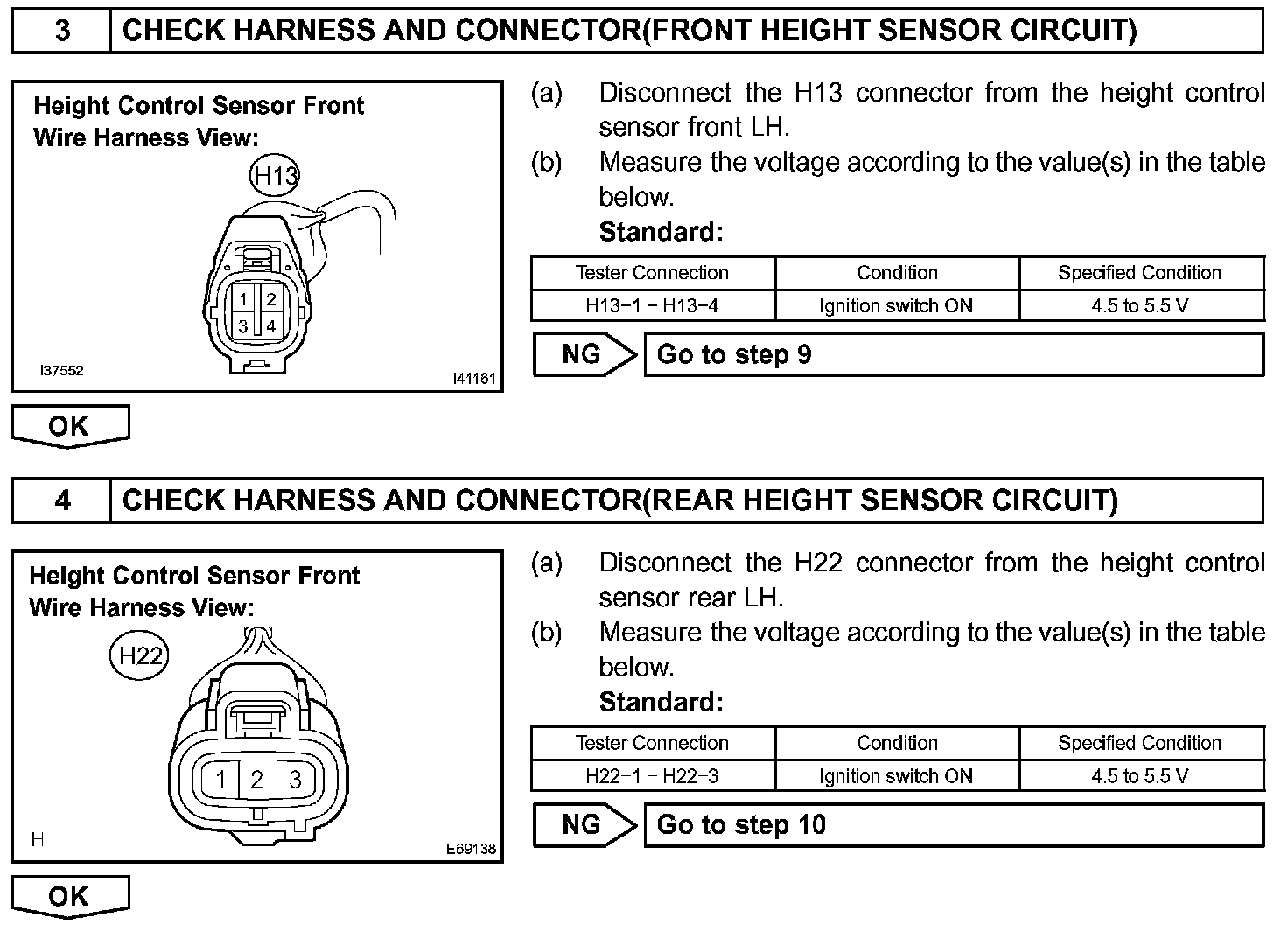

Step 3-4:

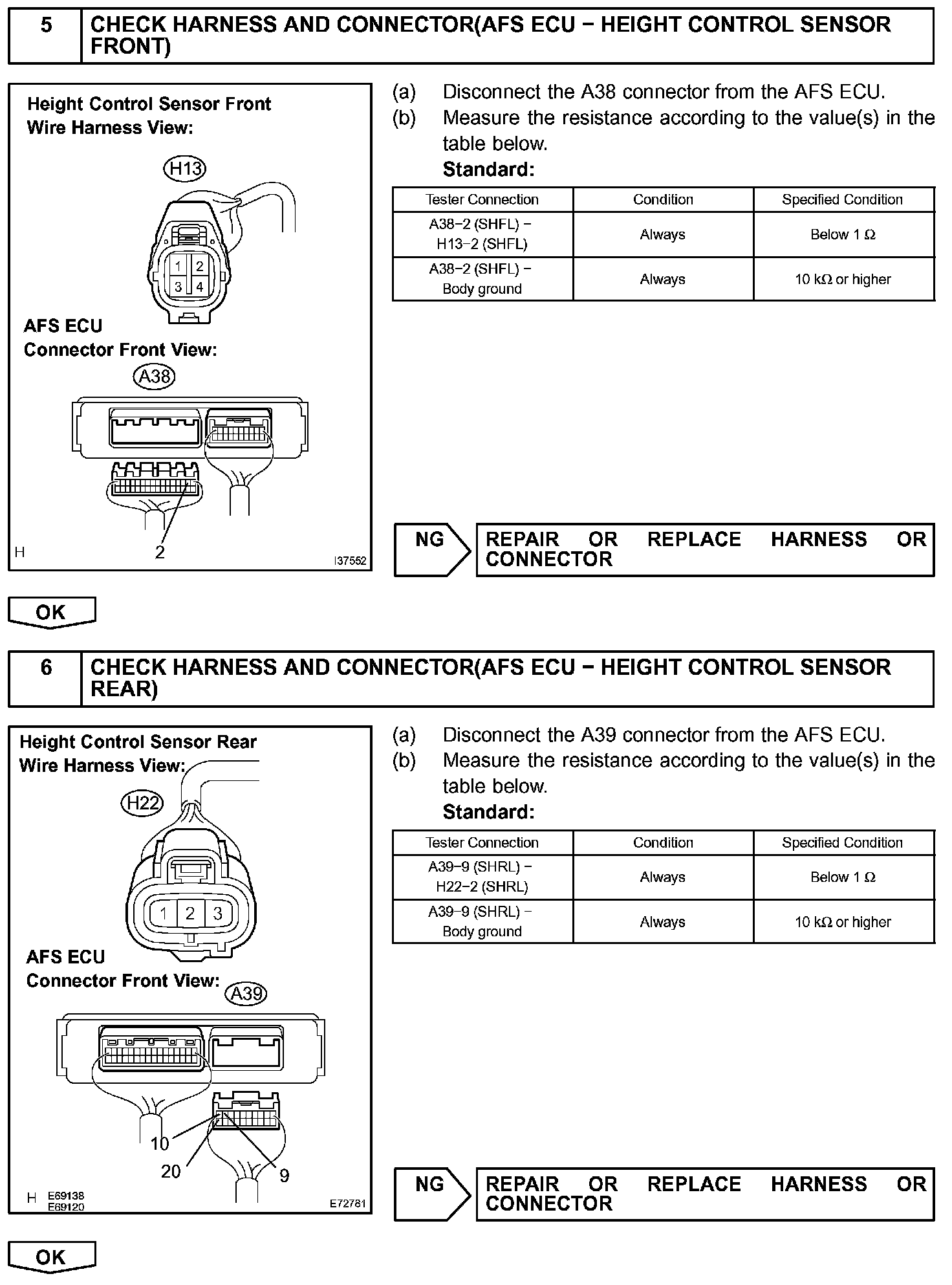

Step 5-6:

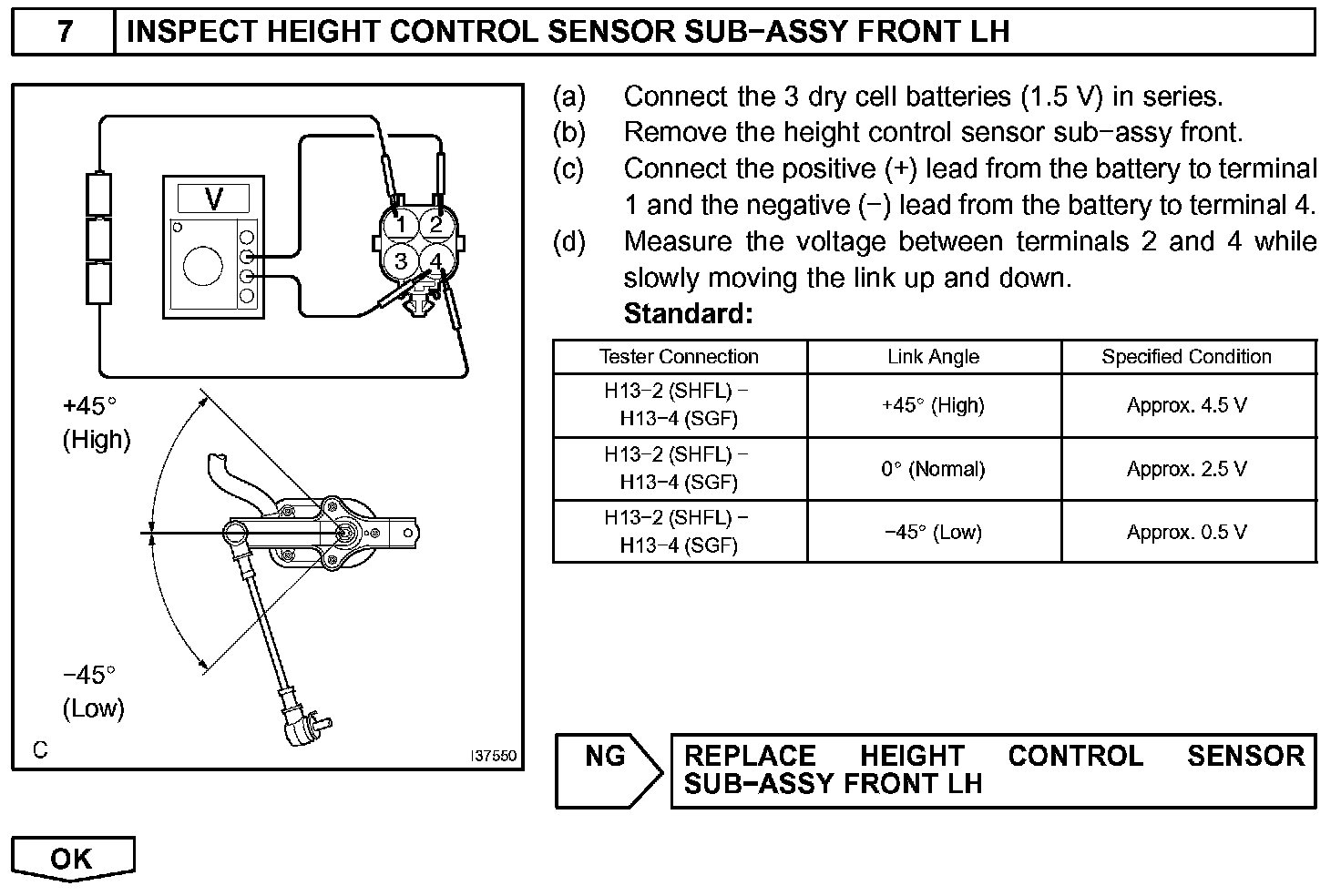

Step 7:

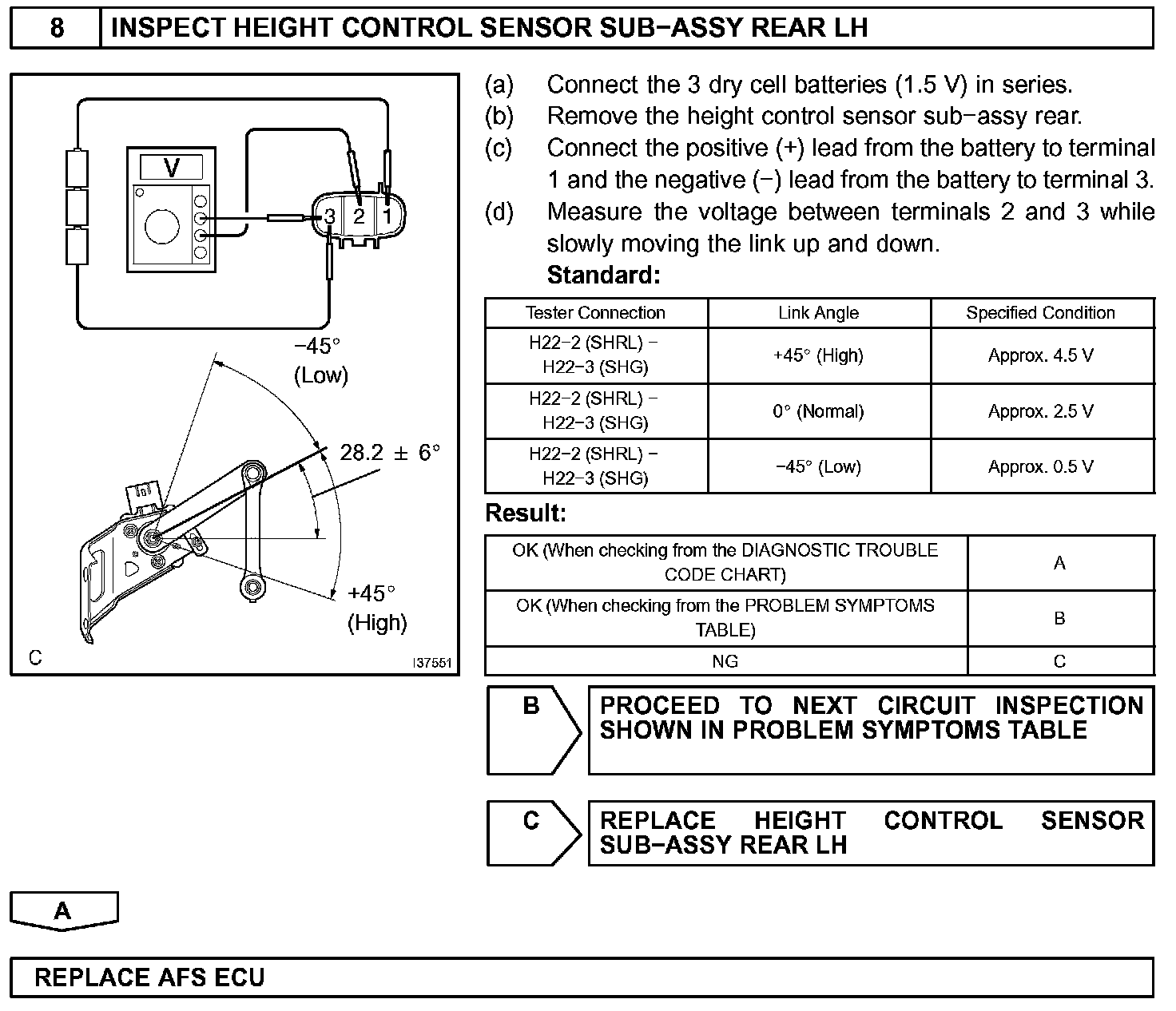

Step 8:

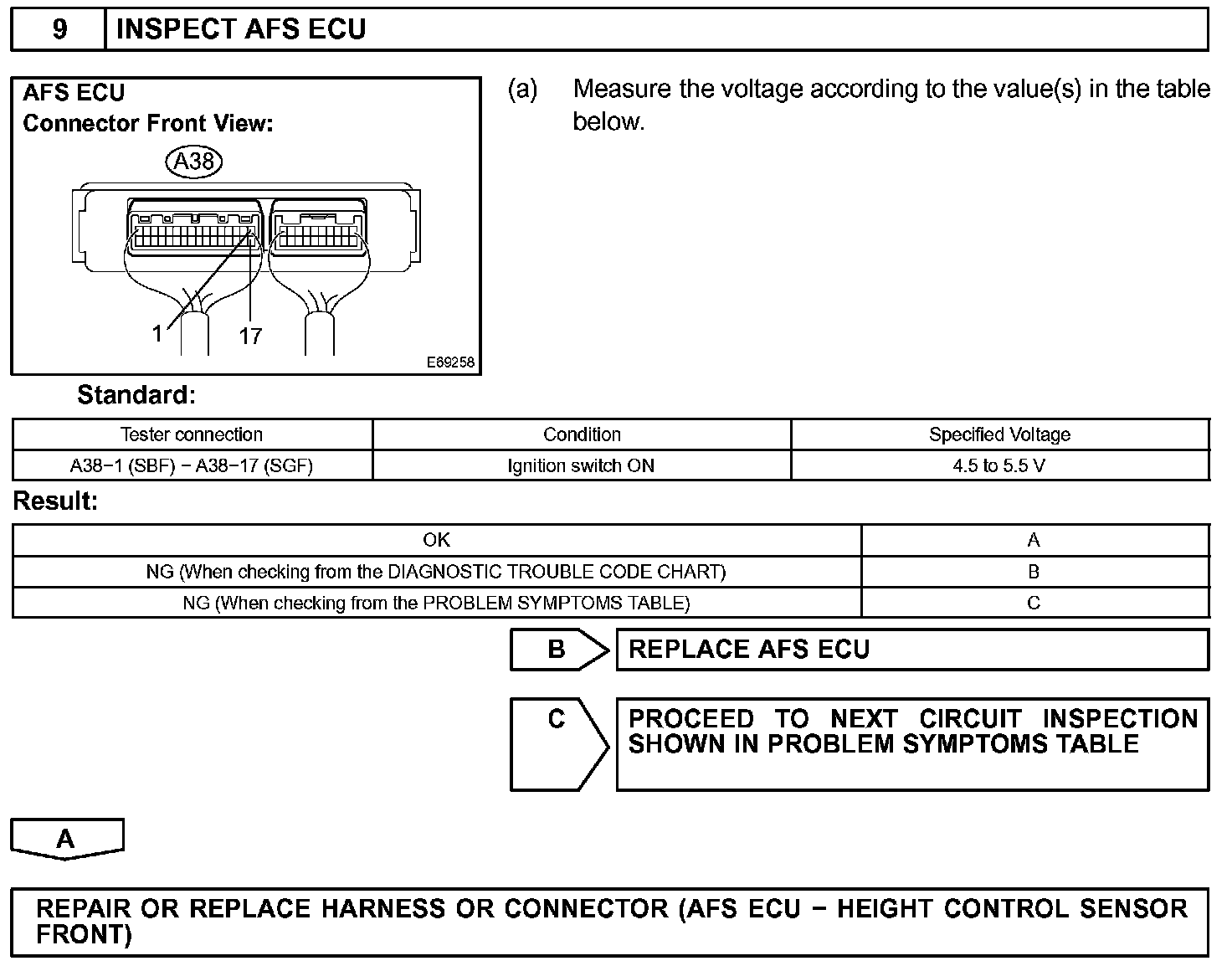

Step 9:

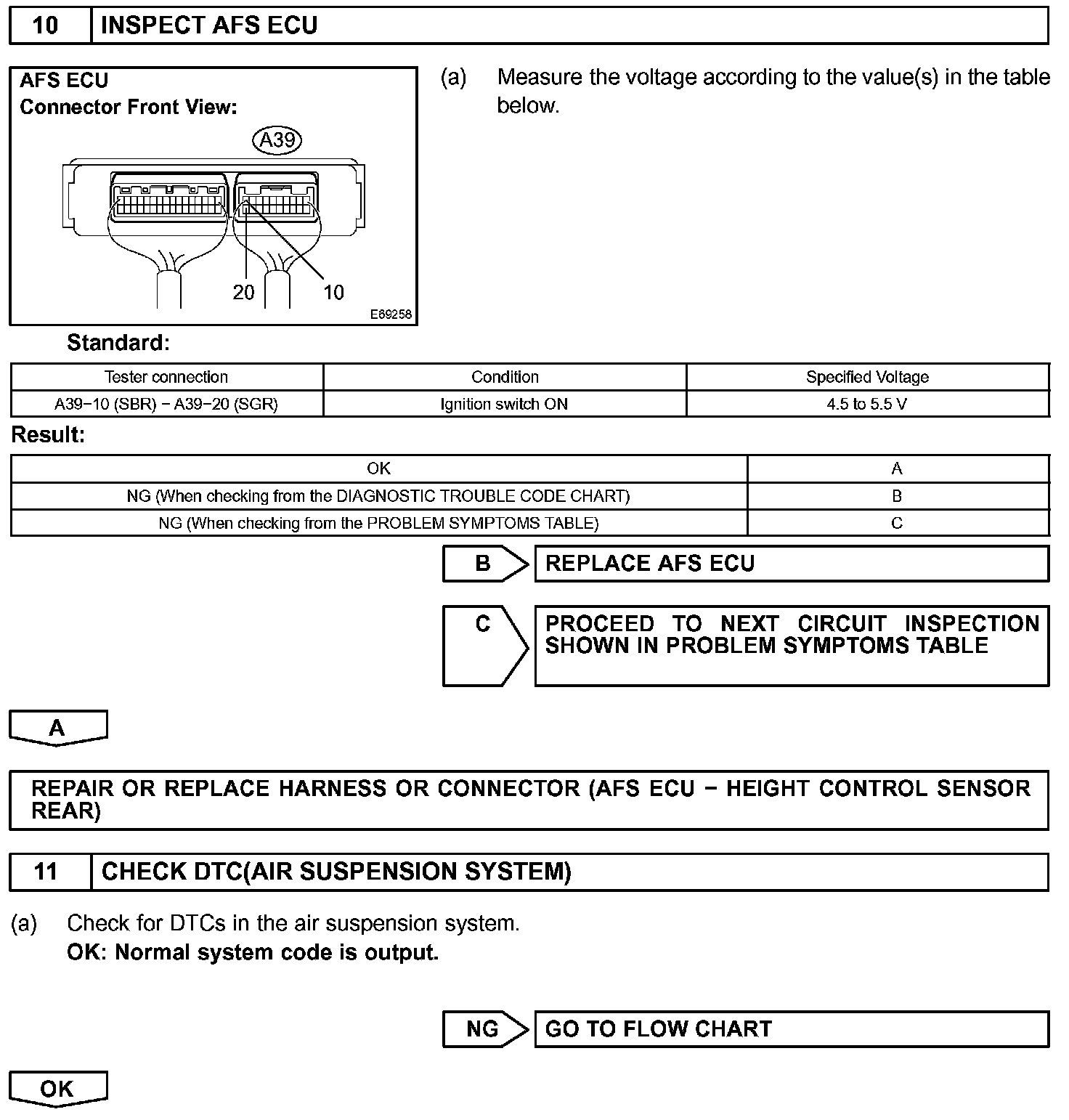

Step 10-11:

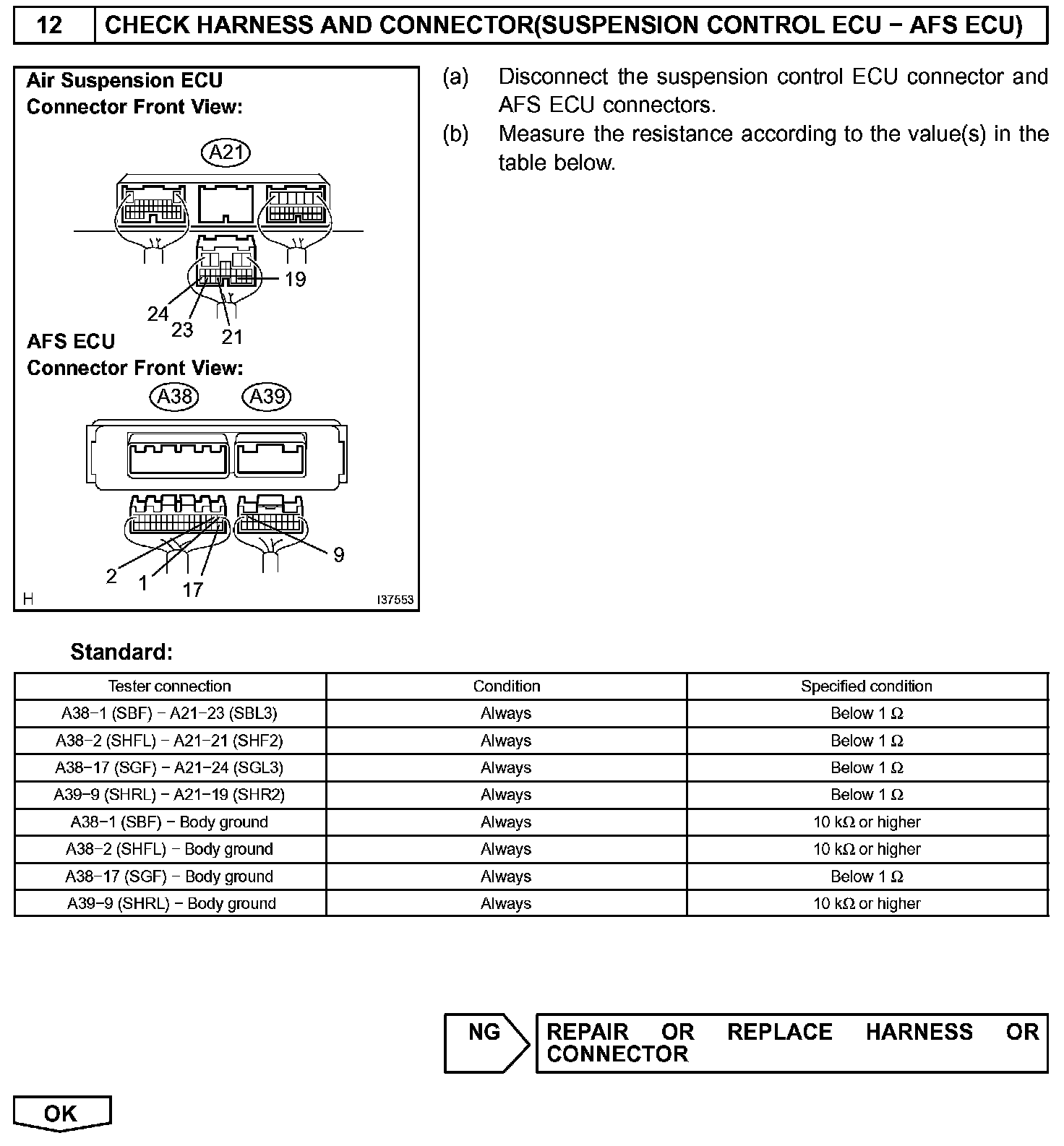

Step 12:

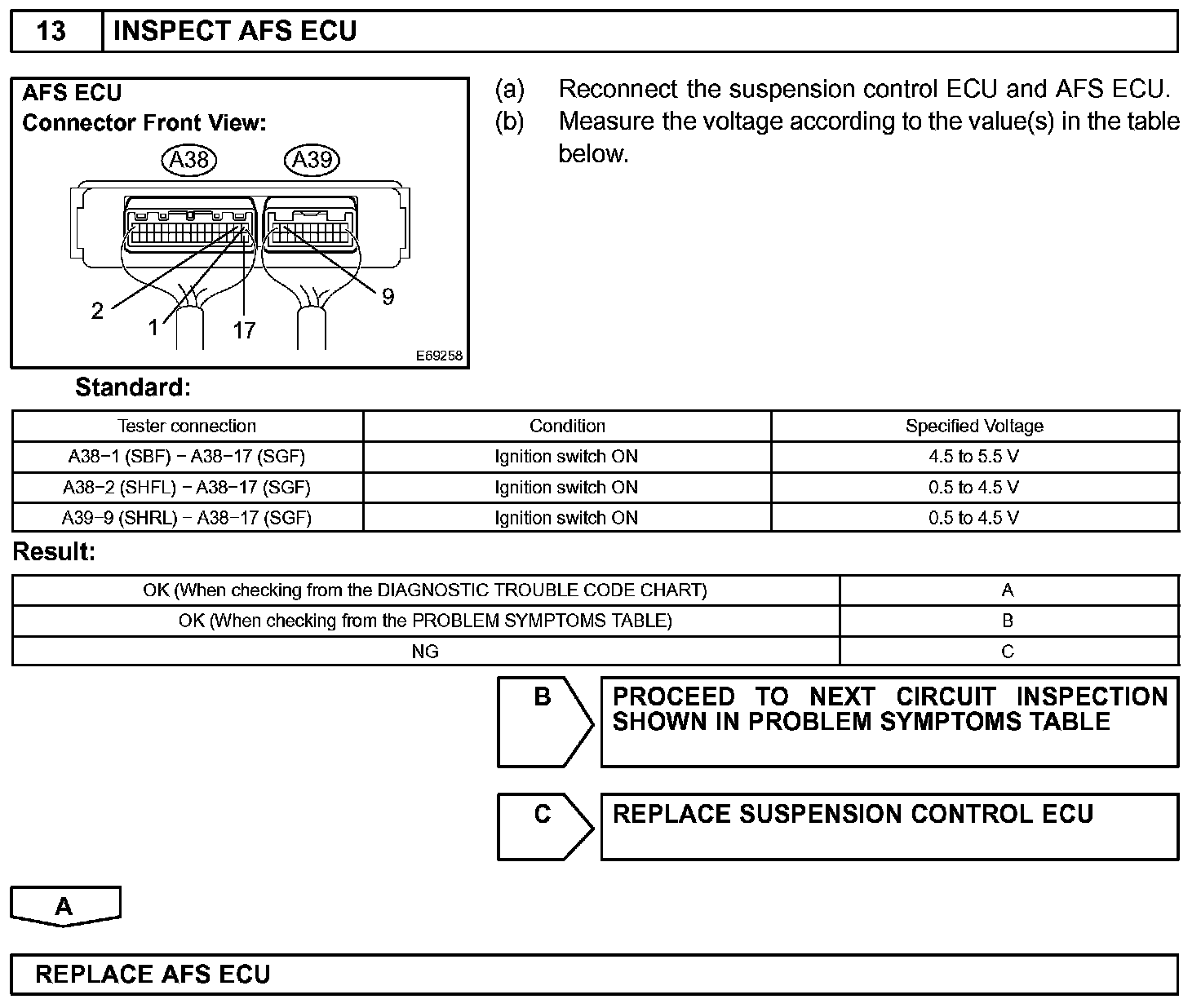

Step 13:

INSPECTION PROCEDURE

HINT: For vehicles without an electronic modulated air suspension: if there is a malfunction in the power source circuit inside the AFS ECU, DTC B2412/B2413 are also output. In this case, troubleshoot B2416 and then the B2412 before replacing the AFS ECU.
