B2414

DTC B2414 STEERING POSITION SENSOR MALFUNCTION

Circuit Description

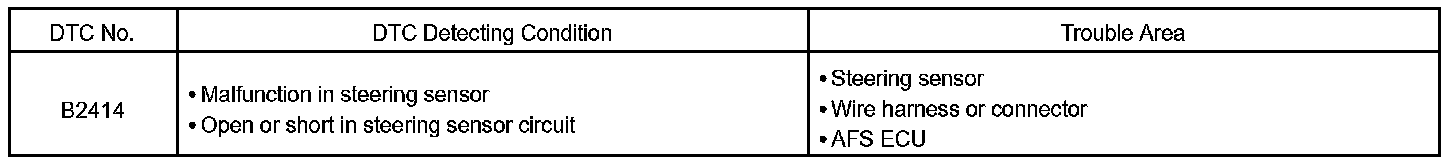

DTC Detecting Condition:

The AFS ECU receives signals regarding the swerve-angle from the steering sensor in the steering wheel.

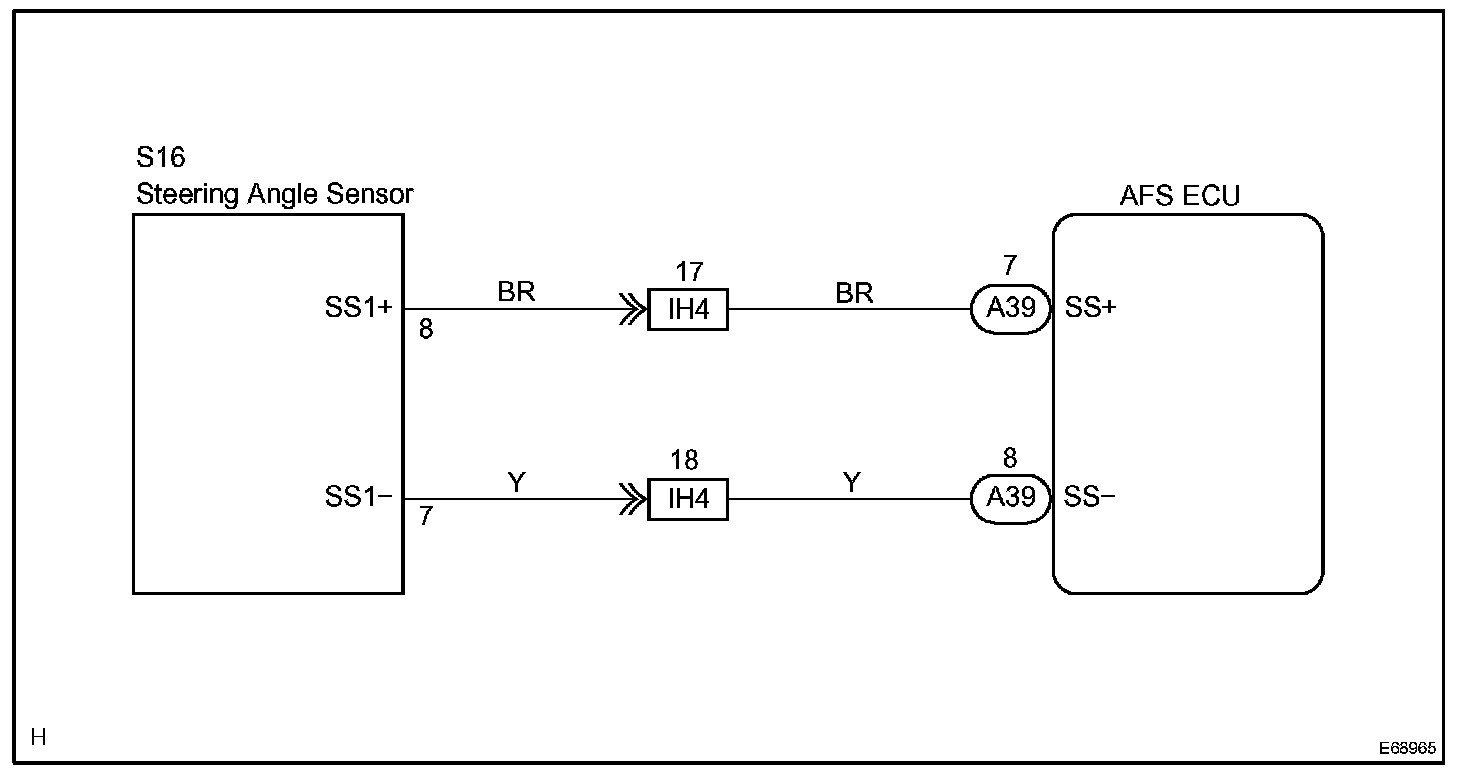

Wiring Diagram:

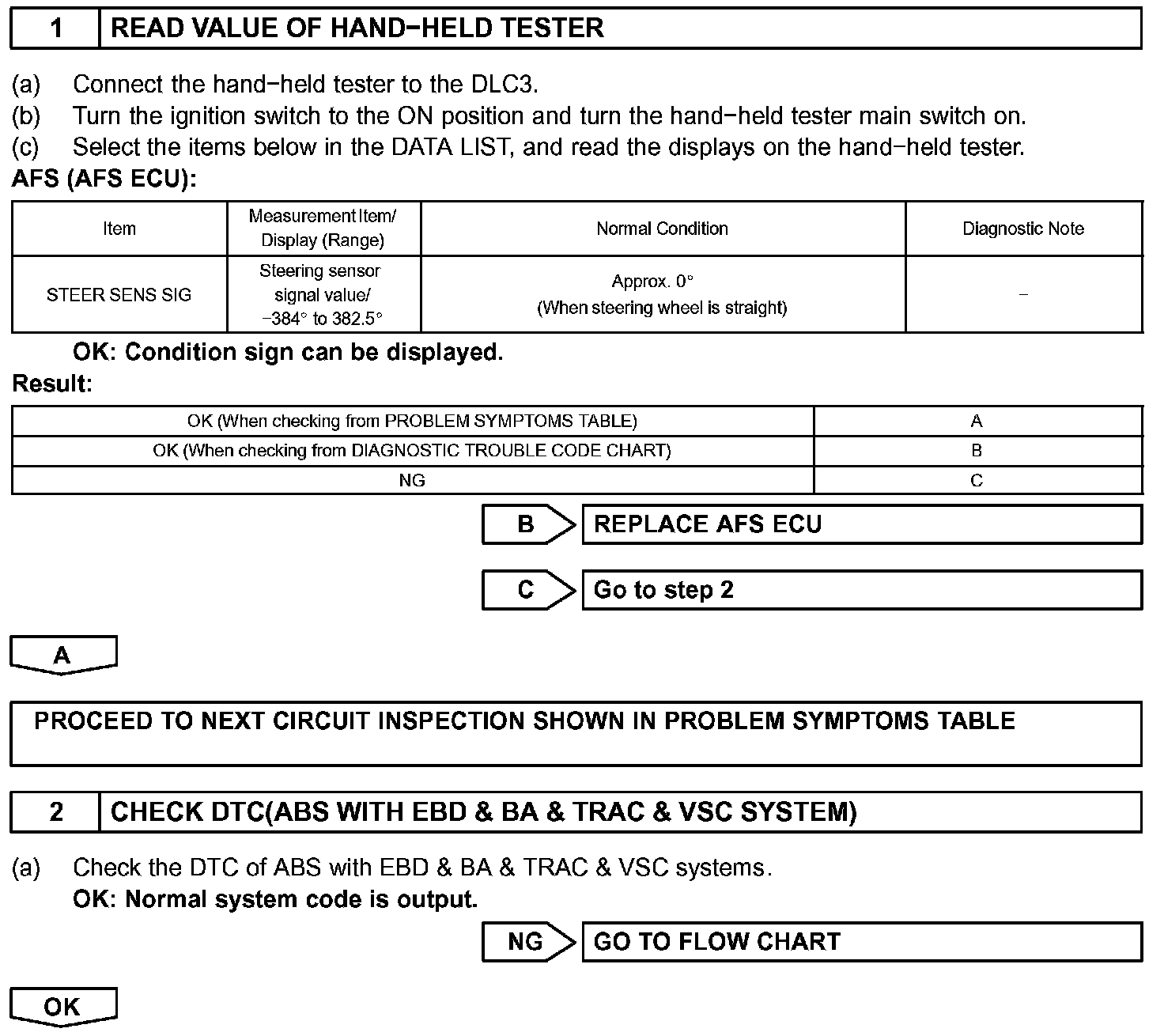

Step 1-2:

Step 3:

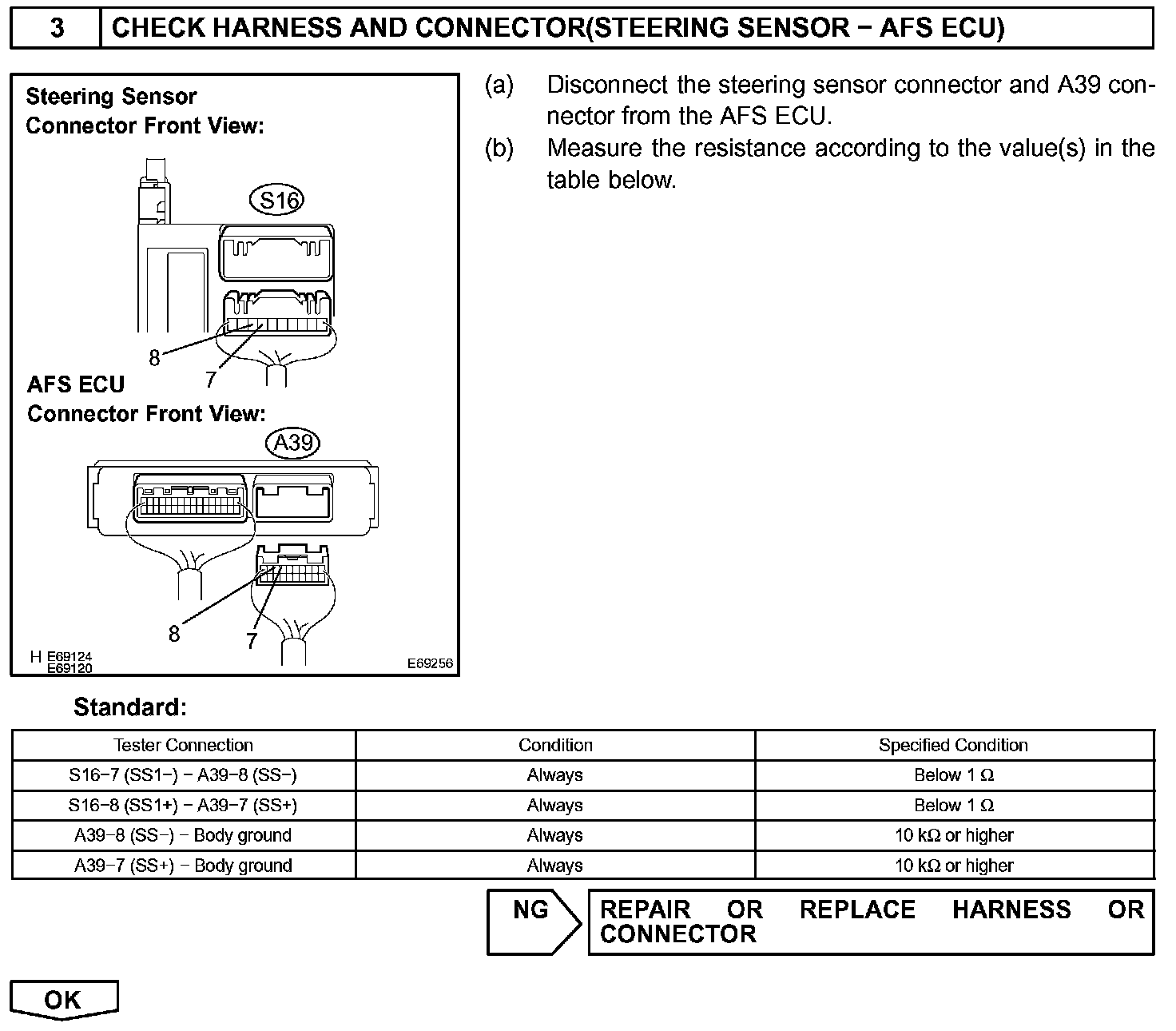

Step 4:

INSPECTION PROCEDURE
